![500ml - 1000ml Bottle Jar Sesame Sauce Linear Filling Capping Machine](https://www.nicefiller.com/wp-content/uploads/500ml-1000ml-bottle-jar-sesame-sauce-linear-filling-capping-machine.jpg)

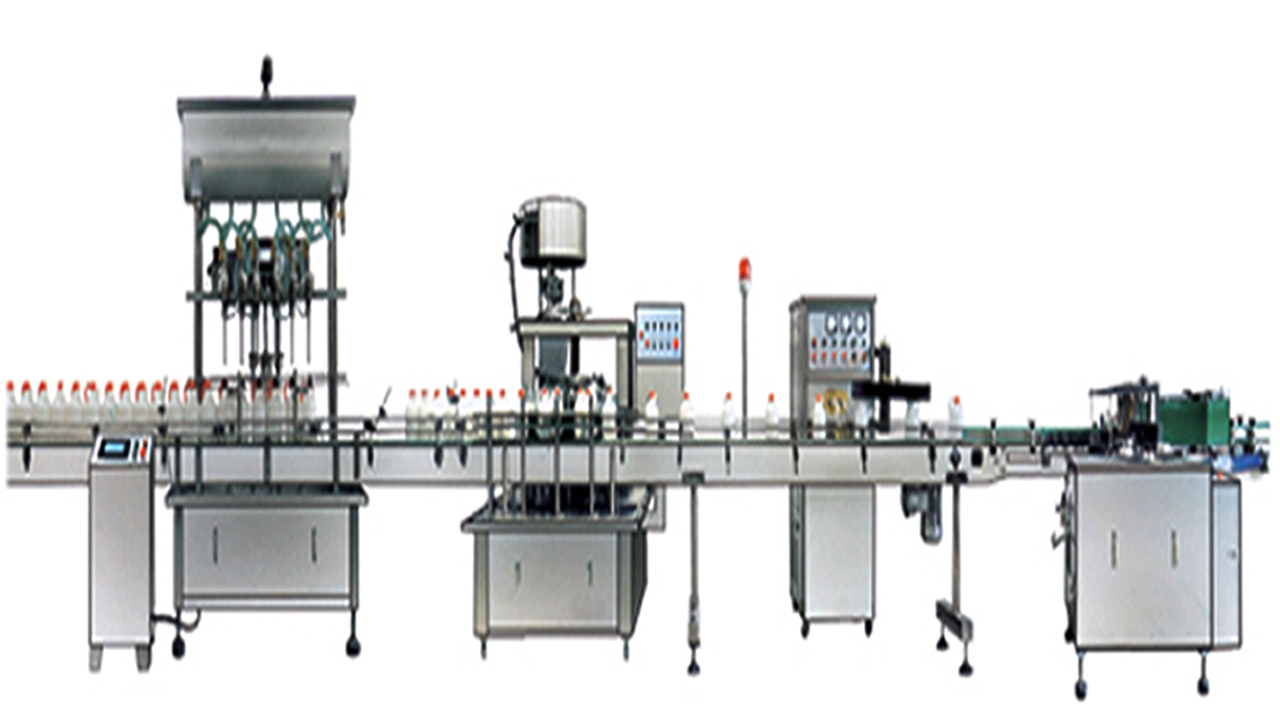

The whole line for the sesame cream jar includes the machinery such as
- Bottle unscrambler
- 4 Heads sever motor linear filling machinery
- Single head pet jar screw capping machine
- Automatic induction sealing machine
Mark: The total length of the whole line is about 10 meters
Filling machine 2m, capping machine 2 meters, Induction sealing 2 meters, At both side of line 2meters total 4 meters conveyor belt

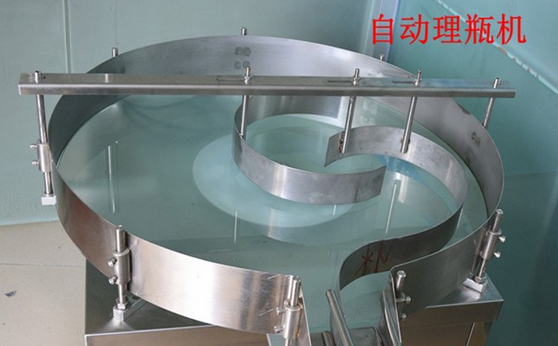

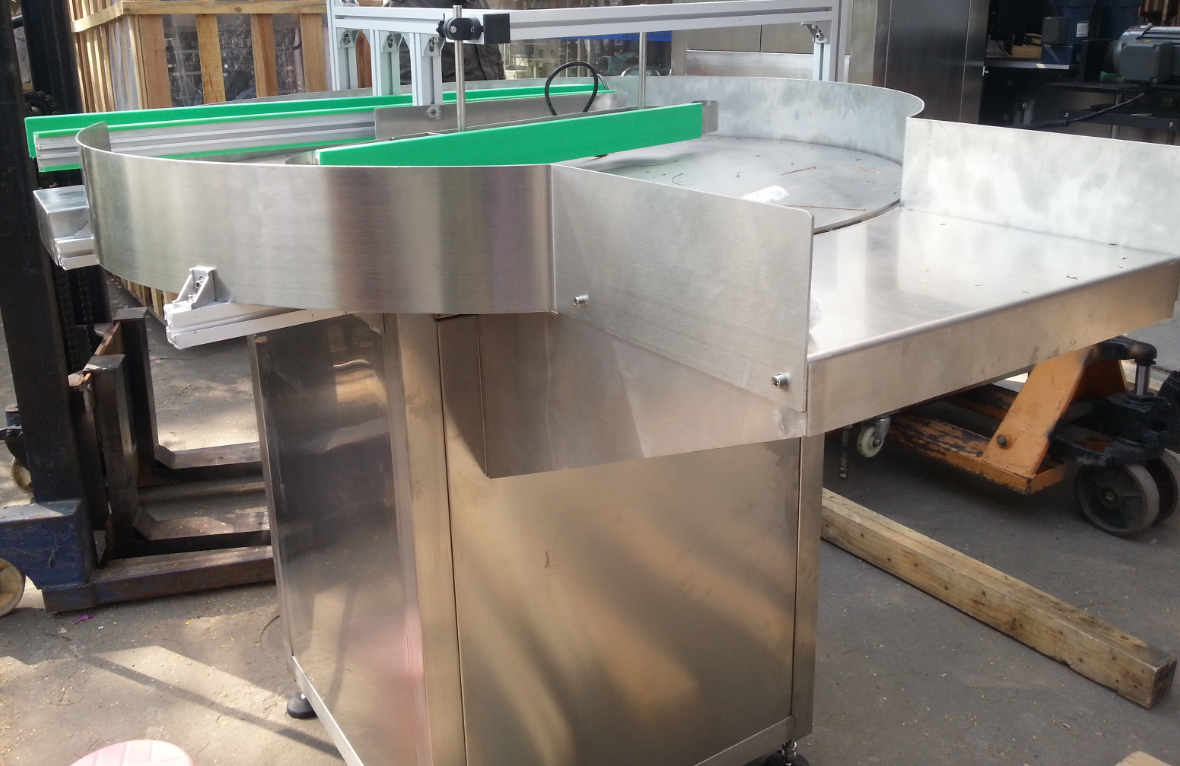

Bottle Unscrambler With 1M Diameter
The unscrambler is the driving force with frequency control table, put the bottle of artificial circular turntable, turntable rotation, will be transferred to the bottle conveyor belt has continued into the filling line for filling.
Easy to use, you easily done with the bottle unscrambler work.
Features Of Bottle Unscrambler
Suitable for unscrambling disordered polyester bottles
Aligns bottles and discharges them by vacuum conveyor
PLC program controlled
Automatic.
High speed operation
Technical Parameters Of Bottle Unscrambler
- Diameter: Φ1000mm
- Speed: 430-50bottles/min(with Speed Controller, Schneider Inverter)
- Power: AC 220V±5% 50Hz 120W
- Material: SUS304
- Motor: Wanxin(Taiwan Brand, reducer without maintain)
- Variable Speed Controller: Taida
- Machine Weight: 80Kg
- Bottle Diameter: Ø20~Ø100 mm

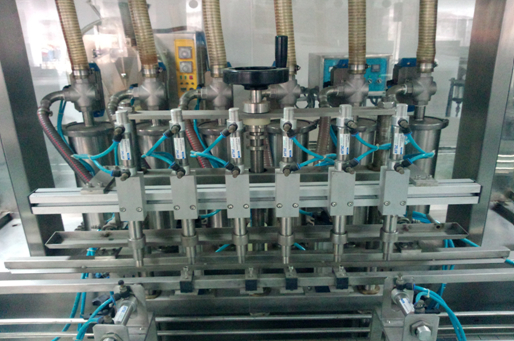

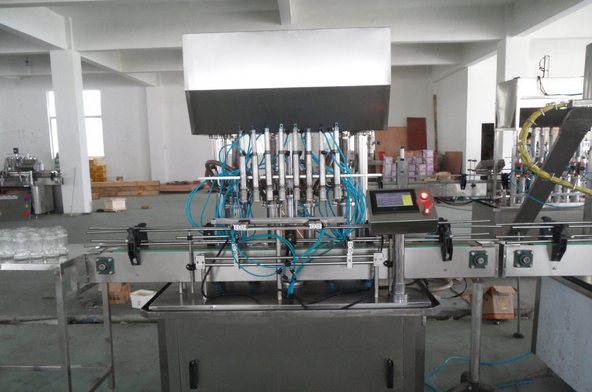

4 Heads Automatic Thick Sauce Ketchup Glass Bottles Linear Filling Machine

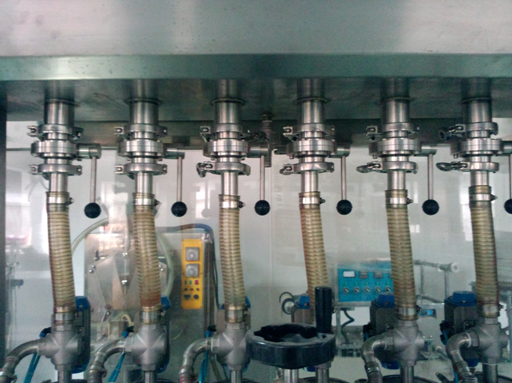

The electrical and pneumatic components from all-automatic thick-sauce filling machine are world-famous products, and it is controlled by PLC. Using piston-type metering principles, combining electrical with pneumatic function together, it performs many advantages, such as, reasonable design, compact structure, beautiful shape, stable and reliable performance, accurate filling, good adaptability, being easy to use and convenient to maintain and so on.
It is widely used in a variety of semi-fluid materials, paste, viscous materials, sauces, and the granule-containing materials filling. Such as those containing fruit drinks, honey, syrup, jam, peanut butter, sesame, tomato sauce, chili sauce and a variety of cream are applicable to it.
This series of filling machines contain a variety of models with double-heads, 4-heads, 6-heads, 8-heads and even 20-heads, which are classified into many types by filling range. In order to meet different customers’ needs, luxurious model, the model of drums with mixing system and the model of high temperature filling at 70-95 temperature could be designed according to the actual situation.
Features Of This Series Of Filling Machine:
The world-famous electrical and pneumatic components are adopted, so the machine will be stable and reliable and could be used with a low failure rate and long service life
The part of machine which touches food are mainly made by the high-quality stainless steel, which makes dismantling, assembling and cleaning more convenient. What’s more, it is in full compliance with food hygiene requirements;
Adjustment of filling volume and filling speed is simple. There is no filling when the bottle doesn’t exist. Liquid level controls filling automatically. It has a nice appearance.
It is adaptable. Without changing elements, bottles of different shapes and sizes can be adjusted and replaced quickly.
Filling mouth with anti-drip device ensure that there is no drawing, no drip during filling.
Parameter Of 4 Heads Thick Sauce Filling Machinery
- Filling Volume: 25-250ml, 50-500ml, 150-1000ml, 500-2500ml (different filling volume customized according to customer’s requirements)
- Filling Speed: 30-40b/min(refer to 50-500ml 6 heads linear filling)
- Precision Tolerance <±1%
- Supply Power: 380V 50HZ
- Pneumatic(MPa): 0.5-0.7
- Dimension(mm): 2000×1000×1800
- G.W: 720kg

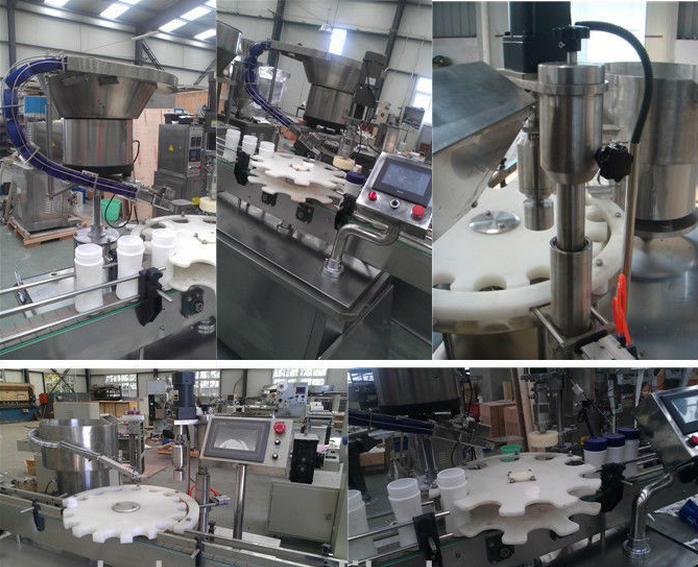

Single Head Screw Capping Machine For Pet Jar
This single heads screw capping machine for glass jars machine is suitable for different materials and different specifications bottle cover, rotation (bar) cap.
For screw caps for foods, the pressure cover.
Capping head with constant torque, the pressure can be easily adjusted compact structure, reasonable, and can be easily linked into line with other devices. Available on request with a dust cover.
Features Of Pet Jars Single Head Screw Capping Machine
The machine is easy and intuitive.
Frequency control, production speed adjustable, automatic counting.
All electrical components are famous brand.
Simple structure, stable performance and easy maintenance.
Outer surface of USU304 stainless steel, full compliance with GMP requirements.
Parameters Of Jar Bottles Screw Capper:
Model | VK-SHC |
Applicable standard | 2-1000ml |
Speed | 30-50 bottles/min |
Rotation (rolling) cap rate | ≥ 99% |
Voltage | 220V/50Hz |
Power | 1.2 kw |
Net weight | 500 kg |
Dimension | 2400 * 1000 * 1700mm |

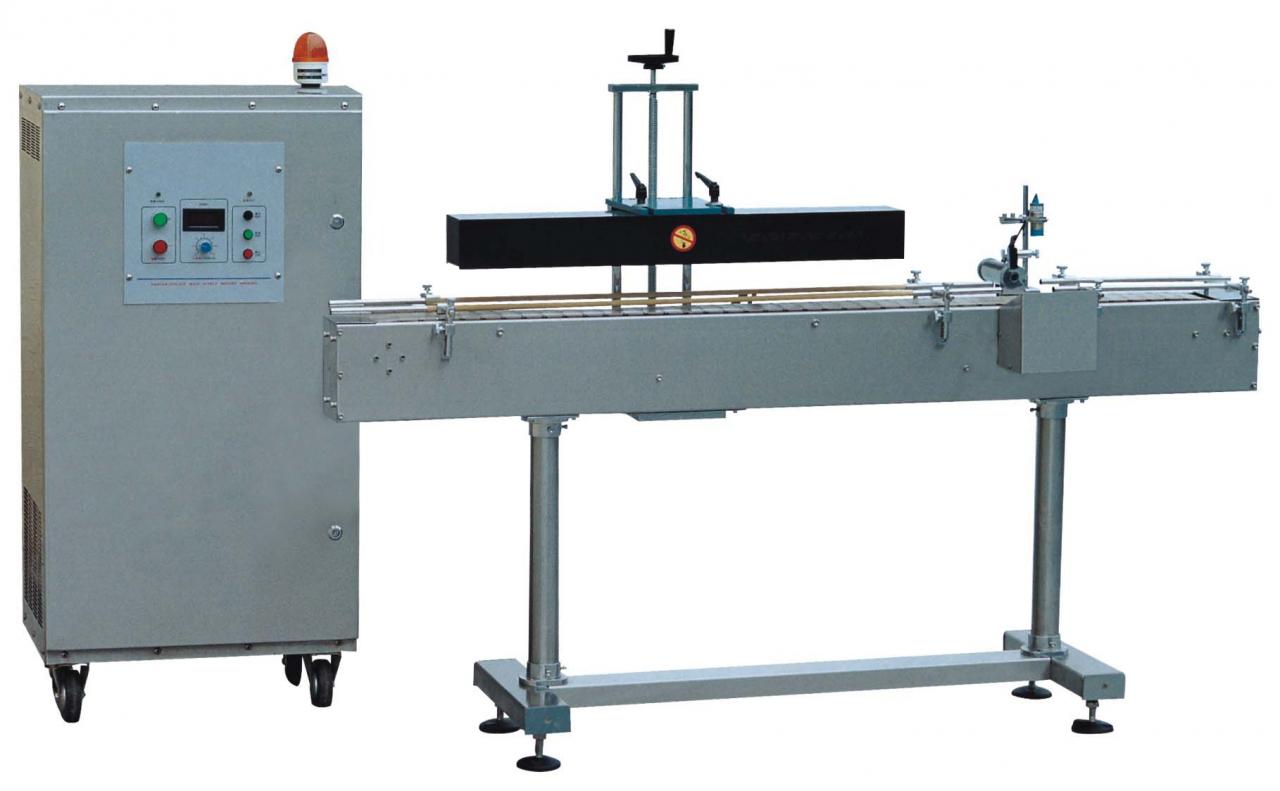

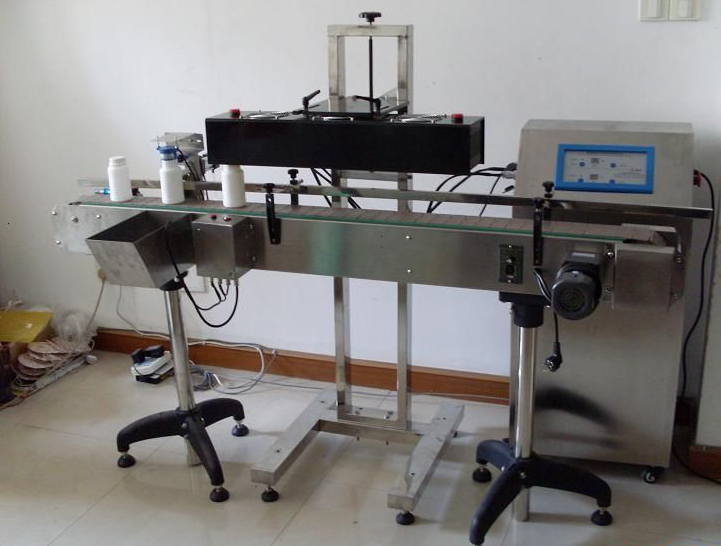

Automatic Linear Aluminum Induction Sealing Machine
The machine is suitable for sealing containers from pharmaceutical, pesticide, food, cosmetics, petrochemical and chemical industries.
The sealer utilizes electro magnetic induction principle to produce instant high heat to melt aluminum foil. Then it adheres to the bung hole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time.
Electrical control is splite from cooling part, therefore, the cooling effect is more ideal.
Container material can be polyethylene (PE), polypropylene (PP), polystyrene (PS), polyester (PET), ABS and glass, ceramics, etc., but not for metal bottle and cap.
Machine Features Of Automatic Induction Sealing Machine
This model adopts strong electric tube control circuit, sensor head uses concave sense structure.
Which is characterized by high output power, fast sealing speed, work stability, strong corrosion resistance.
It is suitable for long-term used in high acid or alkalinity, high humidity and dust in Harsh environment (such as pesticides. Beverage plants, etc. )
This machine can be used independently or in production line.
