502 Super Glue Filling Machine Fluid Adhesive Rotary Filler Capper Machine
  • 502 super glue filling capping machine
  • Model: VK-MFC-G
  • Filling volume: 2-30;5-75;30-150ml
  • Filling head: 1
  • Productivity: 20-30pc/min
  • Bottle kind: plastic
  • Filling accuracy: 1(%)
  • Material: liquid
  • Supply power: ~220V±10%, 50HZ
  • Working temprature: 0-50℃
  • Power: 1.1(kw)
  • Air pressure: 0.6-0.7MPa
  • Weight: 250kg
  • Air consumption: ≥0.2M³/Min
  • Size: 1600×750×1680(mm)
View Video

The filling sealing with tube manual feeding machine is a new adhesive machine for adhesive factory, which mainly used for of plastic bottle packing. It applies 16 bottles station to finish all functions during rotary.

Machine Work Station


filling, cap feeding, capping, bottle eject

Working Process

While adopting the self-motion suction device inhale material and filling, warranty the electromagnetism impact disc to screw-cap. can insure the cap screws on to wanting the degree. This machine adopting variable speed control, photo electricity control, live up to filling when meet tube, if no tube do not to filling. The machine apply to the 502 glue water. The machine not only the first-selection ideal equipment of trade of the adhesive produce, but also at all suitable even in such aspects as medicine, cosmetics, condiment, auxiliary materials, advertisement soaked bean-noodles.

Key Features

super glue.jpg

  • Transmission portion on the worktable underside, security reliable, sanitation.
  • Filling seal tail part build in worktable, half seal no static visible window, easy to observe easy to operate easy to maintenance.
  • Adopt PLC Control.
  • The dish turn around is using cam drive, high speed, high precision.
  • Slanting suspension type tube warehouse, on the tube organization has the vacuum adsorption equipment, guarantees on the automatic tube accurately to enter the tube socket.
  • The photoelectricity to the sign workstation, tube design using motor control located the correct position.
  • Count & ration
  • Available in single head and double head

Basic Parameter


Name502 super glue filling capping machineModelVK-MFC-G
filling volume2-30;5-75;30-150mlfilling head1
productivity20-30 pics/minbottle kindplastic
filling accuracy1(%)Materialliquid
Supply power~220V±10%,50HZworking tempratur0-50℃
Power1.1(kw)air pressure0.6-0.7MPa
Weight250kgair consumption≥0.2M³/Min
Size1600×750×1680(mm)Feeding tubesManual

Application

  • Pharmaceutical creams
  • Cosmetic lotions,creams
  • Gel
  • Honey
  • Liquids
  • Adhesives
  • Fevikwik
  • Super glue etc.

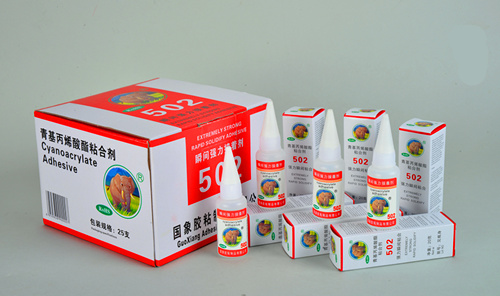

Samples for 502 Glue

502 filler capper.jpg

502 filler capper.jpg

After Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
