Aluminum Tube Glue Filling Sealing Machine

Power Supply: AC220V±10% 50HZ
Work Temp: 5-50℃
Filling Quantity: 5-30, 5-75, 30-150(g), 100-200(g)
Quantity Error: less than 1%
Motor Power: 0.75~1.1kw
Compressed Air Pressure: 0.6~0.7Mpa Volume: 0.2 m3/min
Capacity: 10~50 tubes/min(adjustable)
Dimension: 1500mm×1200mm×1700mm
Weight: 300kg

The aluminum tube filling sealing equipment for glue or paste is used mainly to fill liquid material into metal tube with fixed quantity and seal the tube. It is widely used for the packing of products of pharmaceutical, foods, and chemical industry.

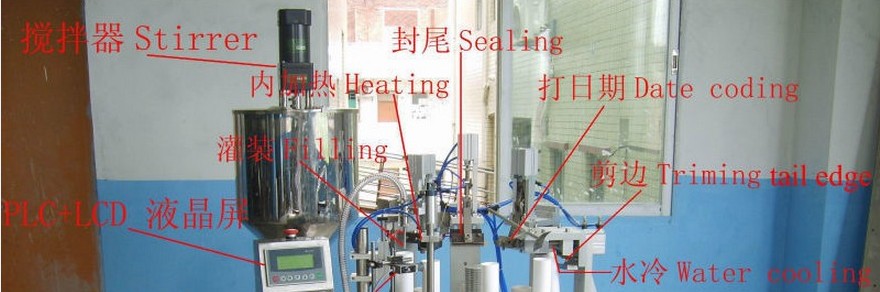

Working Process Of Tube Filling Sealing Equipment:

Manually put the metal tubes into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, the filling system starts to fill the tube with fixed quantity. The tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.

Features Of Alum Tube Filler Sealer:

The machine, with a controllable filling volume or quantity, is featured with a reliable performance performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfected and reliable sealing can be reached. The parts which touches material is made of stainless steel.

The automatic filling and sealing machine is mechatronics mechanical electrical integration, used multiple introduction technology and controlled by PLC, it can complete tube feeding, photocell recognition, filling, sealing,date printing and tube injection automatically simultaneously.

The machine has a modern shape, a strong practicability and good value for process, it is widely used in toothpaste, ointment, paste food, cosmetics, hair-dyeing, adhesive, art palette and so on.
