![Automatic 6 Head Piston Bottle Filling Capping Machine For Shampoo](https://www.nicefiller.com/wp-content/uploads/Automatic-6-Head-Piston-Bottle-Filling-Capping-Machine-For-Shampoo-5.jpg)
- Output/Min Up to 30-140 depending on material foaming character
- Direction of Movement Left to Right
- Number of head/syringe 6 Nos.
- Fill Size 10-1000 ml as per requirements
- Electrical Specification Main Machine 2.0 HP / 415 Volts / 50 Hz.
- Height of Conveyor 860 mm to 910 mm adjustable.
- Net Weight 700 Kg.
Discription

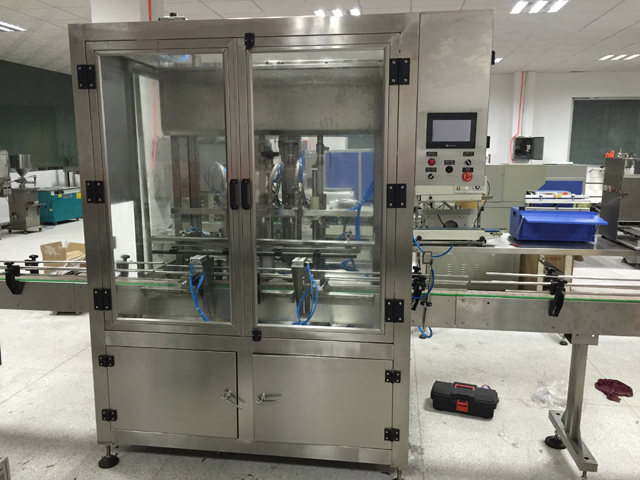

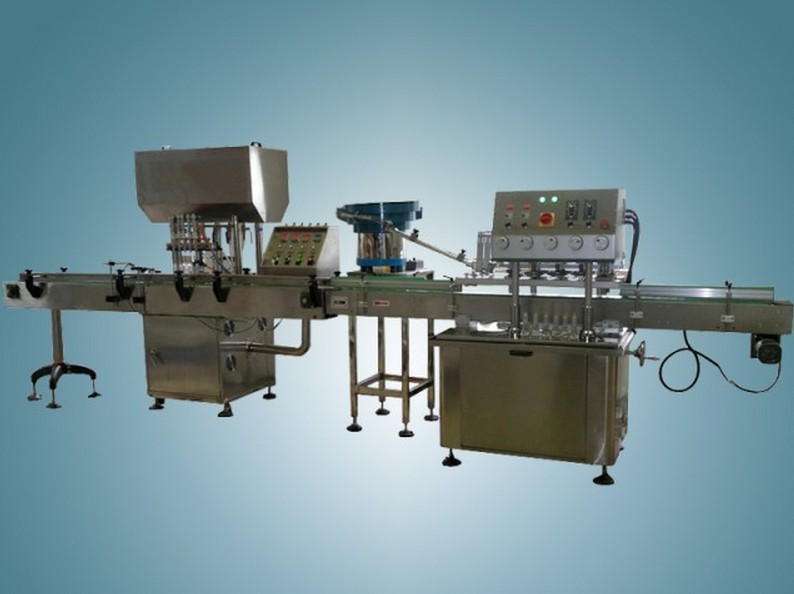

The 6 heads water filling machine include: two to twelve filling heads adjustable speed control conveying belt, high strength stainless steel frame bracket, Japan Mitsubishi Touch screen etc. The production line consist of automatic feeding bottle machine, filling machine, transporting system, automatic cap-loading machine, capping patting machine. electric control case and air compressor etc.
Operation

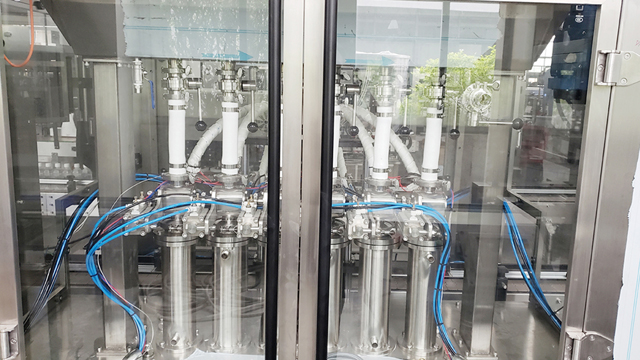

Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose.
The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum of time.
The main drive consists of a helical gearbox driven by A/c motor & through controlled by an Ac frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft, geared motor controlled by an Ac frequency drive. A knob can set the speed of conveyor.
Feature Advantage
Special configuration: filling head of effective anti-leak and silk drawing. Raising and falling of filling system is used for high foam products, bottle month positioning system ensure the bottle mouth localization.
Filling head amount can be added as customer request.
The shampoo filling sealing equipment adopts foreign advanced technologies, designed and developed by our company.
All the parts reach to the GMP standard.
Usage of plastic bottle filling & capping machine.
It is suitable for the filling of various liquid products, widely applied in comestics like shampoo, perfume, sterilization water, wine, water, peanut oil, oyster sauce and lubricant oil etc .
Technical Specification
Output/Min Up to 30-140 depending on material foaming character
Direction of Movement Left to Right
Number of head/syringe 6 Nos.
Fill Size 10-1000 ml as per requirements
Electrical Specification Main Machine 2.0 HP / 415 Volts / 50 Hz.
Height of Conveyor 860 mm to 910 mm adjustable.
Net Weight 700 Kg.
Change parts required (A) Syringes. (B) Nozzle (C) Inlet & outlet hose pipe
