The Whole Line Including The Machine As Below :
- Bottles Turntable For Feeding & Collecting The Bottles
- Overflow Filling Machine 10 Heads
- High Speed Capping Machine
- Rotary Cold Glue Labeling Machine For Both Round And Flat Bottles
- Automatic Cartoning Machine
- Group Boxes Overwrapping Machinery
This whole line is specially designed according to our customer’s bottles sizes and shapes and upon our customer’s requirement.
The machines from bottles feeding table to overwrapping boxes and collecting equipment apply for the packaging line in cosmetic industry.

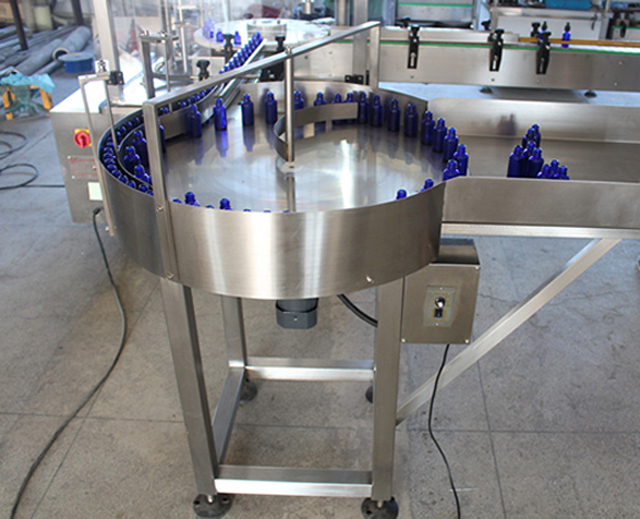

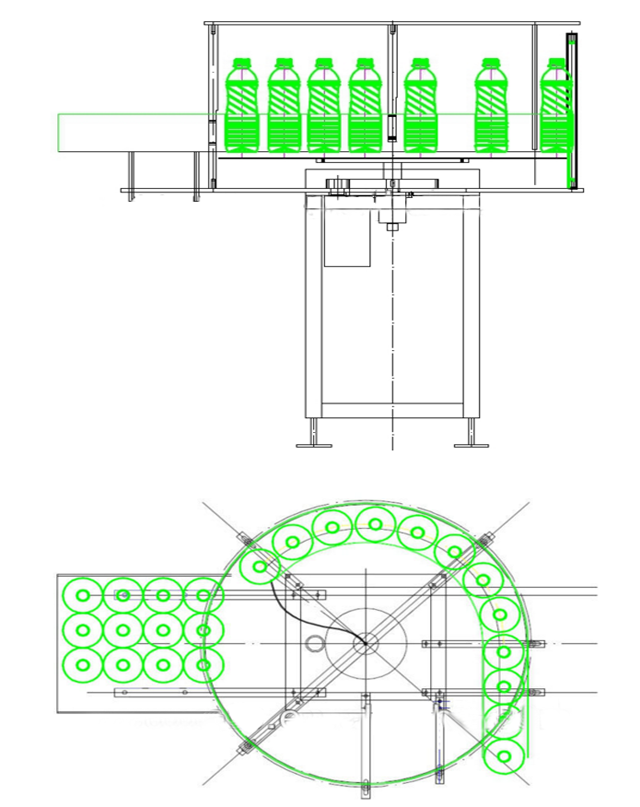

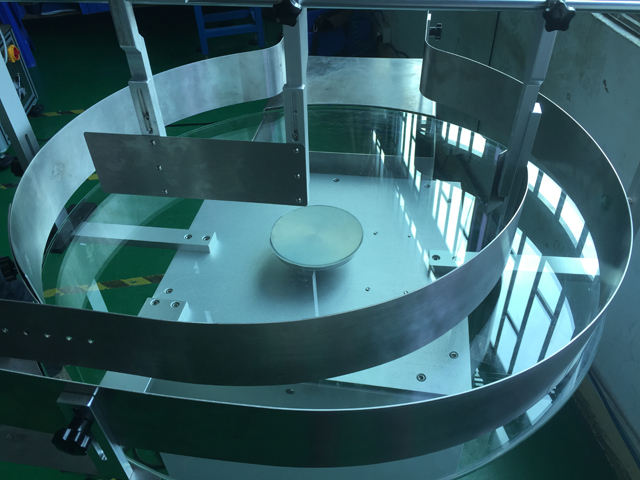

Bottles Turntable For Feeding & Collecting The Bottles
This unscramble bottle machine is the artificial bottles in the round table, wheel rotation will have to dial the conveyor belt into the bottle, into the filling machine for filling. Easy to use, simple operation is one of the indispensable link.
Related equipment: the following equipment can be selected, can form unscramble bottle-filling-capping-labeling-the production line
Technical Specifications
Applicable specifications | 20-1000 ml |
Bottle diameter | φ 10-φ80 mm |
The bottle height | 85-300 mm |
Production capacity | 0-100 BPM (speed adjustable) |
Voltage | 220 v50hz |
Power | 0.5 kw |
Weight | 100kg |
Machine size | 1300*1000*1300mm |
Stainless steel | SUS304 material |
Major Characteristics:
The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.
This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, chemical etc. It is a good choice for small, medium, large factory.

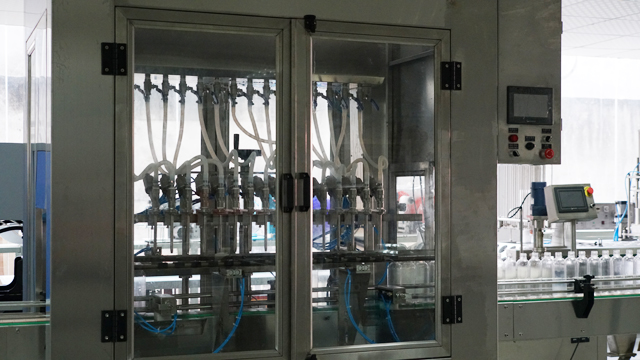

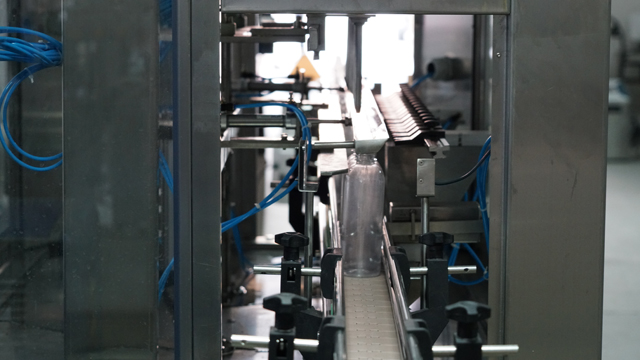

Overflow Filling Machine 1-20 Heads
Automatic overflow filling machine for foaming liquid filler glass bottles liquid level sensor measurement filling machinery
Automatic overflow filling machine is typically used in consumer packaging applications where a consistent visual (cosmetic) fill level is required.

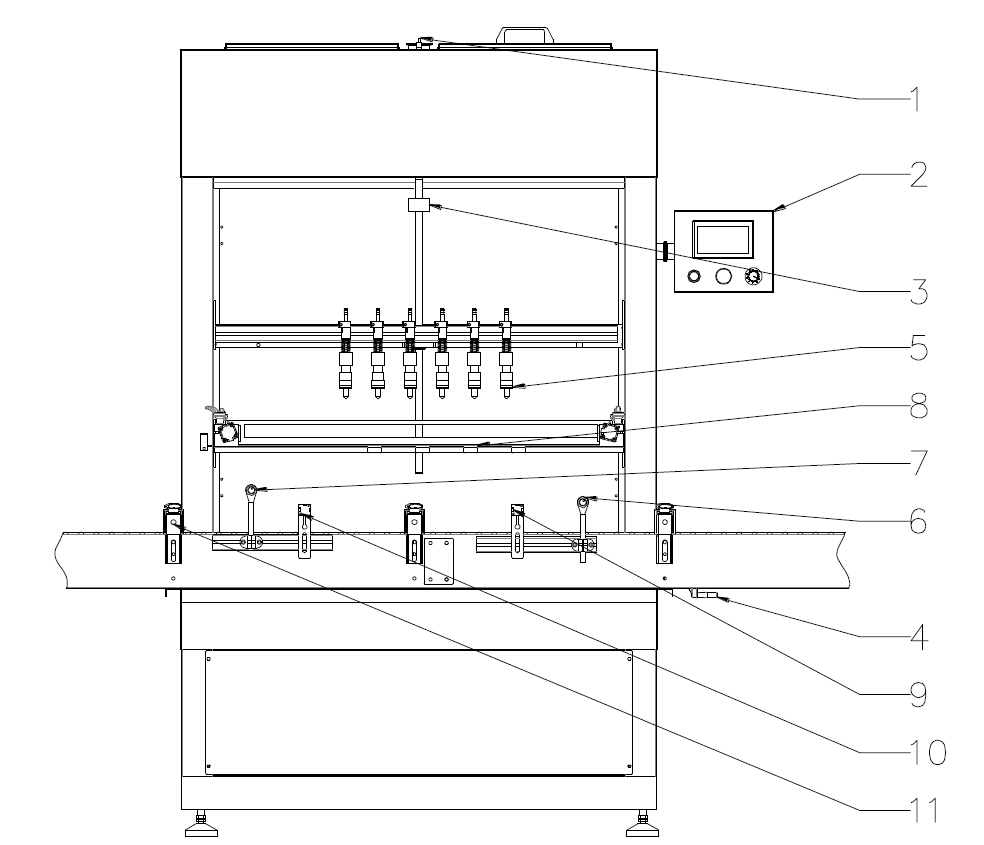

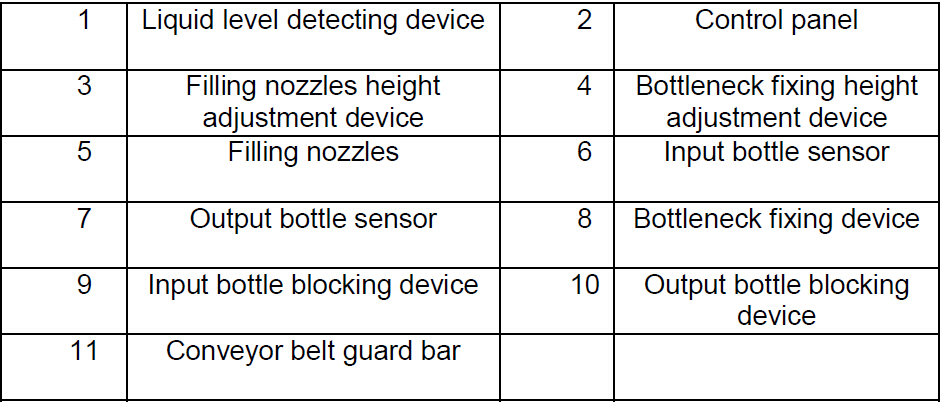

Drawing Of Overflow Liquid Filler Equipment (Examples With 6 Heads Overflow Filler Equipment)
The desired liquid product to be filled is held in a stainless steel reservoir, then pumped into a manifold to disperse product to each of your filling nozzles. Once the product reaches your desired cosmetic fill level in each bottle, excess product or foam overflows back to the reservoir. Advantages of the overflow filler include even fill levels, variable pressure pump speed control (to reduce foam), and ease of operation.
This Filler is manufactured with a heavy duty 304 stainless steel, high quality tig-welded tube frame and is available with 1 to 20 filling heads. It also comes standard with PLC Controls and color touch screen HMI, a stainless steel reservoir, and Pneumatic Indexing Gates, plus many more features. Options are available for even more versatility.
automatic overflow filling machine are commonly used for filling beverages and other thin products, especially where foam or bottle inconsistency might be an issue. VKPAK automatic overflow filling can be built to suit sanitary, hazardous, flammable and corrosive environments.
Automatic Overflow Filling Machine Technicals
- No. of filling nozzles: 1-20 heads
- Filling volume: 1ml to 10000ml
- Air pressure range: 0.4~0.6MPa
- Power supply: 220V±5% 50/60Hz
- Power consumption: 0.8kw
- Single machine noise: ≤50dB
- Net weight: 600kg
- Overall Dimension(mm): L*W*H=1600×1000×1800mm
Automatic Overflow Filling Machine Characteristic:

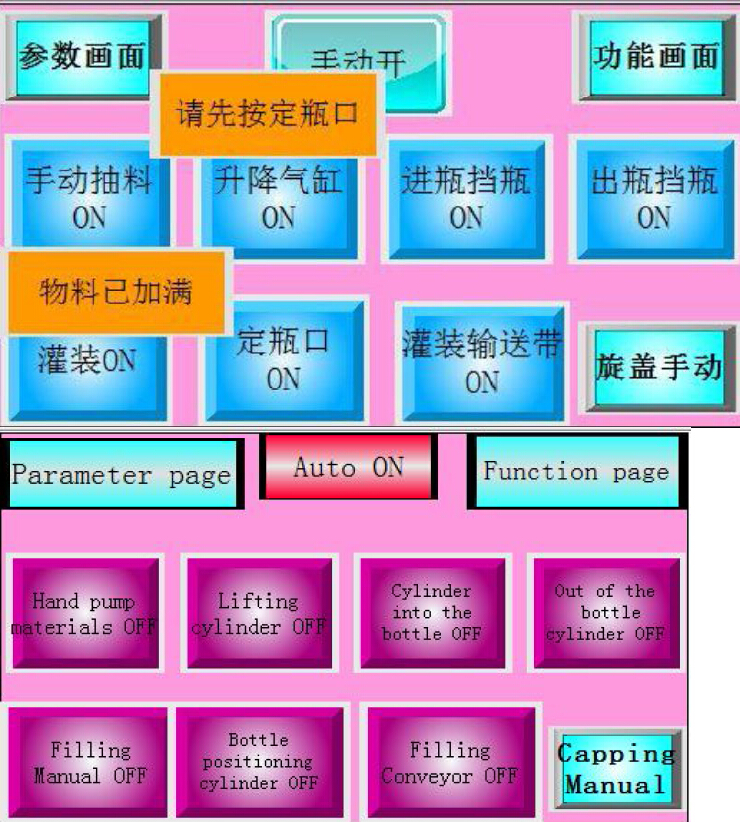

Man-machine English interface, intelligent contact screen, human design, easy operation.

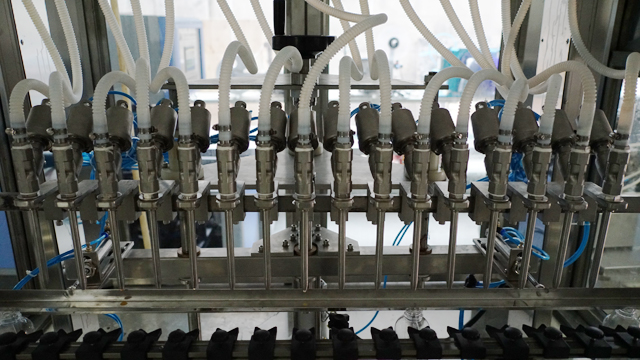

Special overflow filling nozzles, accuracy level filling.
Program logic controller (PLC),
It is easy for changing size or modifying parameters.
Pneumatic elements are all imported, stability and reliability.
Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
Close positioning design, easy governing, suitable for packing of all sizes of bottles.
The whole machine is designed according to requirements of GMP.
Options: Filling nozzles can be equipped according to the output.

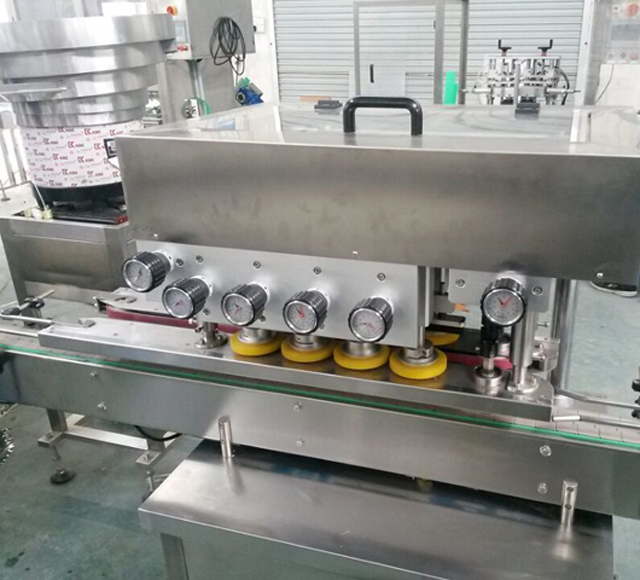

VK-SC High Speed Capping Machine
Basic Parameters Of Screw Capping Machine
Type | VK-SC |
Production capacity | 80-160 Caps /min |
Cap size | 10-50/35-140mm |
Bottle diameter | 35-140mm |
Bottle height | 38~300mm |
Size(L×W×H) | 3000×1200×2000mm |
Weight | 400kg |

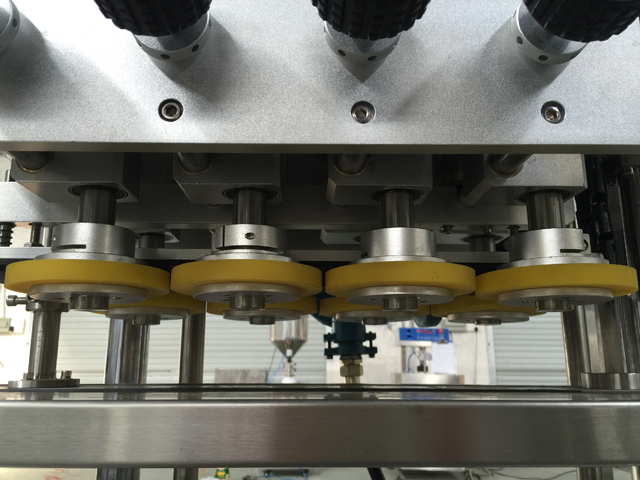

Features Of Pump Caps Capping Machine:
Automatic high speed cap machine is the latest improvement of a new type of capping machine. Aircraft elegant appearance, smart, capping speed, high pass rate, applied to food, pharmaceutical, cosmetic, pesticides, cosmetics and other industries ofdifferent shaped screw-cap bottles.Four speed motors are used for cover bottle clip, transmit, capping, machine high degree of automation, stability, easy to adjust, or replace the bottle cap when not spare parts, Just make adjustments to complete.
Remarks:
1. No bottle no cap facility
2. Different sizes of cap, no need additional tools, easy to adjust
3. Automatic cap-unscrambler, cap-feeding, bottle-fasten, cap-screwing
4. Tested and adjusted before delivery
5. English operation manual and relative spare parts offer

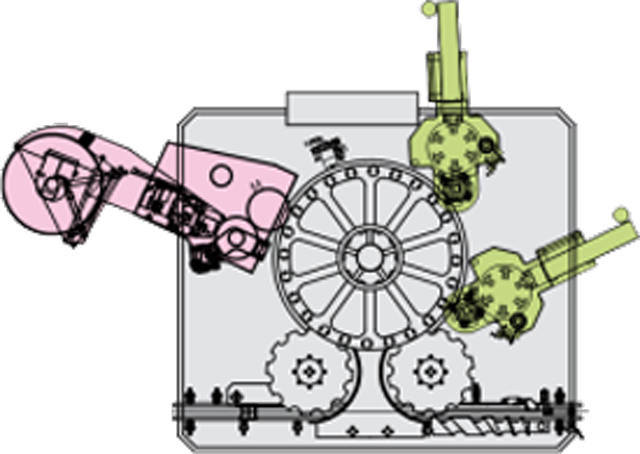

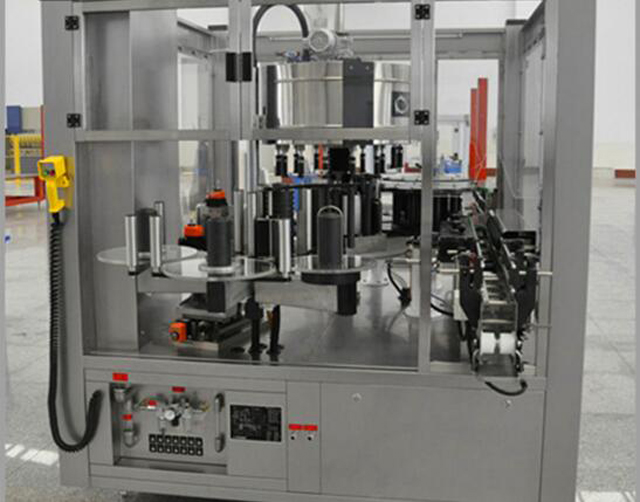

Rotary Cold Glue Labeling Machine For Both Round And Flat Bottles
The fully automatic rotary double stations cold glue labeling machine suits for different industries for beer, white spirit, wine, health wine, seasoning, cosmetics, medicine, cans and others. It is usually equipped with two stations, and can be labeled in the fixed position with the productivity of 3000-15000 bottles / hour. It is essential to satisfy the upgrading of the whole production line and improve the production appearance.
Basic Parameter Of Rotary Wet Glue Labeling Machine
Rotary labeling machine wet glue labeller
- Main motor power: 3kw
- Main motor: SEW
- Main voltage: 380±10% V
- Frequency: 50 Hz
- Label type: body label, back label,neck label
- Suitable bottle type round & flat bottle: 35~100, H=140~350
- Maximum label width: 145 mm
- No. of taking label plate: 4
- No. of drum location: 4
- Adjustable speed range : 3000-12000 bottles/hour
- Dimension (length*width*height): 2290*1930*2150 (mm)
- Weight About: 3500kg
- Compressed air consumption: 0.08 M3/min(0.6Mpa; no oil)
- Label wastage: ≤1‰
Electrical Configration
- Touch screen: SIEMENS
- PLC: SIEMENS
- Frequency converter: SCHNEIDER
- Photoelectric sensor: LEUZE
- Encoder: SICK
- Low voltage apparatus: SCHNEIDER

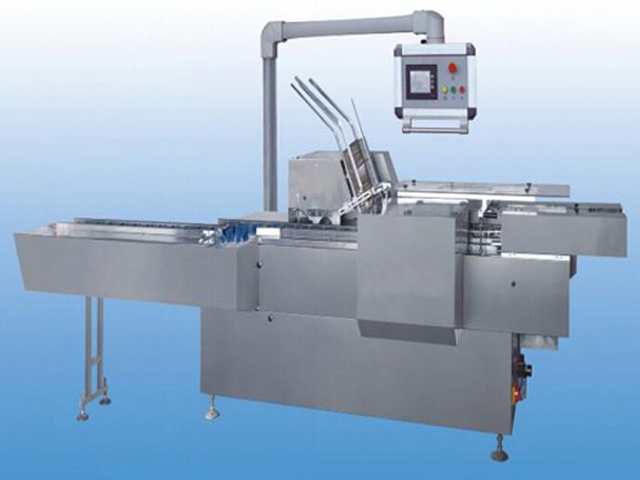

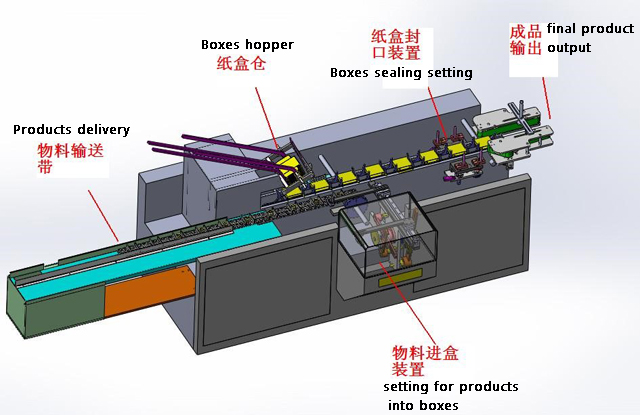

Automatic Cartoning Machine

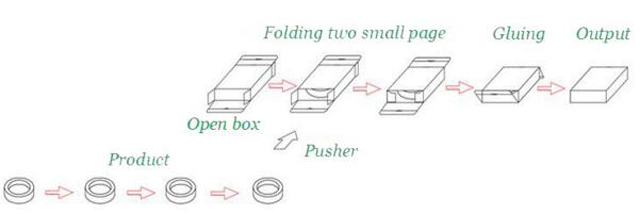

This is mainly used in medicine, food, health care products, cosmetics, audio-visual products, and other industries square exterior decoration items boxed packaging. Such as kit, gum, health products, tea, sugar, condoms, rubber, mosquito coils, cigarettes, tape, VCD (CD) CD, playing cards, transparent soap, square battery, floppy disks, etc. play a security, the role of moisture, and improve product quality, increase product added value. The machine can use in the production line, work with the carton packing machine.
Characteristics Of Boxes Cartoning Equipment Fully Automatic:
1. It adopts PLC control, frequency inverters control speed, electrical element are all used international famous brand;
2. Adopt human-machine interface;
3. Automatically displaying device for malfunction, cartoning speed and finished products counting;
4. Automatic check the neglected cartoning and waste picked out for products and leaflet;
5. It is easy to understand and operate, work stably;
6. It doesn’t inhale leaflet without products and dosen’t inhale box without leaflet;
7. It idles and doesn’t push products if there is no products or products supply does not reach the designated position. Machine will work automatically with reinstatement of products supply;
8. It stops automatically if there is no box or continuous no leaflet;
9. It is easy to replace different products;
10. The machine can be used alone, besides, it can be linked to work with blister packing machine, bottle filling machine and heat shrink packing machine.
Basic Parameter Of Automatic Cartoning Equipment Boxing Equipment:
PROJECT | PARAMETER | |
Encasing speed | 30-120 case/min | |
Box | Quality requirement | 250-350g/m*m |
Dimension range (L× W× H) | (50-180)mm* (30-85)mm* (15-50)mm | |
Leaflet | Quality requirement | 50-65g/m² |
Unfolded leaflet specification L× W | (80-300)mm*(70-210)mm | |
Folded leafilet specification(1-4)*(L× W) | (70-210)mm*(20-40)mm | |
Compressed air | Working pressure | 0.5-0.7mpa |
Air consumption | 120-160L/min | |
Power supply | 220V 50HZ | |
Motor power | 1.5kw | |
Machine dimension(L× W× H) | 3200mm* 1200mm* 1900mm | |
Machine weight | 1500kg |

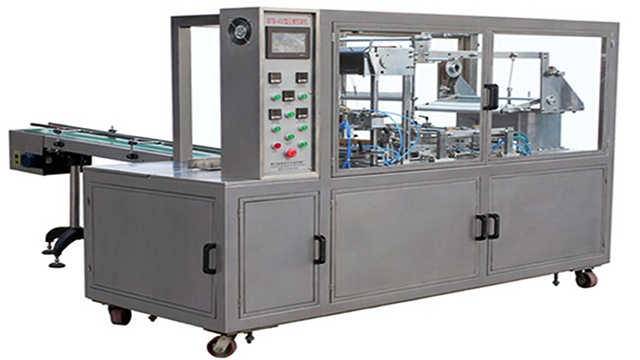

Group Boxes Overwrapping Machinery

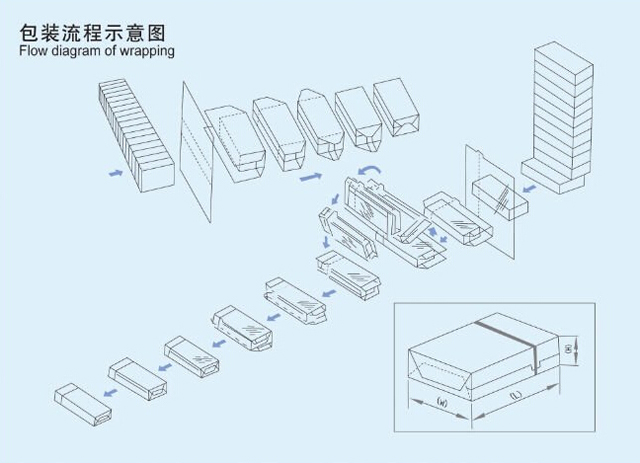

Cellophane overwrapping machine is used for wrapping the square, rectangular and even trapezium shaped product with a layer of cellophane paper the same as the packaging of cigarette.
Suitable for single and bundles packaging of various pharmaceuticals, condom, health-care products, confectionery, chewing gum, tea, coffees perfumes, cosmetics, notepad, scratchpad, stationery, eraser, digitalmedia, VCD/DVD/CD cassette, tape, tobaccos, playing cards, napkin paper, etc.
Functional Features

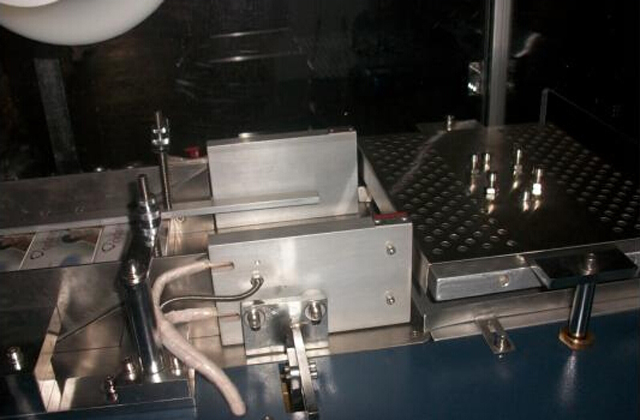

This machine is designed on the basis of absorbing,digesting and improving the advanced science and technology from europe and japan, using imported plc control and electric components, which is drived by pneumatic cylinder, the servo motor controls the film falling, the setting and adjustment of the film length could be adjusted freely, at the advantage of stable and reliable operation, high speed, a firm packing, smooth and beautiful. The frame of machine is made up of imported high quality nice aluminium alloy or stainless steel and closed safe glass shield, it could do packing, feeding, folding, heat-sealing, counting and sticky tear tape automatically. Malfunction automatic self-diagnosing and alarming, changing few parts could wrap different specification (dimension, height, width) of different products. Can be used with cartoning machine, save money, reduce human resouce, improve effcet.
Performance Parameter Of High Speed Servor Motor Materials Feeding 3D Overwrapping
Model | Button controlling | PLC touch screen system |
Packaging speed | 30-60boxes/min | 30-60boxes/min |
Packaging size | (L)65-270mm(W)60-150mm(H)20-90mm | (L)100-400mm(W)45-240mm(H)20-115mm |
Machine dimension | (L)2300mm(W)860mm(H)1670mm | (L)2180mm(W)1000mm(H)1500mm |
Conveyor dimension | (L)1650mm(W)450mm(H)950mm | (L)1600mm(W)270mm(H)770mm |
Weight | 900kg | 800kg |
Total power | 6.5kw | 6.5kw |
Voltage | 3N AC 380V 50HZ | 3N AC 380V 50HZ |
Air pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
