Automatic Cosmetic Lip Balm Lipstick Bottom Sticker Labeling Machine

• Lipstick Bottom Labeling Machine
• Model: VK-LBL
• Driving Mold: German Avery
• Capacity(Pcs/Min): (20-200pcs) Depends On Bottle And Label Size
• Conveyor Speed(M/Min): ≤35m
• Label Material: Adhesive Sticker, Transparent Or Opaque
• Suitable Label Size: Width:15-160mm Length:15-300mm
• Suitable Bottle Size: (Customized)
• Voltage: Ac110v/220v/380v
• Operating Direction: Left Or Right
• Labeling Accuracy: ±1.0 mm
• Total Power: 550w
• Machine Size: 1800x800x1600mm

During the labeling process for different products, one question is often resurgent: is there a way to automatically label the products of lipstick and lip balm? Can I position the label on the side of the bottle or at bottom of lipstick?

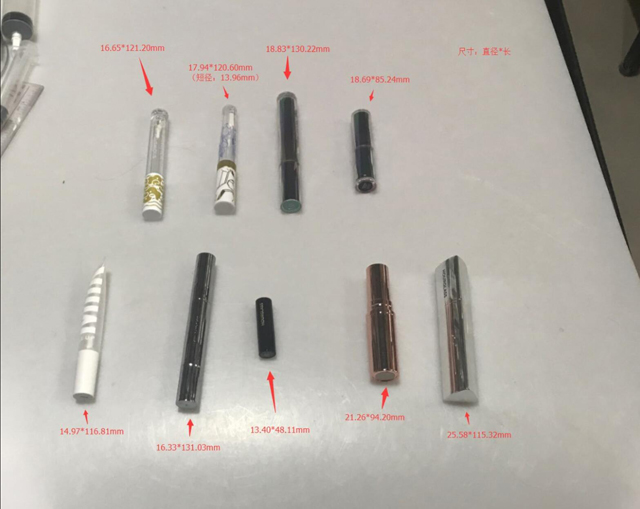

We give the definite answer: yes! Usually according to the product specifications, the size of the sticker, the position of the label, we will recommend the appropriate labeling machine, such as lipstick, lip balm, mascara, syringe, ampoule, pen tube, injection bottle, lip gloss, essential oil, etc. This type of product usually has some characteristics:

1. The circumference of the bottle is small

2. It is difficult to stand and transport products

3. Products need high precision requirements for labeling.

4. The product needs to be positioned and labeled.

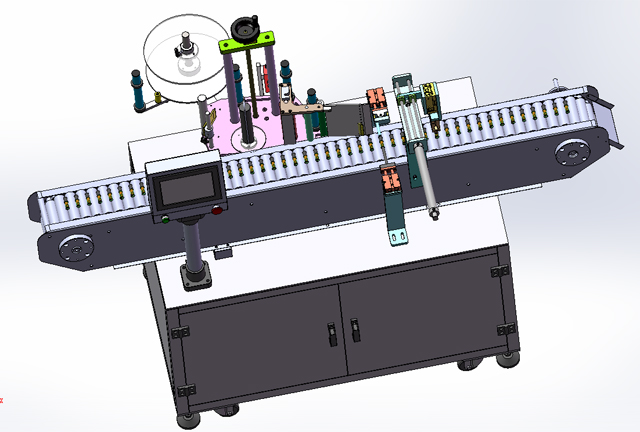

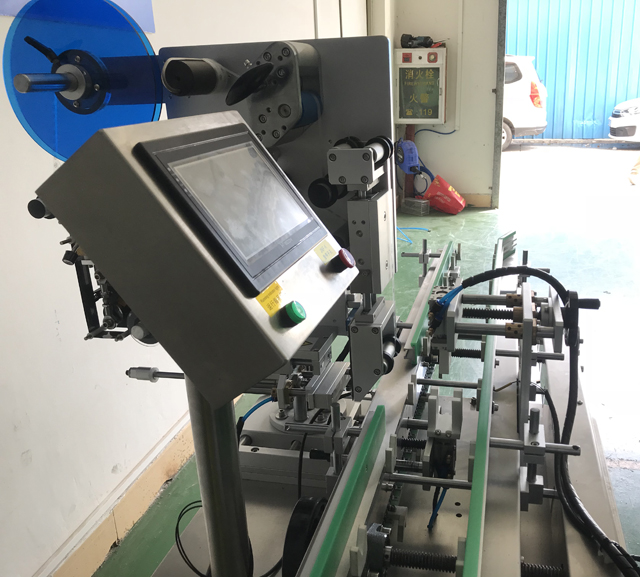

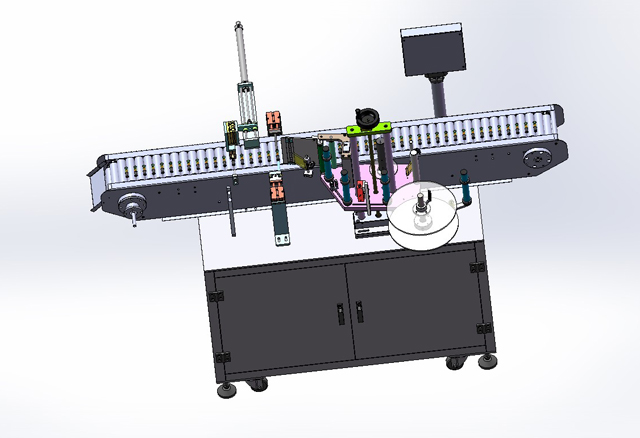

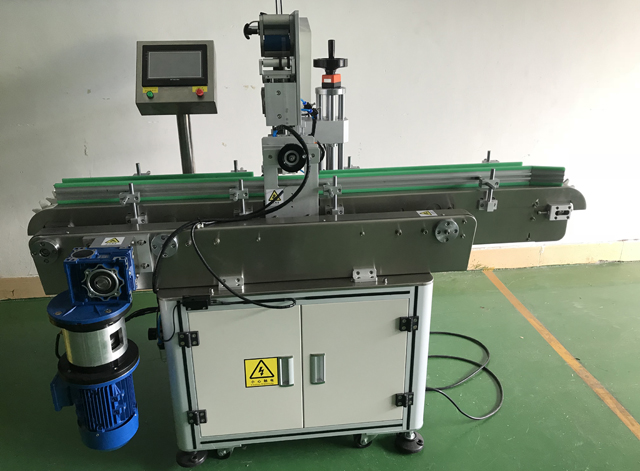

Automatic lipstick lip balm labeller VK-LBL is a customized labeler for labeling lipsticks with one tamper seal label on the side and another label at the bottom of the products. It can also be customize to label similar products which need to be adhere two labels on the same products.

The Scope Of Application

Using horizontal roller conveyor products for labeling operations can overcome the problem of bottle reversal, tilting or inaccurate positioning during product conveying. Whether it is necessary to apply a full circle, the 1/2circle label or the bottom label can be easily completed. At the same time, the accuracy of labeling is improved, and the efficiency of labeling production is enhanced.

The labeling machine suit for small diameter round shape products, which can not standard stably on conveyor, such as ampoule, tube, vial,pen, markers, injection and so on.

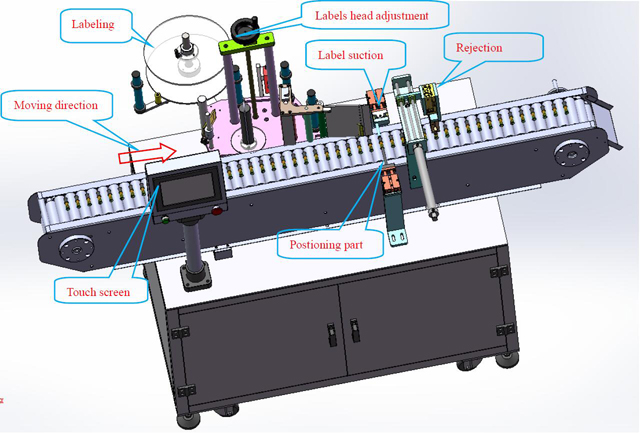

Equipment Composition

Electrical cabinet, Conveying mechanism, feeder, press label device, 1# labeling engine, Operation system and control system ;

Equipment Function Characteristics:

1) Control system: German SIEMENS PLC control system, with stable operation and extremely low failure rate.

2) Operation system: German SIEMENS 7 inch touch screen, directly visual interface easy operation, with Chinese and English language, also rich with help function and fault display function.

3) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

4) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

5) Others: Low voltage circuit all use the German Schneider brand. The bearing use IKO.

Technical Paramter Of Lipstick Labeller:

• Lipstick Bottom Labeling Machine
• Model: VK-LBL
• Driving Mold: German Avery
• Capacity(Pcs/Min): (20-200pcs) Depends On Bottle And Label Size
• Conveyor Speed(M/Min): ≤35m
• Label Material: Adhesive Sticker, Transparent Or Opaque
• Suitable Label Size: Width:15-160mm Length:15-300mm
• Suitable Bottle Size: (Customized)
• Voltage: Ac110v/220v/380v
• Operating Direction: Left Or Right
• Labeling Accuracy: ±1.0 mm
• Total Power: 550w
• Machine Size: 1800x800x1600mm

Configuration Of Lipstick Label Applicator:

PLC control system - 288-1ST20-OAAO - 1 set - SEMIENS

Touch screen - 648-OCC11-3AXO - 1 set - SEMIENS

Photoelectric sensor (Check bottle) - FS-N18N - 1 set - Japan KEYENCE

Photoelectric sensor (Check opaque label) - GS61/6.2 - 1Set - German Lueze

Photoelectric sensor (Check transparent label) - LRD2100 - 1Set - USA Lion

Labeling engine - ALS104/206 - 1 set - German Avery

Drive - ALS104/206 - German Avery

Main transport motor - 90W1:30 - 1 set - German JSCC

Rolling label motor - 40W1:30 - 1 set - German JSCC

Speed Controller - 25-90W - 1 set - German JSCC

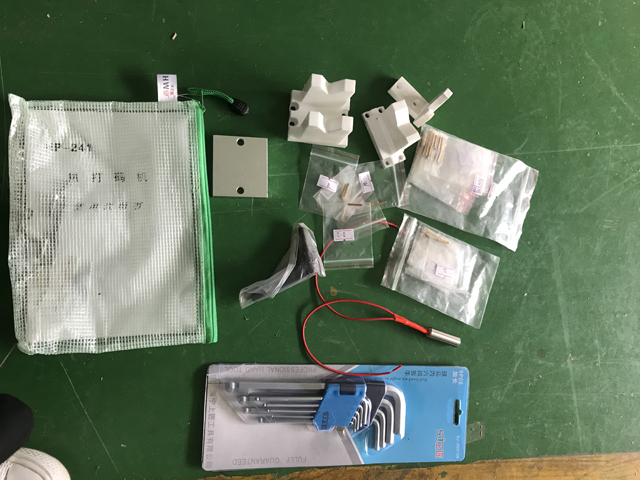

Spare Parts Package For Lipstick Labeling Machine:

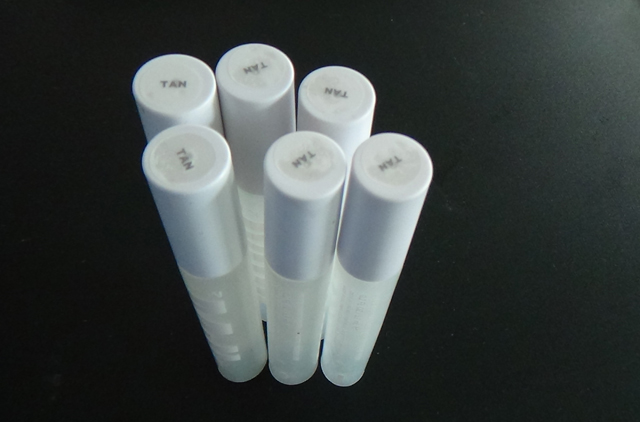

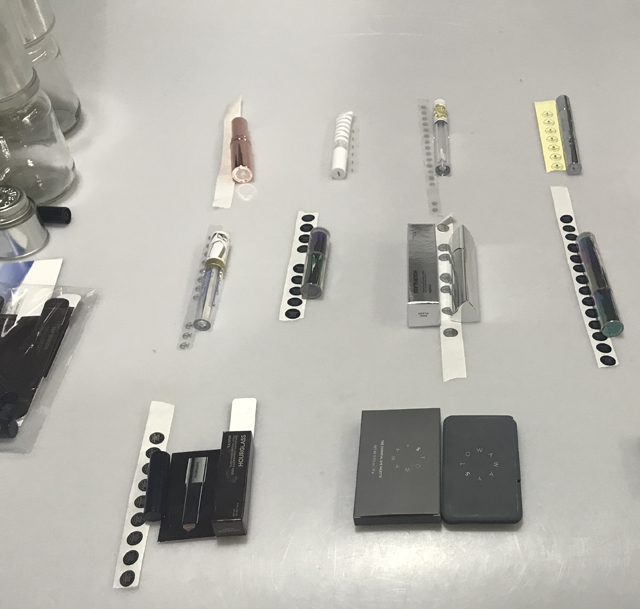

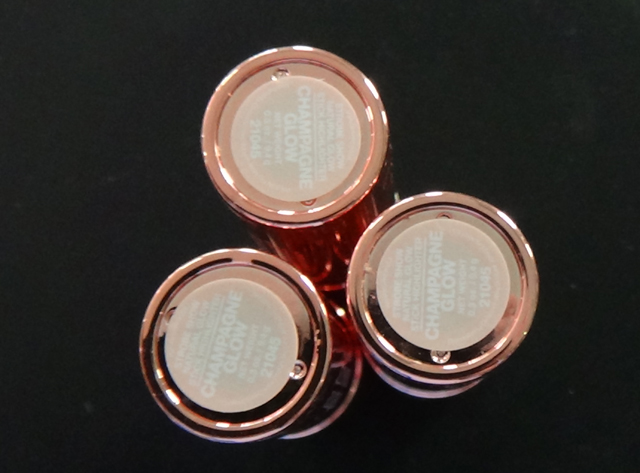

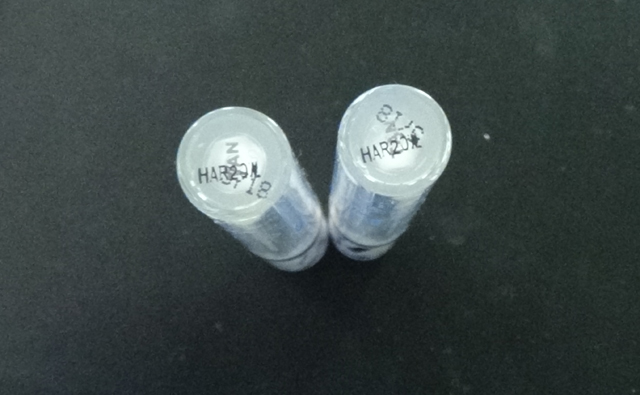

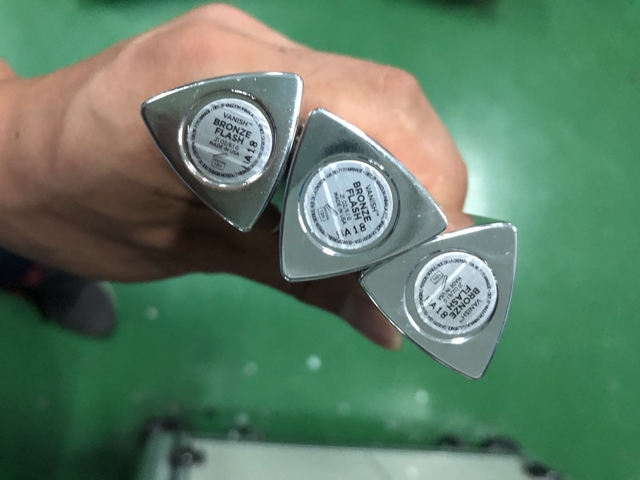

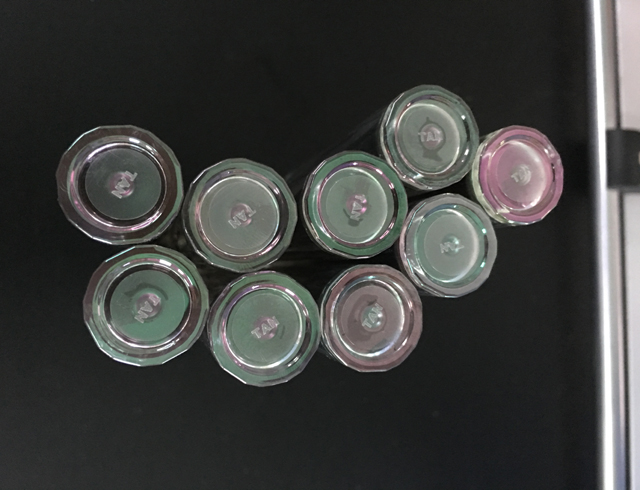

Labeling Samples:

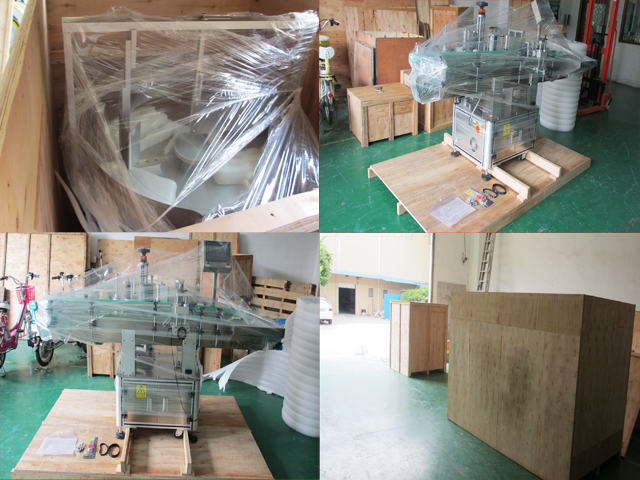

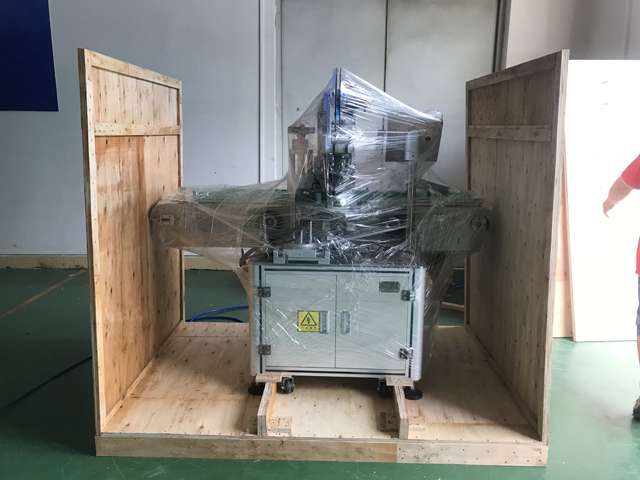

Shipping & After-Sales Support:

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
