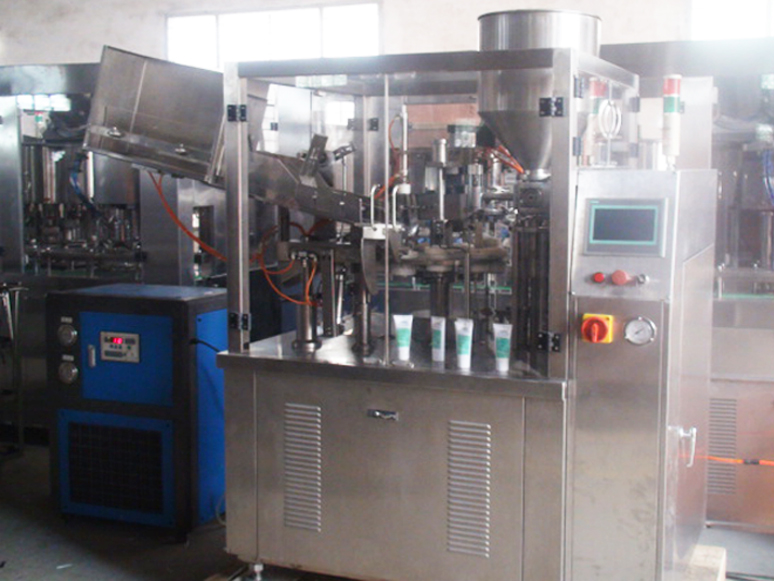

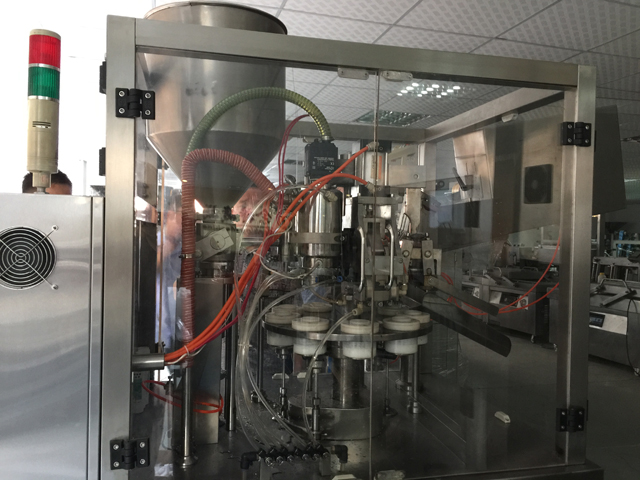

Automatic Cream Lotion Tubes Filling Sealing Machine With Water Chiller

• Tube Materials: Plastic Tubes / Laminated Tubes
• Filling Volume: 5ml-250ml/Tube(Adjustable)
• Filling Precision: 1%(Or Less Than)
• Output Capacity: 45 Tubes Per Minute
• Tube Diameter: Ø10mm-Ø50mm
• Max Tube Length: 220mm
• Power Source: 220v/380v/50-60hz
• Air Pressure: 0.55mpa-0.65mpa
• Auxiliary Motor: 1.1kw
• Thermosealing Power: 3.0kw
• Overall Dimension(Lxwxh): 2000*900*1500
• Weight Of Tubes Filling Sealing Machine: 850kg

View Video

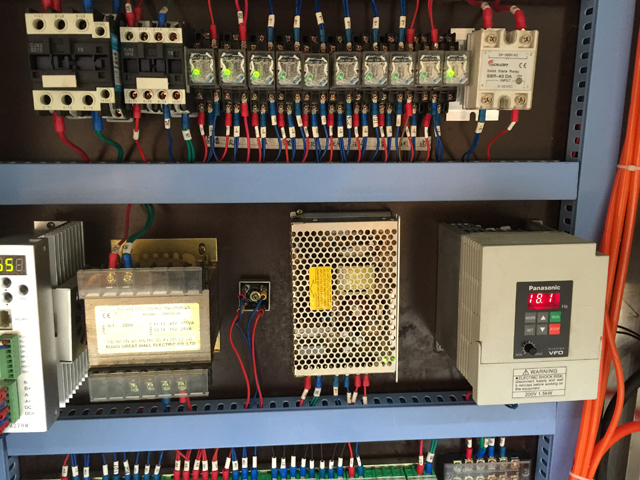

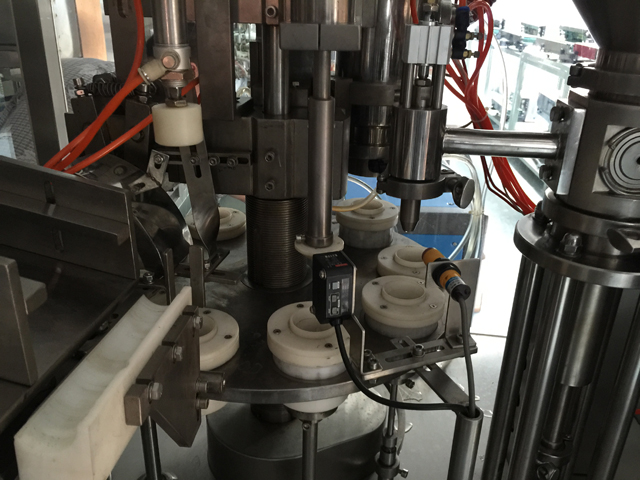

The control parts of the machine are composed of intelligent man-computer interface, large touch screen display / operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control.The components of the machine which touches the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding tube, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc.

During the process, tube-feeding and setting, filling and sealing, ejecting are all auto matically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.

Main Parameter

Main Features

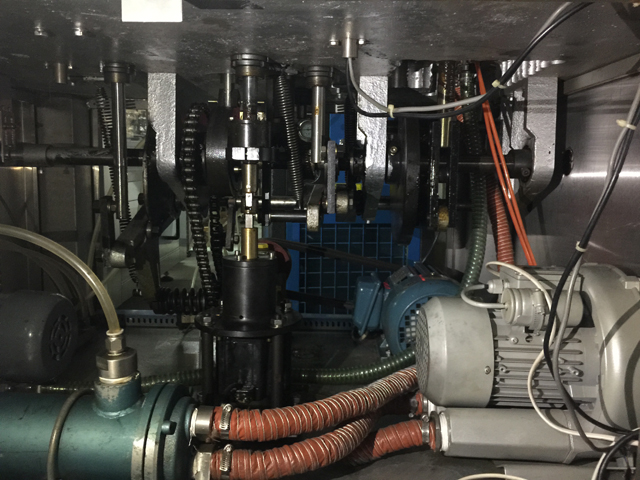

1. The following transmission part enclosed in the platform, safe, reliable, non-polluting;
2. Filling and sealing parts mounted on the platform above semi-closed static-frame viewing hood, easy to observe, easy to operate, easy to maintenance;
3. Plc control, man-machine conversation interface;
4. Circuitous dial to cam drive, high speed, high precision;
5. Box and inclined tube position, optionally;
6. Curved armrest with a vacuum adsorption unit, handrails and pressure tube device interaction, the hose is fed into the upper tube station;
7. Photoelectric standard workstations, high-precision sensor, stepper motor control hose pattern in the correct position;
8. Movable injection materials head deep inside the hose injection material, side exit side note, the end of injection material delivery nozzle with integrated manner to ensure filling blow cut quality;
9. No tube no filling;
10. Sealing adoption (leister hot air gun) tail pipe internal heating , cooled by cooling means external configuration;
11. The workstation automatically typing the code number printed on the process requirements of the position;
12. Cut plastic robot at a right angle or a rounded end of the hose for selection;
13. Fault alarm, no pipe alarm , the door opened shutdown, overload shutdown;
14. Counting and quantitative downtime;

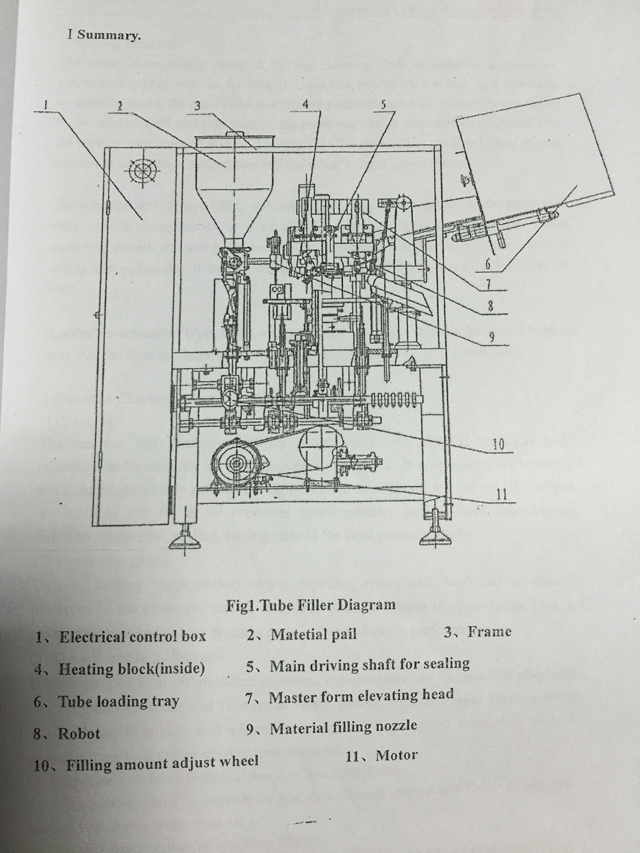

Drawing Of Tubes Filling Sealing Machine

Working Principe Of Tubes Filling Sealing Machine

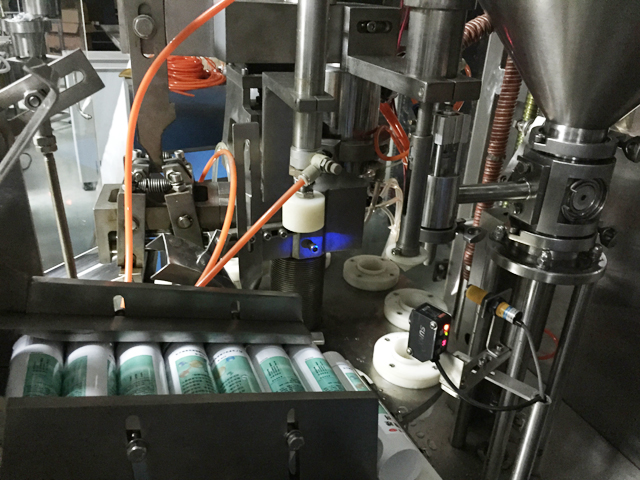

The empty tubes neatly ready in the big container flow in order on a conveyor automatically plugged with the forming dies, and turn over into each station by a robot; meanwhile under the action of a quantitative piston valve which is directly connected to the cone-shaped lockable hopper, the paste materials is automatically injected into the tubes at each interval station.

The turntable thereupon takes the filled tubes to next station at which the manipulators seal the tube's bottom immediately. The machine can change filling volume by adjusting a flow gauge.When employed with various manipulators it is capable to deal with multi-metal materials tubes including aluminum and furthurmore fold the bottom with two -layers three layer of saddle shape. Besides it can thermo-seal all plastic tubes and laminated hoses as well. A coder's manipultor types dates, series number and expiry date on the end of tubes. After that the final products will be led into a colluction container tubes automatically.

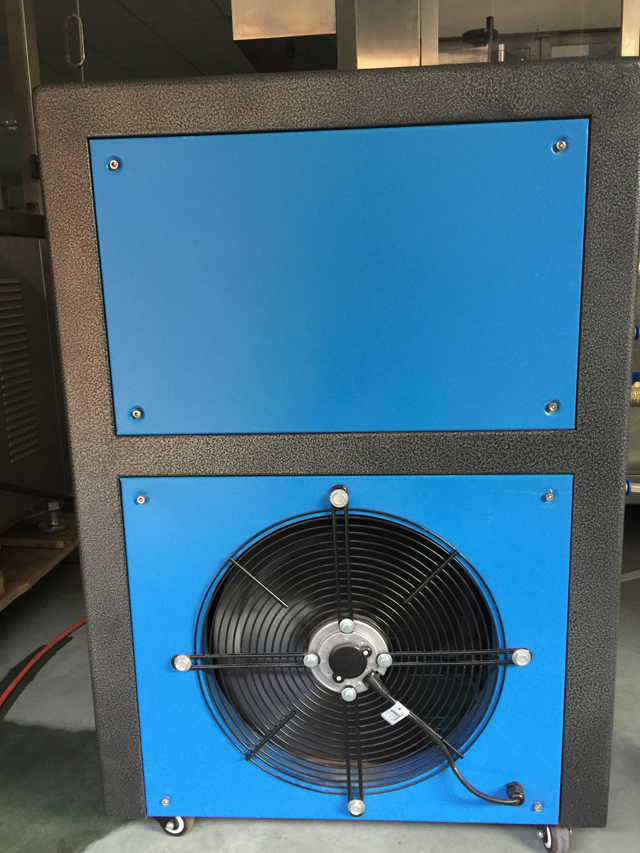

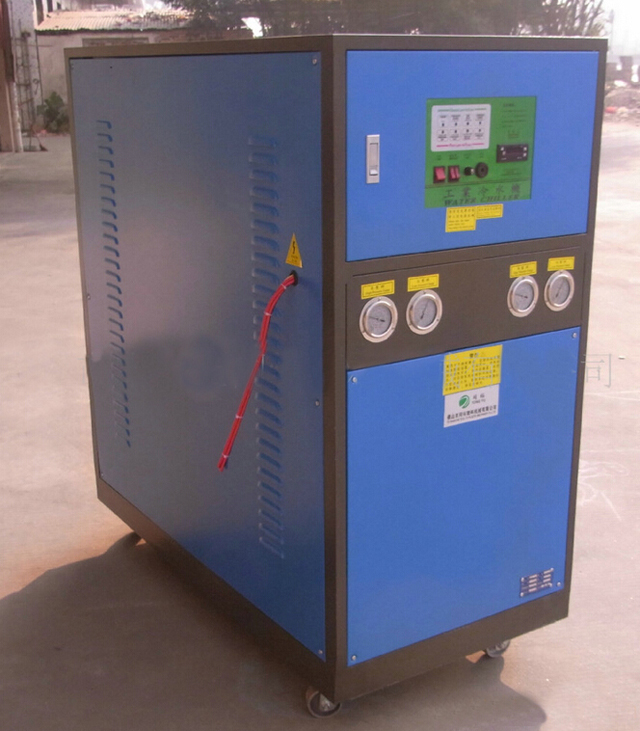

Accessory For Cooling The Inner-Outer Heating Process

Samples
