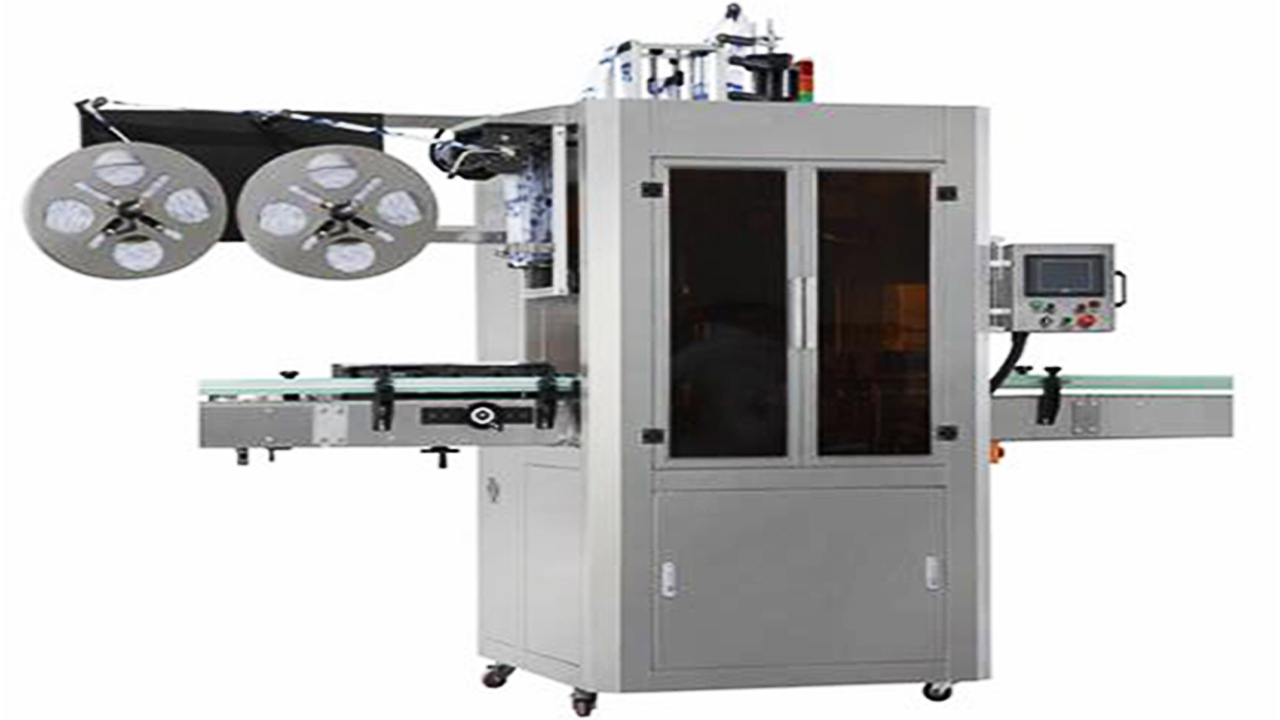

Automatic Double Heads Cups Drinking Bottles Sleeve Labeling Machine

• Model: VK-SSL
• Power(kw): 3.0KW
• Voltage(v): 3P 380/220
• Diameter of bottle(mm): Ø28- Ø125
• Applicable Height of Label(mm): 30-250
• Applicable Thickness of Label(mm): 0.03-0.13
• Applicable Internal Diameter of Tube(mm): 5″-10″ adjust freely
• Production Cycle(bottle/min): 2*350
• Shipping Dimensions(mm): 3000 x 1200 x 2080

Double head sleeve label machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, this bottle label machine adopts the positioning module to ensure the casting label precise, rapid and stable. Our bottle labeling machine not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.

Applications Of Sleeve Labeling Machine:

Double head sleeve label machine applies to food & beverage industries as fruit juice, tea, drink, dairy products, pure water, condiments, beer and sports drink etc. Of all kinds of bottles; this bottle label machine is suitable for various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc. Sleeve label machine not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.

Functions Of Sleeve Labeling Machine Double Heads:

1. All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.

2. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.

3. Single positioning center guide pillar: a more stable for label delivery.

4. Synchronous bottle divider: a more stable transmission for bottle.

5. Bottom set of label brush: a more precision for casting label.

6. Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.

7. Push-button control cabinet: a more humanized operation.

8. Independent feeding material shelf: the position of the material shelf is optional at will.

Technic Parameters Of Sleeve Labeling Machine:

Payment Terms & After Sale Services

Quotation: FOB (Shanghai ) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
