- Model: VK-DSL-R
- Voltage Specification: AC220V/380V, 50/60HZ Single-phase
- Power: 2.2KW/220V(US power standard adjustable)
- Labeling Speed: 40-50pcs/min.
- Labeling Precision: ±1 mm (errors of labeled objects and labels exclusive)
- Air Source for labeling: 5kg/cm2
- Applicable Vessel Range: 15-150mm in length, 10-100mm in diameter, 40-350mm in height
- Applicable Label: 15-180mm in height, 10-200mm in length.
- Max Label: 420mm in diameter, 76mm in inner diameter of paper roll.
- Label Gap: 3-4mm
- Gap between upper and lower sides of label and upper and lower sides of backing paper: 2mm

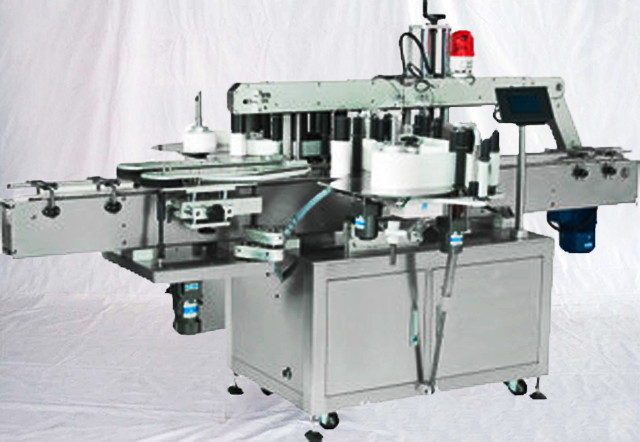

The double side automatic labeling machine is suitable for round bottles or flat bottles with double mark or single mark. The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottle.

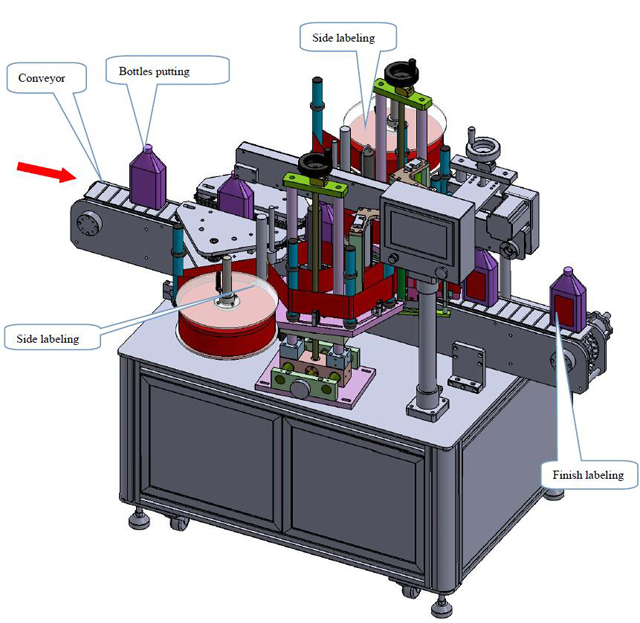

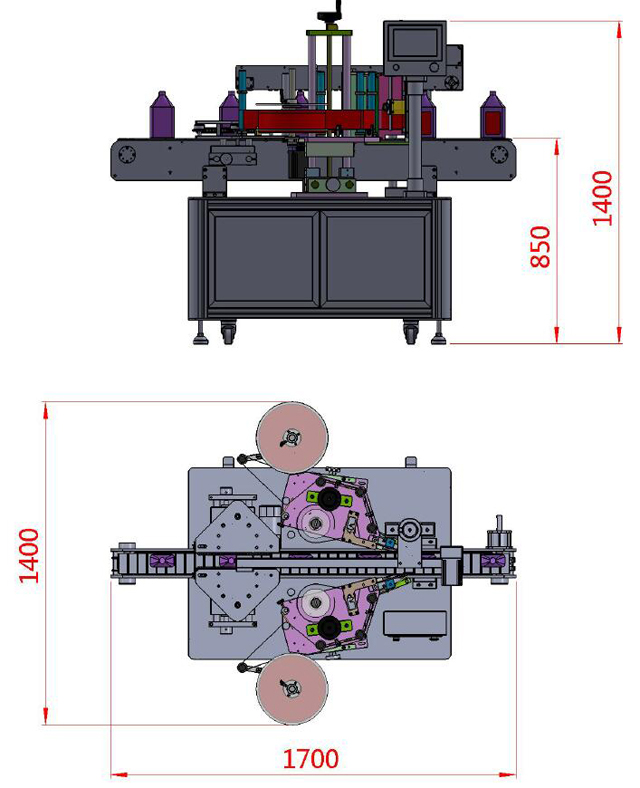

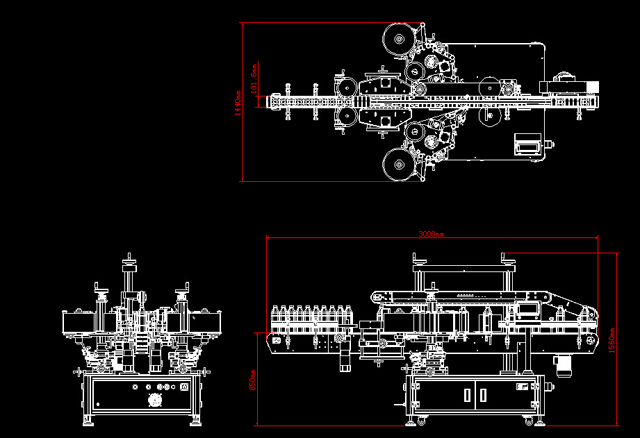

The Drawing Of Automatic Double Sided Labeling Machine:

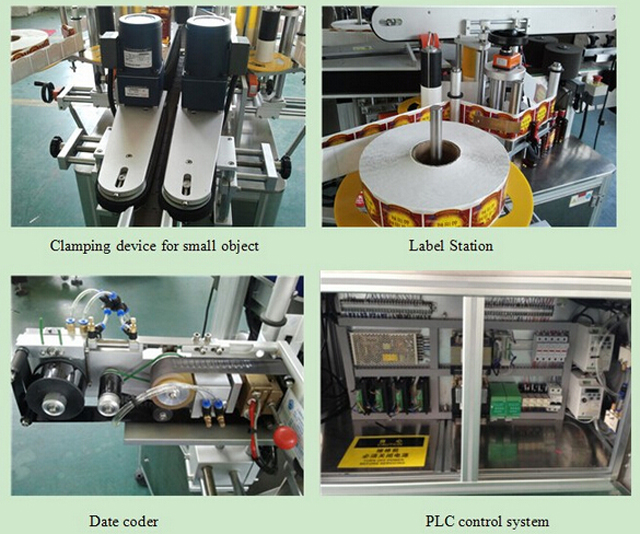

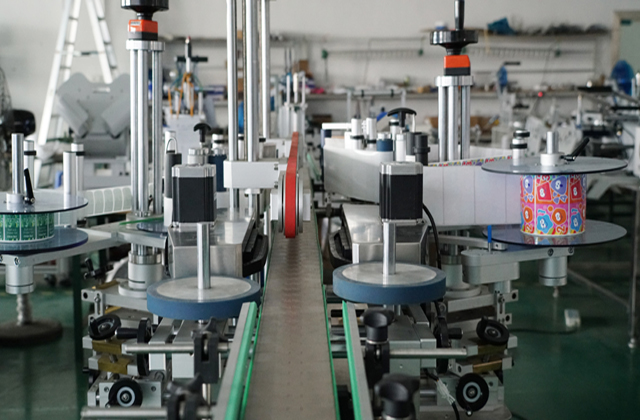

The pressure between the active axle and press roller can be adjusted, so the running direction of the lanel can be adjusted freely, The label is only pressed flexibly without causing any distortion. The labeling head adopts the structure of the double press rollersl, it guarantees that the label is pulled tightly but not broken because of the underneath paper die-cutting, the separated clutch makes the strain more balanced.
The touch screen based human interface in Russian and English with one online helping system makes it easy for operate the machine. The press belt is feared into the main transporting line, so it makes the two transporting lines work in synchronous absolutely.
The machine is supplied with the famous sever motor, so it realizes real closed loop controlling and it avoids the phenomenon of “the blind man walk” when supplied with the stepper motor.
The multi channel encoder detects labeling position precisely at high speed.
The label is pressed by a flap after appying on bottle and pressed by the active and passive sponge rollers. So when the label is stuck it has not any bladder. It is especially applicable to the crystal bottles labled with transparent labels. The optional air driving and roller labeling set can label round bottles precisely.
Basic Parameters
- Model: VK-DSL-R
- Voltage Specification: AC220V/380V, 50/60HZ Single-phase
- Power: 2.2KW/220V(US power standard adjustable)
- Labeling Speed: 40-50pcs/min.
- Labeling Precision: ±1 mm (errors of labeled objects and labels exclusive)
- Air Source for labeling: 5kg/cm2
- Applicable Vessel Range: 15-150mm in length, 10-100mm in diameter, 40-350mm in height
- Applicable Label: 15-180mm in height, 10-200mm in length.
- Max Label: 420mm in diameter, 76mm in inner diameter of paper roll.
- Label Gap: 3-4mm
- Gap between upper and lower sides of label and upper and lower sides of backing paper: 2mm
Electronic Components With Brand & Configuration
Item | Name | Brand | Quantity |
1 | PLC | MITSUBISHI | 1 |
2 | Frequency changer | DANFOSS | 1 |
3 | Touch screen | WEINVIEW | 1 |
4 | Servo labeling motor | DELTA | 2 |
5 | Servo labeling motor drives | DELTA | 2 |
6 | Conveyor motor | DWG | 1 |
7 | Conveyor belt motor gear box | DWG | 1 |
8 | Separating bottle motor | GPG | 2 |
9 | Separating bottle motor gear box | GPG | 2 |
10 | Electric eye for checking bottles | OMRON | 1 |
11 | Optical | OMRON | 1 |
12 | Label detection electric eye | LEUZE | 2 |
13 | Label stock electric eye | OMRON | 2 |
