Automatic E-Cigarette Liquid Oil Bottle Filler Plugger Capper Machine

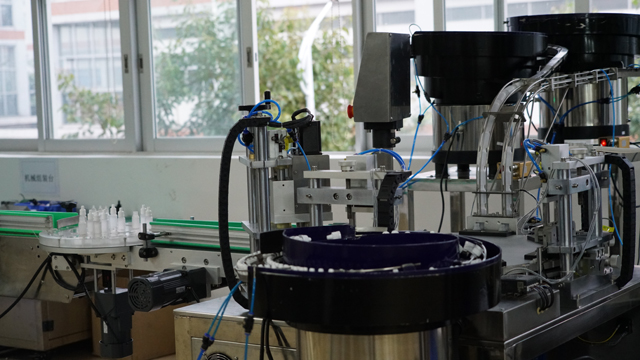

The E liquid bottling line including the machine as below:

Fully automatic bottle feeding system: Bowl vibrator or Bottles unscrambler

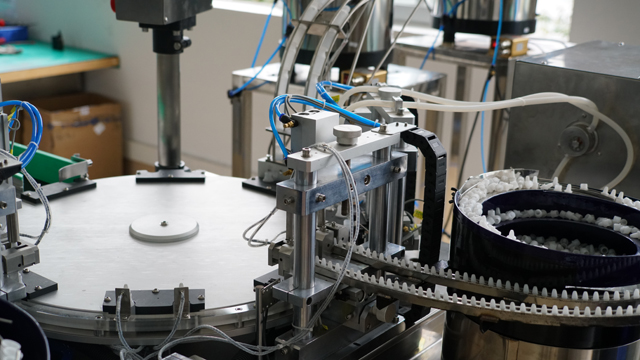

Rotary filling plugging capping machine
Round bottles labeling machine
Protective chambler dust-proof
GMP standard

Product Description

The automatic small bottle filling and capping machine is specially designed for small bottles and suitable for filling liquid like eye drops, electronic cigarette, iodine etc.

It works automatically with high speed, adopts metering filling by peristaltic pump, controlled by PLC, no bottle no filling and capping. With high position accuracy, smooth transmission, and easy operation.

(bottle feeding machine-liquid filling machine/spout pressing/outer capping 3 in1 machine-labeling machine-package table, and so on)

This machine has three functions,liquid filling, spout putting and pressing, outer cover capping 3 in1 machine. Also may according to the customer request to capping outside lid.
No bottle, no filling.
This machine is simple operation, saving merits of human, not consumption field, etc. It can be equipped with a protecting cover and a checking-drop installation according to client’s requirement.
It is applicable to different-shaped bottles and plastic bottles: PP , PE , PVC, glass bottle and mould bottle The bottle-in and bottle-out has specialized structure. It doesn't drop bottles or nip bottles.
PLC control, simple and easy to operate.
The part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP.
It can be connected with the bottle-washing machine and the label-attaching machine to form a complete set of produce line.

Feature On E Liquid Filling Line:

Microcomputer setting, high filling accuracy
The main engine is equipped with stepless frequency speed control.
Automatic production capacity quantitative control.
With all kinds of fault alerting, for low pressure, no filling, no inner cap etc.
The machine can stop automatically in case of no filling, no inner cap etc.

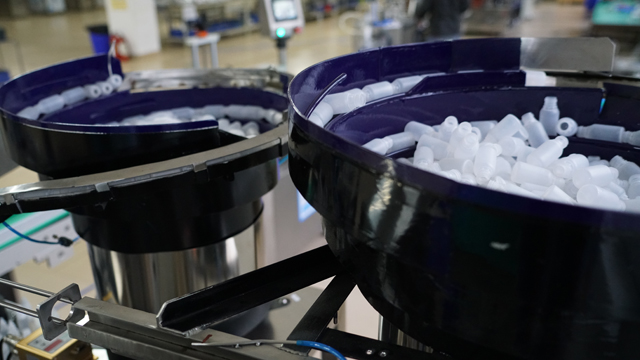

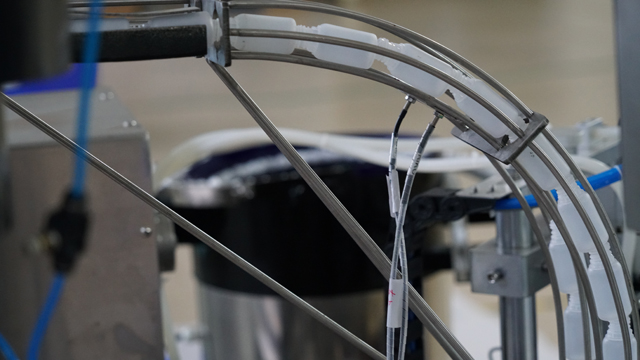

Bottle Unscrambler & Bottles Bowl Vibrator Feeder:

This machine is the matching product for various kinds of bottle packaging equipment and can automatically delivery the bottles into the conveying belt of the equipment, thus assuring the normal work of the bottle packaging equipments. The machine is applicable for small mass production. To the mass production, please select automatic bottle distributing machine. The machine completely meets the GMP standard.

Filling And Capping Machine

liquid filling, spout ressing, outer cover pressing, outer cover screwing

Liquid Filling

It is applicable to different-shaped bottles and plastic bottles: PP, PE, PVC, glass bottle and mould bottle. The bottle-in and bottle-out has specialized structure. It doesn't drop bottles or nip bottles.
PLC control, simple and easy to operate.
The part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP.
It can be connected with the bottle-washing machine and the label-attaching machine to form a complete set of produce line.

Main Technology Parameters Of Filling Part:

Description	Quantity	Quantity

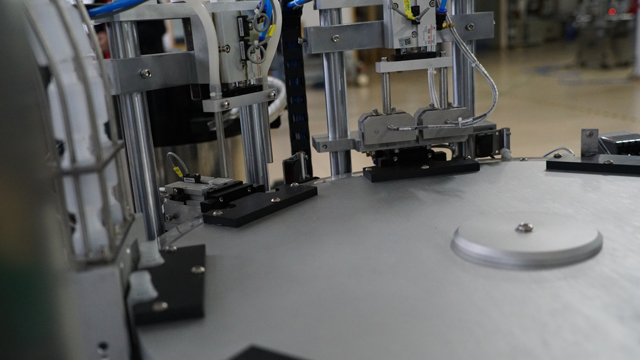

Filling nozzles	2	4
Outside cap capping nozzle	1	2
Filling capacity	5-100 ml
Filling precision	≤± 1%
Filling speed	30-40 pcs/min	50-60pcs/min
Eligibility rate of inside tuck and outside tuck	≥99%
Air pressure	0.6Mpa

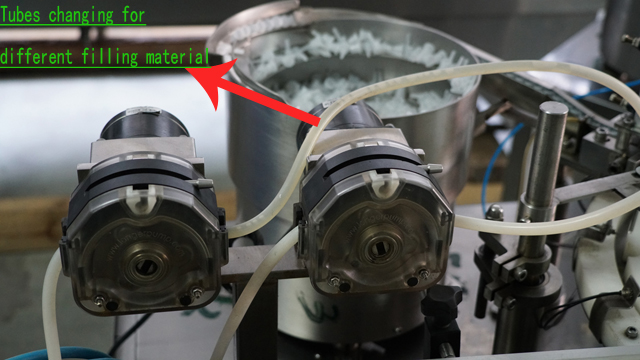

Change different flavor, just need change the silicone tube of the silicone tube

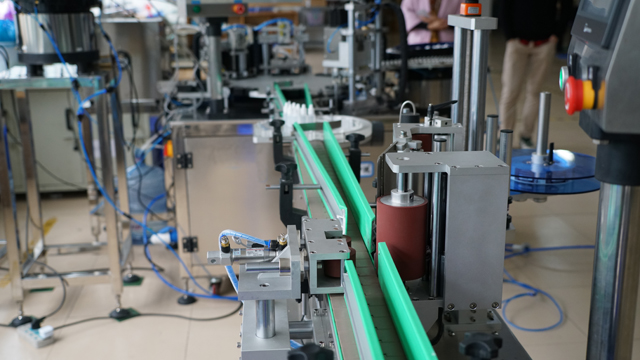

Automatic Round Bottle Labeling Machine

Overview:

This is a multifunctional labeling machine. It is suitable for all kinds of round bottle.

Product Characteristics:

1. Adopt mature PLC control system technology; make the whole machine stable and high-speed;

2. Use touch screen control system, make operation simple, practical and efficient;

3. Upgraded butterfly labeling station design, can be applied for conical bottle labeling;

4. Screw adjust the suppression mechanism, high accuracy;

5. Synchronization chain mechanism, to ensure smooth and precise calibration;

6. Transparent sticker labeling without foam, adhesive sticker labeling without wrinkle;

7. Widely used and mutil-function with high flexibility.

Parameters:

Voltage	220V, 50HZ
Power	2KW
Air pressure	0.3Mpa
Labeling Speed	30-100pcs/min
Labeling Accuracy	±1mm
Object Size	30-200 mm(H),30-100 mm(W)
Label Size	25-300 mm(L),20-180 mm(W)
Roll Size	76 mm(Inside),380 mm(Outside)
Dimension	2800(L)×1600(W)×1500(H) mm

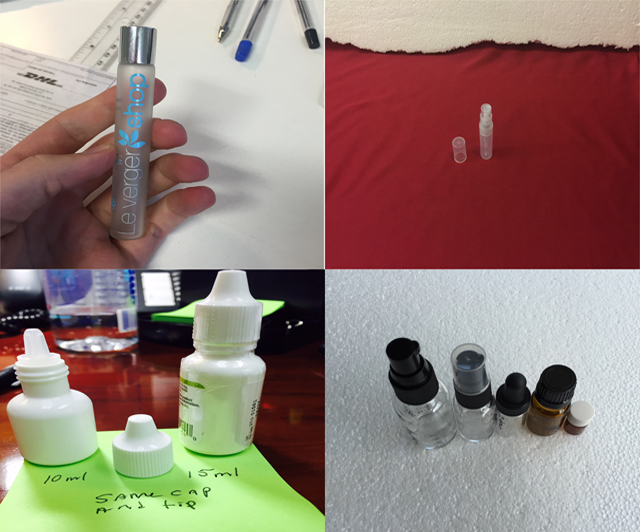

Sample

FAQ

For automatic small bottle filling and capping machine for electronic cigarette question:

First of all, before we operate automatic small bottle filling and capping machine , to clearly understand the instructions clearly automatic small bottle filling and capping machine, first read through the instructions again, adjust and use the familiar automatic small bottle filling and capping machine, the operating time must be in strict accordance with the instructions to automatic small bottle filling and capping machine instructions, pay attention to details of the problem , certainly the details determine success or failure .

Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the automatic small bottle filling and capping machine fuselage Oil it, so automatic small bottle filling and capping machine body as far as possible to protect the reservoir, so that the air can be isolated to avoid automatic small bottle filling and capping machine rusty, well protected automatic small bottle filling and capping machine body, and this is a way to extend the life of the 3 in1 filling machine.

Once again, we have to pay attention to hot stand-sealing cloth for cleaning, not retained foreign body in the above, to ensure clean small bottle filling and capping machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .

Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm .

Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.
