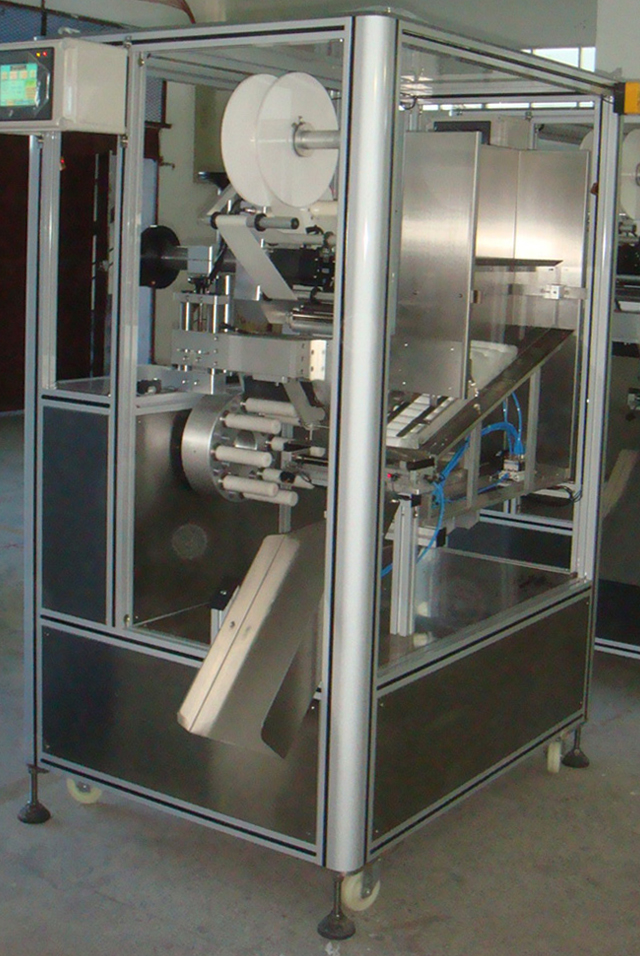

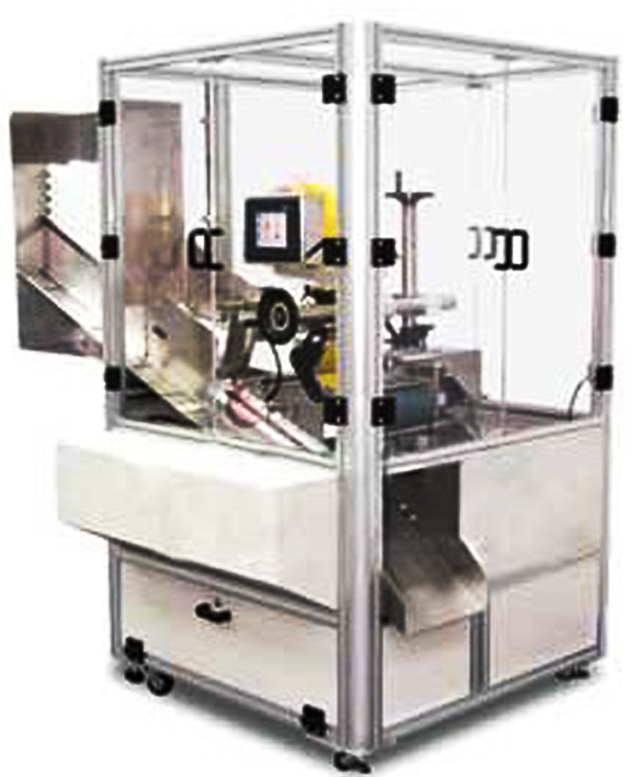

Automatic Empty Soft Squeeze Toothpaste Cosmetic Tubes Labeling Machine

• Model: VK-STL
• Labeling speed: 40-60 tubes/min.
• Labeling accuracy: ± 0.5mm
• Label diameter (Max.): 350mm
• Label width (Max.): 200mm
• Tube diameter (Max.): 65mm
• Tube diameter (Min.): 19mm
• Tube length (Max.): 220mm
• Label Reel Core Diameter: 76.2mm
• Power: 220V 50Hz 3000W
• Weight: 300kgs

View Video

This labeling machine is mainly suitable for the cosmetics, individual nursing with profession and so on mouth, food, chemical industry tube packing tubes pastes the sign. The high accuracy, the redundant reliability and the efficiency satisfied the customer to paste the sign machine request; but our superiority lies in the reasonable design, leading processing craft and high precise assembly, fine post-sale service. This equipment simplicity of operator, replaces the mold and the label convenient, easy to clean and the maintenance service, causes the user the use cost to be low is the tube pastes the sign the ideal equipment.

The highly effective tube pastes the sign workstation: The simplex operation, the feed control, paste the sign, to receive the material; including lack materials examination electric eye and automatic suspension function.

The speed, the precision, the stability, easily and use and so on flexibly with the degree the optimized combination.

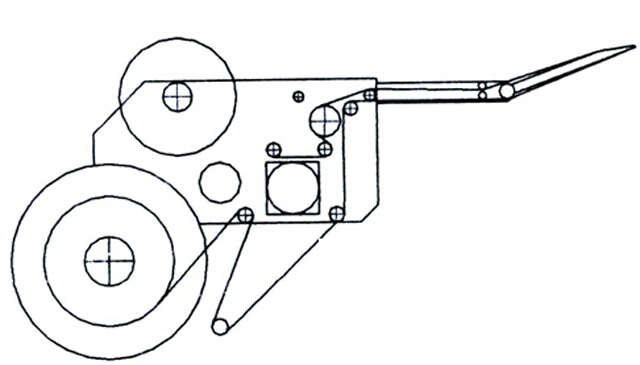

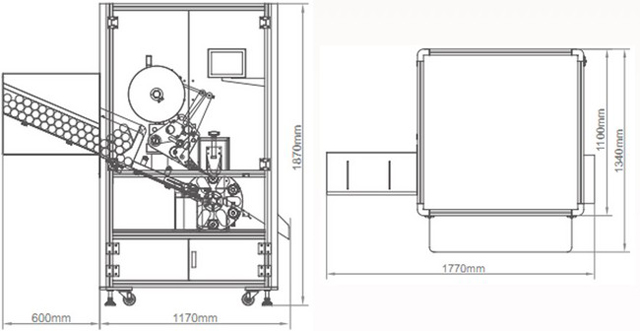

Labeling Direction & Machine Drawing

Pastes the sign for the hose to design specially, relaxed will be quickly transparent / opaque self-adhesive label pastes on the tube, is suitable in many kinds of different lengths, the different diameter tube pastes the sign.

Operates is steady, is reliable: Guaranteed each soft tube uploads when is not damaged, pastes the sign to be smooth, to be precise.

Use the non-pole air cylinder organization: Guaranteed that the high-quality goods are fast, order, reliable.

Use the decollators positioning device: Guaranteed that the tube pastes the sign localization is to be accurate, to be reliable, does not need to maintain.

Barometric pressure examination type dumping device: After guaranteeing pastes the sign tube reliable ex-denning.

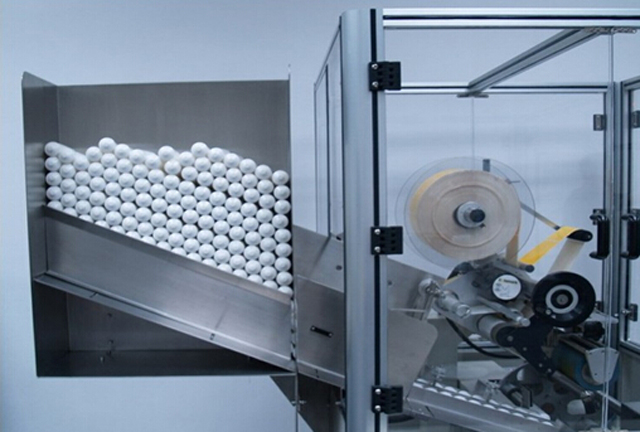

Labels arranged in the feeding hopper for labeling

Labeling process for soft tubes

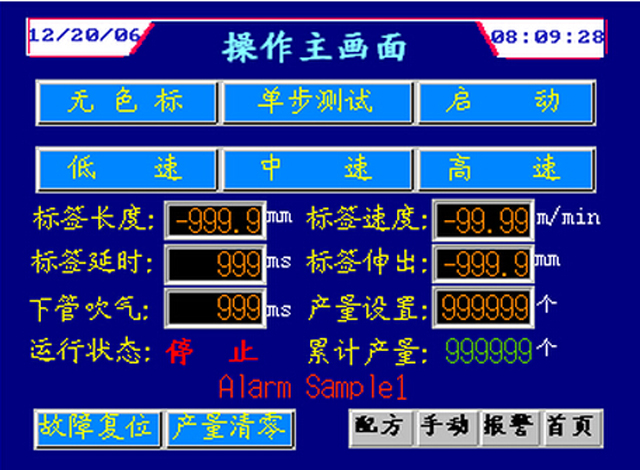

Automatic tube labeler is using siemens PLC touch screen control system.

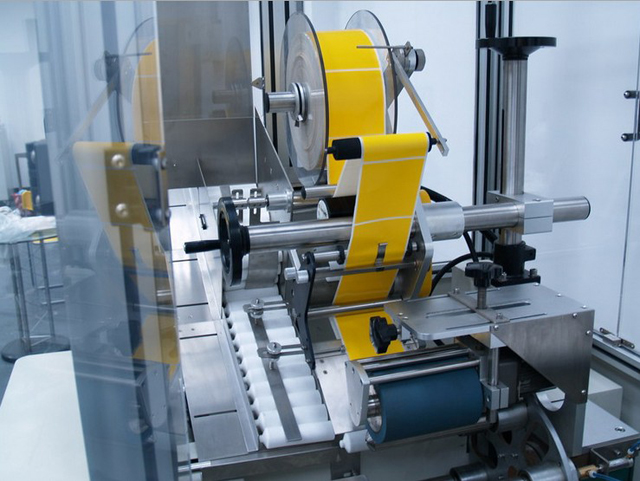

Intelligent Mitsubishi servo labeling system

The machine response is fast with pinpoint high-speed labeling positioning.

Easy to operation and to adjust.

Stainless steel construction.

Support different tube size with different pucks.

Machine Specification

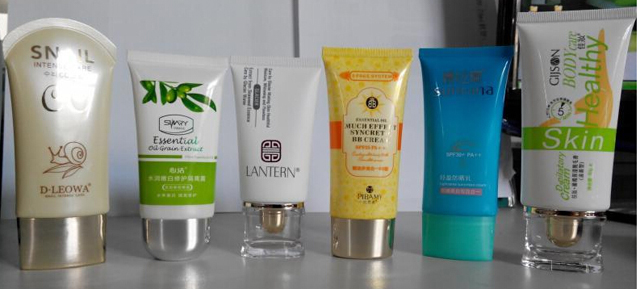

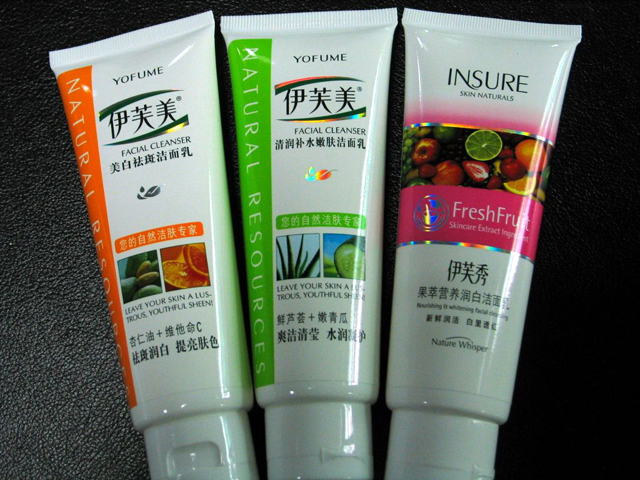

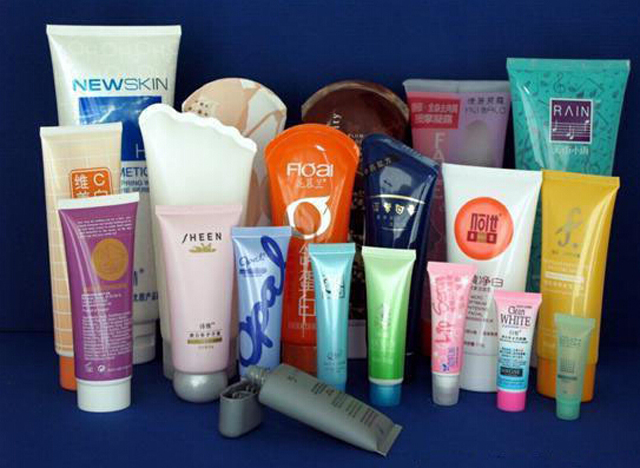

Labels Samples

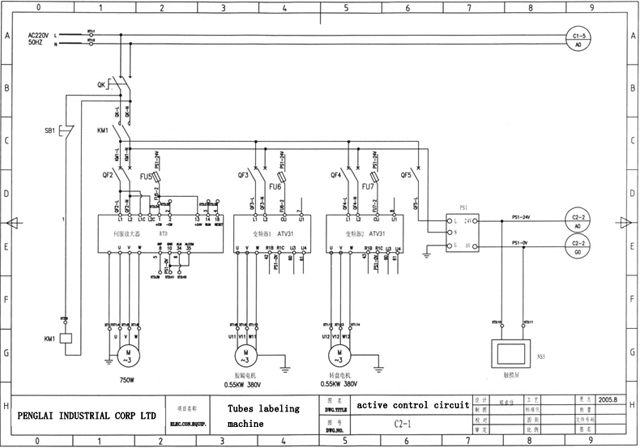

Active Control Circuit for automatic labeling machine

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
