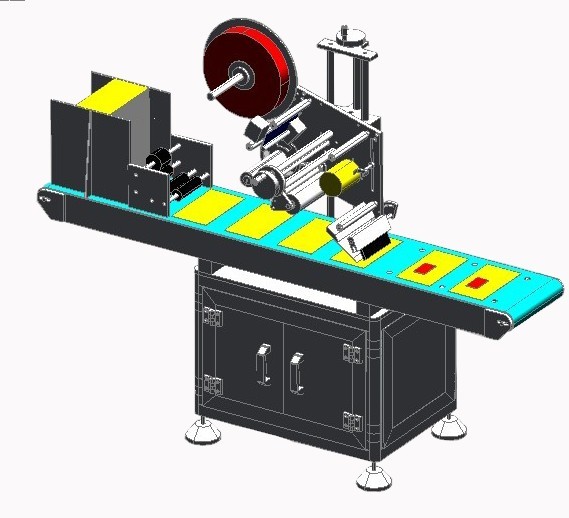

Automatic Flat Surface Bags Cards Paging Labelling Machine

Model: VK-FPL
Labeling Speed: 20-200pcs/min(Depending on label length and bottle thickness)
Height of Object: 30-200mm
Thickness of Object: 20-200mm
Height of Label: 15-110mm
Length of Label: 25-300mm
Label Roller Inside Diameter: 76mm
Label Roller Outside Diameter: 350mm
Accuracy of Labeling: ±0.8mm
Power Supply: 220V 50/60HZ 0.75KW
Gas Consumption of Printer: 5Kg/cm^2 (if add coding machine)
Size of Labeling Machine: 1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine: 150Kg

The labeling Machine is suitable for all kinds of objects with plane surface, such as boxes, bottles, cans, etc.

Widely used in cosmetic, drinks, chemical, medical, food industry, stationery CD, various oil, etc, which can highly improve productivity and product quality. flat labeling machine

Features

Operation	PLC control system makes labeling machine easy to operate
Material	Labeling machine’s main body is made of SUS304 stainless steel
Configuration	Our labeling machines adopt Japan motor driving and photo sensor and Taiwan control system
Flexibility	Client can chose to add printer and code machine; can connect with conveyer

Technic Parameter

Name	Automatic horizontal paging labeling machine
Labeling Speed	20-200pcs/min(Depending on label length and bottle thickness)
Height of Object	30-200mm
Thickness of Object	20-200mm
Height of Label	15-110mm
Length of Label	25-300mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	350mm
Accuracy of Labeling	±0.8mm
Power Supply	220V 50/60HZ 0.75KW
Gas Consumption of Printer	5Kg/cm^2 (if add coding machine)

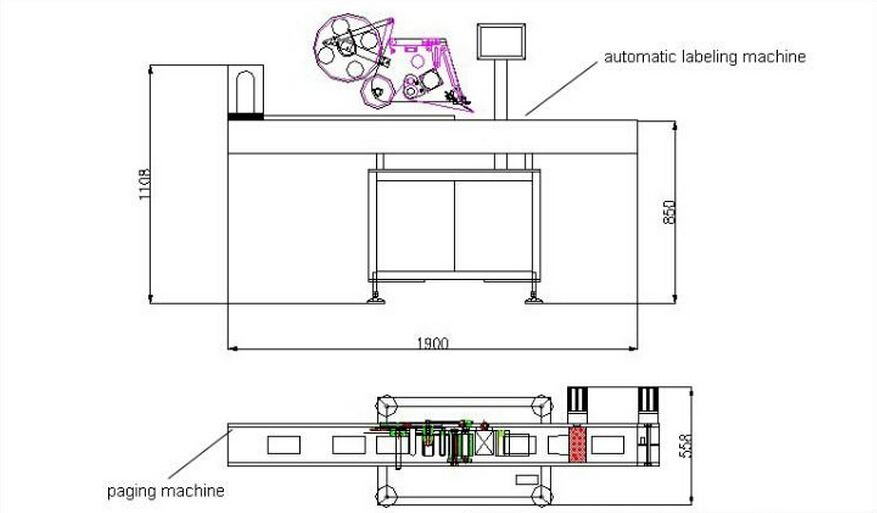

Size of Labeling Machine	1900(L)×550(W)×1200(H)mm
Weight of Labeling Machine	150Kg

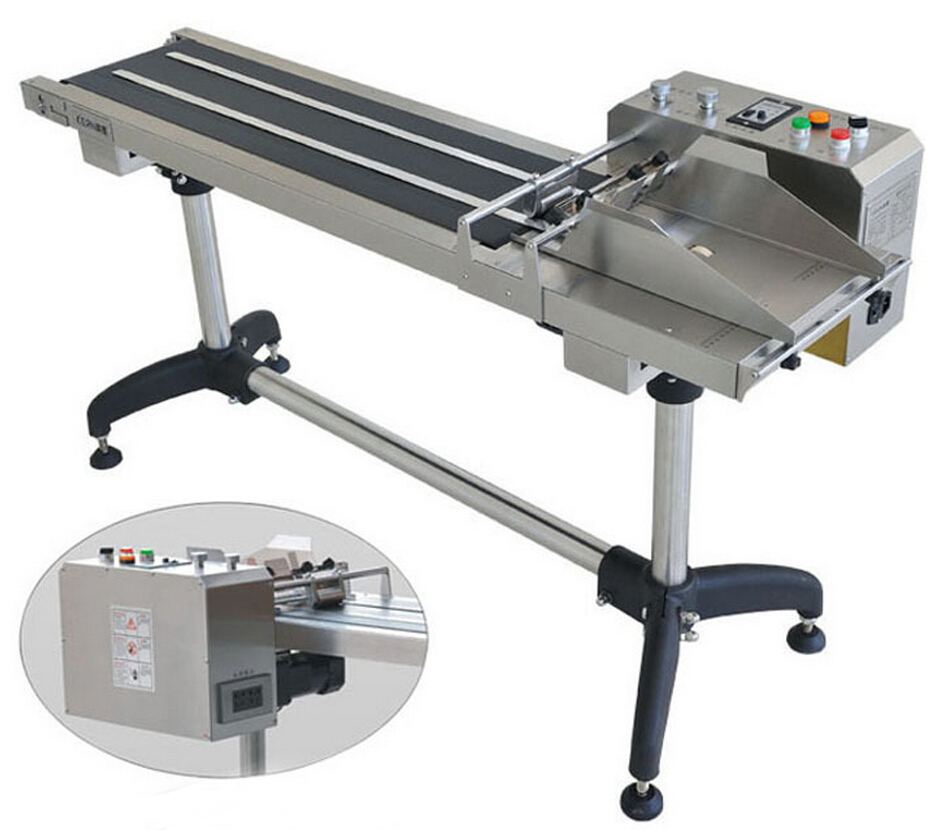

Basic Data Of Paging Machine

Paged way	friction or Reversal wheel
Object size	40-320mm
Width	60-300mm
Thickness	0.02-5mm
Power suppy	220V
Power	120W
Speed Regulation:	Frequency Conversion Stepless
Product dimension	1500520900MM

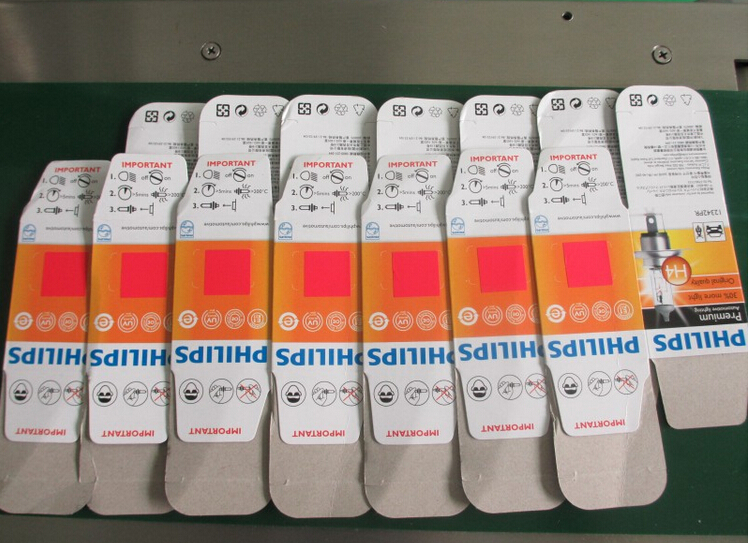

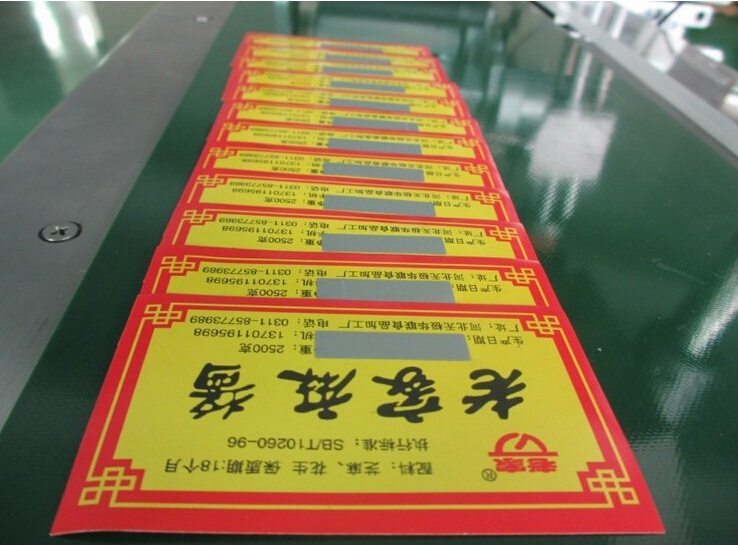

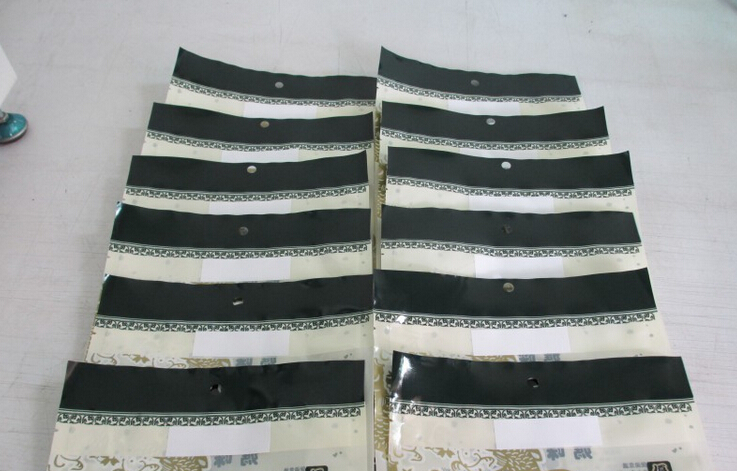

Labeling Samples

How To Buy Our Label Machine:

The process is as follows: (we Accept T/T,Western Union,Paypal etc)

1. Tell us the Items details and quantity you order. we make a PI for you. Then You pay the down payment 40% of the total amount to our company account .

2. After we receive the down payment, we will produce the goods for you.

3. Once we finish the products, we will send you the photos to check and confirm,

4. If everything is ok, you pay the balance amount.

5. After we receive the balance amount, we will arrange shipping for you.

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
