Wine production line the whole set consists of the machine:
- Automatic red wine filling machine linear model
- Red wine bottles checking & plugging machine
- Ropp screw caps capping machine automatic
- Red wine pvc caps heat shrink capsulating equipment
- Red wine labeling machine
- Date coding ink jet with printer

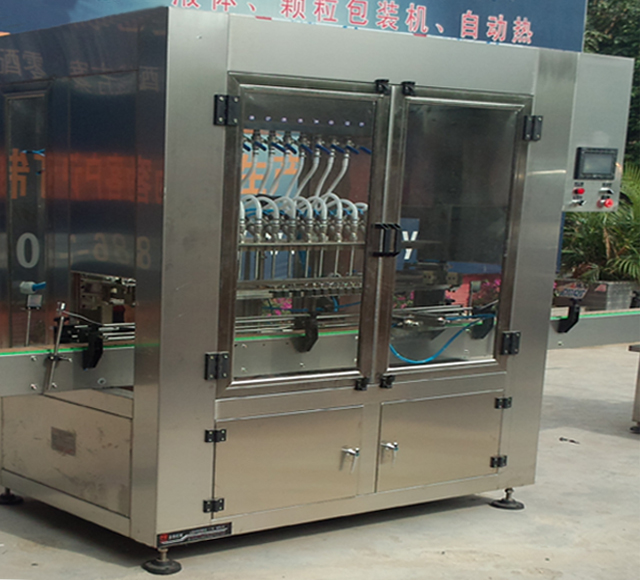

Automatic Inline Wine Filling Machine With Six Heads
The 6 heads red wine filling machine, controlled by the microcomputer, combines the photoelectricity with pneumatic operation, thus widely is applied for the liquid filling of the agriculture chemical, solution, liquid detergent, cosmetic as well as olive. The filling volume is precise, foamless and stable. The machine can fill the liquid with the range from 25-1000ml, meanwhile there is no special requirement on the shapes of bottles. That is to say, it can fill the liquid for the normal bottles as well as the irrugular-shaped bottles.
- Filling range: 50~3000ml
- Filling speed: <30-45b/m(for 500-1000ml liquid)
- Accuracy: ±1%
- Power/suppy power: 1.2kw、220v/Single phase/50-60hz
- Working pressure: 5~6kg/cm3
- Air consumption: 0.5-0.7mpa
- N.W: 500kg
- Outer dimention: 2300×200×1950mm
Mark:The filling nozzels can be designed and manufactured according to requirements from customers on the filling range and filling speed

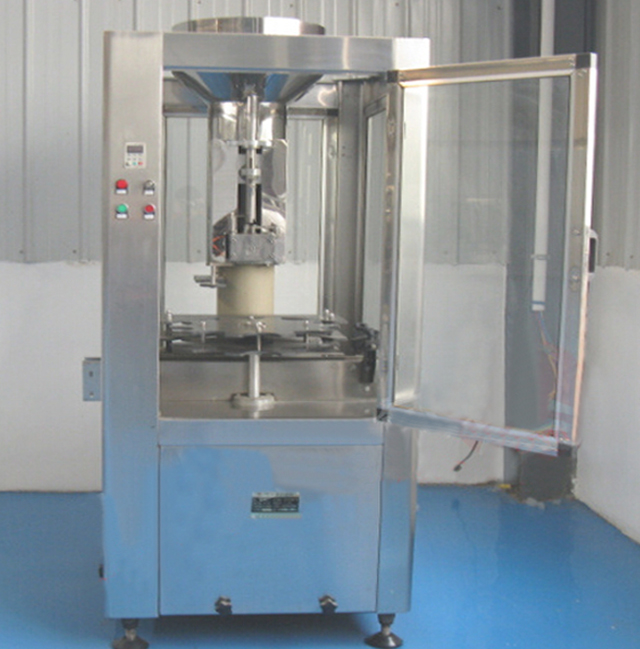

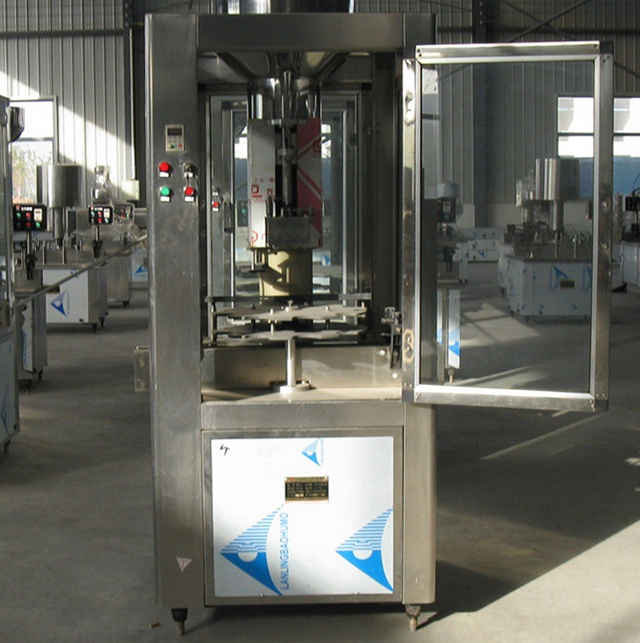

Red Wine Bottles Checking & Plugging Machine
Main Characteristics:
- Fashionable structure, few failures, long working life and reliable operation.
- Motor stepless frequency control for a wide range of bottle height.
- The overload protection device in the process of bottle entering and corking to ensure the safety of man and machine.
- The mechanical linkage device ensures no bottle no corking.
Basic Parameter Of Wine Cork Plugging Machine
Plug head | 1 |
capacity(bph) | 2500(adjustable) |
Suitable bottle | a:bottle diameter:φ60~φ90mm(need to change some parts) |
b:bottle height:250~370mm(adjustable) | |
overall size (mm) | 1270×1060×2450 |
Cork length (mm) | 35~44 |
Cork diameter (mm) | φ20.5~φ24 |
Weight (kg) | About 800 |
working voltage (V) | 220/380 |
Machine power (KW) | 0.75 |
Cap size (mm) | 15-70 |
Bottle diameter(mm) | Φ35-Φ130 |
Bottle height(mm) | 150-370 |

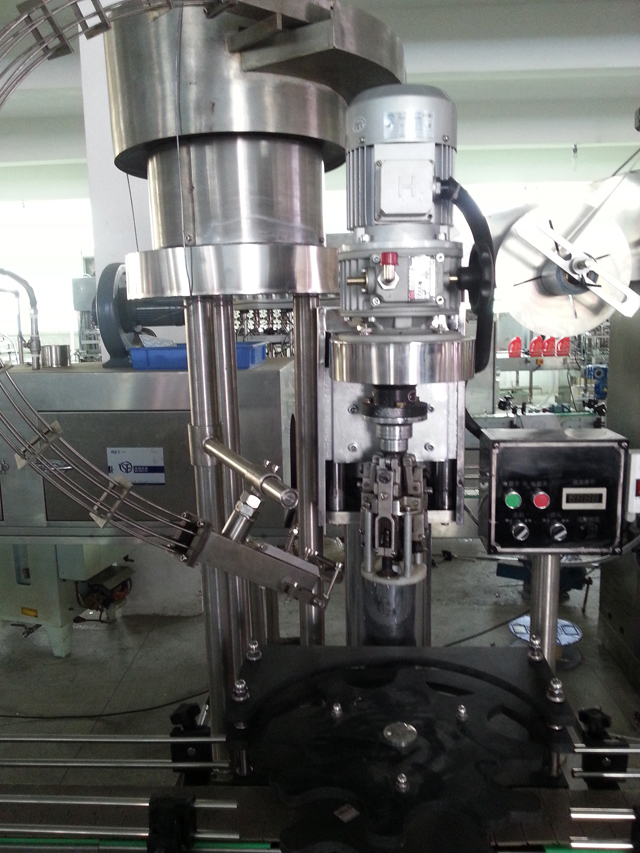

Automatic Ropp Capping Machine For Metal Caps
A screw cap is a metal cap that screws onto threads on the neck of a bottle, generally with a metal skirt down the neck to resemble the traditional wine capsule (“foil”). A layer of plastic (often PVDC), cork, rubber, or other soft material is used as wad to make a seal with the mouth of the bottle. Its use as an alternative wine closure is gaining increasing support as an alternative to cork for sealing wine bottles. In markets such as Australia and New Zealand screw caps on bottles have overtaken cork to become the most common means of sealing bottles, right across the wine industry
The ROPP capping machine is a suitable equipment for roll-press-sealing the aluminum caps for the plastic bottle, pet bottle, as well as glass bottle. It precesses the screw press capping for the bottle under the rolling press from hobs, automatically feeding bottle, caps, removing the reverse caps. The capped bottle favors the characteristics like the stable capping effect, convenient uncapping, so that it function as conterfeit and anti-theft.
- Supply powder(V/Hz): AC 220/50 380/60
- Capacity(m/min): ≧40B/M
- Cap size (mm): 250-1000
- Application: Alum-caps
- Air exhaust from Vacuum pump: (m3/h) 5KG
- Outer dimension(L×W×H)(mm): 2000×1000×2300
- N.G (kg): 520

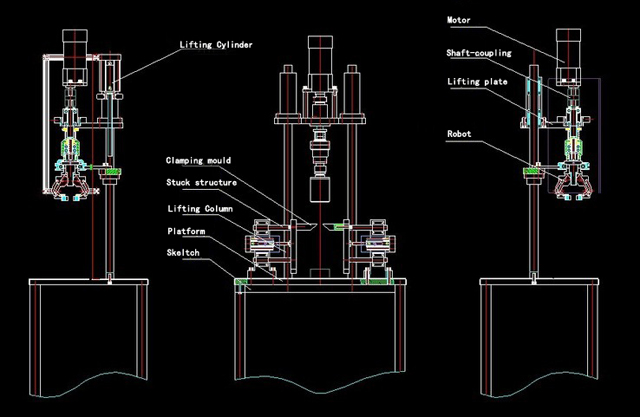

Drawing Of Ropp Capping Working Process
How To Operate Single Head Ropp Capping Machine
The feed container moving on conveyor belt are feed into an in feed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.
Salient Features :
- The unit is made compact & versatile.
- S.S. Slat conveyor
- S.S. Elegantly Matt Finished Body
- Built in front control panel
- Vibratory Bowl
- With A/c Frequency Drive

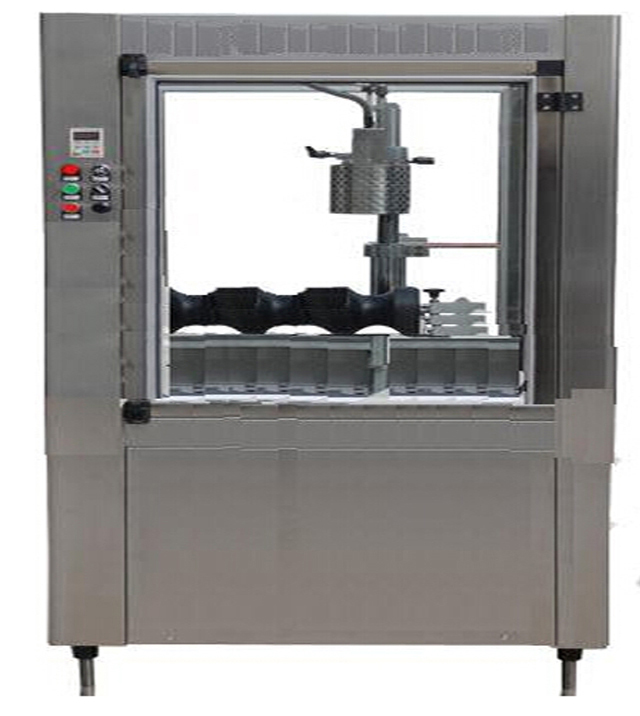

Red Wine Pvc Caps Heat Shrink Capsulating Equipment
Automatic red wine foil cap shrinking machine screw caps PVC capsulating equipment for glass bottles
Capacity: 1000-3000B/H

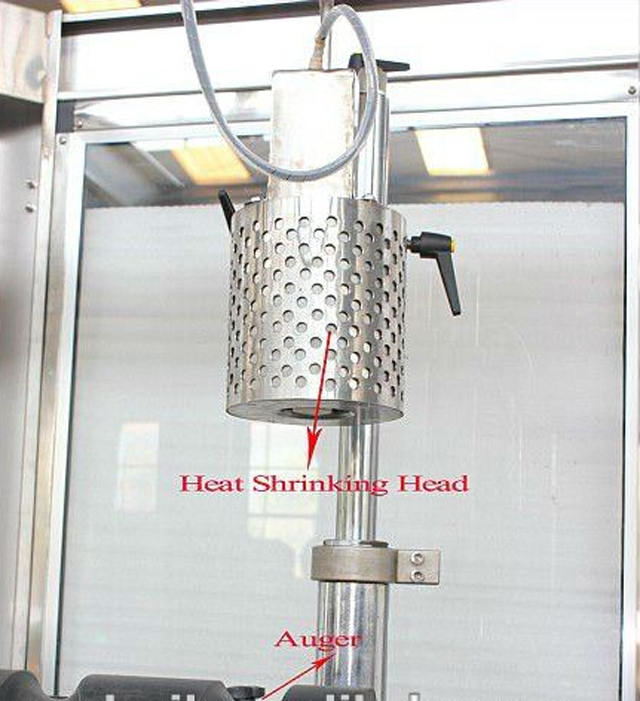

Red Wine Foil Cap Shrinking Machine
- The machine is used to shrink aluminium cap for cork on glass bottles, it can be connected in line for automatic operation;
- The cap will be shrinked averagely, the bottom will be even and without wrinkles;
- The whole machine is without automatic bottle in and out system, the shrink device is working automatcially also;
- There is protection device set at bottle turn plate, machine will be stoped automatically if bottle jam happen;
Parameters Of Caps Shrinking Capsulating Equipment Automatic:
- Bottle height: 200-370mm
- Bottle diametre: 70-100mm(bottle turn table need)
- Max capacity: 2000BPH(frequency control)
- Shrink process: 105
- Compressor air source: 0.1MPA
- Whole power: 380V 1.5KW

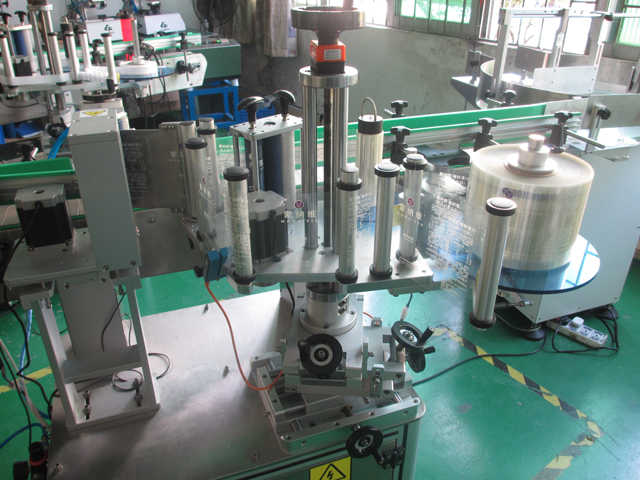

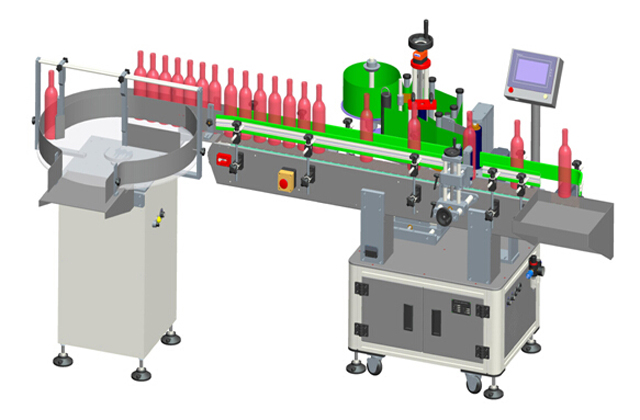

Red Wine Labeling Machine
Basic use of labeling machine automatic vertical labeller machinery with bottles feeding table
The whole weekses that can used for various cylinder form product half week, just the back double mark sticks a mark, such as sticking of food can, cosmetics circle bottle, and medicine bottle etc.
Mark: Take a dozen of code machines such as the another nuance, can carry out to stick a mark to print to produce informations like batch number, etc at the same time.
Applicable Scope:
Apply label: The not dry gum label doesn’t do a gum film, the electronics takes charge of code, the form code wait;
Apply a product: The product that requests to stick to attach label or film on the circumference noodles, conic surface;
Applied profession: Extensively Be applied to a food, medicine, cosmetics and day to turn, electronics, hardware, plastics etc. profession;
Is applied solid example: The PET circle bottle sticks a mark, the plastics bottle sticks a mark, food can etc.

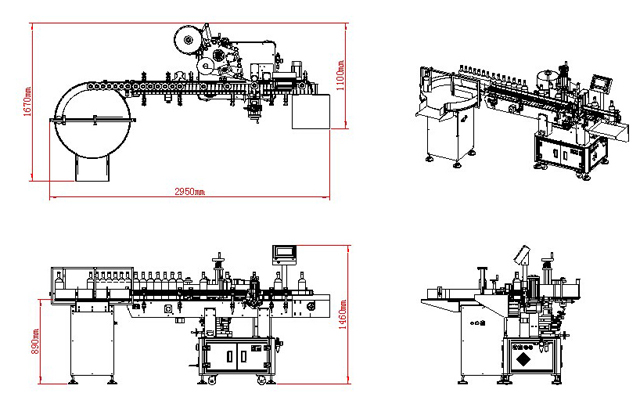

Basic Parameter Of Labeling Machinery
- Stick to mark accuracy: ±1 mm; (do not contain a product, label error margin)
- Stick to mark speed: Is 20~60/minute; (have relation with product label size)
- Apply product size: ¢ 30 the ≤ product diameter ≤¢ 100 mm;
- Apply label size: 15 ≤ width ≤ 110 mm, length ≥ 20 mm;
- The whole machine size: 1800 ×900 ×1300 mm; (long × breadth × Height)
- Apply the power: 220 Vs 50|60 Hz;
- Air pressure: 0.2~0.5 Mpa;
- The whole machine weight: 295 kg.

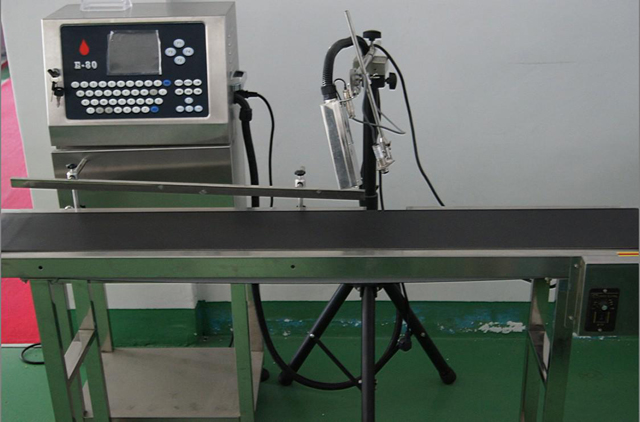

Date Coding Ink Jet With Printer
Introduction Of Date Printer:
1. Full colour touch screen provided by Hitachi
2. Electronic components purchasing the latest AMR world’s most advanced chips.
3. Power offered by the Aerospace Industry
4. Content can be modified during printing without stopping the production line
5. All stainless steel chassis parts, meet IP55 standard of protection.
Printing Parameter Of Date Printer Machine:
- With photocell, a sensitive function of n-jet printing
- Printing lines: 1-4 lines
- Counter meter: Can be printing at any units of meters
- Printing speed: 2m/s(5*7)
- Dot matrix printing
- Character: 8*8 can be combination in any form.
- Editing Function: interplay hybrid, rotate, combination, variety of different fonts, space or bold etc in 36 spot lattices.
- Power requirement: AC220V 50HZ 75VA
- Nozzle pipe: 2.0m (It can be made according special specification)

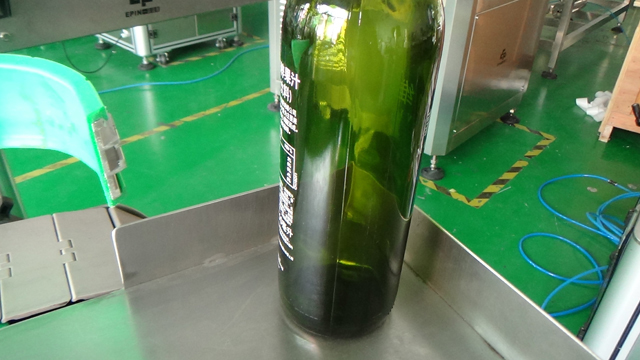

Samples
