Automatic H Type Carton Case Top-Bottom Edge Folding Sealer Equipment

Carton Size: L200-730mm*W150-500mm*H150-720mm
Table Height: Min.H500mm, Max.H750mm
Packing Speed: 8-10cts/min
Machine dimension: L2800 * W1900 * H1550mm
Power supply: 220V 50/60HZ 1.8KW
Air compressing: 6-7kg
Adhesive tape width: 48mm/60mm/72mm
Machine weight: 450kg

The size of cardboard box is controlled by handle fixed position. It can be delivered automatically at moderate time. The hot melt case sealer is suitable for fully automatic assembly lines. The case sealing machine adopts hot melt glue and it can also be sealed with leather paper adhesive tape and BOPP adhesive tape.

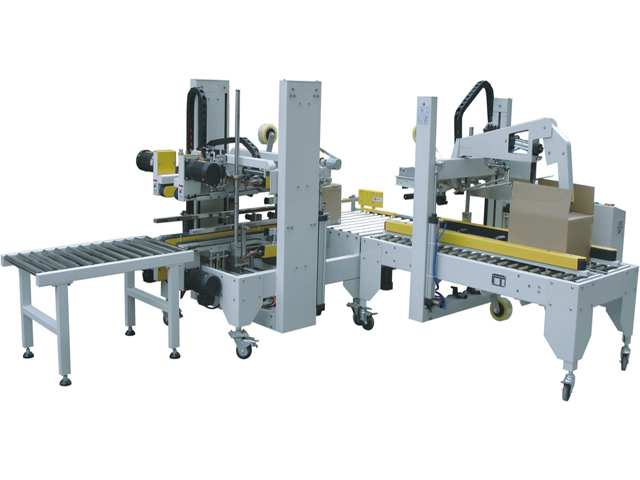

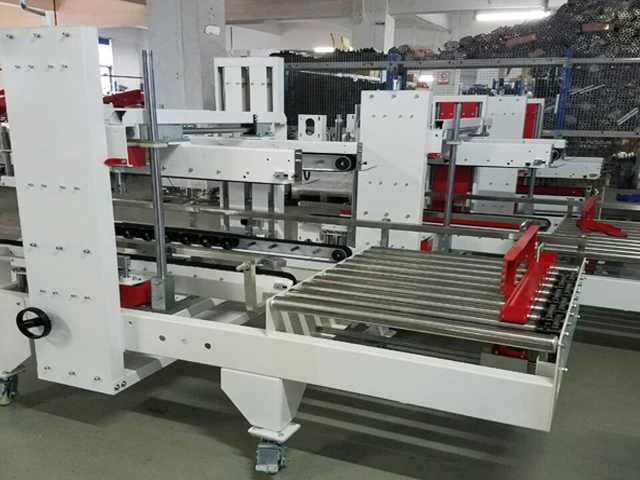

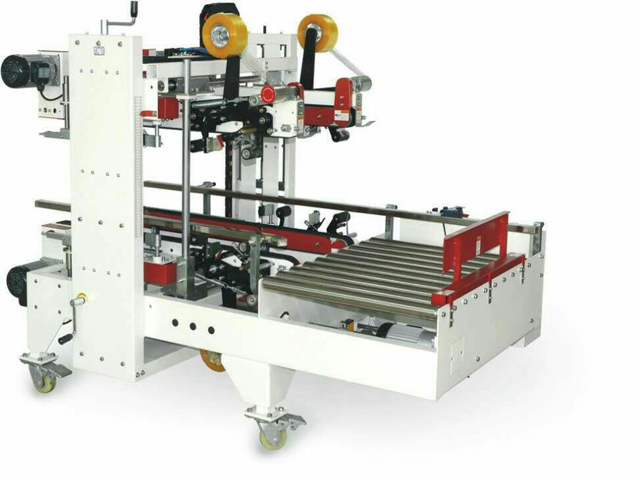

Automatic carton flaps folding and automatic carton corner side sealing machine working together, make a “H” shape sealing.

According to the size of the carton, manually adjust the machine width and height, suitable for sealing different cartons.

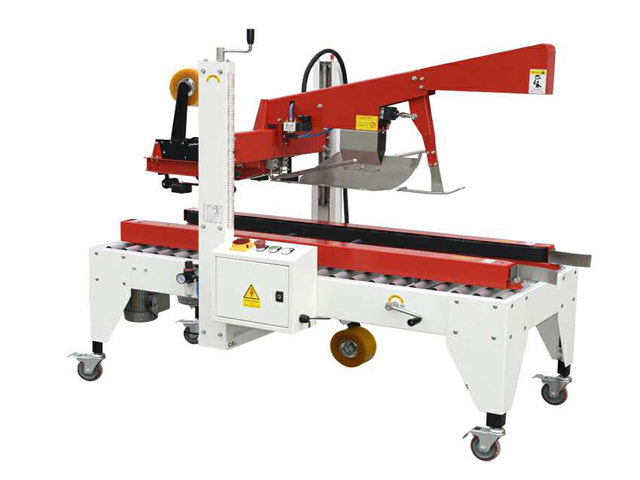

Functions And Features Of H Type Carton Sealing Machinery:

According carton size, manually adjusting the width and height of the machine, simple, convenient, fast.
The machine adopts PLC control, simple operation, easy maintenance, stable performance.
For a variety of automatic folding carton sealing cap H-type, the upper and lower corners of carton sealing edge and automatically, smooth, fast and smooth, but also with supporting the use of automated packaging line.
Fold the front cover by carton sealing machine sealing machine into the 90-degree angle, box board by pushing the Edge Sealer.
Sealing beautiful, fast, labor-saving, high efficiency.
Simple, economical and durable, safe, low failure rate.

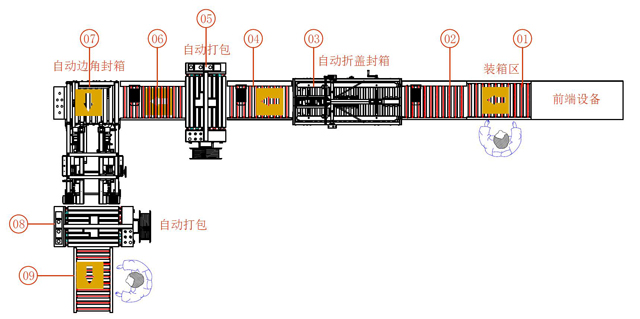

Working Flow For The Carton Sealing Process:

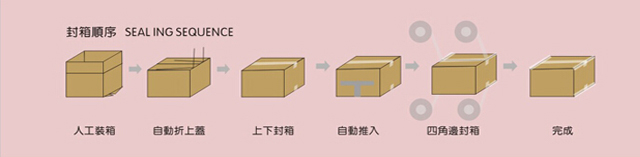

Manual Feeding Carton — Automatic Flaps Folding — Automatic Sealing Top and Bottom — Automatic Pushing Carton Forward — Automatic Sealing Carton Corner Side – Complete.

Technic Parameter

Carton Size	L200-730mmW150-500mmH150-720mm
Table Height	Min.H500mm Max.H750mm
Packing Speed	8-10cts/min
Machine dimension	L2800 * W1900 * H1550mm
Power supply	220V 50/60HZ 1.8KW
Air compressing	6-7kg
Adhesive tape width	48mm/60mm/72mm
Machine weight	450kg

Malfunctions And Solutions On Carton Erection Sealing Equipment:

Malfunction and Solution of the Sealer
Nr	Malfunction	Possible reason	Solution
1	Adhesive tape can not be cut off	The reamer patch is not sharp enough. The reamer tine isjammed by the bond.	Change the reamer patch Launder the reamer patch
2	There is tail after the adhesive tape is cut off.	The reamer patch is not sharp enough. There is stem on the reamer seating. The pulling spring is too loose.	Check if the nut on the reamer seating is too loose or not. Lubricate the nut if necessary.
3	The adhesive tape can’t stick to the carton completely.	Main spring is too loose and there is glue on the axis of the roller. The adhesive tape is disqualification	Adjust the pull of main spring and clear up the roller. Change the adhesive tape
4	The carton is locked in the midway.	The nut on the pasting wheel is too tight, the height adjustment of the carton’s transporting line is not suitable, and the main spring is too tight.	Loosen the pasting wheel, regulate the nut, re-adjust the height and loosen the main spring.
5	The adhesive tape is cut down during sealing.	The reamer patch protrudes excessively long.	Lower the place of the reamer patch.
6	The adhesive tape is often off the track.	The pressure of the guiding roller on the carton is not equal.	Re-adjust the space of the guiding roller.
7	The adhesive tape is not on the central line.	The anti-retrorse wheel is broken.	Change the anti-retrorse.
8	There is abnormity during the sealing.	There is dust on the axletree seating.	Clean the axletree seating and lubricate.
9	There is jut before sealing and drape after sealing.	The speed of different straps is different, and the carton is not at the proper place when pushing into the machine.	Adjust each transporting line’s pull to be consistent so that the carton can be put at the correct place.
10	There is drape after sealing	The strain of adhesive tape is too large

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
