Automatic Inline Glass Jars Vacuum Capping Machine With Metal Detector

• Model: VK-VC
• Capping heads: 4pcs
• Power: ≤2.3KW(Including vacuum pump)
• Estimate Speed: 35-40 bottles/Min
• Cap diameter: Φ45-Φ110mm
• Bottle height: 65-150mm
• Round Bottle diameter: Φ50-Φ110mm
• Air consumption: 0.6m³/min 0.7MPa
• Capping torsion: 5-20N.M
• Max vacuum degree: -0.08Mpa
• Power supply: AC 220V 50Hz/380V 50Hz
• Overall dimension: About 4000X1450X2300mm(Including Lid feeding system)
• Required operating direction: Left to right
• When standing in front of the doors of the safety guard
• Warranty: 1 years from the moment of successful installation and test runs

View Video

This jars sealing closing equipment is researched and developed by our company with years of experience, it is unique in domestic .Integrated automatically cap arranging with covering, vacuum capping. Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the Glass Jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

Main Features:

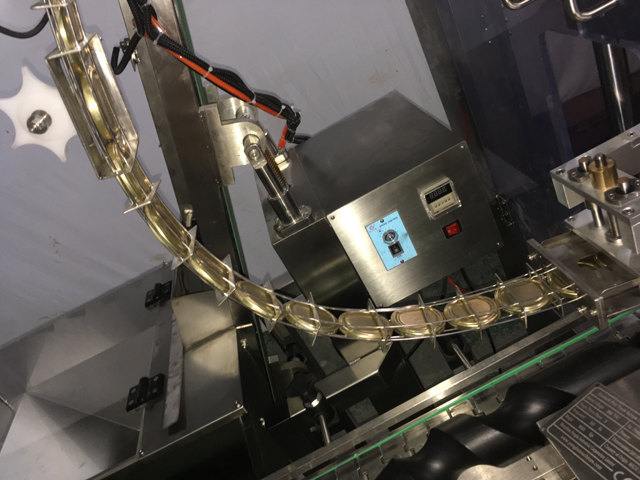

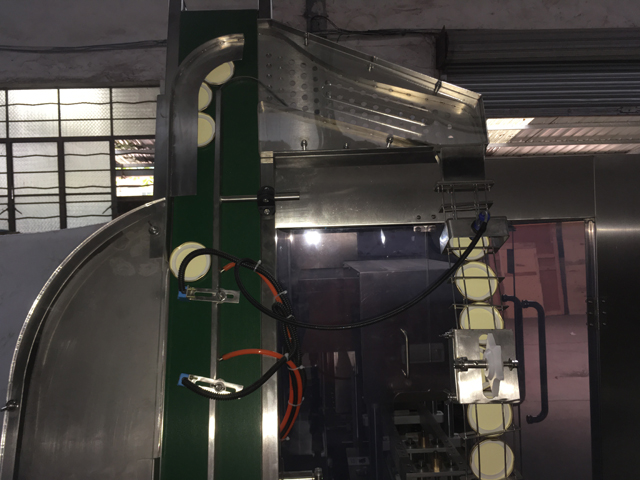

1. Integrated automatically cap arranging with covering and vacuum capping, with high automation.

2. Adopted manual vacuum pump to achieve high vacuum.

3. Capping torsion and vacuum degree can be set as required.

4. Suitable for different shapes and sizes bottles with changing few parts.

5. The main pneumatic and electric parts are from world famous brands to ensure stable, reliable and durable performance.

High vacuum zero damage: Automatic vacuum capping machine is the starlight the company's latest research and development of a brand new model, using the flexible rise ring seal chamber structure, it can do fragments bottle rate and vacuum zero leakage.

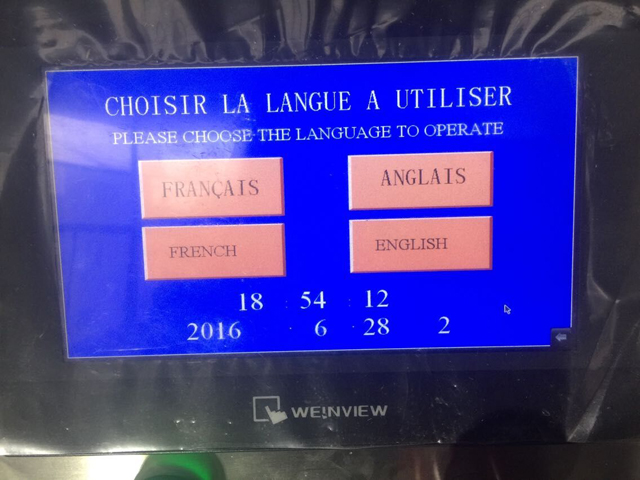

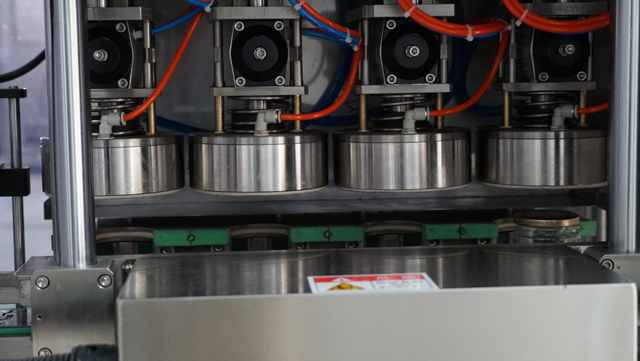

High quality rotary cover: Capping system adopts imported brand to drive servo motor, through professional programming design it can achieve the best effect of screw cap, and through the touch screen it can modificate various parameters, in order to adapt various production requirements.

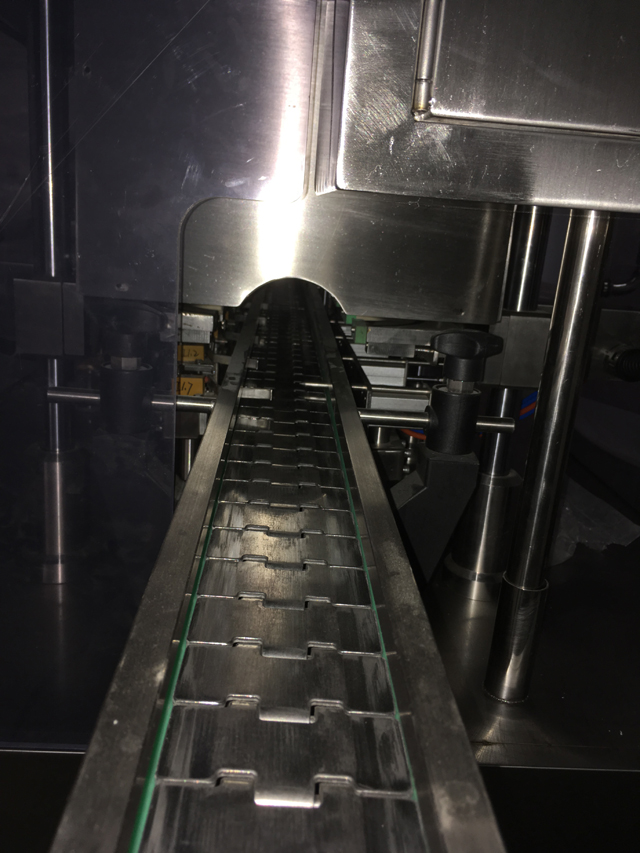

High reliability: Host transport tank platform use the servo drive, combine with the sensor detection to realize intelligent in and out of tank, and avoid the traditional mechanical broken bottle fault and equipment damage caused by hard links.

Main Technical Parameter:

• Model: VK-VC
• Capping heads: 4pcs
• Power: ≤2.3KW(Including vacuum pump)
• Estimate Speed: 35-40 bottles/Min
• Cap diameter: Φ45-Φ110mm
• Bottle height: 65-150mm
• Round Bottle diameter: Φ50-Φ110mm
• Air consumption: 0.6m³/min 0.7MPa
• Capping torsion: 5-20N.M
• Max vacuum degree: -0.08Mpa
• Power supply: AC 220V 50Hz/380V 50Hz

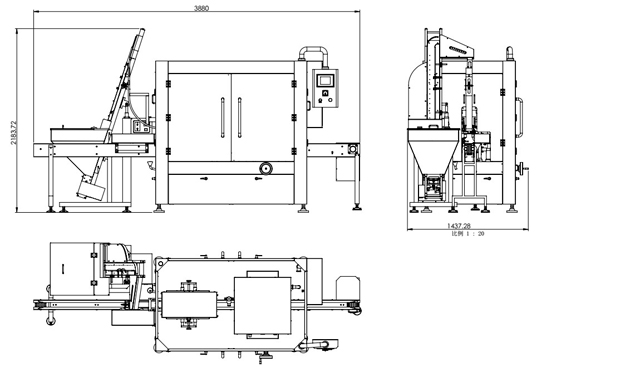

• Overall dimension: About 4000X1450X2300mm(Including Lid feeding system)
• Required operating direction: Left to right
• When standing in front of the doors of the safety guard
• Warranty: 1 years from the moment of successful installation and test runs

More Details On Vacuum Capping Machine

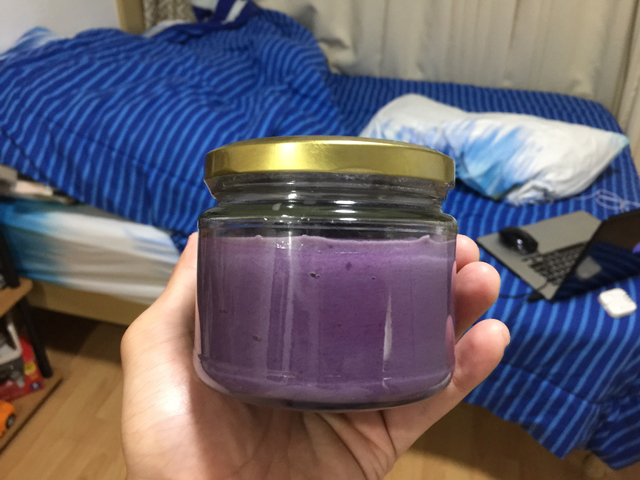

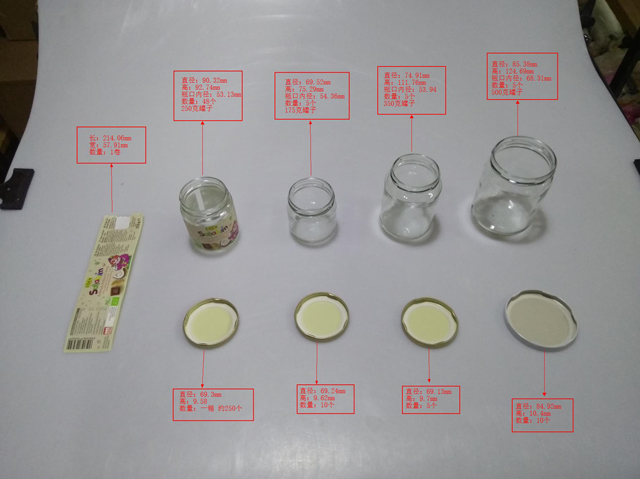

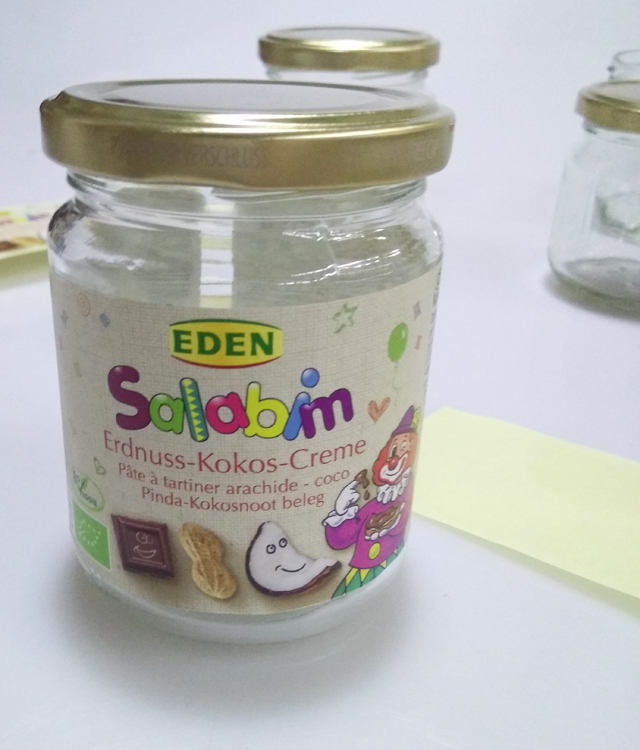

Capping Samples:

Easy Worn Spare Parts:

Total Configuraiton
