Automatic L Type PE Film Sealer Shrinking Tunnel Wrapping Machine

• Max. film size: Φ280*W530mm
• Air compressor: 0.5Mpa (5 bar)
• PLC: SIEMENS
• Operation interface: Colorful touchscreen display
• Machine material: Stainless steel
• Height of working table: 780-850mm
• Machine dimension: L1700*W800*H1560 mm
• Weight: 400Kg

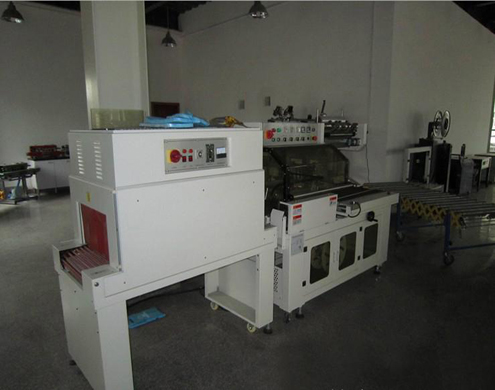

Automatic L-Type Sealer Shrinking Machine

Sealing system: Stable heating system, easy to change cutter, no smoke and stink, PLC control system

Operation panel: Eview color touch screen

Main material: Stainless steel

The far-infrared shrink packging machine adopts quartz far-infrared tube as heating source.

Main Function:

1. Paper carton or other similar article arraying and stacking, automatic material categorizing, automatic membrane packaging and bag packaging of articles, automatic package moulding by hot air shrinkage.

2. Applicable Object: Solid articles of medical, food, drinking, electronic and daily commodities industries.

Parameter Of L Type Sealer:

• Power source: 380V/3PH, 50-60Hz
• Power: 3 Kw
• Max. Sealing size: L1000×W500×H300mm
• Capacity: 40-50 packs/min (depend on product size)
• Film type: Center-foled polyolefin (POF) film
• Max. film size: Φ280*W530mm
• Air compressor: 0.5Mpa (5 bar)
• PLC: SIEMENS
• Operation interface :Colorful touchscreen display
• Machine material: Stainless steel
• Height of working table: 780-850mm
• Machine dimension: L1700*W800*H1560 mm
• Weight: 400Kg

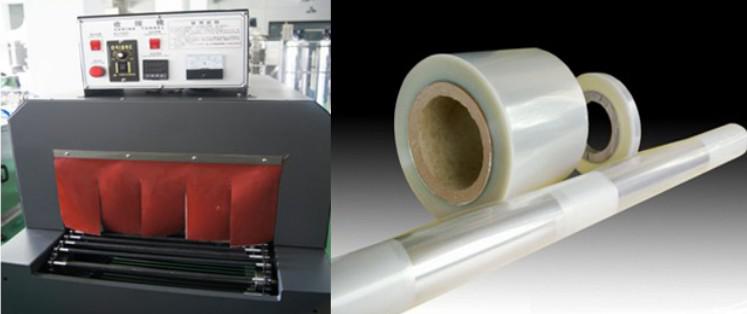

Parameters Of Shrinkage Wrapper Machine:

• Supply Power: 220V/50Hz-60HZ
• Heating tube power: 8kW
• Conveying Speed: 5-20m/min
• Shrinking Tunnel: 830×400×200mm
• Loading Weight: 10Kg
• Tunnel Temperature: 200℃
• Outer Dimension: 120×69×120cm
• Weight: 100Kg
• Packaging size of machine: 127×67×87cm
• Suitable for: POF,PE film.

It is suitable for the external packing of such products as food, beverage, medicine, video/audio products, metal ware, cosmetics.

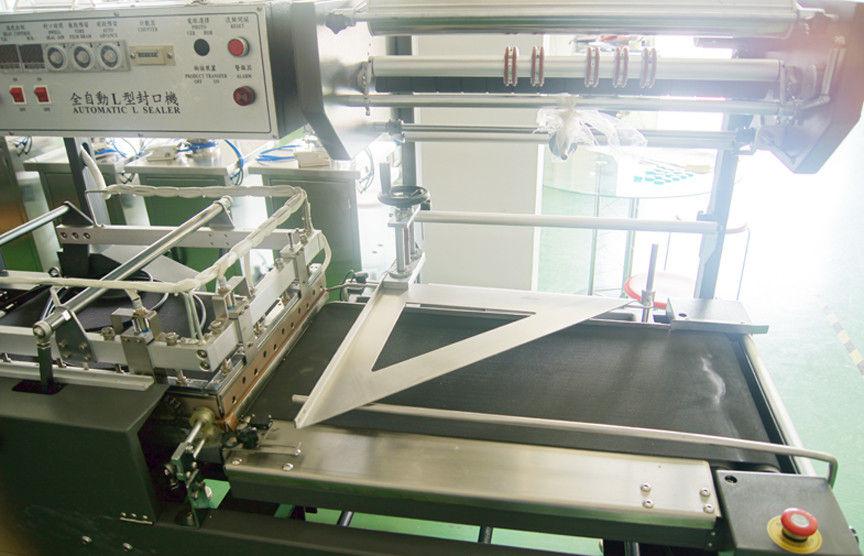

L-sealer hood shrink packaging machine combines sealing with shrinking into one step. It suitable for all kinds of shrink films such as PVC, POF, PP etc. And the transparent cover makes the process of sealing & cutting and shrinking be visible.

It is equipped with height adjustable stainless steel conveying mesh, among the three models, the shrink wrapping machineis used to convey the packed products out automatically so as to double packing capacity.

Features

1. Perfect sealing without cracking and coking for adopting nano-fiber cutter holder and anti-sticking thermo-stable nichrome cutter.

2. Special-designed roller with pin to produce small holes on the film to release air.

3. Adjustable sliding film support according to the size of packing object.

4. Low power consumption, only 2.5kw/hour on average.

5. With thermo-stable and durable plastic cutter clip. It is suitable for the external packing of such products as food, beverage, medicine, video/audio products, metal ware, cosmetics.

6. Inside the chamber, adjustable package support to meet different products’ sizes.

7. Can be moved or fixed freely for truckles with brake fixed on the bottom of supporting base.

8.Can be operated continuously for a long time without overheating ambient environment.

Application

1. This shrink wrapping machine is widely applied for outer shrink packing of various products, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc.

2. To shrink wrapping the combined products in supermarket for sales promotion, such as foodstuff, beverage, cosmetics, presswork and toy etc.

3. To use in place where there is restriction on space, such as supermarket, monopolization shop, office and some labor.

After-sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
