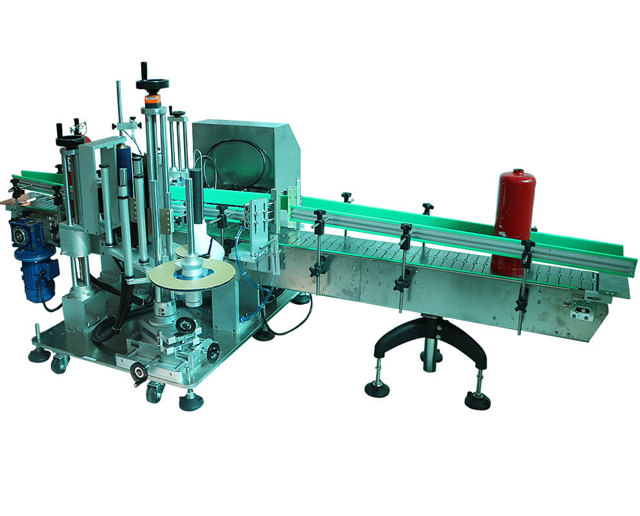

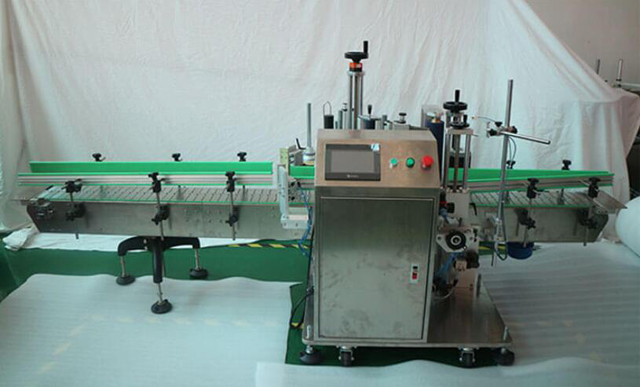

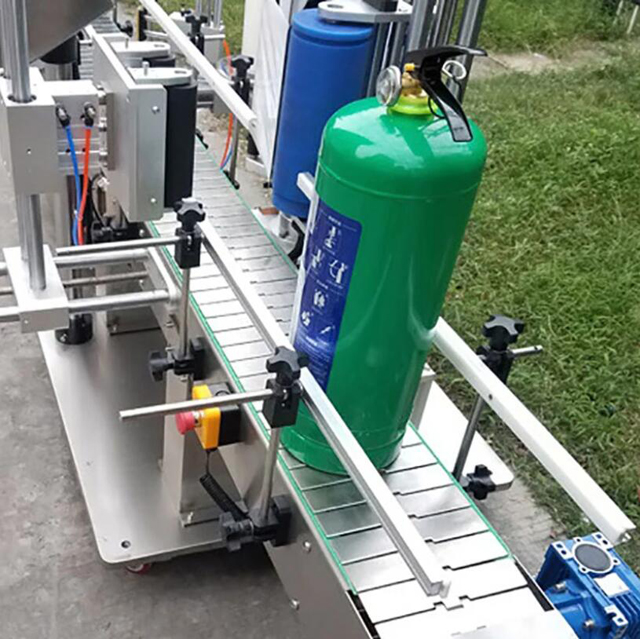

Automatic Linear Fire Extinguisher Orientation Sticker Labeling Machine

• Model: VK-RPL
• Labeling Accuracy: ±1mm
• Labeling Speed: 15-30pcs/min
• Applicable Dimensions: 5L barrels, 1.8L round bottle, fire extinguisher etc
• Applicable Labe Size: Length: 20-285mm Width:20-190mm
• Power Supply: 220V/50HZ/Single phase
• Weight: 185KG
• Machine Size(LxWxH): About 1950mm x 1200mm x 1530mm
• Delivery Time: 30 Days

View Video

The labeller is specially designed for the big objects. It can label edible oil square bottle on three sides labeling and cylindrical handle with the handle of the circular fixed-point lableing, Such as: 5L round barrel, 1.8L cylinder oil bottle labeling and the like.

Technical Parameter

Famous Brand Electrical Parts

• PLC: MITSUBISHI
• Touch Screen: WEINVIEW
• Inverter: DANFOSS
• Servo motor: Delta
• Switch: Delta
• Optical: OMRON
• Label Sensor: Leuze
• Servo motor: Delta

Features

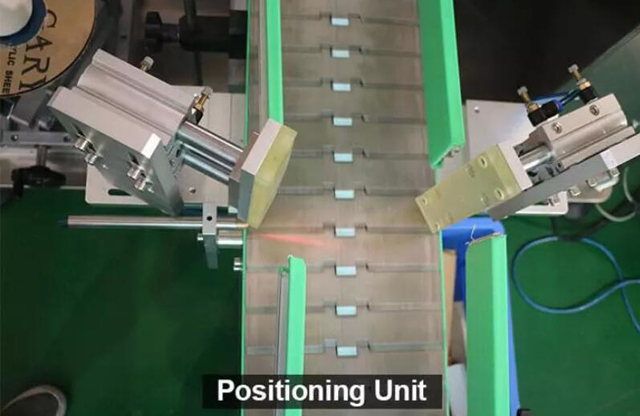

Powerful function: Single-label and double-label sticking on bottle-shaped objects are possible with just one device. For double-label sticking, space between the two labels can be adjusted flexibly. The optional circumferential positioning detection device can position stick on the circumferential surface;

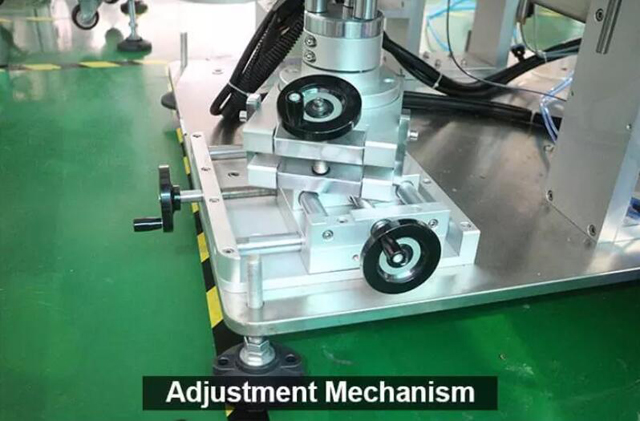

High degree of superposition: the coping mechanism combined with the three-axis positioning mechanism has eliminated bottle vertical movement and improved labeling accuracy;

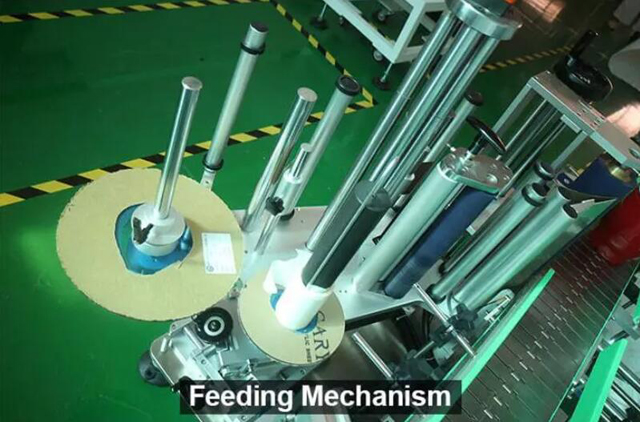

Automatic bottle separation: The spring-type automatic bottle separation can effectively eliminate unsmooth bottle separation due to the discrepancy of bottle height, thus improving the stability;

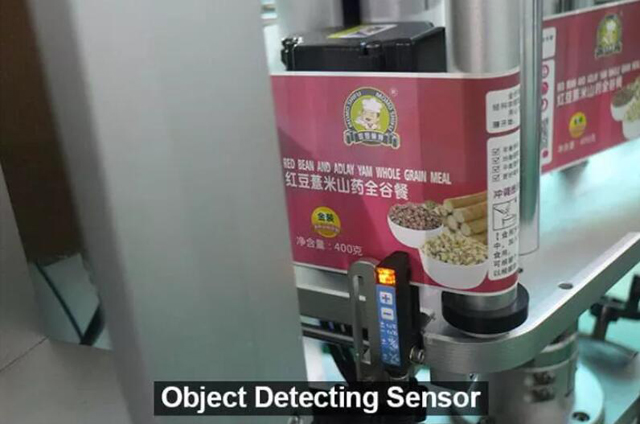

Touch-screen-based control: the man-machine interaction interface, with intuitive parameter modification, can guide you through all steps of any operation and enable shift between functions. Intelligent control Automatic photoelectric tracking that avoids idle labeling while correcting and detecting labels automatically, so as to prevent mislabeling and label waste; Sturdy and durable It is made of stainless steel and premium aluminum, meeting the GMP production requirements.

Automatic shutdown: labeled bottles numbering, power saving (the device will automatically change into standby mode if no labeling is detected within a given time),indication of labeled bottles and protection of parameter setting (hierarchical authority to parameter setting) bring much convenience to production and management.

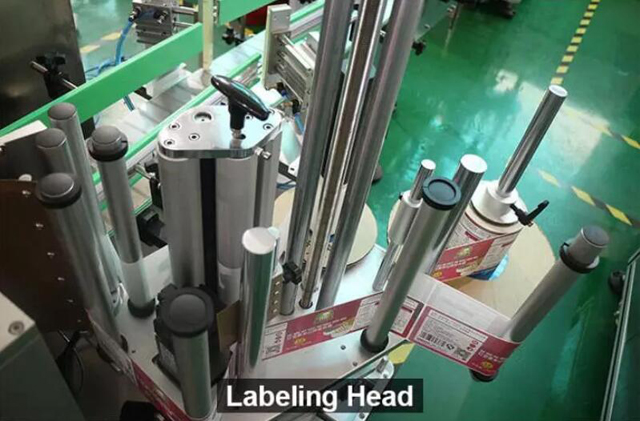

Details

Troubleshooting

1. Power supply and power-off: Check the power supply source and the fuse beside the power outlet and the fuse is 16A / 110V. Check whether the power button is pressed (powered off).
2. When the marking action is abnormal: Check whether the marking position is normal, if normal, then check whether there are foreign matters blocking the action mechanism, and checking each spring is normal or the fence position is normal. Check whether the HMI parameter settings are normal. Check the relevant electric eye is normal.
3. When the conveyor belt does not run: Check whether the conveyor belt speed is adjusted too slowly, check whether the operating mechanical components are blocked, check the HMI settings and check the automatic star button is on.

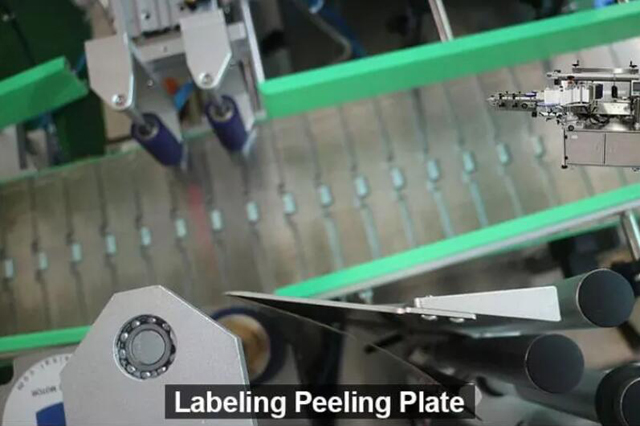

4. When the label on the product is not in the right labeling position on the product,because peeling plate is loose,adjust the clamping sponge axial, it should neither be too loose nor too tight or adjust the spring tension of the brake band under the peeling plate.
5. If the problem cannot be solved, please contact us for consulting.We will give you the best solution.

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
