Automatic Linear Vacuum Capping Machine For Glass Jar In Food Industry

• Power: ≤2.3KW（including the vacuum pump）
• Production capacity: 50-60BPM
• Cap diameter: ￠30-￠55mm ￠50-￠85mm
• Bottle height: 80-250mm
• Bottle diameter: ￠30-￠85mm
• Max vacuum: -0.08mpa
• Capping torsion: 5-20N.M
• Air consumption: 0.6M3/0.7Mpa
• Machine dimensions: about 3000×1000×1900mm
• Weight: About 850kg

This machine is researched and developed by our company with years of experience, it is unique in domestic. Integrated automatically cap arranging with covering, vacuum capping. Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the glass jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

Main Features

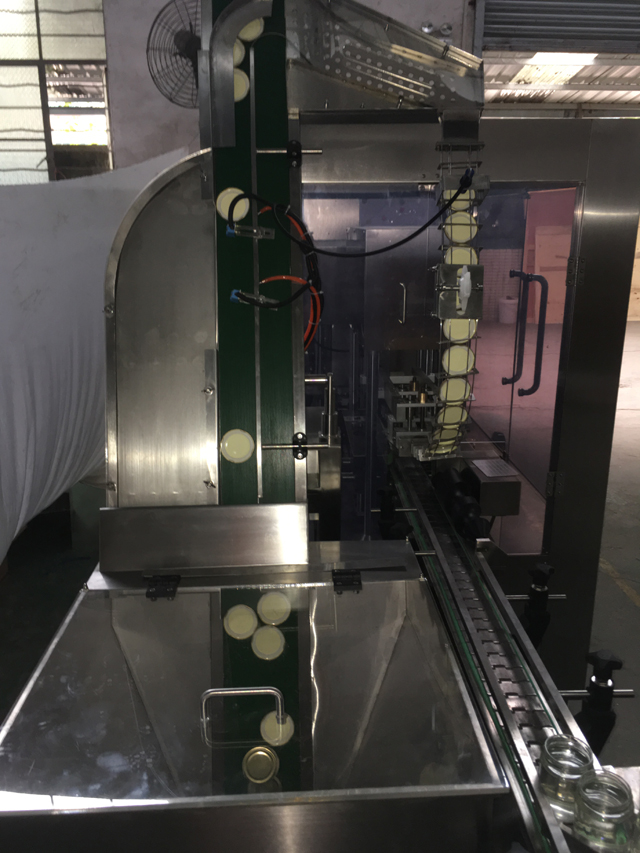

This machine has high degree of automation as it integrates auto aranging, putting up and vacuum screwing cap.

A closed-chamber vacuum pump is used to vacuum and then screw caps, which ensures high vacuum levels;

Capping torque and vacuum degree can be set according to requirements.

With a small number of parts replacing, vacuum caps can be suitable for different sizes of bottles.

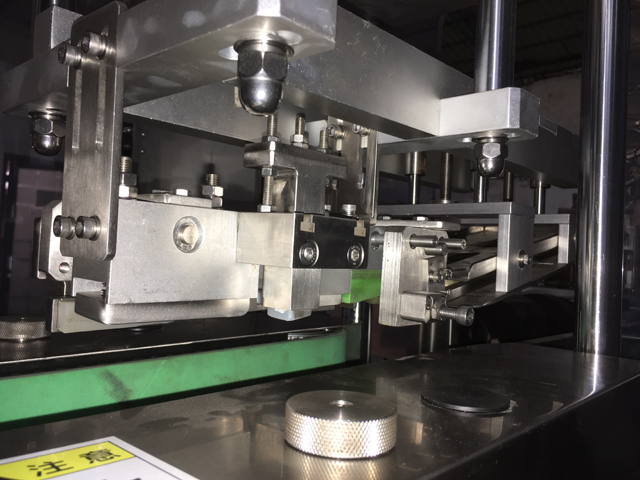

There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high vacuum capping rate.

The shell, frame, main structure, etc. of the machine are mainly made from 304# stainless steel so it is with beautiful appearance.

For this machine PLC with man-machine interface (touching screen) control was adopted, and for the main electrical and pneumatic components we choose domestic well-known brands to ensure stable performance.

Technical Parameter

• Power: ≤2.3KW（including the vacuum pump）
• Production capacity: 50-60BPM
• Cap diameter: ￠30-￠55mm ￠50-￠85mm
• Bottle height: 80-250mm
• Bottle diameter: ￠30-￠85mm
• Max vacuum: -0.08mpa
• Capping torsion: 5-20N.M
• Air consumption: 0.6M3/0.7Mpa
• Machine dimensions: about 3000×1000×1900mm
• Weight: About 850kg

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
