Automatic Medical Gel Syringe Filling Plugging Sealing Machine

• Filling volume: 0.5ml-100ml
• Number of filling head: 6 sets
• Capacity: 1800-3600 syringes/hour
• Sealing method: Pressure or screw
• Compressed air: 6kg/cm2,0.15m3/min
• Supply: 3P 380V/220V 50-60Hz 2.0Kw
• Dimension: 1800*800*1700mm (L*W*H)
• Net weight: 750Kg

The medical gel syringe filling plugging sealing pharmaceutical packaging equipment is suitable for liquid & rubber plugging on glass or plastic syringes. other types of syringe are also up to custom made.

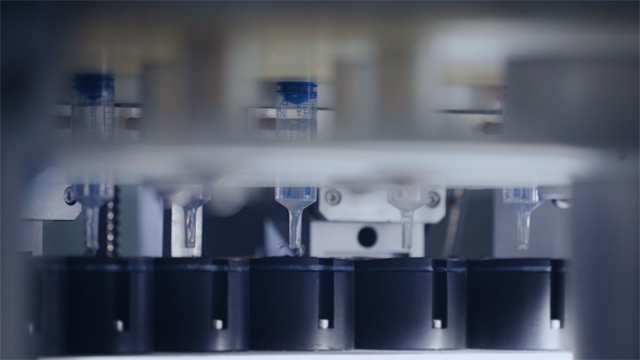

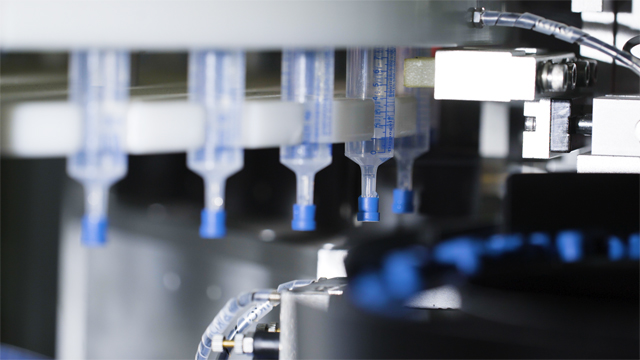

6 nozzles are for filling simultaneously. plugging can be either by pressing down or screwing ways.

Plugging is done parallelly with filling. multi points inspection with optical fiber sensors. neither filling nor plugging when syringe is missed.

All product contact parts are of AISI316L and medical silicon.

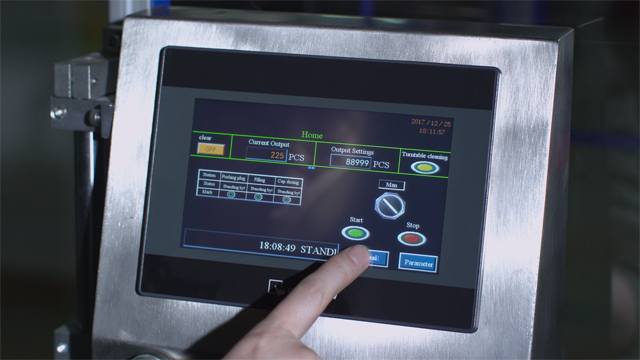

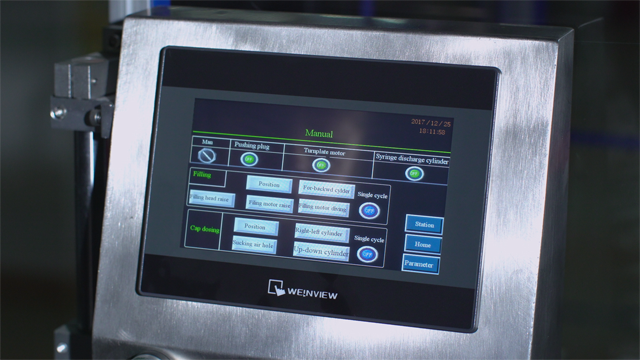

Actual working status can be displayed on touch screen with multi languages.

Rotating plunger pumps are driven with servo motor. Precision adjustment can be made on touch screen without any tools. each plunger pump can be adjustable slightly.

Application:

Pre-filled syringes have emerged as one of the fastest-growing choices for unit dose medication as the pharmaceutical industry seeks new and more convenient drug delivery methods. Pharmaceutical companies are able to minimize drug waste and increase product life span, while patients are able to self-administer injectable drugs at their home instead of the hospital.

The market has expanded and is exploring all options outside of the traditional process. In the past, glass syringes dominated the market, but there has been a movement toward plastic and disposable syringes. Pre-filled syringes have also been utilized across a wide range of therapeutic sectors, such as vaccines, blood stimulants, and therapeutic proteins.

Eliminating dosing errors and ease of use are two of the greatest advantages of pre-filled syringes. However, there are a number of challenges that manufacturers face, such as the interaction between the pre-filled syringes and the drug, stability concerns, and quality control.

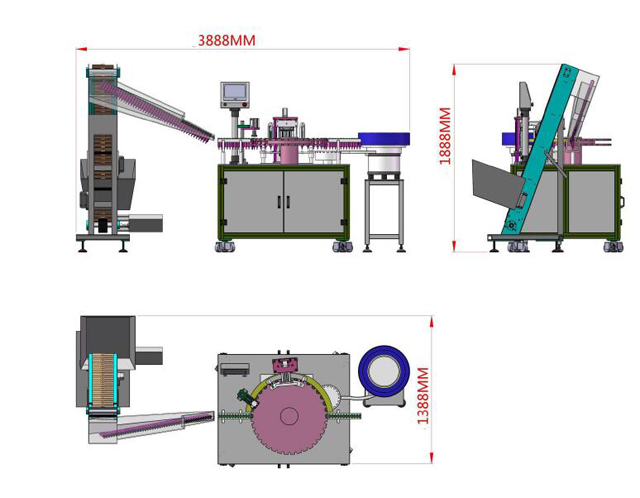

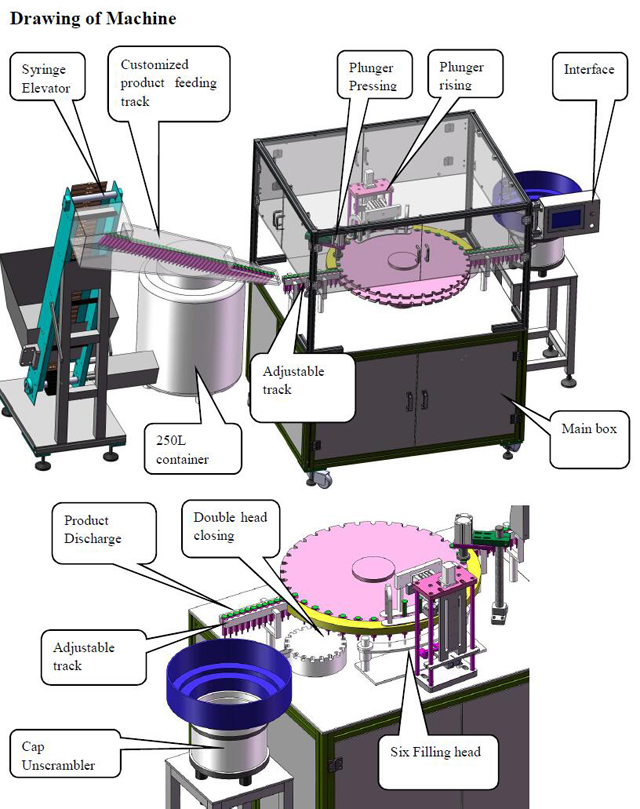

Machine Drawing

Basic Parameter Of Pre-Sterilized Syringe Filling Plugging Capping Machine:

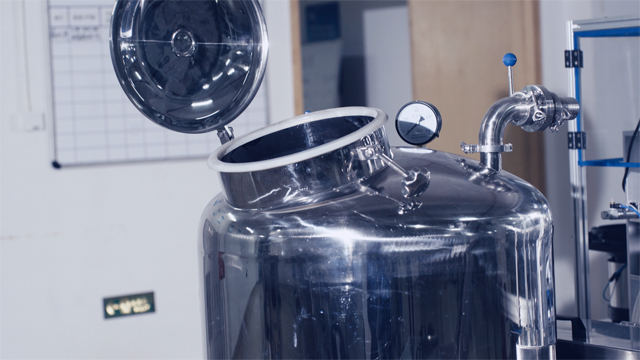

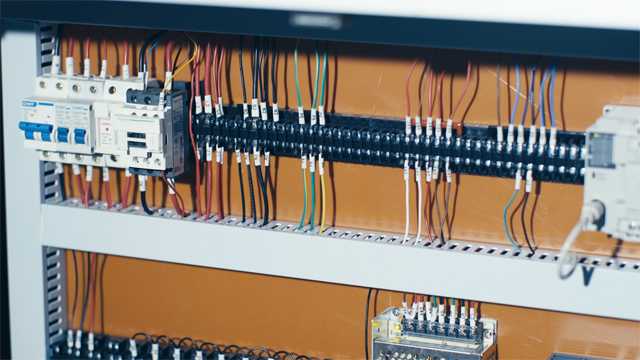

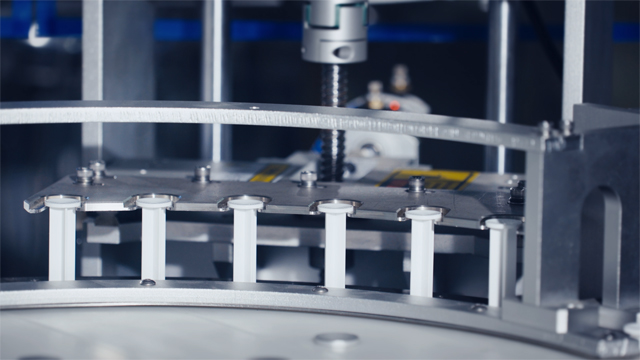

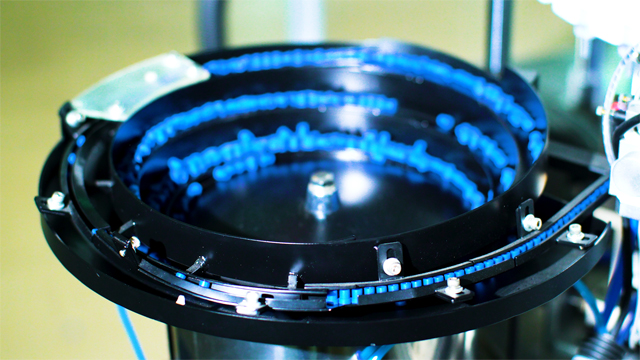

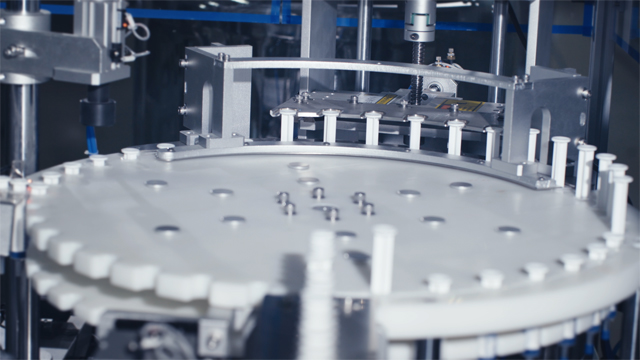

Details Pictures

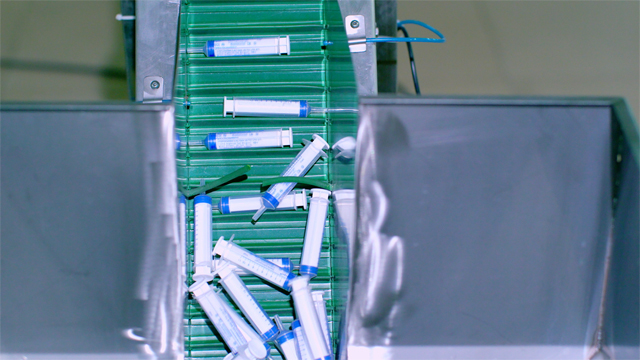

Parts For Syringe Pre-Filled Injector Loading System

Component Origin

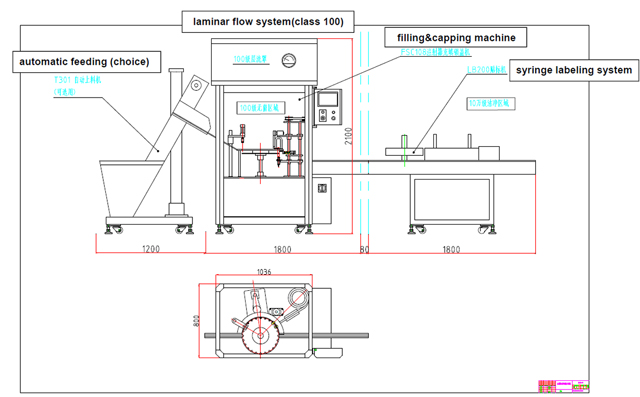

Syringe Filling Capping Labeling Line:

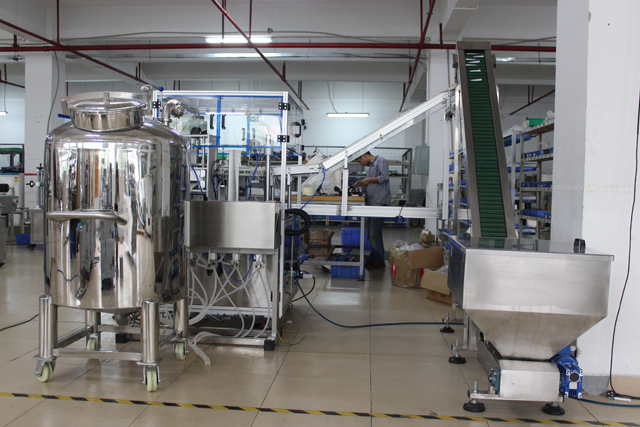

Pre-Syringe Filling Sealing Line

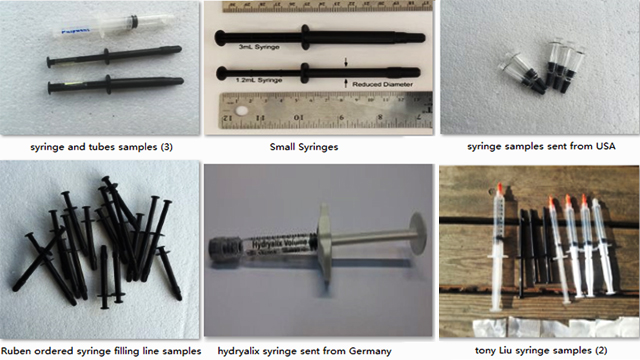

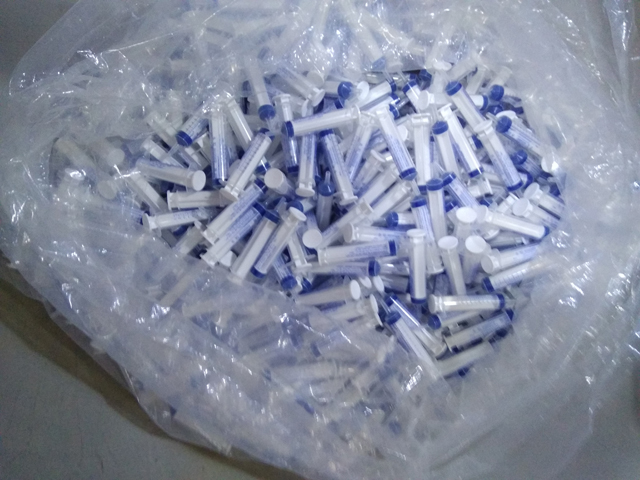

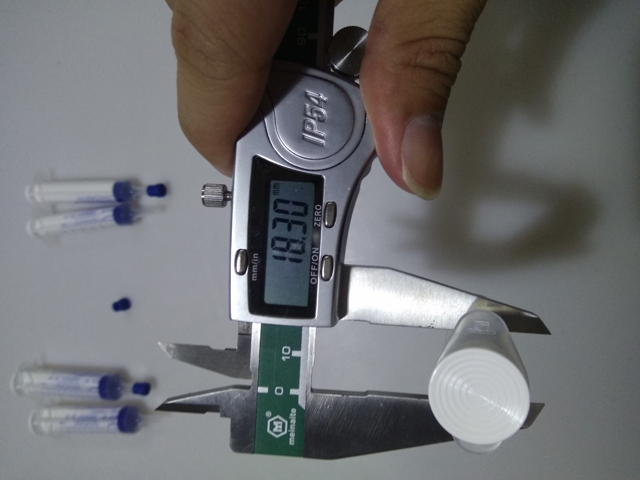

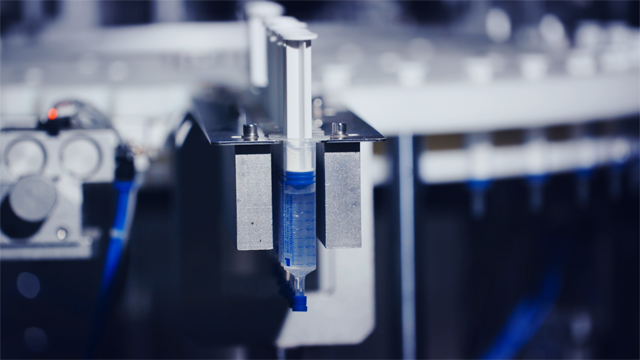

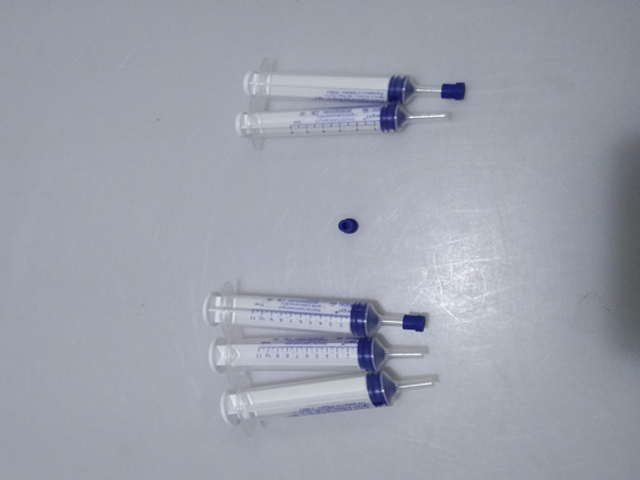

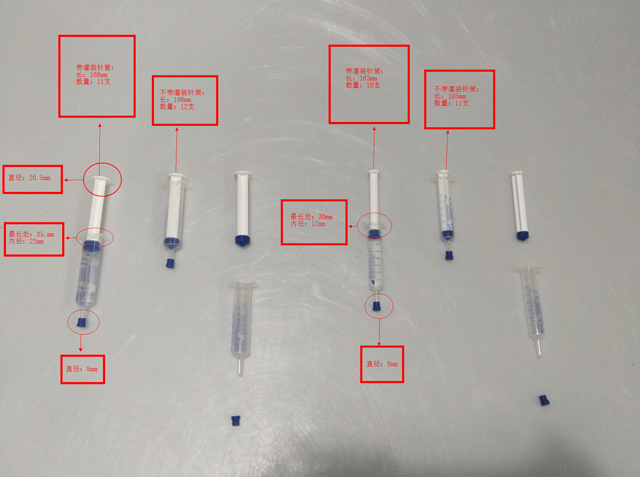

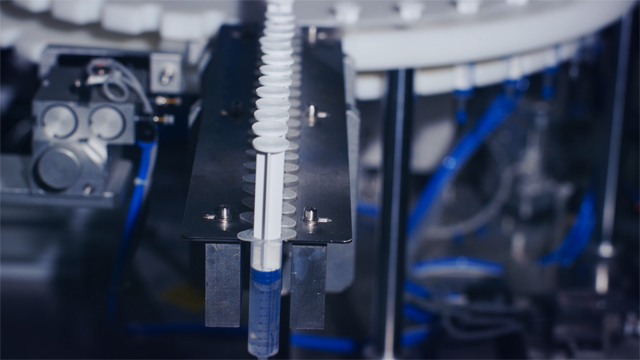

Samples & Final Product Output
