Automatic Metal Tin Cans Jars Seaming Sealing Labeling Machine
  • Production: 45-55pcs/min
  • Suitable Thickness: Max. 0.5mm
  • Suitable Diagonal: 210-330mm
  • Suitable Height: 400mm Power: 2.2KW
  • Dimension: 2800*945*1860mm
  • Net Weight 1200KG
  • Gross Weight: 1500Kg

The cans sealing labeling machine is applied into the drinking industry like the coca cola / cans food production, which is made up of two machines in this automated production line:

1. Automatic single or multiheads cans capping machinery

2. Vertical round bottles cans sealing machinery

Automatic Single Head Easy Open Cans Pet Cans Capping Machinery

The easy open cans seamer is mainly used to seal pop-top can of tirned plate and aluminium alloy. It has four sealing positions with the sealing componont. Can revelves and circles around the main spindle when seamer is sealing. It has functions of feeding cap when can is ready, not feeding cap when can is not ready. And it is installed with auto matic stopping system which acts when a capsule is blocked at the inlet, or can is blocked at the outlet. Or the cap runs out in the cap holder. So the seamer is the ideal equipment for canned food factories and canned drink factories.

Main Parameter Of Tin Can Seaming Machine

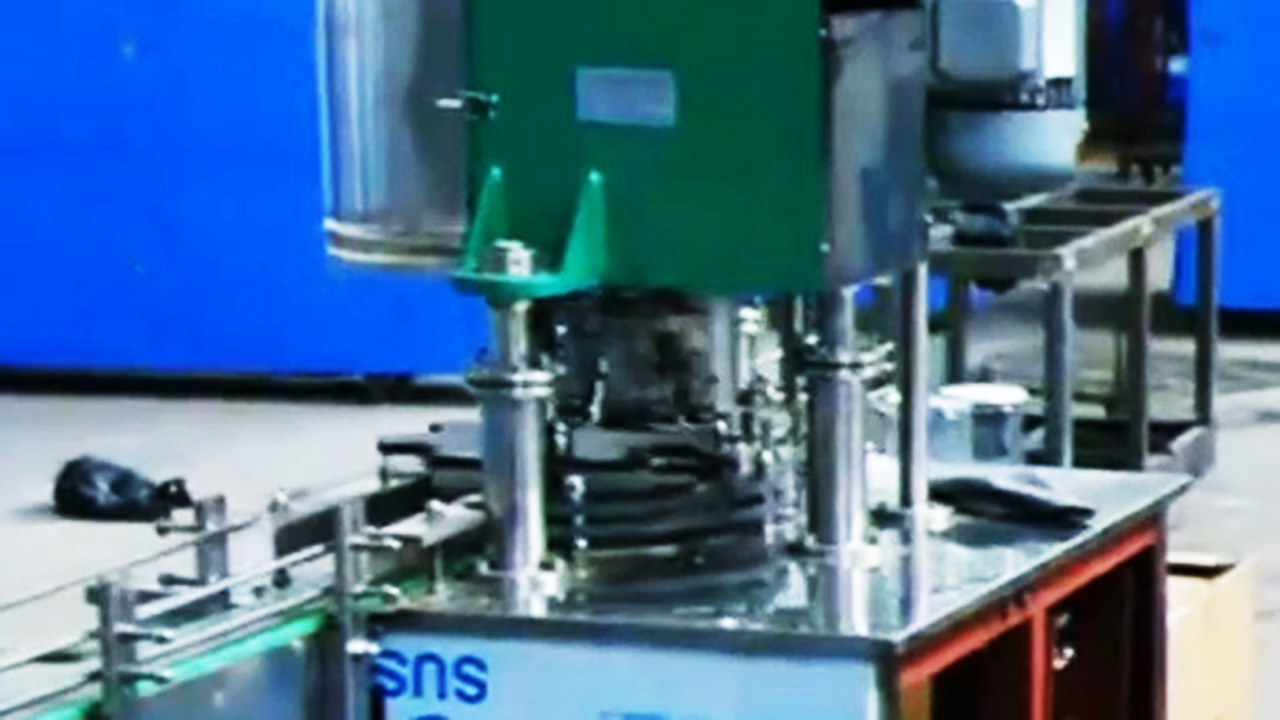

automatic capping machine for pop cans.jpg

Production: 45-55pcs/min

Suitable Thickness: Max. 0.5mm

Suitable Diagonal: 210-330mm

Suitable Height: 400mm Power: 2.2KW

Dimension: 2800*945*1860mm

Net Weight 1200KG

Gross Weight: 1500Kg

Basic Configuration Of Automatic Beverage Can Seamer/PET Can Sealing Machine

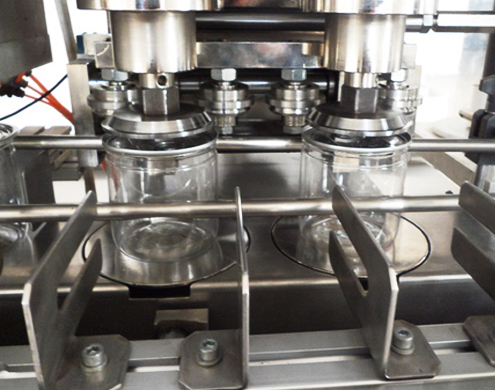

open cans sealing machiner automatic two heads.jpg

1. This machine is made by sheenstar which is a professional can filling machine manufacture.

2. Material of filling valve: Stainless steel SUS304

3. Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.

4. Main motor: ABB (Switzerland)/ SEW (Germany).

5. Sliding bearing: Igus (Germany).

6. Frequency inverter: MITSUBISHI (Japan).

7. Touch screen: PRO-FACE (Japan).

8. Contactor: SIEMENS (Germany).

9. Breaker: SIEMENS (Germany).

10. Air switch: SCHNEIDER (France).

11. Pneumatic components: CAMOZZI (Italy).

12. Seals: Busak Shamban (U.S.A)/ SEALTECH (HK).

13. Photocell switch: Omron, Keyence, P F (Japan rmany).

14. Proximity switch: TURCK (Germany).

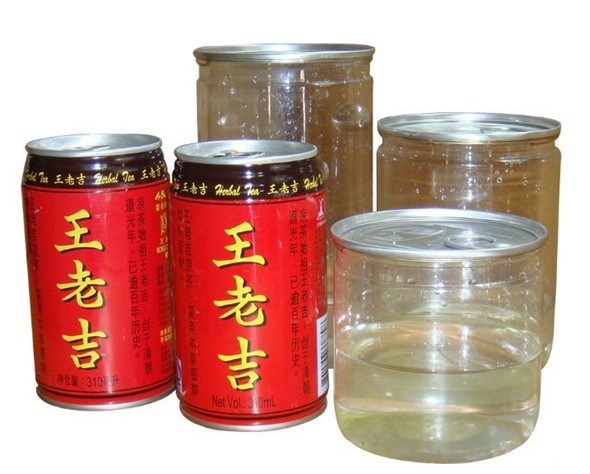

metal cans sealing equipment auto fully.jpg

Automatic Round Cans Labeling Machinery

The labeling equipment is for the round bottle labeling in the industry like food, oil, pharma, wine, cosmetics and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine. Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.

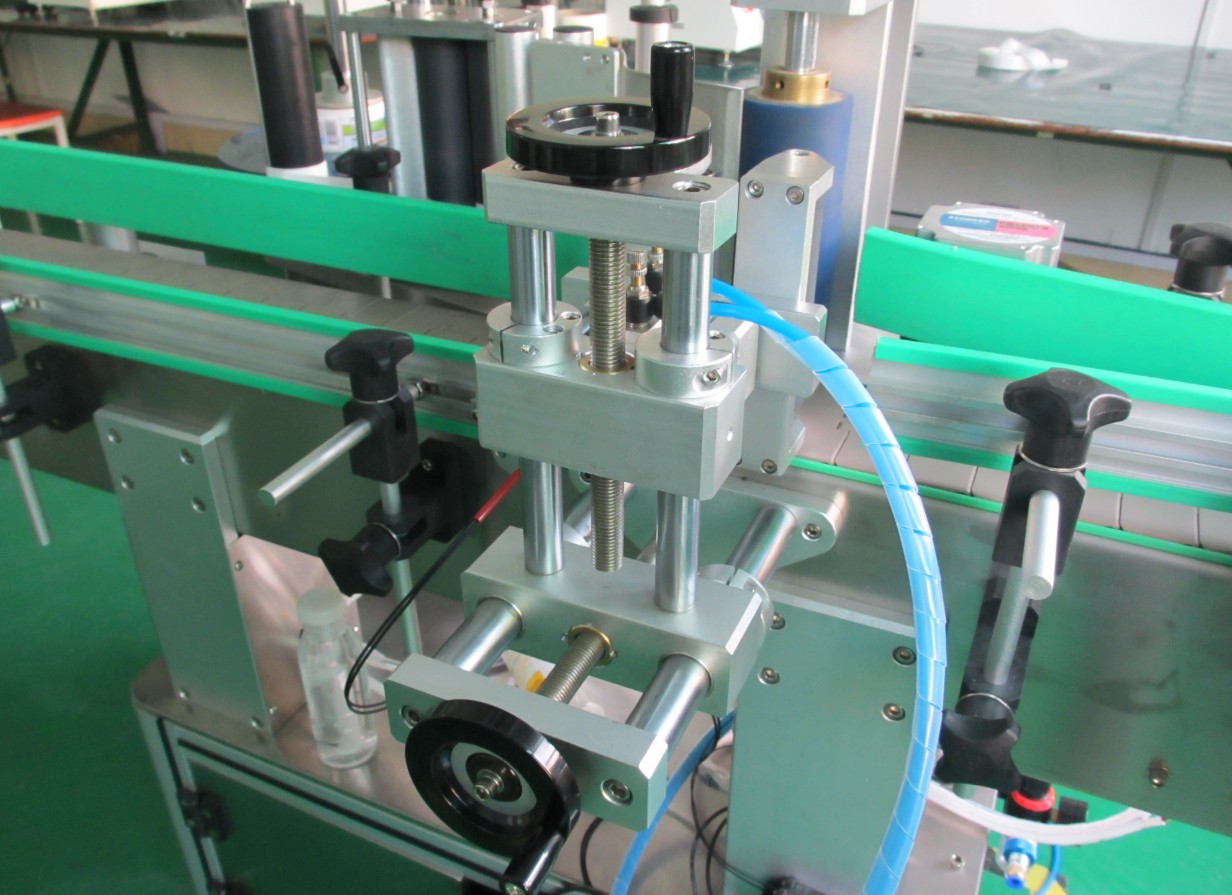

round bottles etiketter labeling machine (10).JPG

Characteristics:

1: The main body of equipment is made of SUS304 and advanced Aluminum products.

2: The labeling heads is drived by the Server motor that is imported from Japan.

3: All the light sensor equipment is imported from both Japan and Germany

4: PLC Controlled by the human-machine interface with 60 memory units

5: The machine is the best choice for single worker’s operating.

6: The machine has the function as bottle-uprighting,bottle-distributing, labeling, flating as well as counting.

7: The position, height, angle of labeling can be adjusted easily.

8: Equipped with the conveyor belt,the machine is applied to set of the production line

Technic Parameter Of Round Bottle Labeling

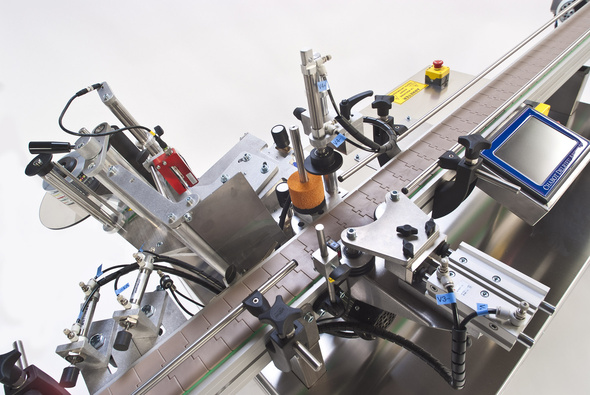

round bottle labeling equipment.jpg

1Labeling accuracy±1mm (not including the label error)
2Labeling speed25~45bpm
3Diameter&height of bottlesDiameter:φ25mm~φ120mm height:25mm~300mm
4Label sizeLength:20mm~290mm Width:20mm~160mm
5Overall size of machineAbout 1950mm×1200mm×1530mm(L×W×H)
6Supply power220V/50HZ 110V/60HZ
7N.WAbout 185Kg
Optional function (the price should added according to the choose)
SeriespartfunctionNumberUnitPrice(USD)
1Ribbon printerProduction date number1Set620
2Universal SensorDetect the transparent label, hot foil, gilding label1Set1,300

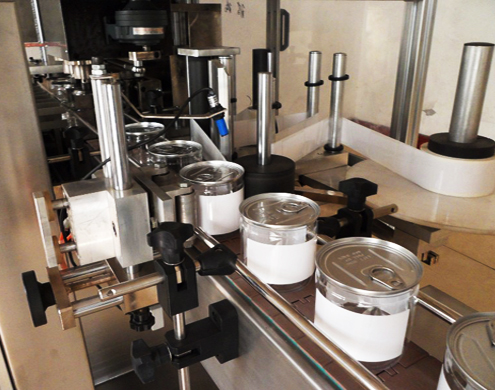

cans sealing machine automatic.jpg

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
