Automatic Pesticide Liquid Fertilizer Filling Capping Labeling Line

• Name: Pesticide Liquid Fertilizer Filling Capping Labeling Line
• Volt: 220V
• Filling speed: 600-1800 bottle/h
• Filling precision: ±0.5%
• Suitable filling range: 50-5000 ml
• Machine size: 1500*800*1450 mm
• Machine weight: 260 kg

This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability and good stability, and is well received by users;

This line uses automatic bottle feeding, 6-head servo filling machine, elevator automatic capping, servo screw cap, wafer positioning round bottle labeling machine, and bottle collection to form a fully automated production line;

The capping machine uses a manipulator to grasp the cap, press the cap, and control the capping torque through a servo motor to achieve the capping effect;

This type of capping machine has uniform force for capping, easy to adjust the force, and it is not easy to wear the cap;

The production line has stable operation, low noise, convenient maintenance, and fully meets GMP certification requirements, and is widely used in medicine, food, cosmetics and other industries;

The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene;

Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers. The plexiglass cover of the whole machine is designed to prevent impurities from entering the filling material, which is safe and hygienic.

• This fulll automatic liquid fertilizer filling machine is widely used in various no blistering liquids, such as pesticides, liquid fertilizer, liquid micronutrient fertilizer, etc. The liquid fertilizer filling machine is also workable to wine, mineral water, edible oil, lubricating oil, salad oil, fertilizer, and other liquid material.
• Any dose within 200-5000ml can be filled just by setting the date on the liquid fertilizer filling machine micro-controller;
• This liquid fertilizer filling machine is really a full automatic model machine, auto conveyor, PLC control system, photoelectric sensors, touch screen, the driven is by cylinder. The liquid fertilizer filling machine can achieve auto counting, no bottle, no filling, so this pestcide filling machine is a labor saving machine. easy to operate .
• Packing process: Automatic filling machine -> automatic screw cap machine -> automatic aluminum foil sealing machine -> automatic labeling machine-> Ink-jet printer

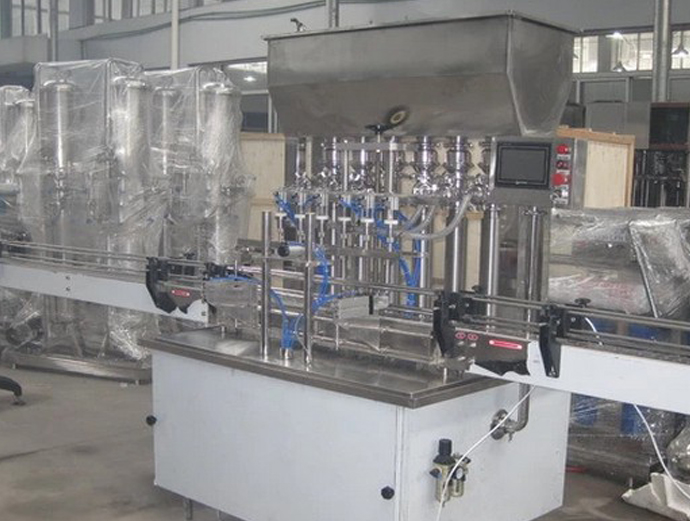

Six Heads Liquid Fertilizer Filling Machine

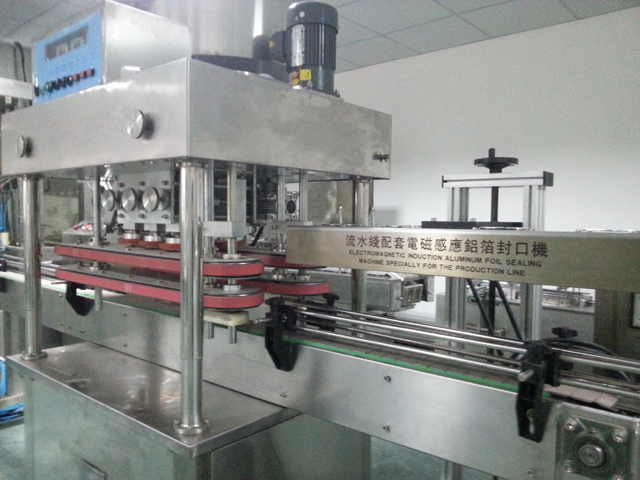

Capping Machine Of Liquid Fertilizer Filling Machine

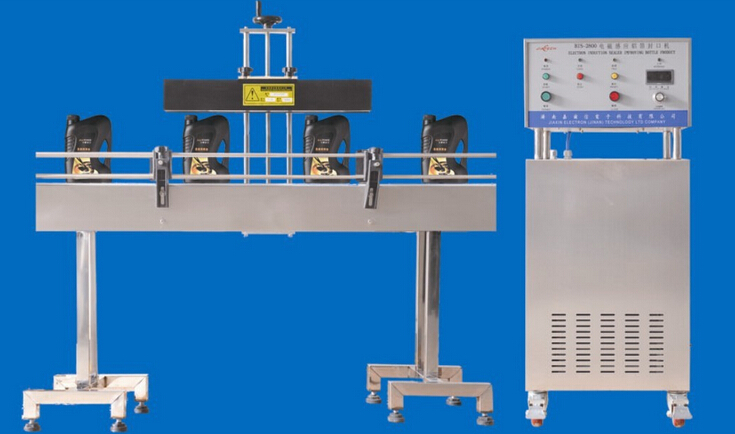

Aluminum Foil Sealing Machine

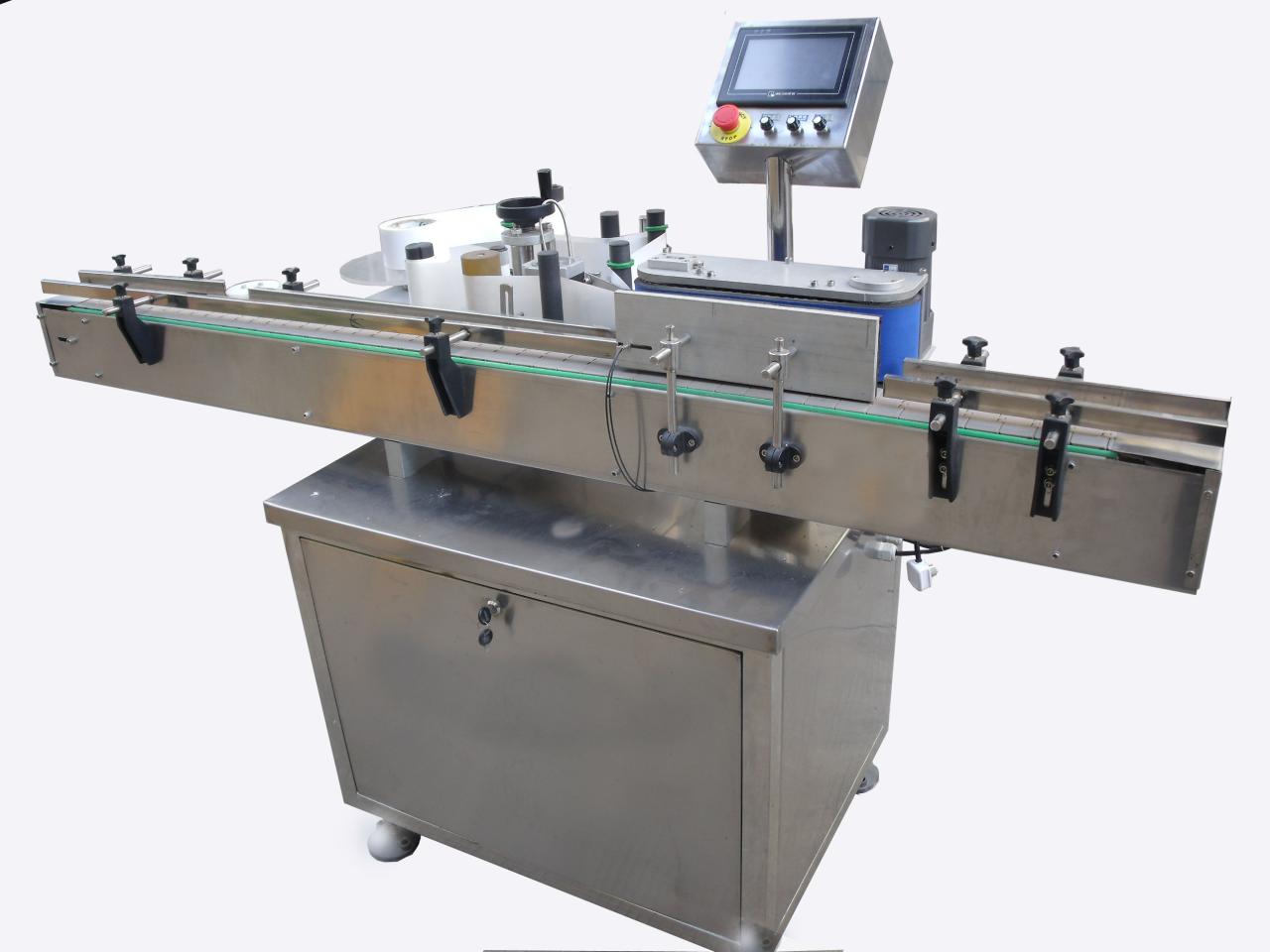

Labeling Machine

Used for round bottle of accurate label. Synchronous sponge lose stepless speed regulation points bottles of institutions, can be arbitrary set points bottles of spacing. Reciprocating cylinder positioning products, the products specified position in designated accurate label.

Can choose the desired function, the desired operating data can be set on the touch screen.Electrical control were selected international brands, such as: servo motors, drives, touch screen, PLC, optoelectronics and other labeling machine core electrical.

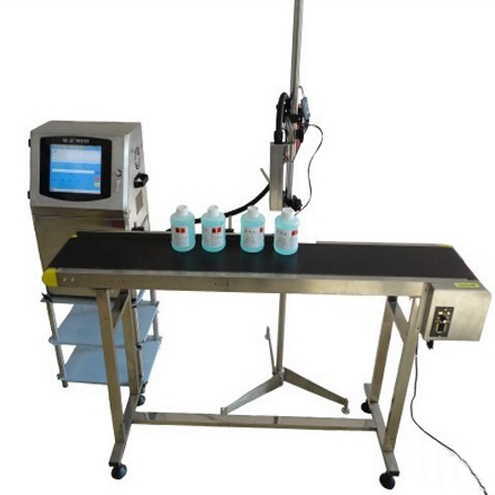

Ink Jet Date Printing Machine

Configuration

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
