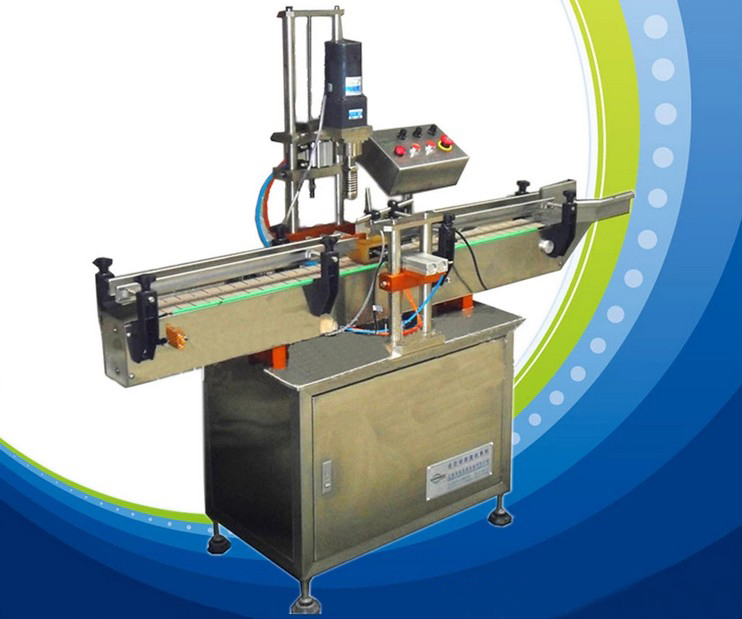

Automatic Plastic Bottles Single Head Screw Capping Machine

• Model: VK-SCC
• Applicable bottle specification: 2-100ML
• Production capacity: 2400-3000 pcs/h
• Power: 1.5kw
• Dimensions(mm): 2000*800*1500(L*W*H)
• Weight: 300kg

View Video

The capping machine is designed to achieve the rationalized production objectives. Capping procedure adopts automated control, easy operation, fast production speed and excellent sealing effect (material for PE, PP, PS, PVE, and PET). Capping position is unified, beautiful and neat.

Suitable for round containers of pharmaceutical, chemical, food and other industries to cap covers. The machine has equipped with self-test functions- detection of power stability, over-current, over-voltage, over-temperature control protection and phase locking.

Automatic bottle single head screw capping machine adopts inverter control, mechanical drive applications cam principle, circle disc splitter positioning, the implementation of the circular screw cap capping. Load cover and capping are automatic. Capping sheet structure with a magnetic composition, not to hurt the caps. The screw capping head is easy to disassemble, different cover and bottle just replace parts. It is a multi-purpose machine. Can with filling machine, labeling machine composition production line. It is the best equipment in food, beverage, pharmaceutical, cosmetic and chemical industries.

Mainly used for a variety of round plastic caps, aluminum caps, iron screw caps capping for different shaped bottle.

Features Of The Plastic Bottle Capping Machine

Power of this machine is adjustable; working status can be displayed in the control panel.

This machine adopts disk location on the design of the bottle for clearance campaign, through two sets of magnetic torque Rotary scarf on the orientation of the bottle cap.

This machine is an ideal equipment, which caps bottle cover in pharmaceutical, pesticide, daily chemical and food industry, etc.

Note: this can also be used for rolling aluminum cover, theft – proof cover and screw cap.

Main Technical Parameters

Configuration Of Single Head Capping Machine Automatic:

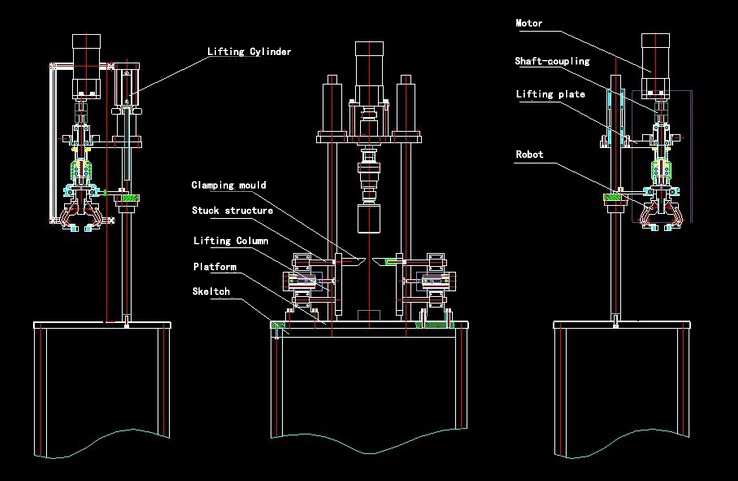

Drawing For Different Capping Head

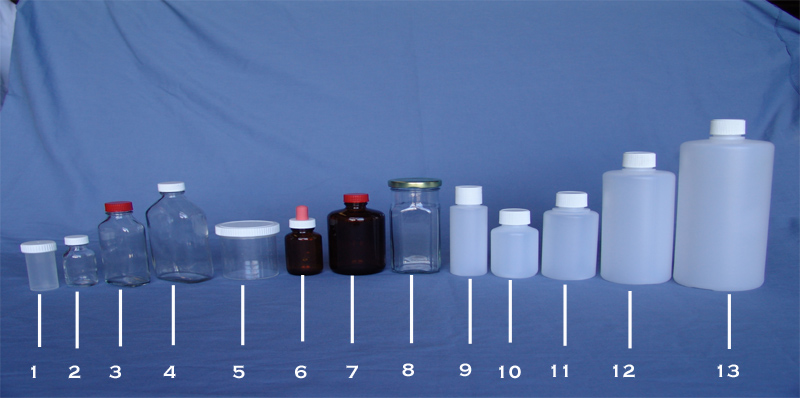

Capping Samples

Equipped with PLC control panel, this is more convenient to adjust the machine. Visual working data helps to watch machine status in real time. Customizable interface simplify machine operation.

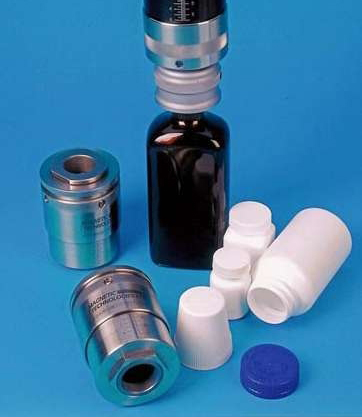

This kind of capping head is suitable for screw-on caps, it has larger torsion and can ensure the capping quality. Changing capping chunk can be used for different sizes of bottle caps.

Equipped with electric eye, this can detect passing by bottles and control the machine to work automatically. The sensitivity of the electric eye can be adjusted according to operation need, improves working accuracy.

Equipped with stainless steel chain conveyor, this has larger weight capacity, ensures products can be conveyed smoothly.
