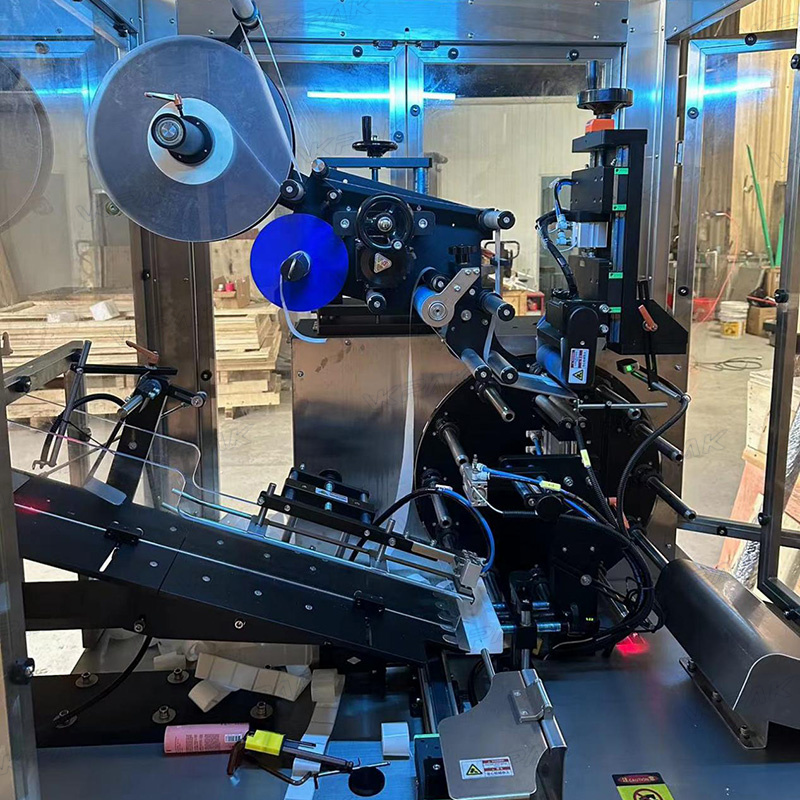

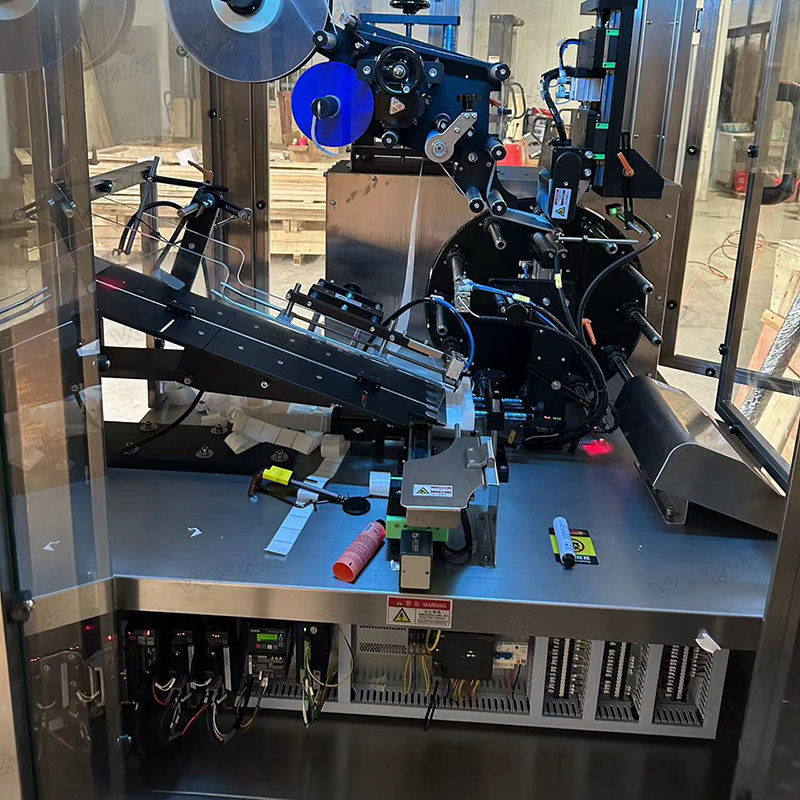

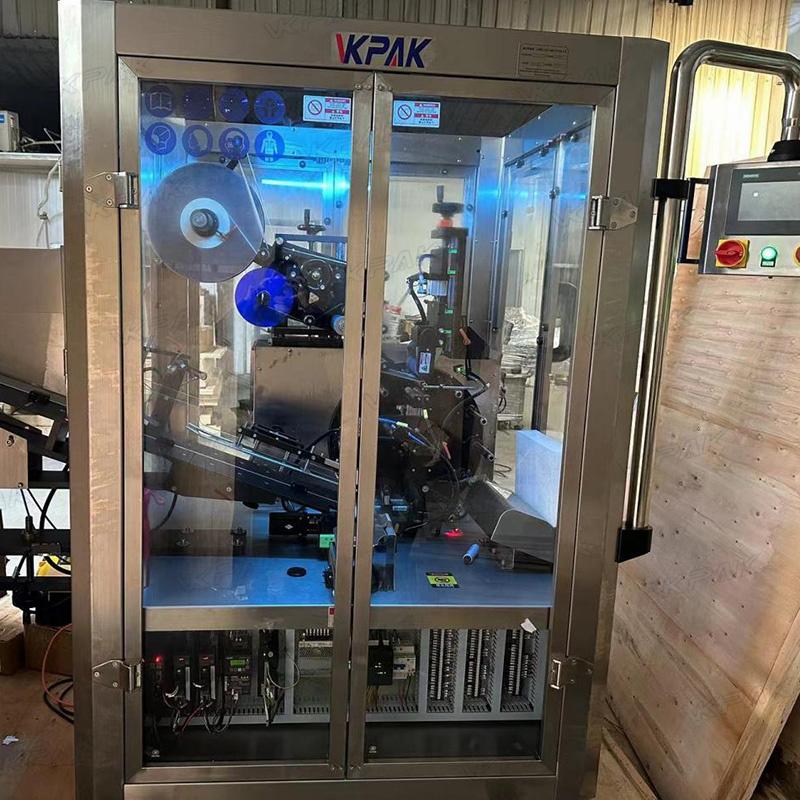

Automatic Plastic Soft Tubes Labeling Machine With Tubes Feeding System

• Model: VK-STL
• Labeling speed: 60-80 ( tubes/min)
• Labeling accuracy: ±0.5mm
• Label diameter (Max.): φ350mm
• Label width (Max.): 200mm
• Tube diameter (Max.): φ65mm
• Tube diameter (Min.): φ19mm
• Tube length (Max.): 220mm
• Label Reel Core Diameter: φ76.2mm
• Power: 220V 50Hz 3000W
• Dimension: 1920 × 1040 × 1830 mm.
• Weight: 300kgs

View Video

Plastic soft tubes labeling equipment with automatic tubes feeding system for pharma food cosmetic industry

Automatic tube labeler is using siemens PLC touch screen control system.

This labeling machine is mainly suitable for the cosmetics, individual nursing with profession and so on mouth, food, chemical industry hose packing tubes pastes the sign. The high accuracy, the redundant reliability and the efficiency satisfied the customer to paste the sign machine request; but our superiority lies in the reasonable design, leading processing craft and high precise assembly, fine post-sale service. This equipment simplicity of operator, replaces the mold and the label convenient, easy to clean and the maintenance service, causes the user the use cost to be low is the hose pastes the sign the ideal equipment.

The highly effective hose pastes the sign workstation: The simplex operation, the feed control, paste the sign, to receive the material; including lack materials examination electric eye and automatic suspension function.

The speed, the precision, the stability, easily and use and so on flexibly with the degree the optimized combination.

Specially designed for tube labeling, it can easily and quickly stick transparent or opaque self-adhesive labels on the tube, and is suitable for labeling tubes of various lengths and diameters.

Operates is steady, is reliable: Guaranteed each tube uploads when is not damaged, pastes the sign to be smooth, to be precise.

Use the non-pole air cylinder organization: Guaranteed that the high-quality goods are fast, order, reliable.

Use the decollators positioning device: Guaranteed that the tube pastes the sign localization is to be accurate, to be reliable, does not need to maintain.

Barometric pressure examination type dumping device: After guaranteeing pastes the sign tube reliable ex-denning.

The automatic tube labeler is using siemens PLC touch screen control system.

Intelligent Mitsubishi servo labeling system

The machine response is fast with pinpoint high-speed labeling positioning.

Easy to operation and to adjust.

Stainless steel construction.

Support different tube size with different pucks.

Machine Specification

• Model: VK-STL
• Labeling speed: 60-80 ( tubes/min)
• Labeling accuracy: ±0.5mm
• Label diameter (Max.): φ350mm
• Label width (Max.): 200mm
• Tube diameter (Max.): φ65mm
• Tube diameter (Min.): φ19mm
• Tube length (Max.): 220mm
• Label Reel Core Diameter: φ76.2mm
• Power: 220V 50Hz 3000W

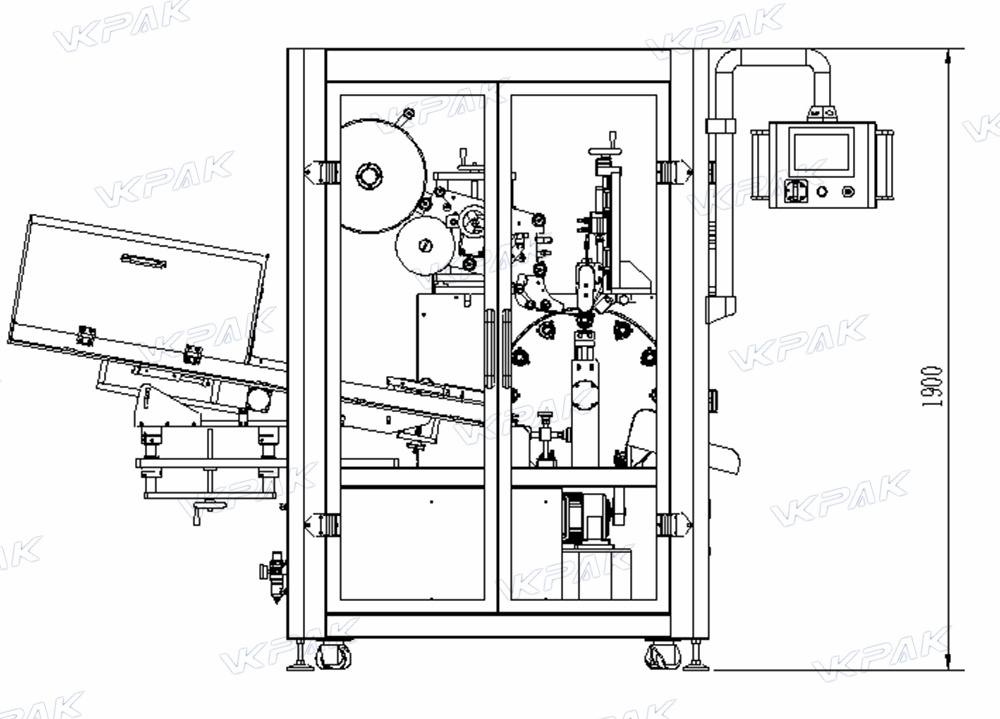

• Dimension: 1920 × 1040 × 1830 mm.
• Weight: 300kgs

For the soft tubes if you want to finish your production line in semi automatic with the simple machines in order to start your production at the lowest cost,it is one of best way to choose the ultrasonic tube cutting / trimming machine to finish the soft tubes cutting process after the tubes are filled with the filling materials that you want to fill.

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
