- Filling volume: 0.5ml-100ml
- Number of filling head: 6 sets
- Capacity: 1800-3600 syringes/hour
- Sealing method: Pressure or screw
- Compressed air: 6kg/cm2,0.15m3/min
- Supply: 3P 380V/220V 50-60Hz 2.0Kw
- Dimension: 1800*800*1700mm (L*W*H)
- Net weight: 750Kg

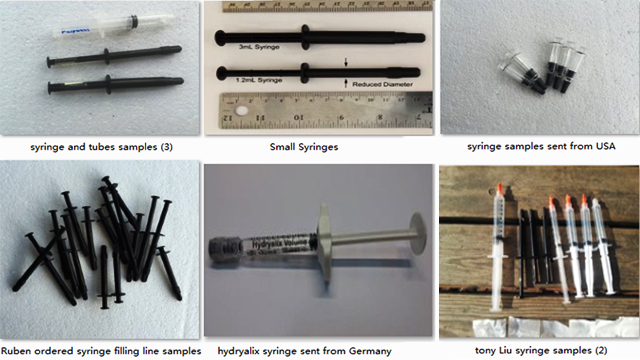

The machine is suitable for liquid & rubber plugging on glass or plastic syringes. other types of syringe are also up to custom made.
6 nozzles are for filling simultaneously. plugging can be either by pressing down or screwing ways.
Plugging is done parallelly with filling. multi points inspection with optical fiber sensors. Neither filling nor plugging when syringe is missed.
All product contact parts are of AISI316L and medical silicon.
Actual working status can be displayed on touch screen with multi languages.
Rotating plunger pumps are driven with servo motor. Precision adjustment can be made on touch screen without any tools. Each plunger pump can be adjustable slightly.

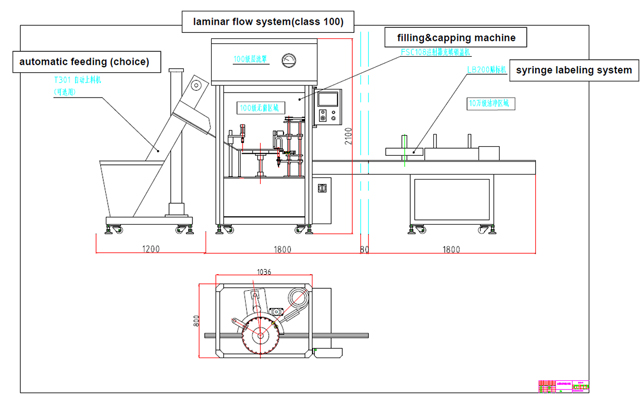

Application Of Syringe Filling Plugging Capping Sealing Labeling Line:
Basic Parameter Of Pre-Sterilized Syringe Filling Plugging Capping Machine:
| Filling volume | 0.5ml-100ml |
| Number of filling head | 6sets |
| Capacity | 1800-3600 syringes/hour |
| Sealing method | Pressure or screw |
| Compressed air | 6kg/cm2,0.15m3/min |
| Supply | 3P 380V/220V 50-60Hz 2.0Kw |

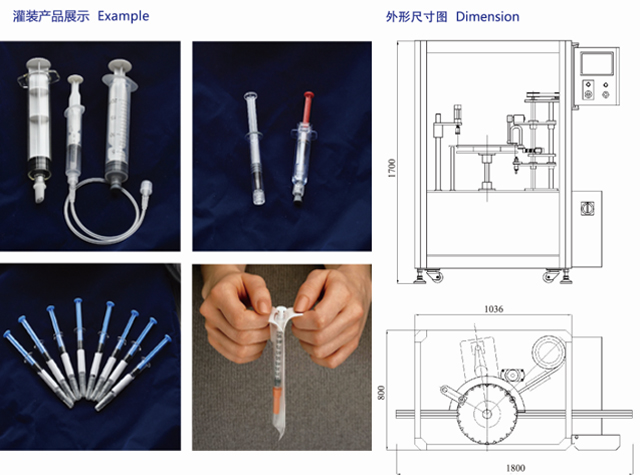

| Dimension | 1800*800*1700mm (L*W*H) |
| Net weight | 750Kg |

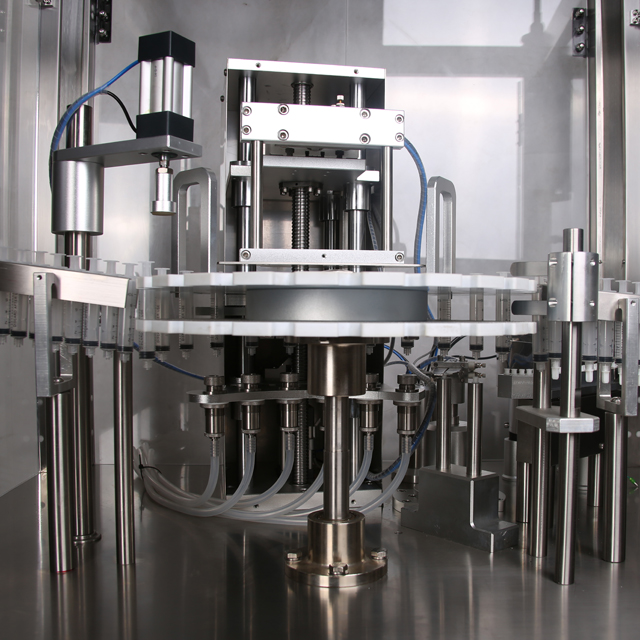

Details Pictures For Syringe Filling Capping Equipment:

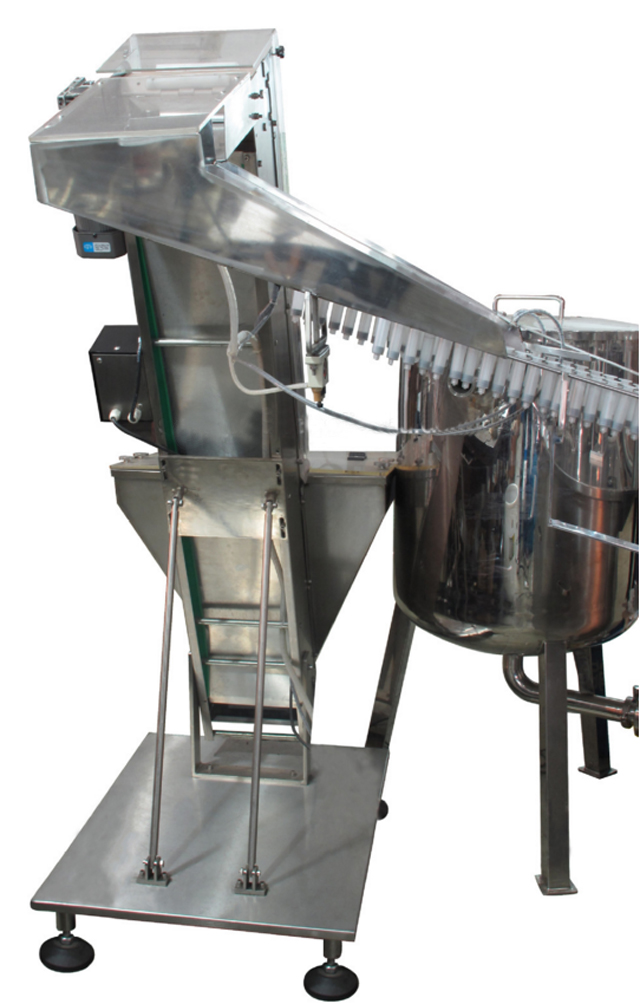

Optional For Syringe Pre-Filled Injector Loading System
Component Origin
| NO | NAME | QTY | ORIGIN | REMARK |
| 1 | Filling needle | 1 | Self-produce | 316L,mirror polish |
| 2 | Ceramic pump | 1 | Jiangsu | |
| 3 | Ceramic valve | 1 | Jiangsu | |
| 4 | Transmission motor | 1 | Jiangsu. Deli | 0.75KW |
| 5 | Servo Motor | 4 | Taiwan, Delta | 400W |
| 6 | Touch screen | 1 | Taiwan, Eview | 7 inches |
| 7 | PLC | 1 | Taiwan, Delta | |
| 8 | Air-break switch | 6 | Zhejiang, CHNT | |
| 9 | Lead screw | 4 | Taiwan, Sheheng Jaan | Ball screw (high resolution) |
| 10 | Linear guide way | 6 | Japan, IKD | |
| 11 | Solenoid valve | 12 | Japan SMC | |
| 12 | Cylinder | 12 | Tawiwan Airtac | |
| 13 | Optical fiber | 3 | Japan Panasonic | |
| 14 | Pressure controller | 4 | JAPAN SMC | |
| 15 | The isolation glass | 6 | ACRYLIC | 8mm thickness |
Wooden Case Packing For Pre-Syringe Filling Line
