Automatic Rotary Cosmetic Cream Jars Filling Sealing Screw Capping Line

The Line Including Four Parts :

1. Two Heads Filling Machine

  • Production Capacity: 1500-2200 Pcs / Hour
  • Filling Volume: 50-300ml Power 4.5kw
  • Air Consumption: 0.4m3/Min
  • Power Source: 220v / 50hz
  • Temperature: 0-300 oC
  • Weight: 700 Kg
  • Dimension: 5925*1285*2310mm

2. Jars Sealing Machine

3. Single Head Capping Machine

4. Round Jars Labeling Machine

This automatic jar filling film sealing bottle screw capping labeling production line for cosmetic cream is specially designed for liquid and cream products to be filled and sealed, such as face cream, wash cream, lotion etc.

According to the samples & films sent from our customer we designed the filling line customizable. See the samples sent from the buyer.

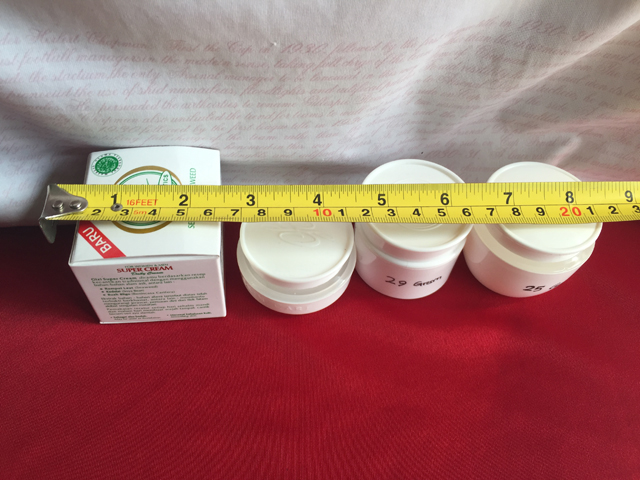

filling jars samples.jpg

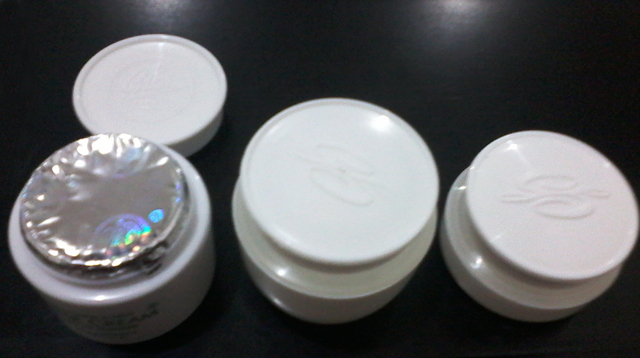

jars samples for filling capping sealing line.jpg

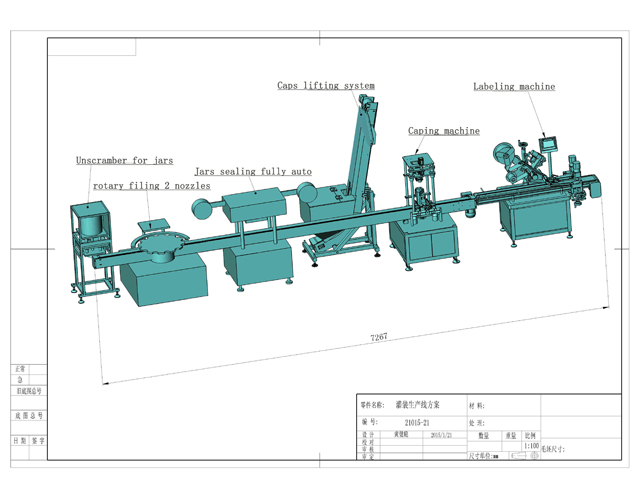

3D rotary filling sealing capping line.jpg

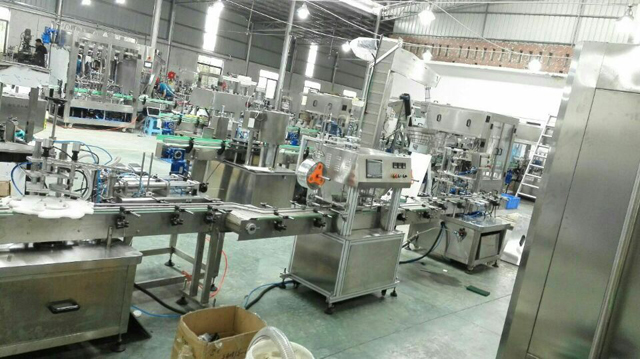

jars filling line in factory.jpg

The jar filling and sealing machine is widely used in various kinds of jars for liquid filling and sealing. It can automatically finish the process of filling, sealing, cutting, printing the code etc. In addition, it can be customized that according to your special requirements.

The machine is applied with world famous electrical and pneumatic components and can be adopted by PLC system according to clients' requirements. The machine can be equipped with PLC and touch screen control.

Technical Parameter Of Filling Sealing Capping Labeling Machine For Cosmetic Cream Jars:

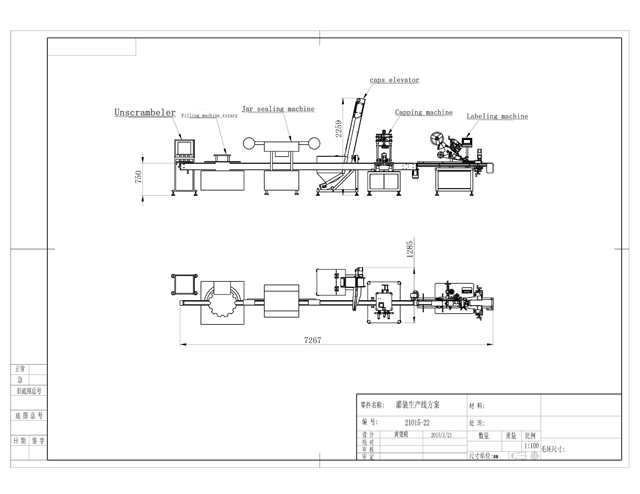

2D filling sealing capping machine.jpg

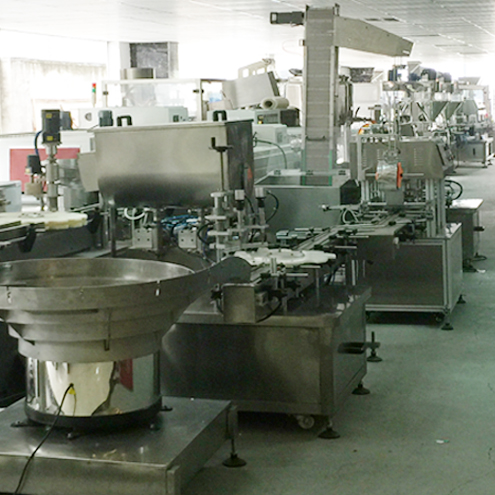

cream jars filling line.jpg

Basic Parameter For Filling Machine

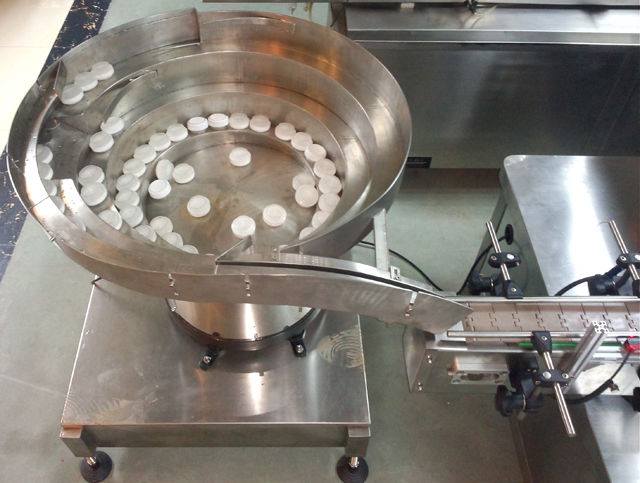

automatic jars feeding system.jpg

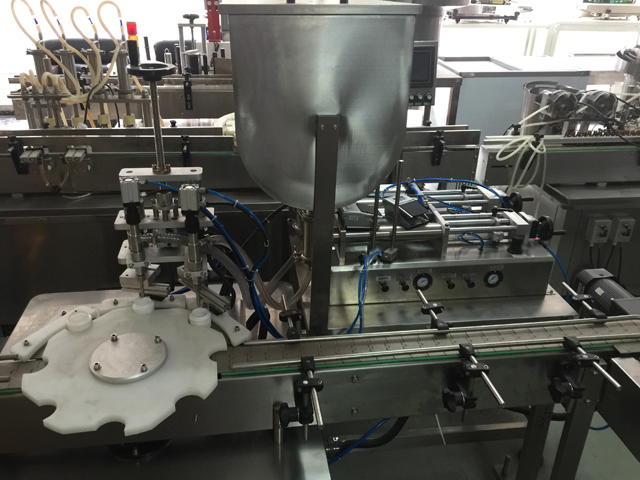

two jars filling machine.jpg

  • Production Capacity: 1500-2200 Pcs / Hour
  • Filling Volume: 50-300ml Power 4.5kw
  • Air Consumption: 0.4m3/Min
  • Power Source: 220v / 50hz
  • Temperature: 0-300 oC
  • Weight: 700 Kg
  • Dimension: 5925*1285*2310mm

Basic Parameter For Sealing Machine

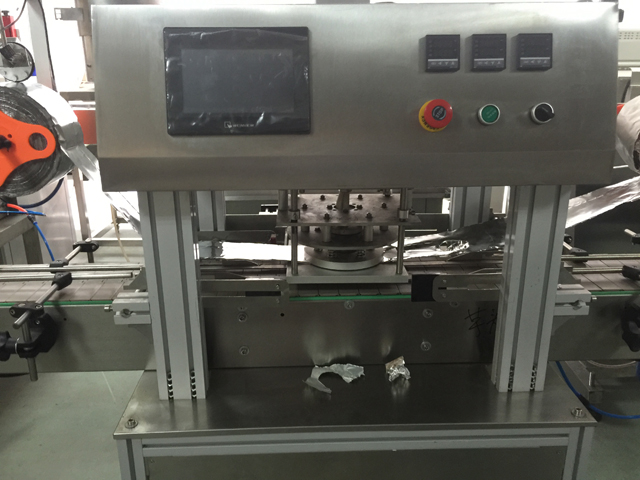

jars sealing machine.jpg

  • Voltage: Ac220v/50hz
  • Air Pressure: 0.8mpa 0.1m3/min
  • Power: 1500w
  • Dimension: 1650×550×1350mm
  • Weight: 135kg
  • Sealing Scope: Φ70-Φ150mm
  • Sealing Speed: 400-900 B/H
  • Sealing Temperature: 50-300 Temperature
  • Temperature Form And Deviation: Automatic Constant Temperature, A Deviation Of ± 3 Temperature

Basic Parameter For Capping Machine

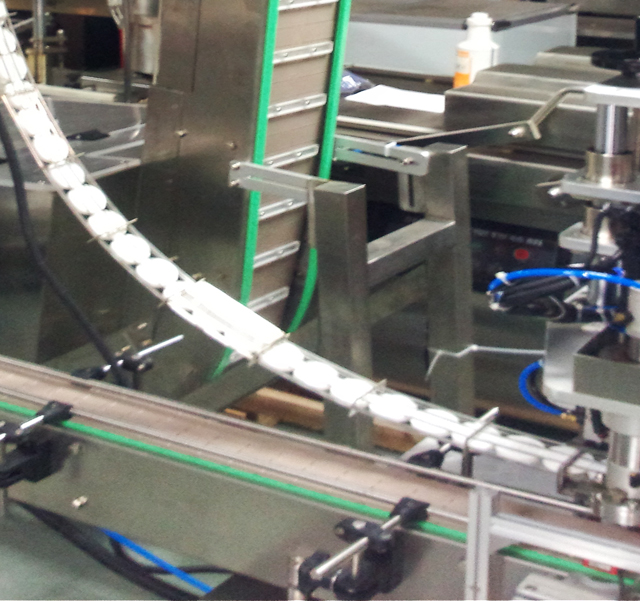

jars lifting feeding.jpg

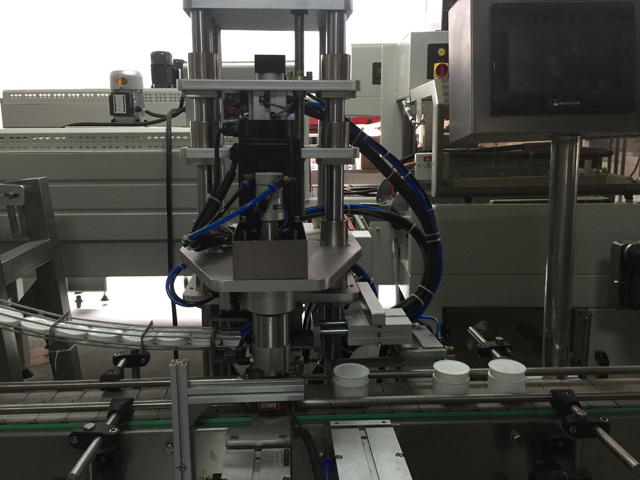

jars sealing machine.jpg

ModelScrew Capping MachineVK-SCC
1Power supply220V; 50Hz
2Power1.5Kw
3Pneumatic (air-operated) source0.6 Mpa clean and stable compressed air
4Suitable bottlesdiameter: Φ40mm~Φ100mm; height : 60mm~230mm
5Suitable capsdiameter of caps: Φ20mm~Φ70mm; height of caps: Φ15mm~Φ30mm can be customized
6Production capacity≤2500bottles/hour
7Machine weightabout 580Kg
8Dimension (L*W*H)2000mm*1000mm*1780mm

Basic Parameter For Jars Labeling Machine

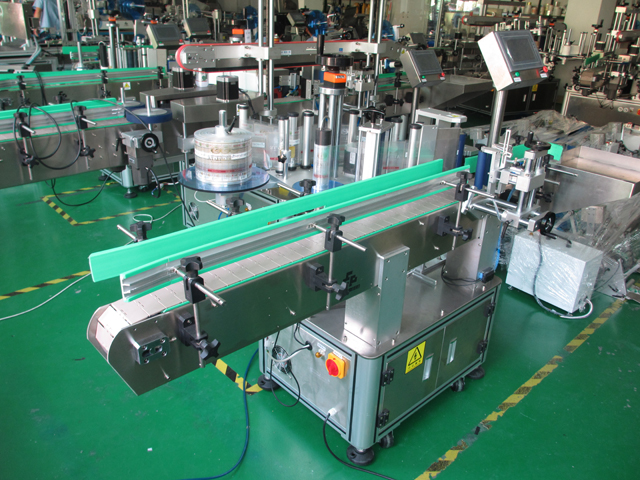

labeling machine vertical labeller.jpg

  • Model: VK-RPL
  • Suitable Label Length (mm): 20mm ~ 314mm
  • Applicable Label Width (Backing Paper Width / mm): 15mm ~ 150mm
  • Applicable Products Diameter (For Round Bottle) And Height: Diameter: Φ25mm ~ Φ100mm
  • Height: 25mm ~ 230mm
  • Applicable Standard Roll Diameter (mm): Φ280mm
  • Applicable Standard Roll Diameter (mm): Φ76mm
  • Labeling Accuracy (mm): ± 1mm
  • The Standard Speed (m/min): Servo: 5 ~ 25m/min
  • Stepping: 5 ~ 19m/min
  • Labeling Speed (Pcs/min): Stepping: 30 ~ 80 Pcs/min (With The Bottle And Label Size)
  • Servo: 40 ~ 120 Pcs/min
  • Conveyor Speed (M/min): 5 ~ 25m/Min Weight (Kg): About 185kg
  • Frequency (Hz): 50hz Voltage (V): 220v
  • Power (W): 530w (Traction Stepper) 980w (Traction Servo)
  • Device Dimensions (mm) (L × W × H): 1950mm × 1100mm × 1300mm

Samples

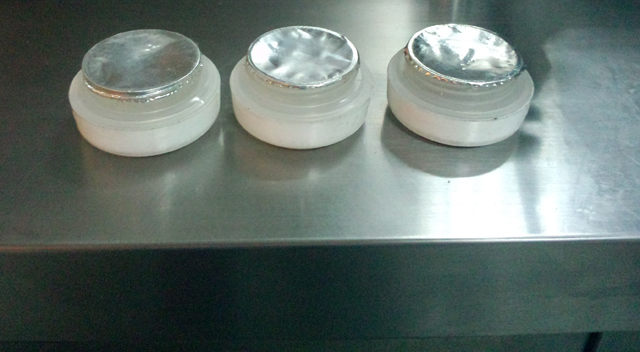

samples for jars.jpg

jars cream filling line.jpg

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
