![Automatic Rotary Food Glass Jars Double Heads Vacuum Capping Machine](https://www.nicefiller.com/wp-content/uploads/automatic-rotary-food-glass-jars-double-heads-vacuum-capping-machine.jpg)
- Model: VK-VC-R2
- Power: <2.3KW
- Capping speed: 2500 Bottles per hour
- Cap diameter: 30mm-55mm 50mm-85mm
- Bottle height: 50mm-250mm
- Vacuum degree: -0.08Mpa
- Air pressure: 0.6-0.8Mpa
- Dimension: 2500mm*800mm*1800mm(L*W*H)
- Weight: 500KG
This machine is widely used for glass jar glass bottle with iron cap vacuum capping in food medical chemical industry.

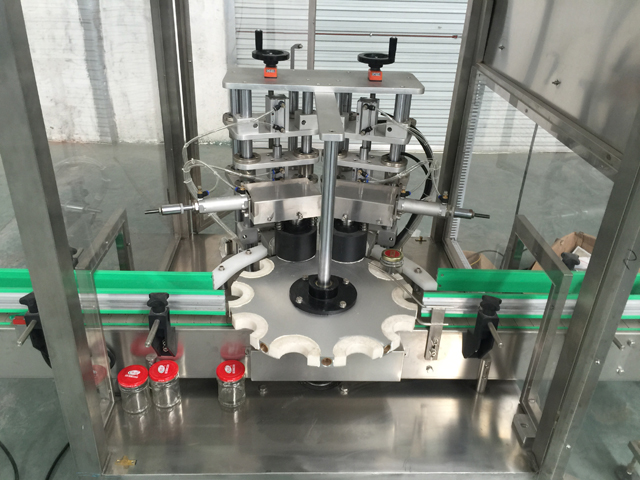

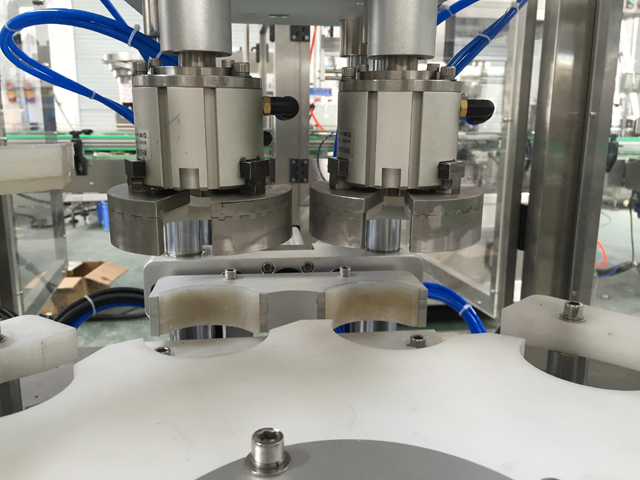

Vacuum jars capping with 2 heads is a new model of vacuum capping machine researched and developed by VKPAK.
The machine applies electrical and pneumatic integration design with simple structure and convenient operation and maintenance.
The main pneumatic and electrical components are from world famous brands and guarantee stable and reliable performance.
It is maily used in glass bottle glass jar vacuum cap capping(sealing) for foods, beverage, seasonings and health care products etc.

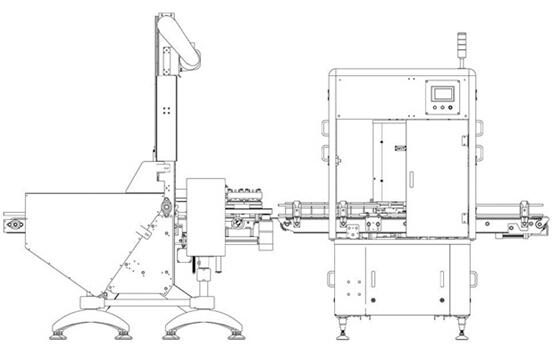

Drawing Of Vacuum Glass Jars Capper Equipment:
Features Double Heads Vacuum Capping Machine For Glass Jars:
1. Capping force can be adjusted.
2. Vacuum degree can be adjusted.

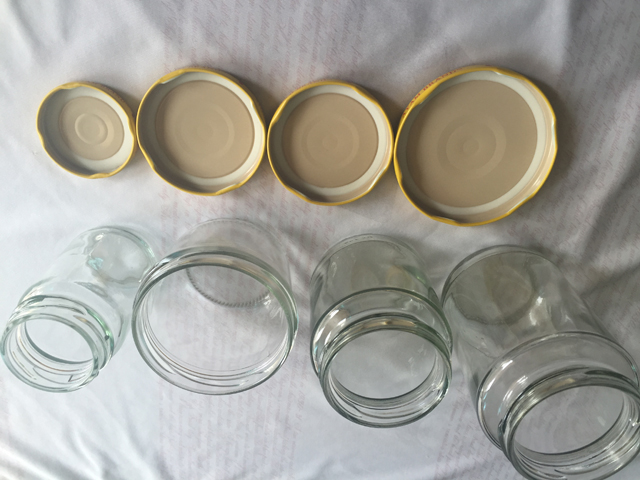

3. Can be adjusted to do different sizes of glass jars glass bottles.
4. All the pneumatic and electric parts are from world famous bands.
5. This machine is mainly made of stainless steel with simple structure. Easy to operate.
Technical Parameter Of Vacuum Capping Machine
Model | VK-VC-R2 |
Power | <2.3KW |
Capping speed | 2500 Bottles per hour |
Cap diameter | 30mm-55mm 50mm-85mm |
Bottle height | 50mm-250mm |
Vacuum degree | -0.08Mpa |
Air pressure | 0.6-0.8Mpa |
Dimension | 2500mmL*800mmW*1800mmL |
Weight | 500KG |
Other Details
Samples

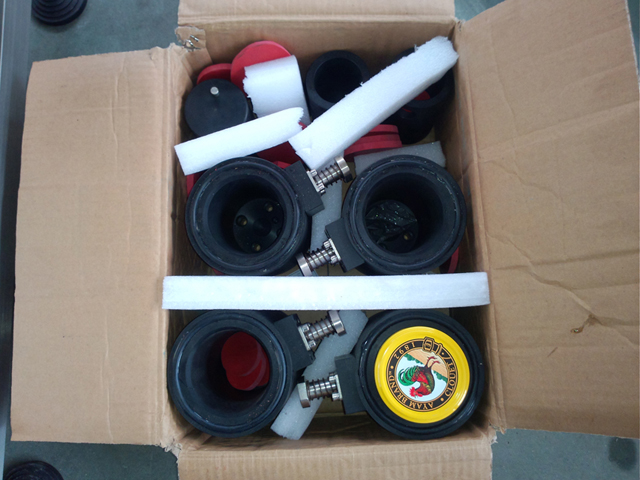

Spare Parts
After-Sale Service
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
