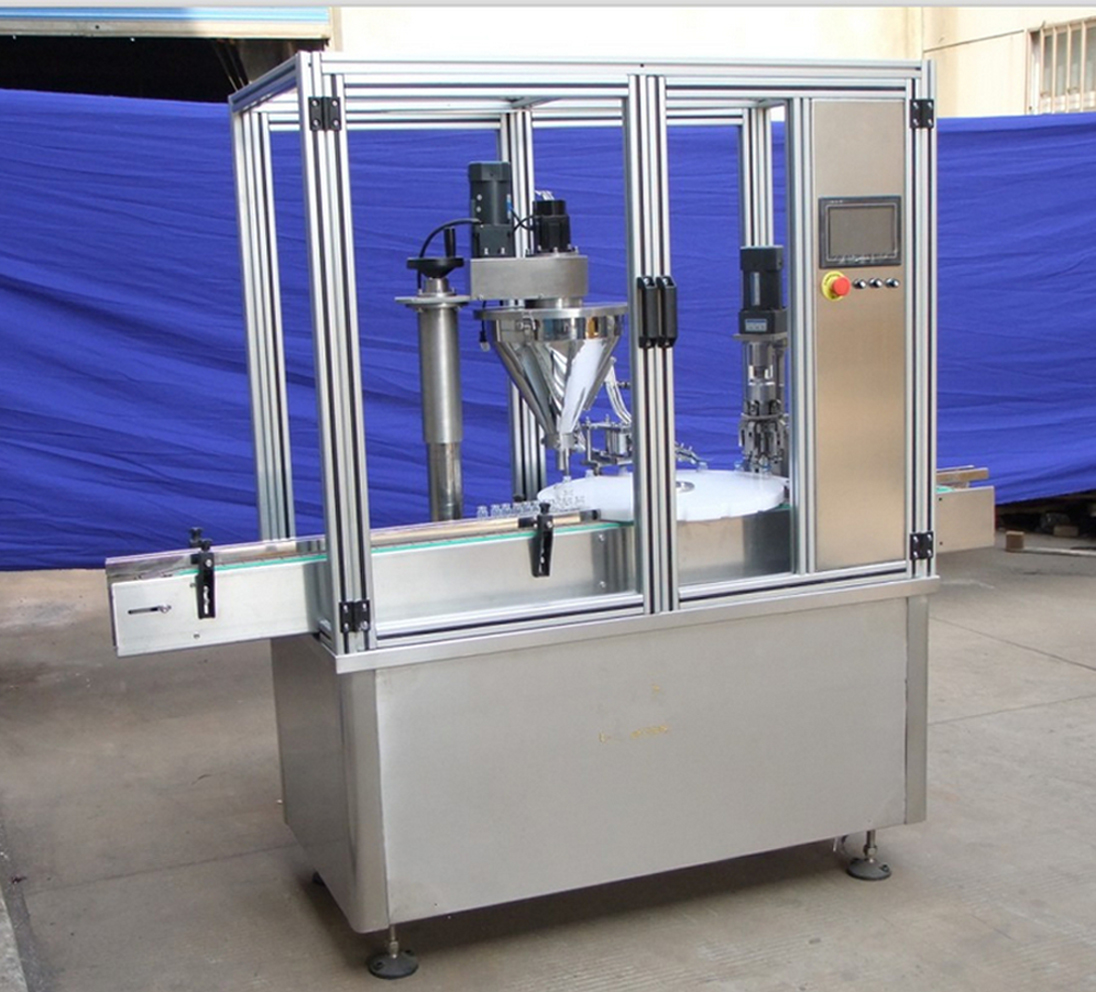

Automatic Rotary Milk Pharma Powder Filling Capping Machine

• Model: VK-MPAFC
• Filling volume: 1-500g
• Loading error: ≤ ± 1%
• Rotation (rolling) Cover pass rate: ≥ 99%
• Filling way: Metering screw filling
• Production capacity: 70-100 bottles/min
• Power: 380V/50Hz
• Power: 2.0 kw
• Net weight: 700 kg
• Dimension: 2000 * 1000 * 1800mm

View Video

The powder auger filling capping machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company, It is the domestic leading level.

This machine is suitable for a variety of small doses of powder filling & capping such as penicillin powder, collagen powder, pesticides powder and so on. Widely used in food, pharmaceutical, chemical industries and scientific research. Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements.

Characteristic Of Powder Filling Capping Machine

• Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment.
• Frequency control, the production rate be adjusted automatically count.
• No bottle no filling.
• Disc positioning filling, stable and reliable.
• High-precision cam meter control, precise positioning.
• SUS304 and 316L stainless steel, full compliance with GMP requirements.

Main Technical Parameters

Single filling head powder filling machine

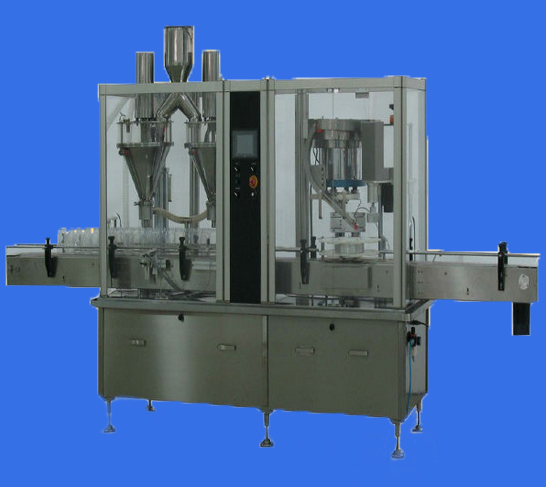

Double filling heads filling head powder filling machine

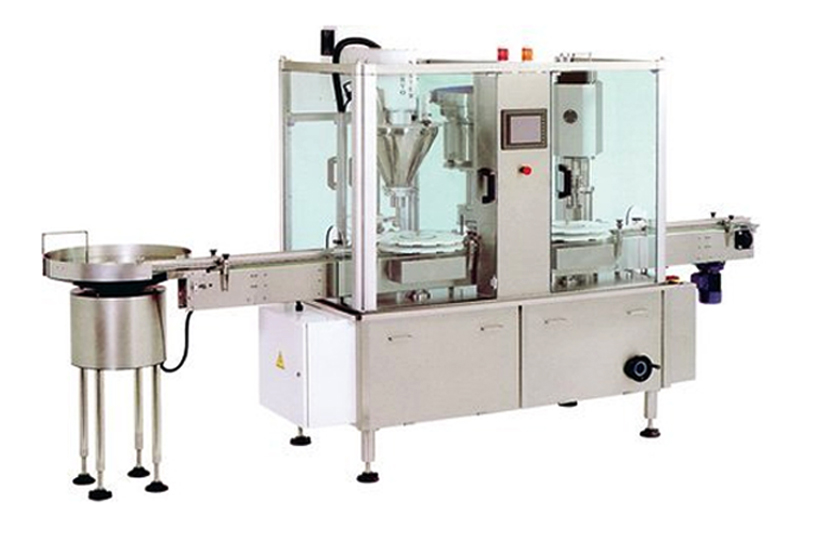

Bottle unscrambler powder filling capping machine

Powder materials feeding storage tank powder filling capping machine

Powder materials feeding storage tank powder filling capping labeling machine

• Model: VK-MPAFC
• Filling volume: 1-500g
• Loading error: ≤ ± 1%
• Rotation (rolling) Cover pass rate: ≥ 99%
• Filling way: Metering screw filling
• Production capacity: 70-100 bottles/min
• Power: 380V/50Hz
• Power: 2.0 kw
• Net weight: 700 kg
• Dimension: 2000 * 1000 * 1800mm

The way to measure the weight to filling the materials into bottles is the screw auger type;

How Does It Works:

Flour, milk powder, food additives, etc. are common dry powdered food in our lives. Our daily bread, as people’s awareness of consuming safety continues increasing, the requirements for powdered food packaging, quality, safety are accordingly increasing. Dry powder products have special requirements for packaging equipment due to their have the characteristics of dispersible and dust during filling. Currently, the dry powder filling machine on the market mainly adopts the auger metering method.

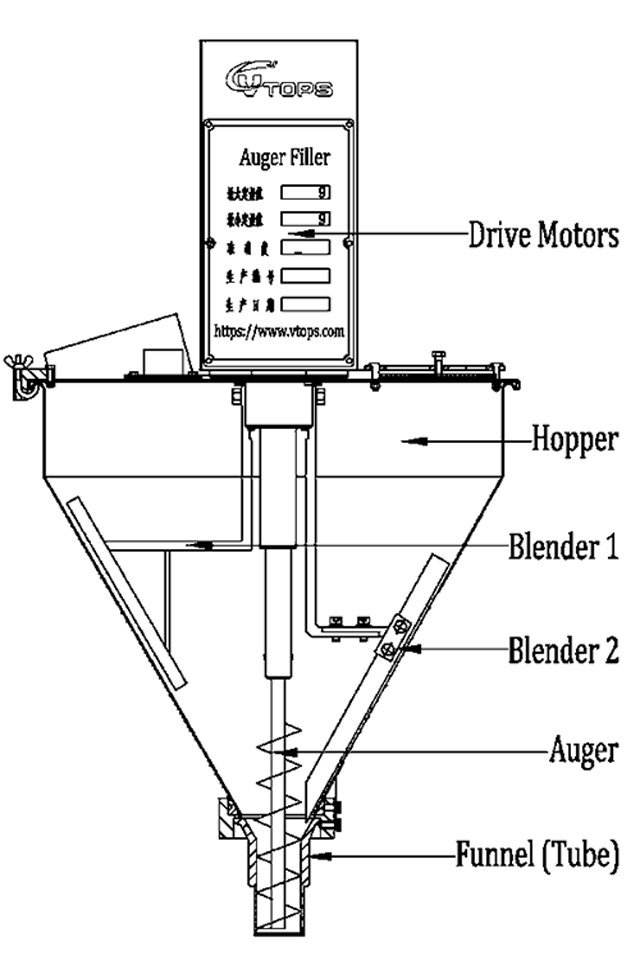

Basic Structures Of Auger Filler

The basic dry powder filling machine composed of an auger filler and a optional screw conveyor feeder. The outlet of screw conveyor feeder is connect to the top of the hopper of auger filler by a soft connection. The dry powders in the hopper of screw conveyor feeder will be conveyed to the hopper of the auger filler by screw feeder blades.

Double blender-blades mounted inside the hopper of auger filler and arranged in 180 degrees. The blender-blades are in constant rotation when loading and filling. To ensure dry powders uniformed distribution in hopper of auger filler which powders delivered from the hopper of screw conveyor feeder. And the dry powders uniformly enters the auger under the influences of gravity and blades, thereby ensuring the filling precision and continuity of the dry powders.

Production Capacity:

Machine Configuration

Machine frame and Panels are imported and high quality SUS 304 Stainless steel. The parts which contact the liquid are SUS 316L Stainless steel

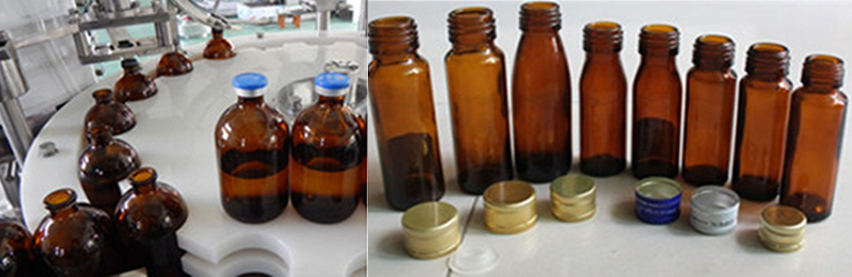

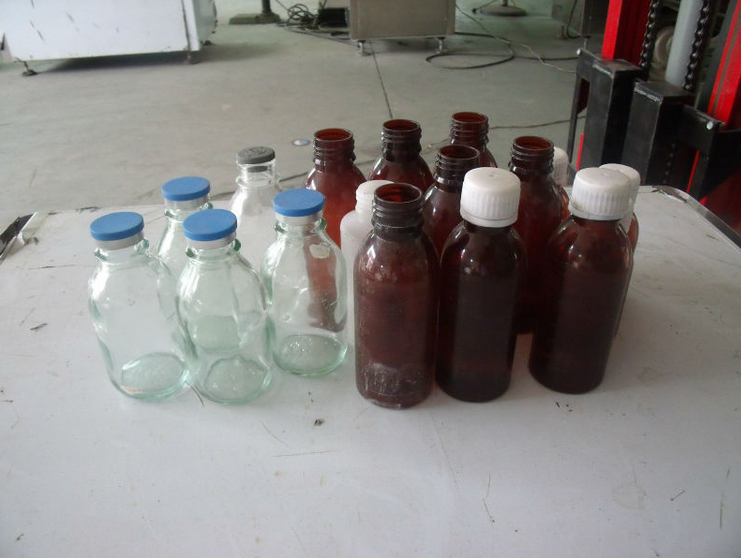

Bottles Samples For Powder Filling Capping Machine

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
