Automatic Rotary Plastic Bottles Capping Machine For Filling Line

• Power supply: 220V;50Hz
• Power: 1.5Kw
• Pneumatic (air-operated) source: 0.6 Mpa clean and stable compressed air
• Suitable bottles diameter: Φ40mm~Φ100mm; height : 60mm~230mm
• Suitable caps diameter of caps: Φ20mm~Φ70mm; height of caps: Φ15mm~Φ30mm can be customized
• Production capacity: ≤2500bottles/hour
• Machine weight: about 580Kg
• Dimension(L*W*H): 2000mm*1000mm*1780mm

View Video

The cap supplying system and the manipulator from capping machine screw capper with caps sorter automatic  works at the same step. When caps capped well, the bottles and the caps are relative static, the clutch releases, this can avoid bottles getting injured to achieve high qualified rate of capping. The surface of machine is made of high quality stainless steel, the electrical elements use international famous brand which makes machine more stable, good-looking meets GMP standard.

Major Characteristics From Single Head Capping Machine Automatic:

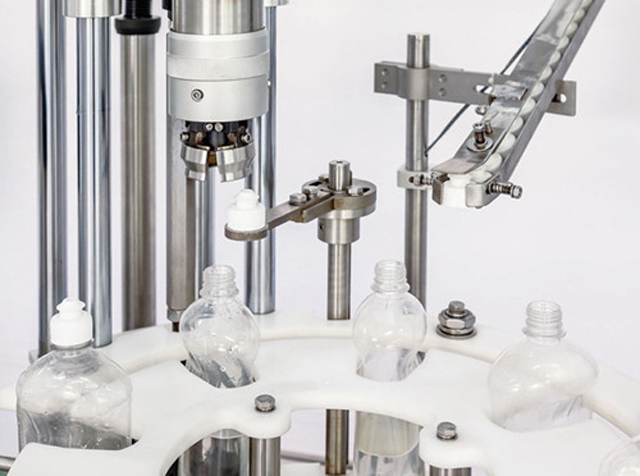

• This capping machine has one manipulator, dispatches caps in high speed with no reverse caps which can be suitable for various types of bottles.
• The cap supplying system and the manipulator works at the same step. When caps capped well, the bottes and the caps are relative static, the clutch releases, this can avoid bottles getting injured to achieve high qualified rate of capping.
• The surface of machine is made of high quality stainless steel, the eletrcial elements use international famous brand which makes machine more stable, good-looking meets GMP standard.

Single head capping machine added with protective chamber :

Main Technical Parameter

Machine testing run before handing over to customers

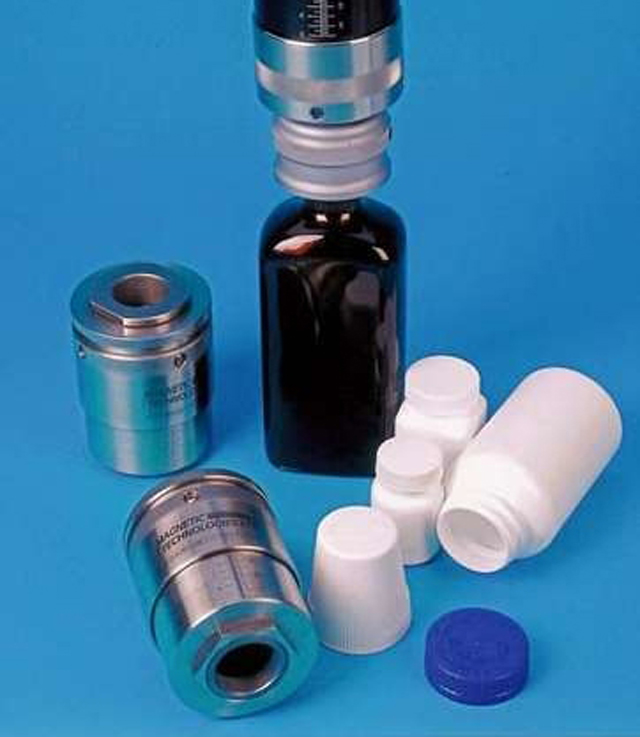

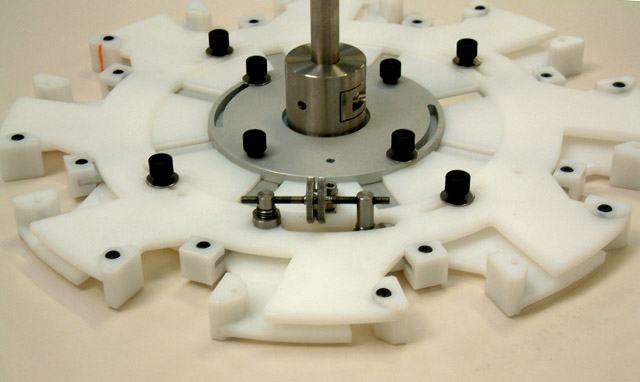

Different sizes of bottles and caps requires different star wheels and the capping heads:

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
