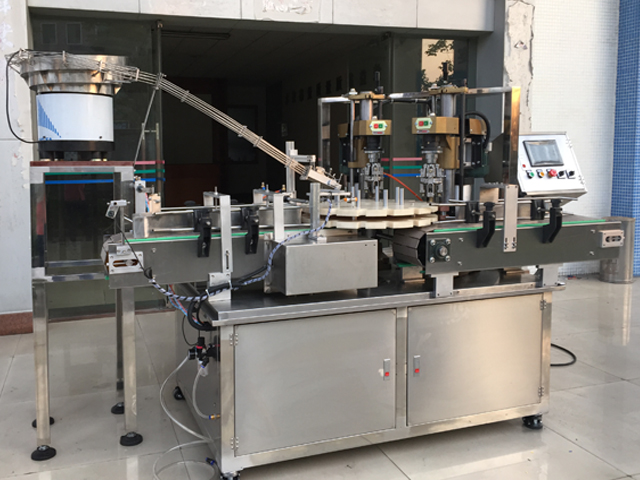

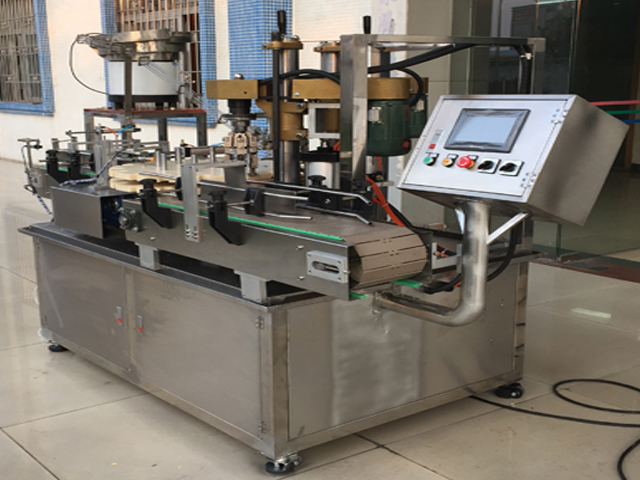

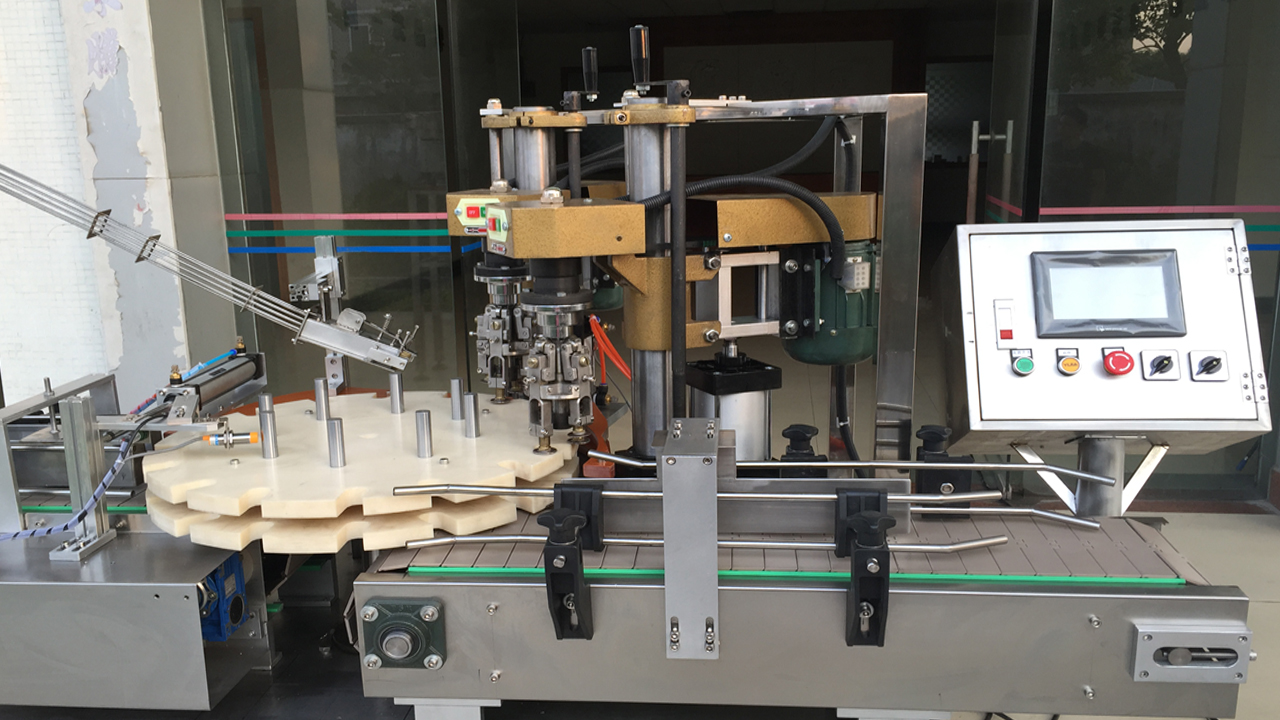

Automatic Rotary Screw Aluminum Lid Ropp Capping Machine For Wine Bottle

Automaticropp capping machine two heads rotary capper
Model: VK-RC-2
Capacity: 2800-3000bph
Voltage: 380V
Air compressor: 0.4-0.6Mpa
Capping head: 2pcs
Appicable bottles: various shapes
Bottles height: 50-500mm（adjustable）
Bottles diameter: 15-40mm
Adjusting way: PLC touch screen
Weight: 450kg
Dimension: 2200×1500×1800mm

Automatic ROPP capping machine is our new developed products based on many inland craft brothers’ working experience and our researches. It is suitable for all different size of PET lids with screw thread. It can compose with rinsing machine, filling machine to become into one production line. This machine has advantages on perfect performance, easy operation, safe work, tightened screw, well-organized, convenient maintenance and long-life use. This machine is ideal for beverage productions.

Basic Parameter:

Automaticropp capping machine two heads rotary capper
Model: VK-RC-2
Capacity: 2800-3000bph
Voltage: 380V
Air compressor: 0.4-0.6Mpa
Capping head: 2pcs
Appicable bottles: various shapes
Bottles height: 50-500mm（adjustable）
Bottles diameter: 15-40mm
Adjusting way: PLC touch screen
Weight: 450kg
Dimension: 2200×1500×1800mm

Features:

Parts coming in contact with the vial / aluminum cap / exposed to the atmosphere are made out of stainless steel, good housekeeping and good manufacturing practice.

Single motor synchronizes conveyor, star wheels and platform turret and speed can be varied by the “speed pot” on operating panel.

A special clutch device is incorporated on the in feed worm and star wheel system for stoppage of machine in the event, vial is over turned or over diameter.

A photo sensing device stops machine automatically in the event, there is no aluminum cap in delivery chute.

Sealing pressure can be varied to suit different gauges and sizes of ropp caps.

Damage cap quantity can be reduced by adjusting the gap between upper and lower plate of orientation unit.

Imported gear motor for main drive.

Imported gear box for orientation unit.

Imported a.c. Frequency drives for main drive.

Digital counter for counting number of sealed bottle.

“No seal in chute, machine stops system”

Machine Interlock

No bottle at in-feed machine stop.

Bottle jamming at in-feed machine stop.

Bottle jamming at out-feed machine stop.

No cap in chute machine stop

Door open machine stop (possible with only with glass cabinet)

Schematic Machine Working:

Automatic ropp cap sealing machine is a compact model used for sealing of ropp cap on the bottle.

Previously filled bottles with dry syrup powder or liquid syrup are continuously fed from filling machine to the flat conveyor belt of sealing machine and move further through in feed worm for correct spacing between two bottles and transferred to the in feed star wheel.

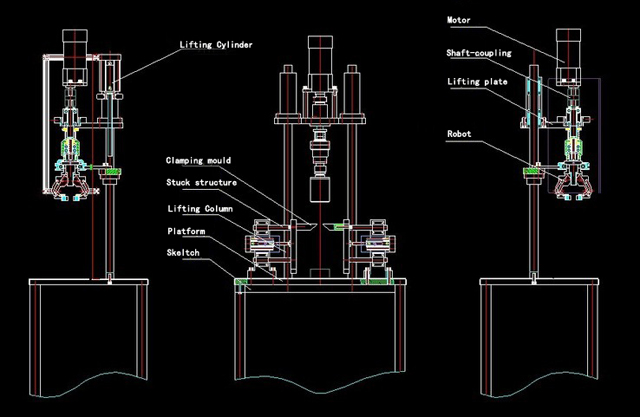

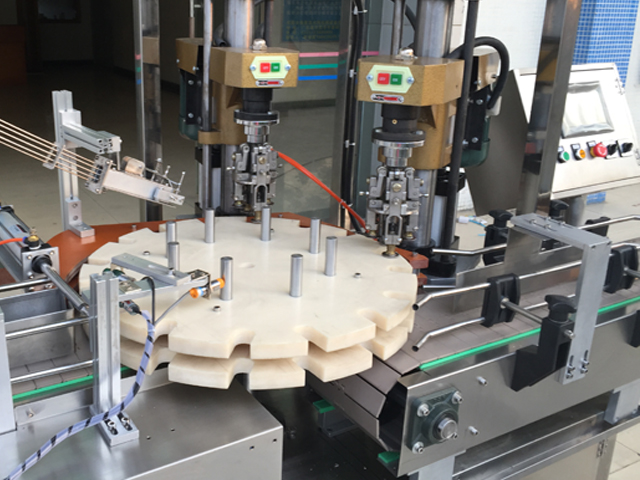

Ropp caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute. And bottle is entering below the sealing head, consist of total four rollers. Two rollers properly skirts, spins and seals the cap and simultaneously another two roller performs perfect threading according to bottle neck diameter.

After sealing operation, sealing head moves upward with help of cam and bottle move with exit star wheel and move further on conveyor belt for next operation.
