• Model: VK-RPL
  • Labeling accuracy: ±1mm (not including the label error)
  • Labeling speed: 25~45bpm
  • Diameter & height of bottles Diameter: φ25mm~φ120mm height:25mm~300mm
  • Label size Length: 20mm~290mm Width:20mm~160mm
  • Overall size of machine: About 1950mm×1200mm×1530mm(L×W×H)
  • Supply power: 220V/50HZ 110V/60HZ
  • N.W About: 185Kg
View Video

Round bottles labeling machine with positioning system inline sticker labeller

The labeling equipment is for the round bottle labeling in the industry like food, oil, pharma, wine, cosmetics and so on. The machine with elegant design can be easily operated and maintained by the common worker, who requires no special training in operation this machine. Just give a simple adjustment to produce another product when you want to swap the different kinds bottle labeling.

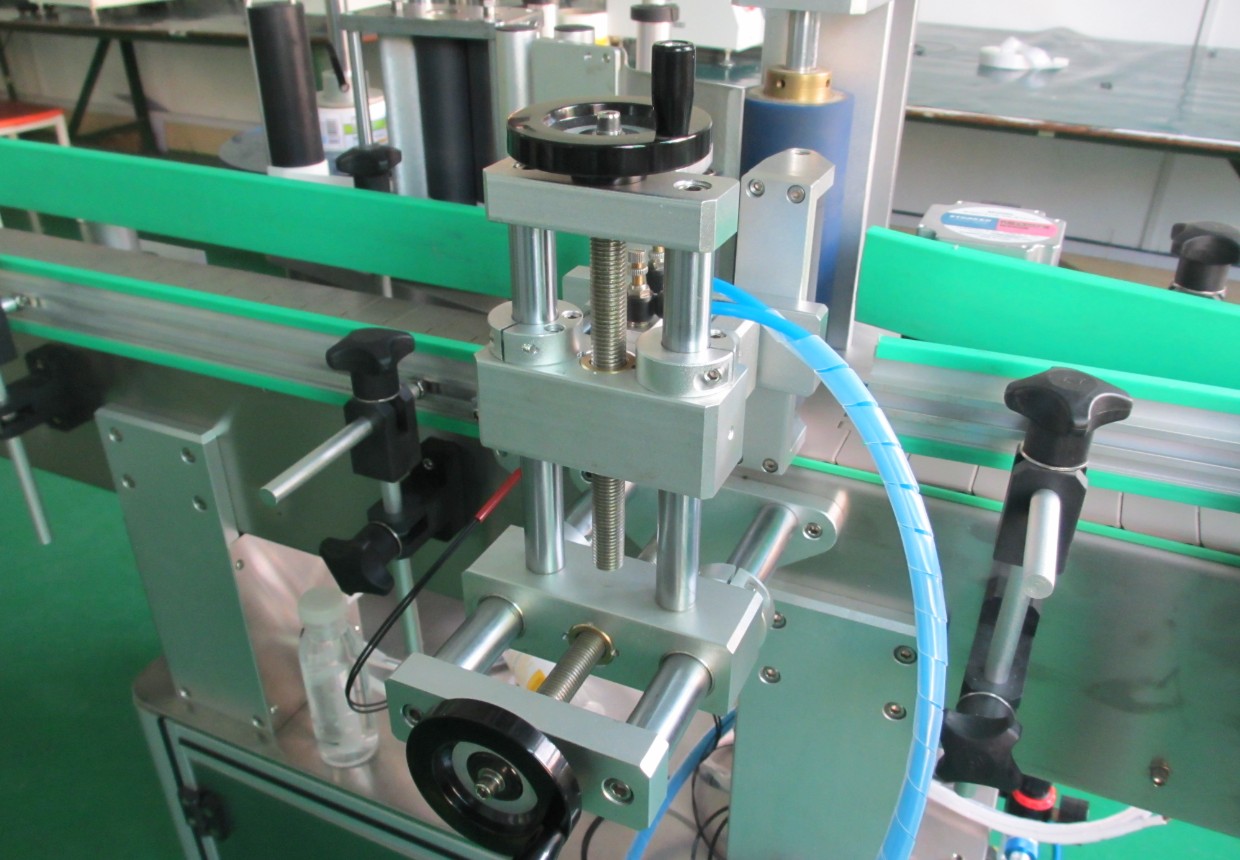

LABELING EQUIPMENT BOTTLES PLC.jpg

Characteristics:

1: The main body of equipment is made of SUS304 and advanced Aluminum products.

2: The labeling heads is drived by the Server motor that is imported from Japan.

3: All the light sensor equipment is imported from both Japan and Germany

4: PLC Controlled by the human-machine interface with 60 memory units.

5: The machine is the best choice for single worker’s operating.

6: The machine has the function as bottle-uprighting,bottle-distributing, labeling, flating as well as counting.

7: The position, height, angle of labeling can be adjusted easily.

8: Equipped with the conveyor belt, the machine is applied to set of the production line.

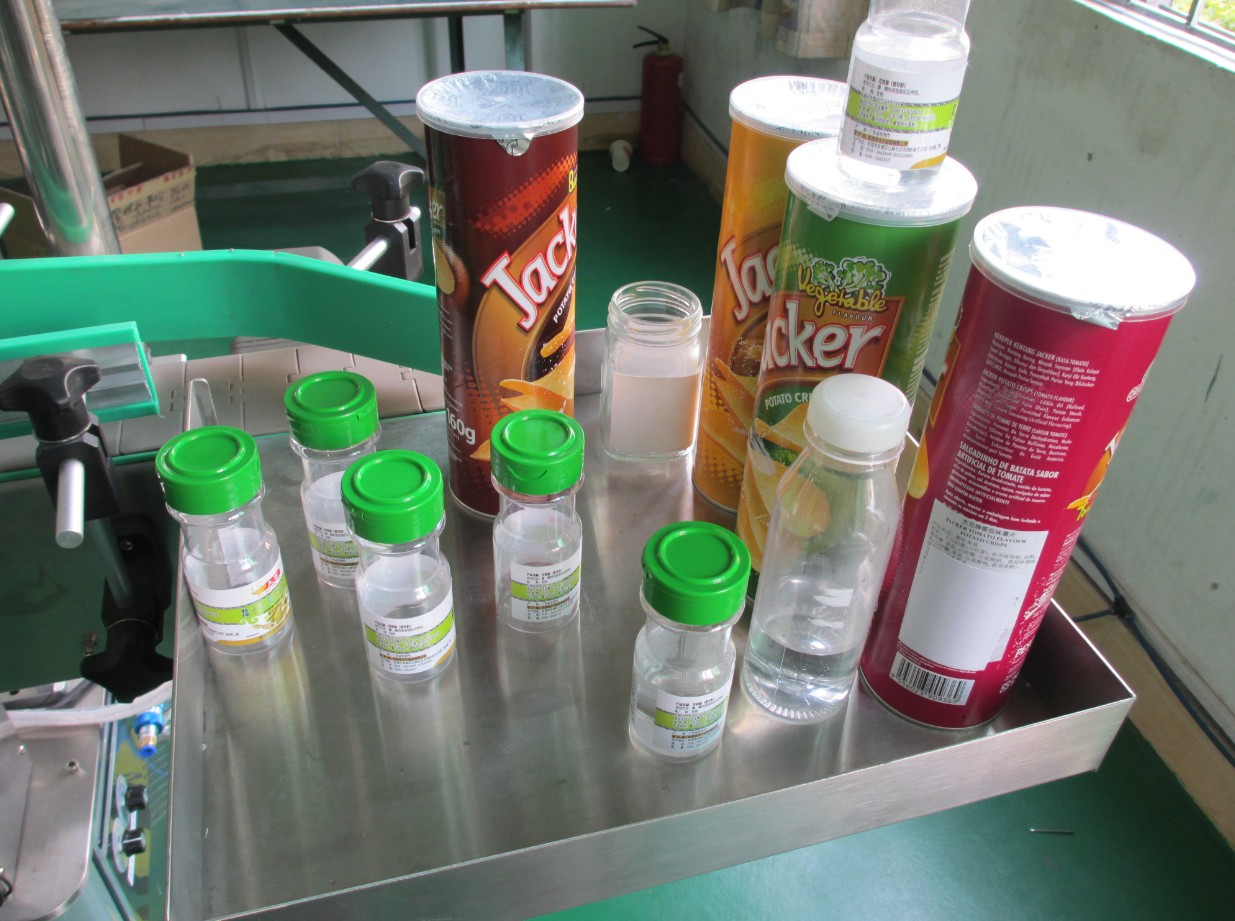

ROUND CANS LABELER ETIKETTIERMASCHINE.jpg

Technic Parameter

1Labeling accuracy±1mm (not including the label error)
2Labeling speed25~45bpm
3Diameter&height of bottlesDiameter:φ25mm~φ120mm height:25mm~300mm
4Label sizeLength:20mm~290mm Width:20mm~160mm
5Overall size of machineAbout 1950mm×1200mm×1530mm(L×W×H)
6Supply power220V/50HZ 110V/60HZ
7N.WAbout 185Kg

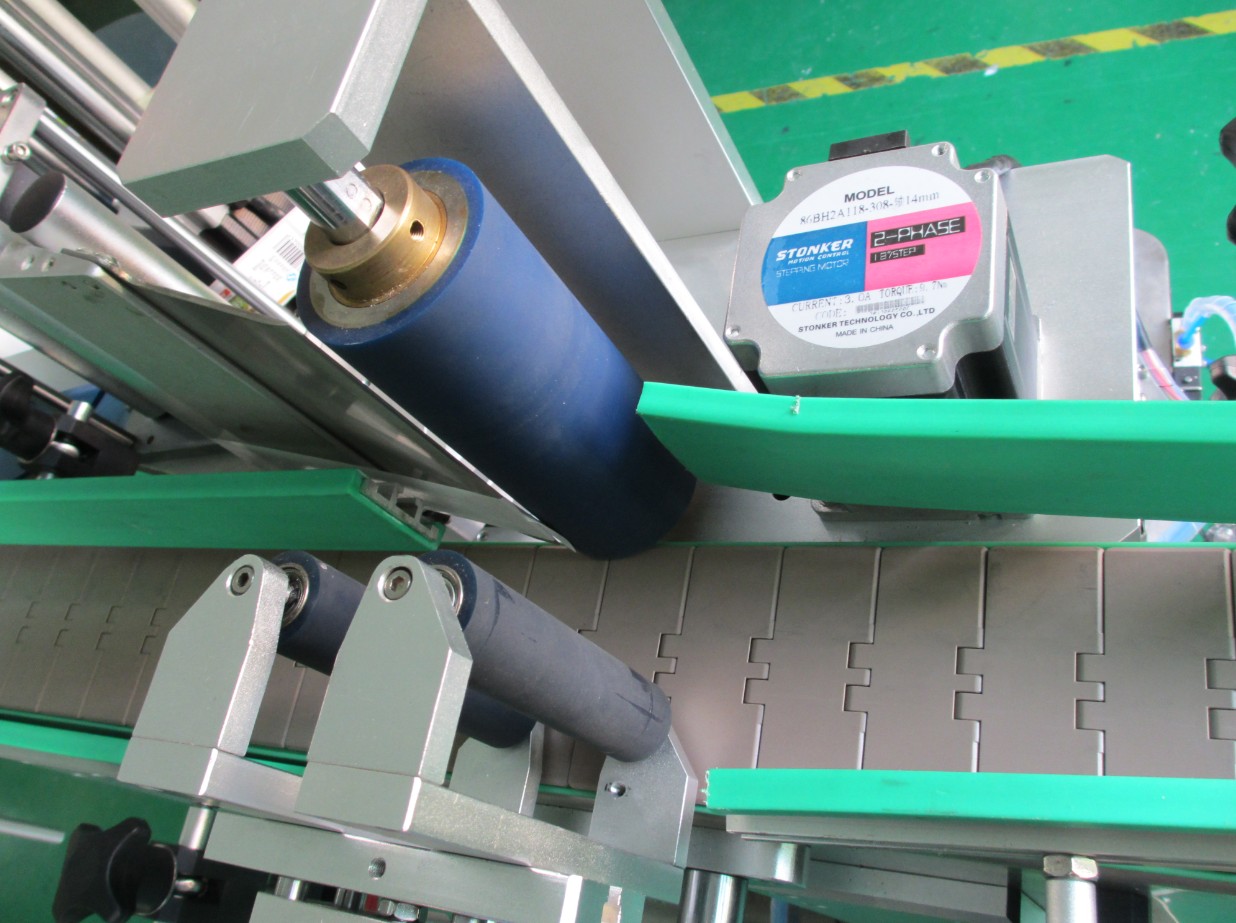

LABELING EQUIPMENT BOTTLES PLC2.jpg

Optional function (the price should added according to the choose)
SeriespartfunctionNumberUnitPrice(USD)
1Ribbon printerProduction date number1Set620
2Universal SensorDetect the transparent label, hot foil, gilding label1Set1,300

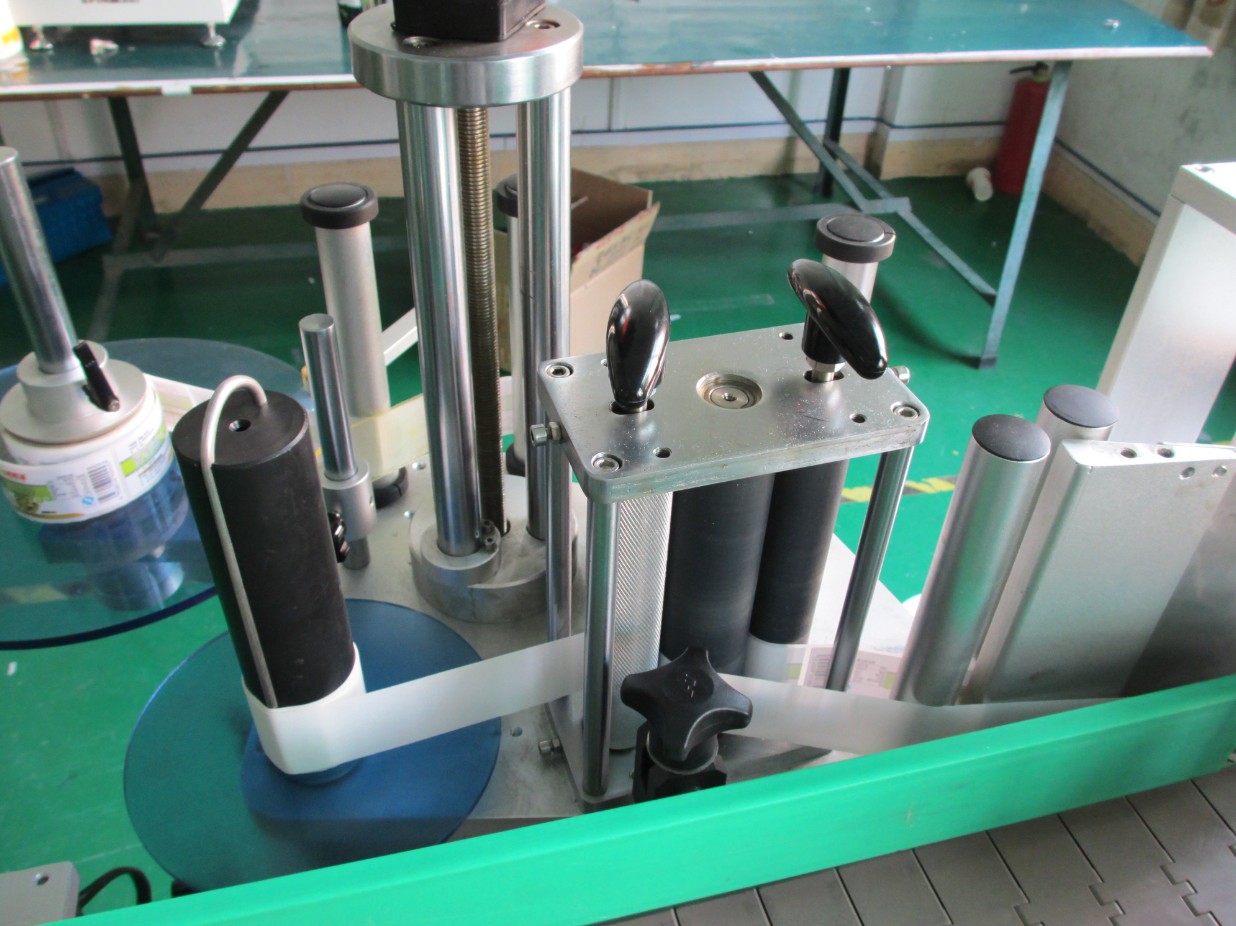

ROUND CANS LABELER ETIKETTIERMASCHINE.jpg

Guarantee: For all the machine, it claims 1 years for guarantee.(Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
