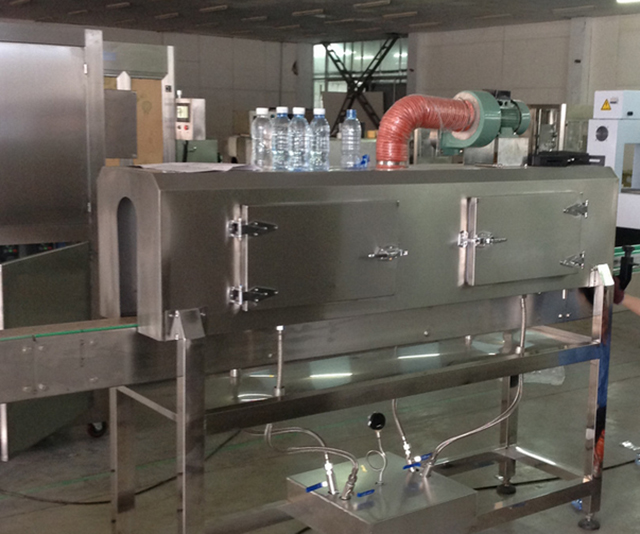

![Automatic Shrink Sleeve Labeling Equipment With Steam Shrink Tunnel](https://www.nicefiller.com/wp-content/uploads/automatic-shrink-sleeve-labeling-equipment-with-steam-shrink-tunnel-7.jpg)
- Model: VK-SSL
- Power Source: AC220V 50Hz/60 Hz
- Label O.D. (mm): ¢80-200
- Label speed (pcs/min): 50-80
- Label Temp.: 30°C—180°C
- Label Thickness(mm): 0.033-0.15
- Air Pressure(Kg/cm2): 5
- Label Material: PE
- Machine Dimension(mm): L6500×W1200×H2150
- Machine Weight(Kg): 650KG

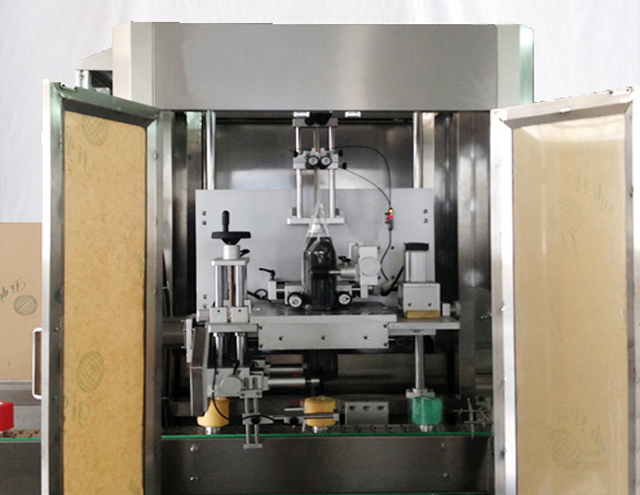

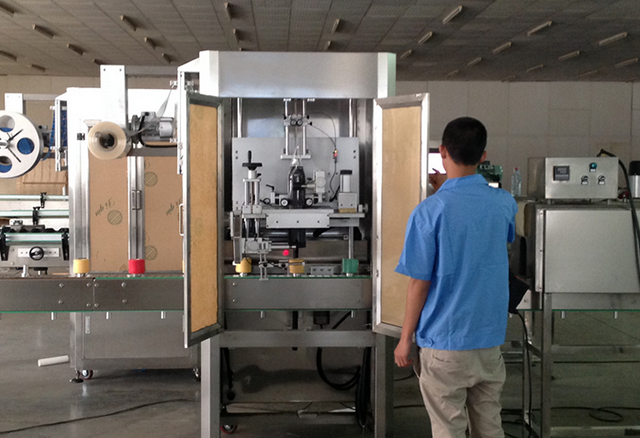

Automatic sleeve labeling machine for tape suitable applications: For label insertion on containers of sundries, foods (beverages, dairy products, tape and wine), medicines, and industrial products.
Feature Of Sleeve Labeling Machines
1. Total machine made of stainless steel favors against water and rust;
2. Adjustable cutter pan equipes with double-face blade which is long service life by uniquely whirly cutting;

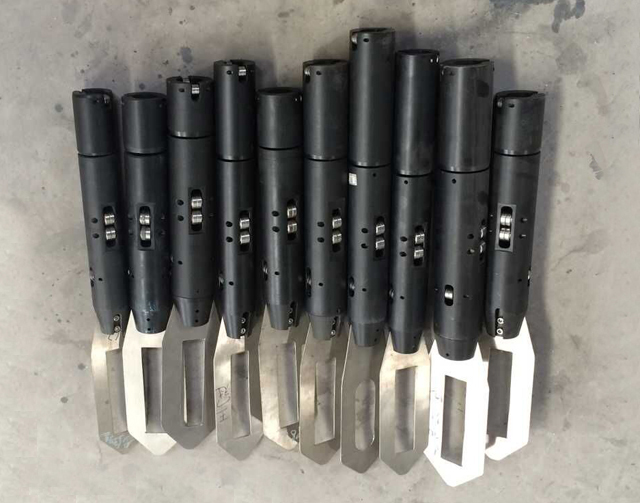

3. Single positioning center pillar achieves more stable label feeding;
4. Label positioning group makes labeling more percision;
5. Touch control system, friendly operation;
6. Optional independent feeding and labeling system make operation easier and cost lower;
7. It adopts PLC programmable system,imported servo motor,servo driver,frequency converter and sensor ect. which make labeling accurate, fast and stable.
Technical Parameter:
- Model: VK-SSL
- Power Source: AC220V 50Hz/60 Hz
- Label O.D. (mm): ¢80-200
- Label speed (pcs/min): 50-80
- Label Temp.: 30°C—180°C
- Label Thickness(mm): 0.033-0.15
- Air Pressure(Kg/cm2): 5
- Label Material: PE
- Machine Dimension(mm): L6500×W1200×H2150
- Machine Weight(Kg): 650KG
Parts List
Work unit | item | model | No | Brand | orgin | |||
Cutter head unit | AC motor | 5IK90GU-CF-25KB | 1 | Taiwan | ||||
Clean-down | AC motor | 5IK120A-CF | 1 | ZD | Taiwan | |||
Material supply | AC motor | RV50-20K-180 | 1 | ZD | Taiwan | |||
Frequency converter | ATV12H018M2 | 1 | schneider | France | ||||
optical sensors | CX-421 | 1 | Panasonnic | Japan | ||||
Bottle carrying | AC motor | 5IK90GN-SF-5GN7.5K | 1 | ZD | Taiwan | |||
Frequency converter | ATV12H018M2 | 1 | schneider | France | ||||
Bottle separation | AC motor | 5IK90GN-SF-5GN0.75K | 1 | ZD | Taiwan | |||
Frequency converter | ATV12H018M2 | 1 | schneider | France | ||||
Hairbrush unit | AC motor | 4IK25GN-C-4GN3K | 2 | ZD | Taiwan | |||
Cutter head unit | Servo motor | BCH0801*1*1C 400W | 1 | schneider | France | |||
Sevro driver | LXM23CU04M3X 400W | 1 | schneider | France | ||||
Mini optical sensors | PM-L44 | 2 | Panasonnic | Japan | ||||
Driving unit | Driver servo motor | BCH0801*1*1C 400W | 1 | schneider | France | |||
Driver servo driver | LXM23CU04M3X 400W | 1 | schneider | France | ||||
Electric eye unit | High speed fiber sensor | FX-301 | 1 | Panasonnic | Japan | |||
Electric eye for bottle monitor | fiber sensor | CX-442 | 1 | Panasonnic | Japan | |||
Conveyor unit | Frequency converter | ATV12H075M2 | 1 | schneider | France | |||
electrical cabinets | PLC | DF-MX-1005-9A | 1 | OMRON | Japan | |||
Touce screen | MT6070IR 7.0’ | 1 | weinview | Taiwan | ||||
Swith power | ABL2REM24020H | 1 | schneider | France | ||||
contactor | D1810 25A | 2 | schneider | France |

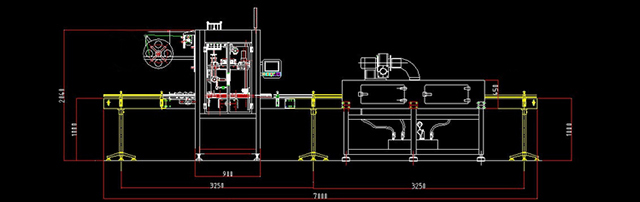

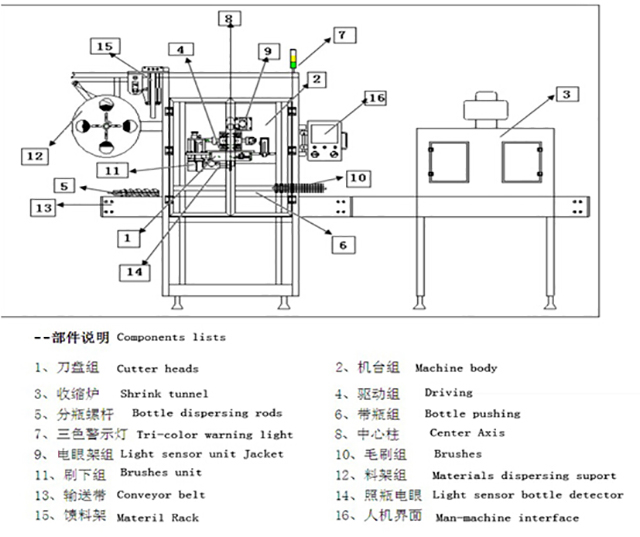

Drawing & Details

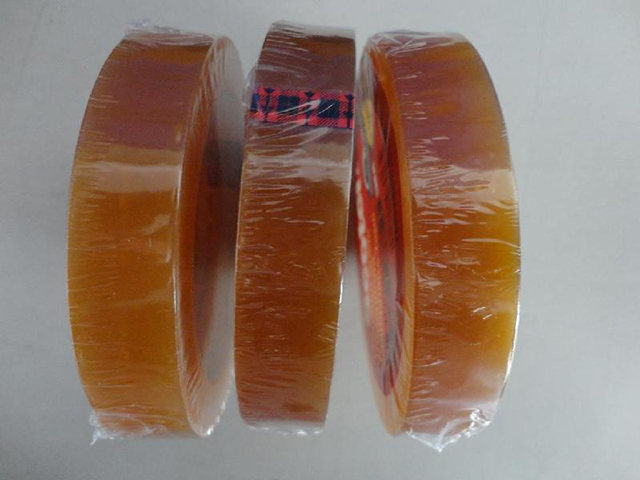

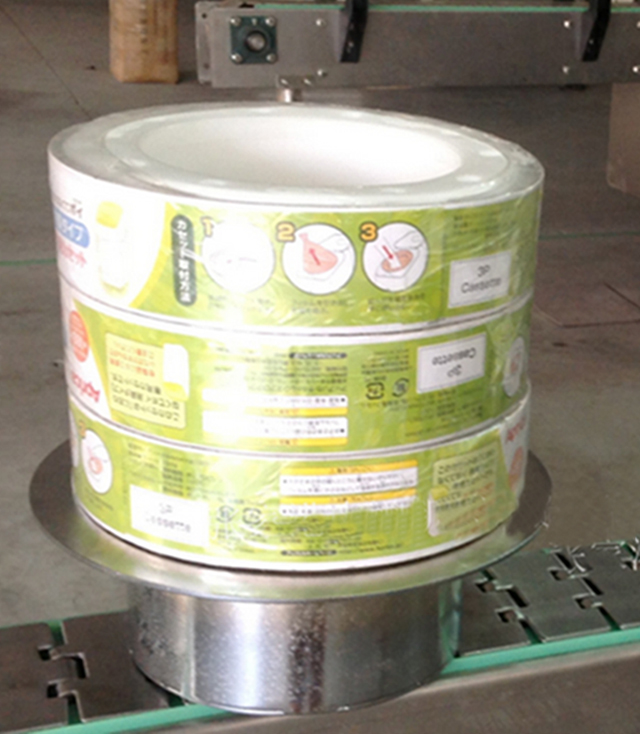

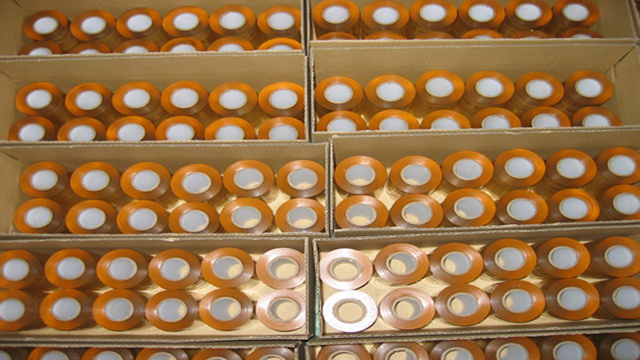

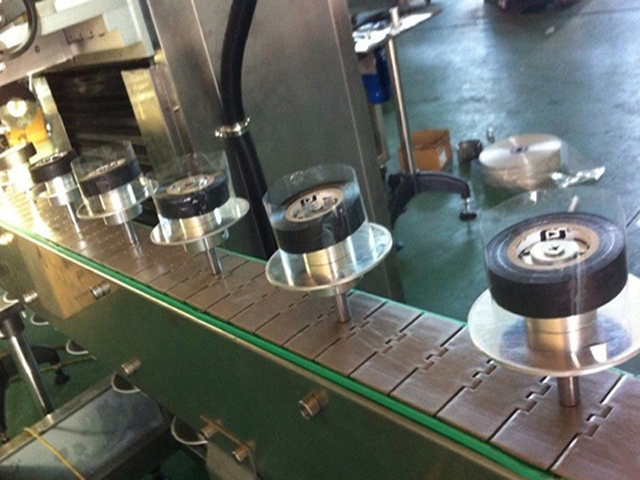

Samples

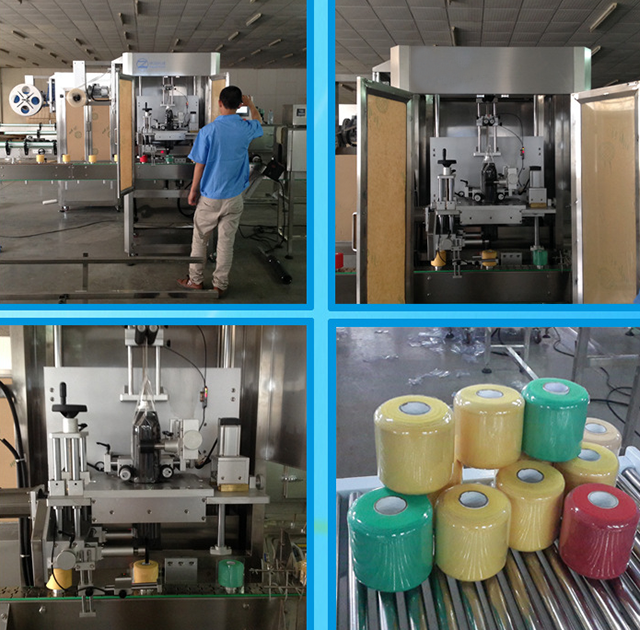

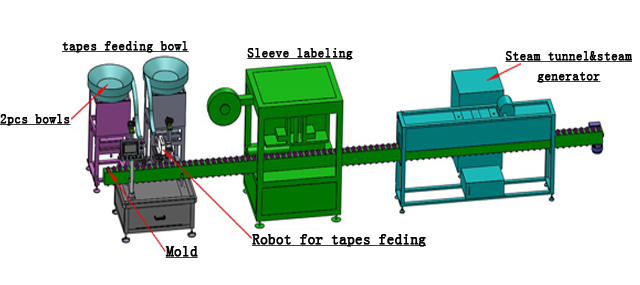

Machines with automatic tapes feeding bowl high speed
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
