Automatic Small Cosmetic Bottles Filling Plugging Capping Labeling Line

Model: VK-MFC
Applicable specifications: 2-50ml
Filling head: one heads
Production capacity 1 heads: 30-50 bottle /min
Filling accuracy: ±1%
Capping rate: ≥99%
Power supply: 380V / 50Hz
Power: 2kW
Total dimension: 2050* 1000 * 1500MM
Weight: 480kg

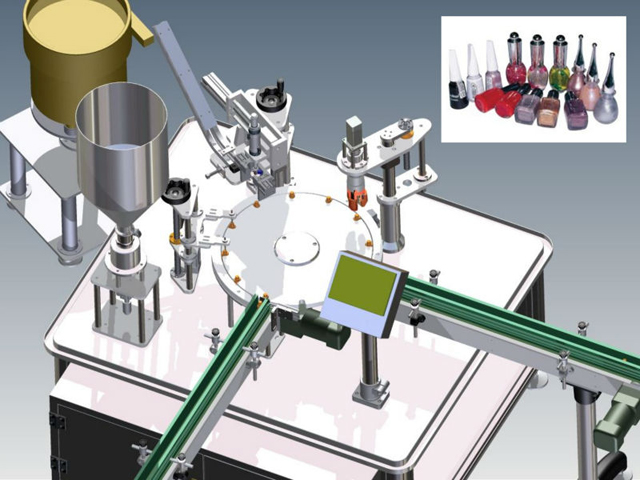

This nail polish filling machine combines mechanical / pneumatic / automatic technology as a new innovation generation of special Machine in nail polish liquid filling with high automation / rate of finished products/stability and widely adaptability etc. characteristics, so that it is the favor of the numerous customers. It becomes perfect & maturity day by day during consummate constantly in years.

This machine is suitable to fill the abnormity vials such as rotundity / flat / prism etc. with low filling measurement warp and suitable to many kinds of stoppers & caps, so that it has the obvious advantages compared with this kind machines worldwide. It is completely met the GMP regulation by means of the powerful advantages of our company in design / manufacture for non-standard products.

Main Performance And Structure Features:

This machine is suitable for the filling of 2-50ml liquid. Mainly used for the filling linkage production of various liquid materials in pharmaceutical, food, chemical industry. The production line is fully compliant with the GMP requirements

No bottle no filling,no bottle no capping,suck out foam.
Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation.

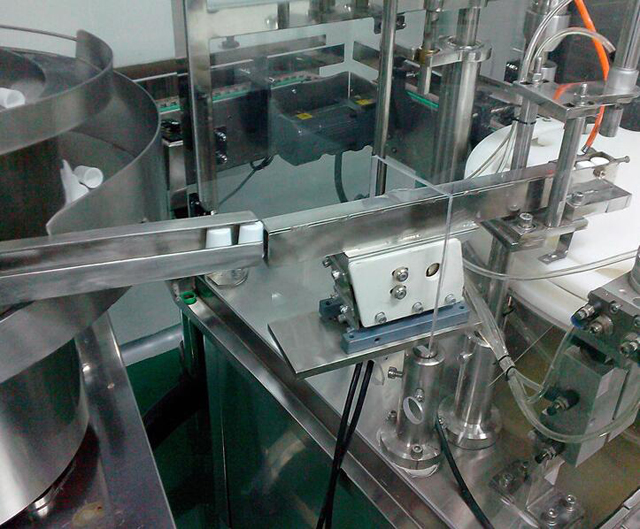

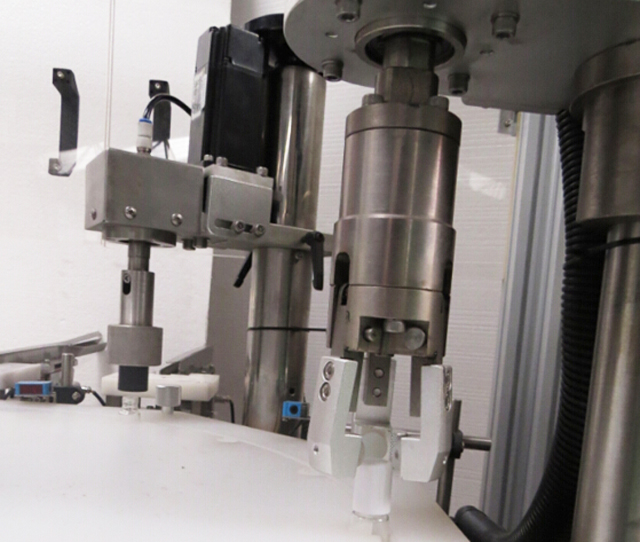

Plugging and capping by manipulator automatically.
Easy operation and convenient maintenance.

Parameter

Model: VK-MFC
Applicable specifications: 2-50ml
Filling head: one heads
Production capacity 1 heads: 30-50 bottle /min
Filling accuracy: ±1%
Capping rate: ≥99%
Power supply: 380V / 50Hz
Power: 2kW
Total dimension: 2050* 1000 * 1500MM
Weight: 480kg

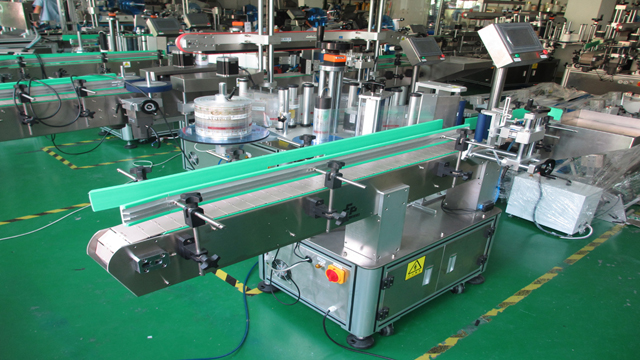

Labeling Part:

Applicable Label width (backing paper width/mm): 15mm ~ 150mm
Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm
Height: 25mm ~ 230mm
Applicable standard roll diameter (mm): φ280mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 1mm
The standard speed (m / min): Servo: 5 ~ 25m/min
Stepping: 5 ~ 19m/min
Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)
Servo: 40 ~ 120pcs/min
Conveyor speed (m / min): 5 ~ 25m/min
Weight (kg): About 185kg
Frequency (HZ): 50HZ Voltage (V): 220V
Power (W): 530W

Production Process:

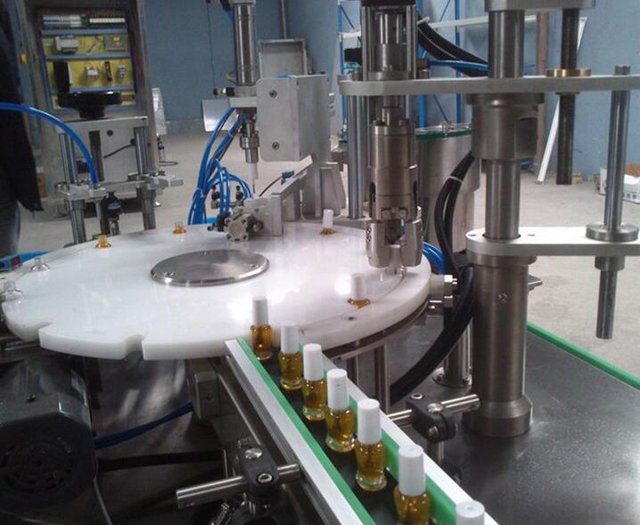

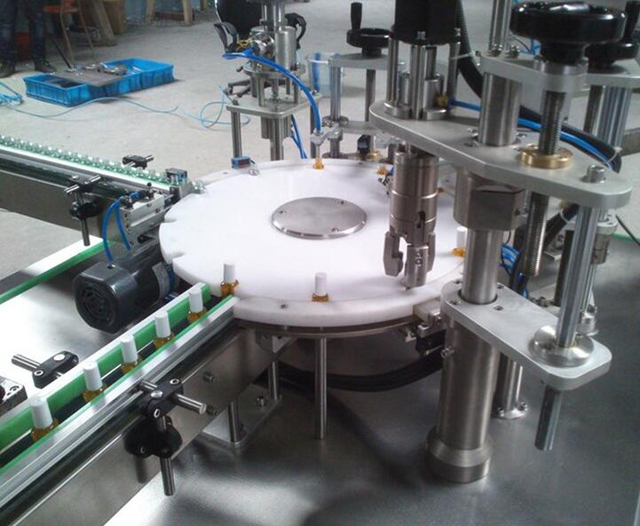

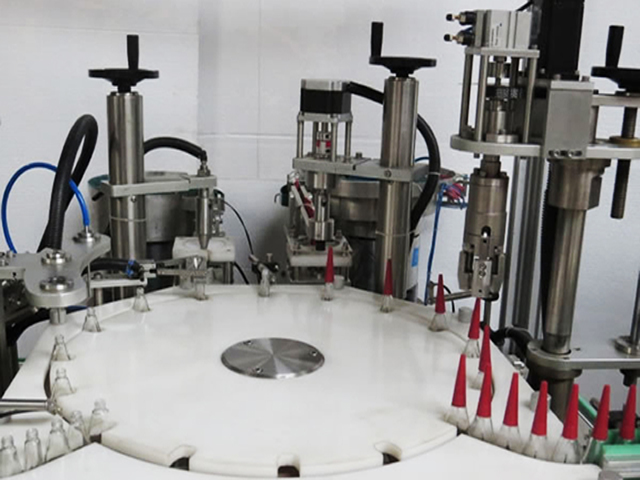

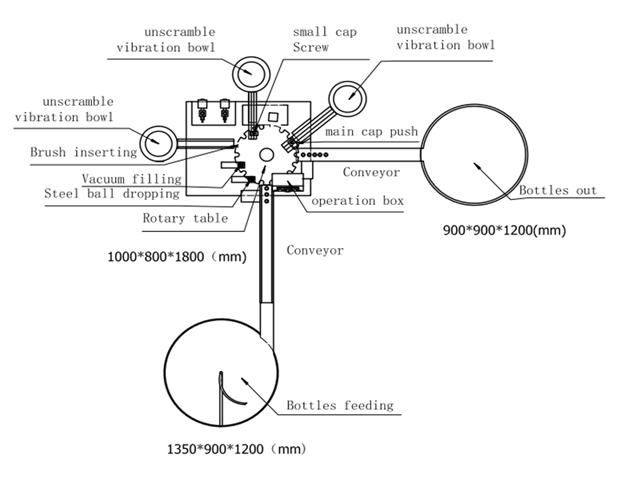

When the bottles in an even row which sent by conveyor reach filling part, filling nozzles will go deep down to inside of bottle and begin to fill. The nozzle will go up slightly to bottleneck, then filling stops. The conveyor will convey bottles to equal-index plate. The plate makes bottles do intermittent motion in the function of cam indexer. Bottles arrive at plugging part, then go to capping part. When finish capping, bottles will be sent to the next process by conveyor.

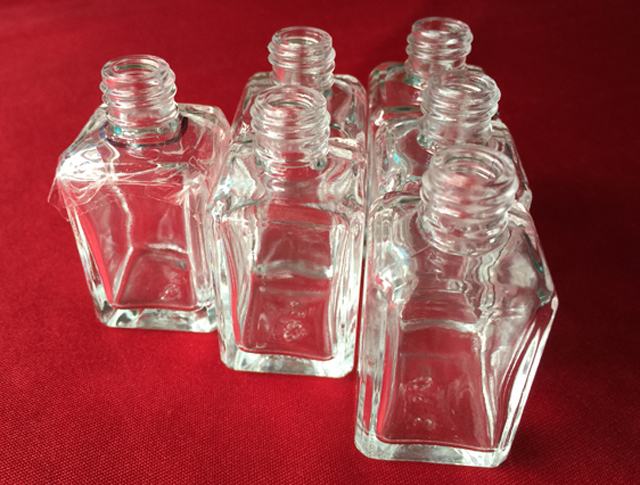

Samples

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
