Automatic Small Round Plastic Bottle Unscrambler Sorter Machine

• Plastic Bottles Unscrambler
• Model: VK-BU-BS

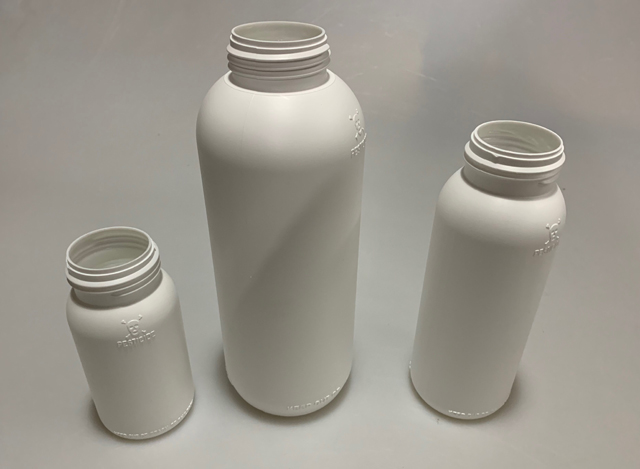

• Applicable bottle types round, standard flat bottles and other plastic bottles
• Applicable specifications: Φ20-Φ80mm, H25-200mm (Customized)
• Production capacity: 40-150 pcs/min (depend on bottle samples)
• Power supply: 220V
• Power: ＜1KW
• Air source: 0.4-0.6Mpa
• Dimensions: 1800×1120×1350mm
• Weight: 300KG

View Video

The automatic bottle unscrambler is mainly used to automatically arrange the messy plastic bottles into a consistent upward bottle mouth, and enter the host in an orderly manner. Replace manual operation, save labor and achieve the purpose of automatic finishing;

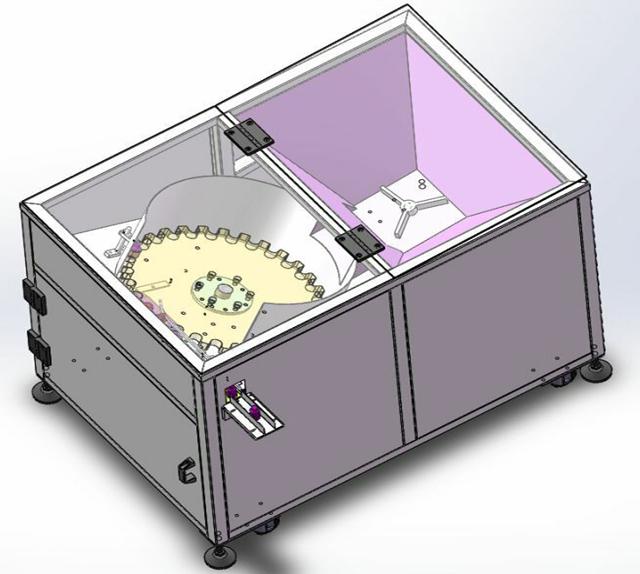

The main body of the machine is made of stainless steel, and the equipment consists of a bottle storage bin, a bottle lifting belt, and a bottle unscrambler bin; in the production process, the bottles are first poured into the bottle storage bin, and lifted when the optical fiber in the unscrambler detects the lack of bottles.

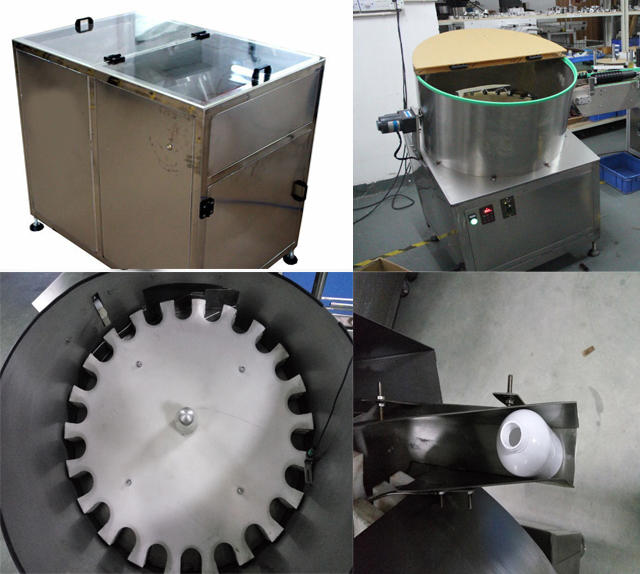

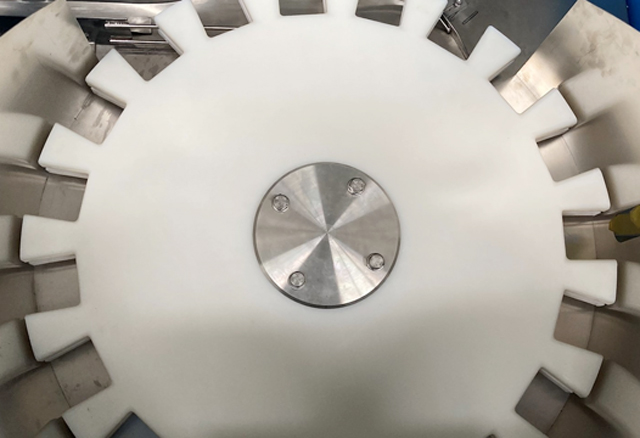

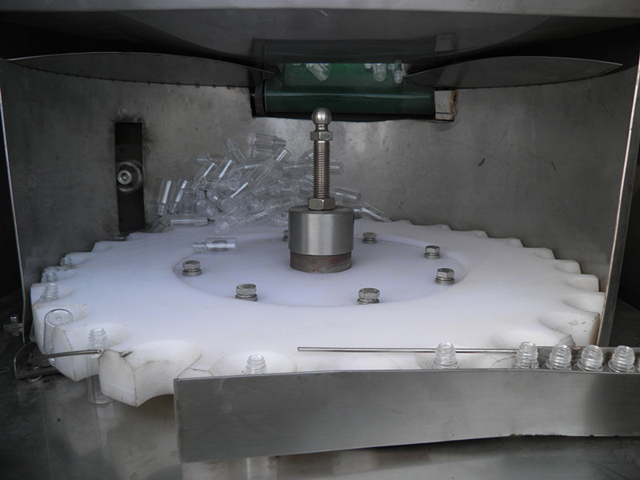

The belt runs automatically, and the bottles are lifted and transferred to the unscramble silo at a uniform speed. The bottles will automatically enter the mold holes during the operation of the turntable in the unscramble silo. The bottles after the multi-bottle cleaning station are under the mechanical principle.

Realize that the bottle mouth flips down to the bottle mouth upwards, and the bottle mouth upwards directly output, which effectively completes the automatic bottle sorting; the full bottle optical fiber supporting the bottle unscrambler is installed in the next process or the outlet of the unscrambler according to the demand. Its main purpose It is to prevent the bottle unscrambler from accumulating more bottles at the bottle outlet.

The unscrambler will automatically stop running after the full-bottle fiber detects the full bottle. When the accumulating signal disappears, the host will automatically run again to achieve the purpose of automated production.

This machine is simple to operate, ready to use when powered on, and is widely used in pharmaceutical, food, daily chemical and other industries; this machine can be customized according to different bottle sizes and production capacity requirements;

Automatic empty bottles unscrambler is special designed for plastic empty bottles, empty bottles will be sent to the storage tank, then the bottles are put in order automatically and mouth upward into the production line. It adopts advanced overload safety production devices, do not need to pump, can be used in various industries of plastic bottles.

Application:

This bottles unscrambling machine is used in pharmaceutical factory, health care products, the suitable bottles include round bottles, special shaped bottles. This machine can lose bottles automatically, unscramble bottle. This machine adopts the high quality stainless steel or non-toxic pollution-free engineering plastic manufacturing, application of mechanical transmission technology, through the simple adjustment, can apply various bottle type, have a high degree of automation,the advantage is save labor. The machine can be used as the host or connect with the production line.

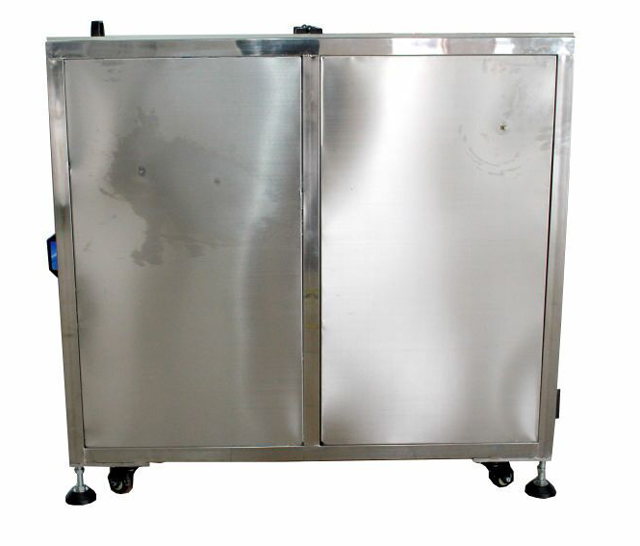

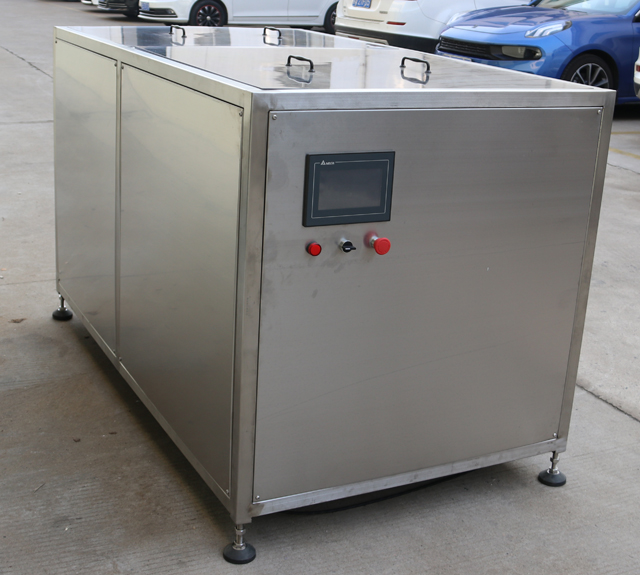

Front pictures of machines bottles unscrambler

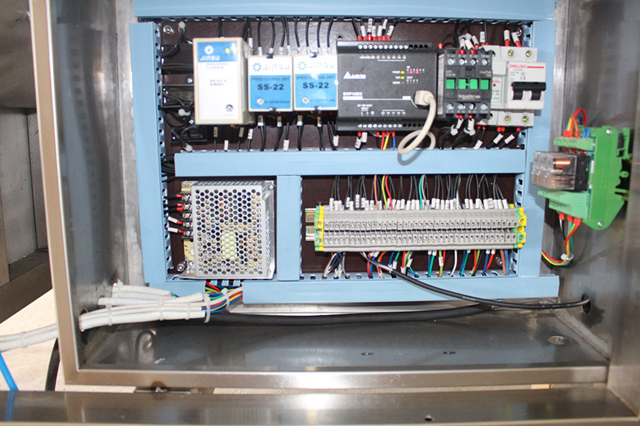

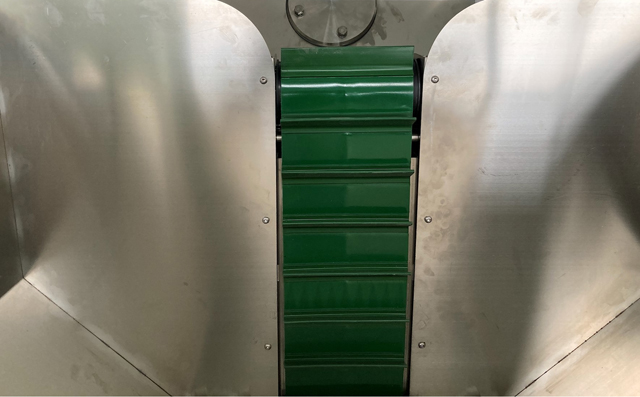

Inside bottles unscrambler

Basic Parameter

Model: VK-BU-BS

Applicable bottle types round, standard flat bottles and other plastic bottles

Applicable specifications: Φ20-Φ80mm, H25-200mm (Customized)

Production capacity: 40-150pcs /min (depend on bottle samples)

Power supply: 220V

Power: ＜1KW

Air source: 0.4-0.6Mpa

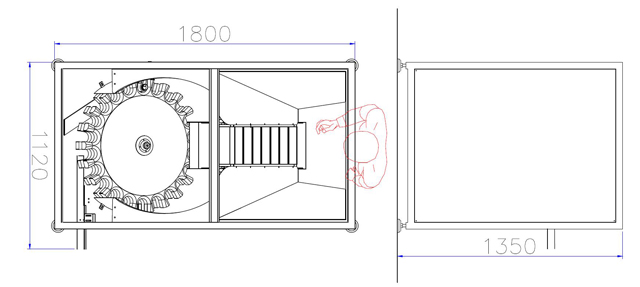

Dimensions: 1800×1120×1350mm

Weight: 300KG

Configuration:

Structure And Features:

1) Compact structure, concise appearance, convenient operation;

2) High production efficiency, it can continuous send the bottle automatically, then turn over the bottle and exit the bottle;

3) Meet the automation demand, without manual send bottle;

4) Turn over the bottle of institutions and bottle length, match with the shape , ensure the continuous, rapid output;

5) Through sorting after the transportation institutions, flip institutions and unscramble bottle institutions, the bottles mouth up and entering to next working procedure orderly.

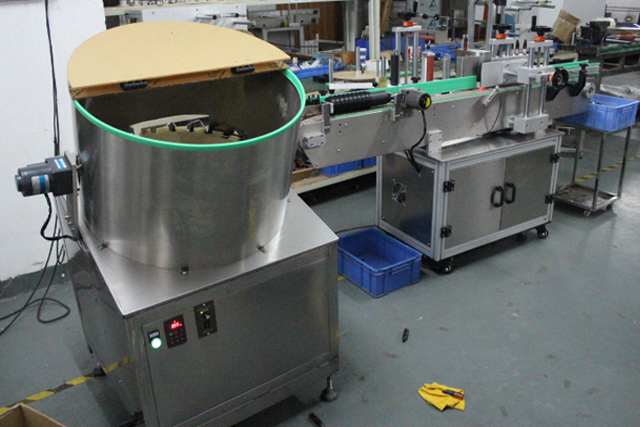

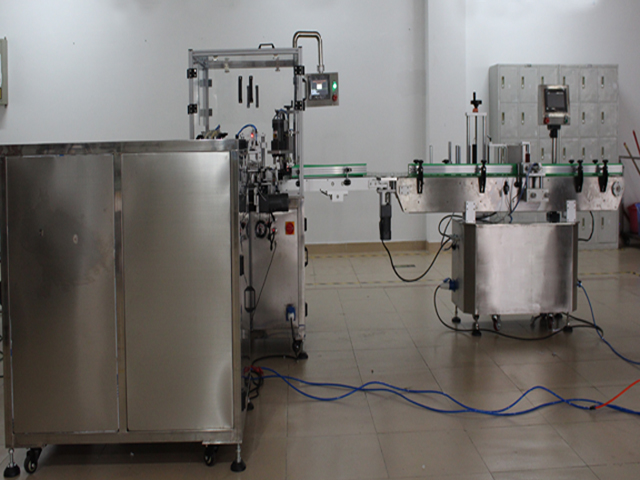

Bottles Unscrambler Machines For Filling Line In Project:
