Automatic Spout Stand Up Bags Soybean Milk Juice Filling Capping Machine

Full auto jelly stand up pouch filling machines
Packaging speed: 3800-4300 pcs/hour
Filling content: 100-1000ML(adjustable)
Power: 3-phase 4-line socket(380V 50HZ)
Electric Machinery Power: 1.5KW
Heating up power: 2KW(Optional)
Air pressure: 0.5Mpa-0.7Mpa
Max air consumption: 0.8m3/min
Timing mode: Frequency inverter
Machine dimension(L*W*H): 2600x1700x2250mm
G.W.: 2200KG

The machine is used to fill and cap stand-up pouches with jelly juice, soy milk, pure water, ice water, juice, yoghurt, milk, edible oil, seasoning, and detergent, etc. prodcuts. The machine is controlled by PLC touch screen. It is new food packaging equipment of reasonable structure, advanced performance, high automation and high speed.

Note:

1. According to the customer request, provides the special design.

2. The machine disposition may make the choice.

Machines vary with the controlling system and different optional function:

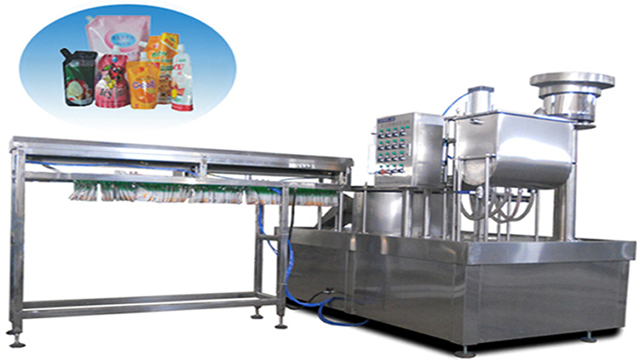

► Automatic spout stand up bags filling capping machine for juice liquid jelly milk production with button controlling system

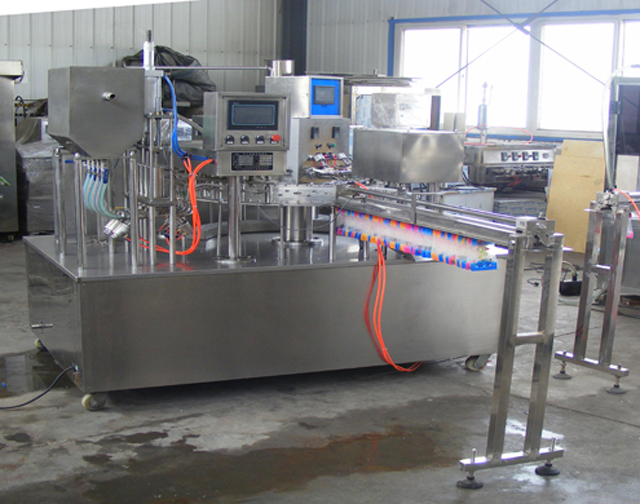

► Machines with touch screen controlling system & automatic bags loading system for filling capping process

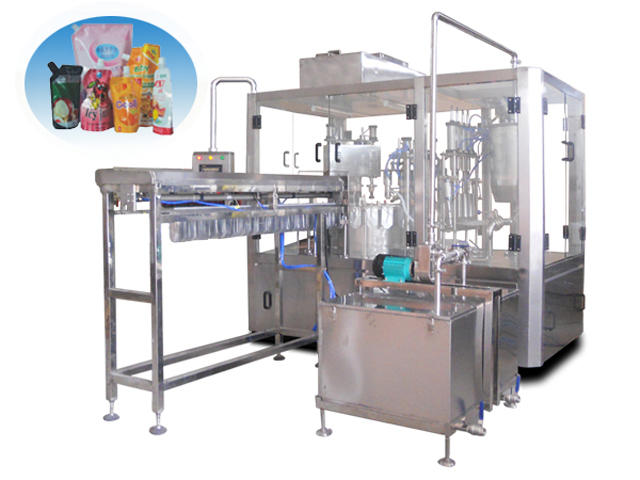

► The spout bags filling capping machine automatic with CIP cleaning system

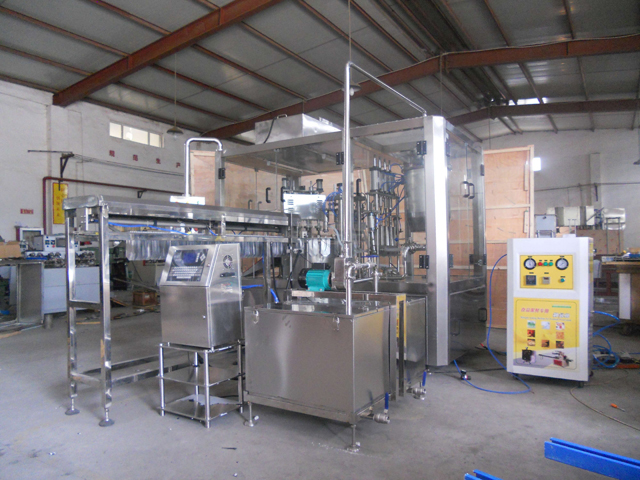

► Automated spout bags caps filling sealing machine with CIP system & ink printer function:

Technical parameters

Parameters	Contents
Nozzles Injector	4
Packing Speed	3800-4300 bags/Hour
Volume	100-1000ml
Powder	1.5 kw
Voltage	380V/50HZ (three phase)
Air Pressure	0.5-0.7Mpa
Air consumption	0.5 83/min
Out dimension	Main Machine: 26001730 2250mm Send bag holder: 22005001500mm
Weight	2200kg

The parameter above is only for reference, please make the object as the standard.

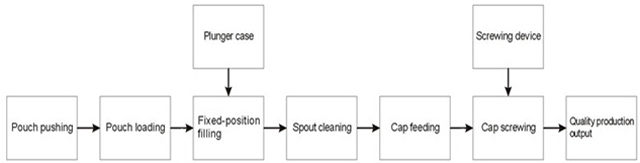

Basic Work flow:

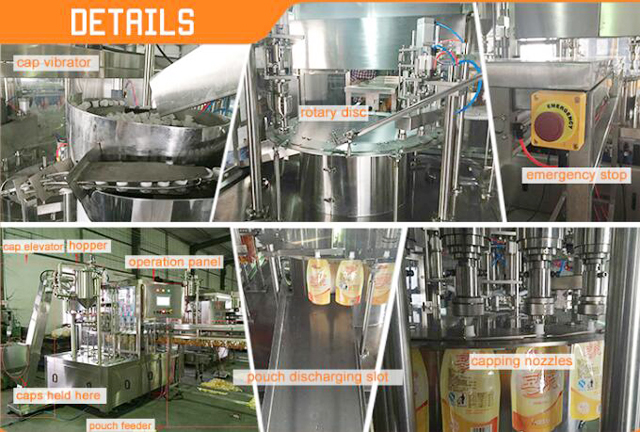

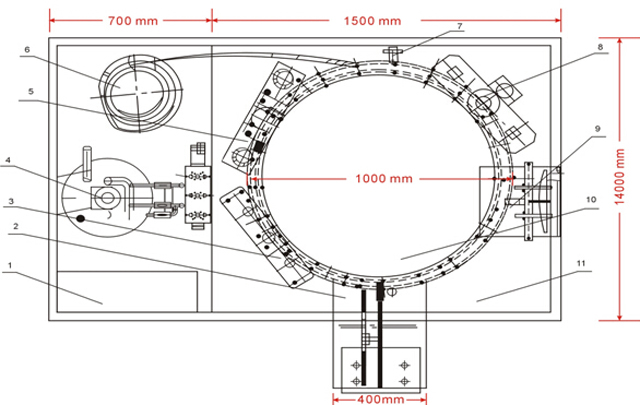

Structure

1	electrical appliance case	7	photoelectric checking device
2	pouch carrier	8	cap-screwing device
3	filling device	9	finished product exit
4	charging basket	10	turntable
5	cleaning device	11	structure
6	cap sorter device

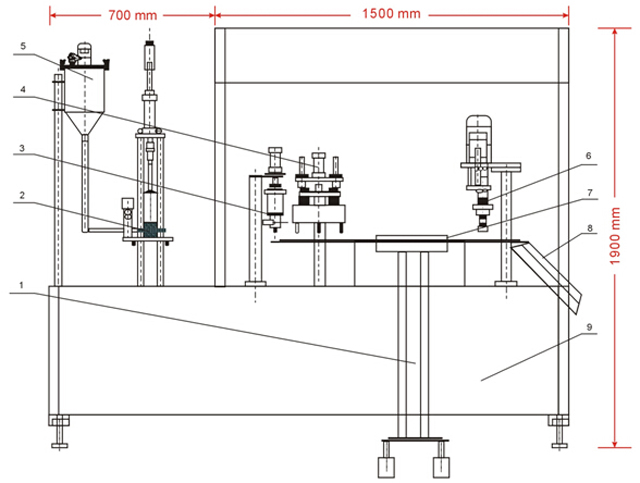

1	pouch carrier	6	cap-screwing device
2	filling device	7	turntable
3	plunger case	8	finished product exit
4	cleaning device	9	structure
5	charging basket

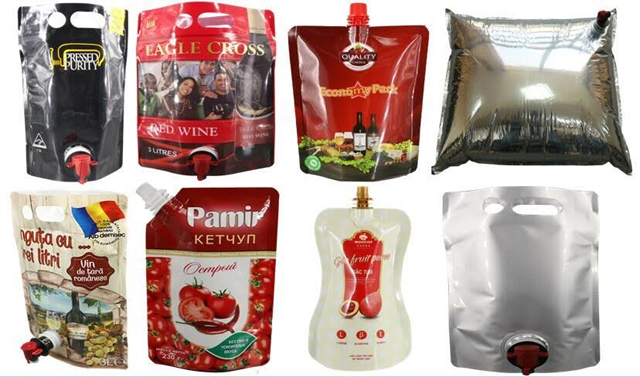

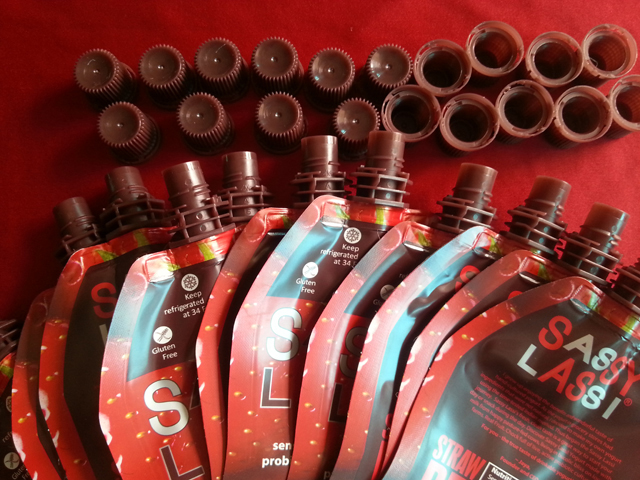

Final product for spout bags from filling sealing machine automatic filler capper for juice liquid production

Packing List together with the machines

Name	Model	quantity
Filling Sealing Machine		1
Operation Instruction		1
Manufacturer Certificate		1
Hexagon ring spanner	M4	1
Hexagon ring spanner	M5	1
Hexagon ring spanner	M6	1
Hexagon ring spanner	M8	1
Hexagon ring spanner	M10	1
The six angle wrench	14—17mm	1
The six angle wrench	19—22mm	1
The six angle wrench	24—30mm	1
Cross Screwdriver	6 inches	1
Straight Screwdriver	6 inches	1
Thermocouple	K type 1.0m	1
Electrical Heated Tube	Ф12×70 220V 180W	2

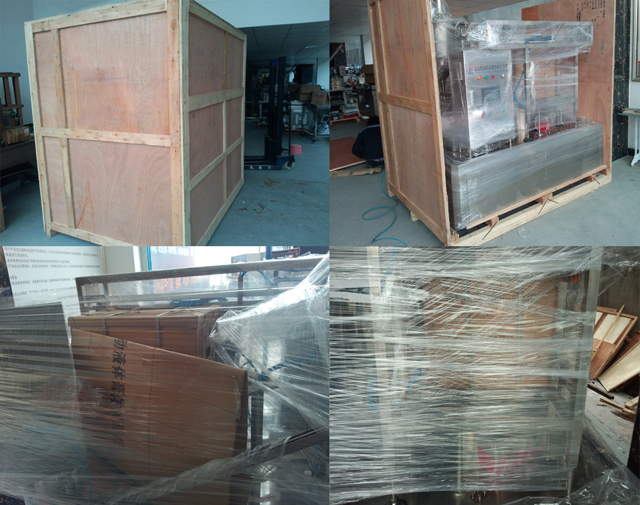

Wooden case packaging before ocean shipping for automatic stand up spout bags filling capping machine

Quality Assurance:

1. Each machine is manufactured by our professional workers.

2. Each machine with a strict inspection before out of storage.

3. Each machine use a large number of 304 stainless steel.

4. Each machine use good quality electric elements.

5. After-sales service commitment: after one month, 3 months… we will have return visiting by phone or mail.

6. The warranty time is one year.

7. Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients pay for the freight of round-trip.

8. Beside the warranty days, we continue to provide life-long maintenance services.
