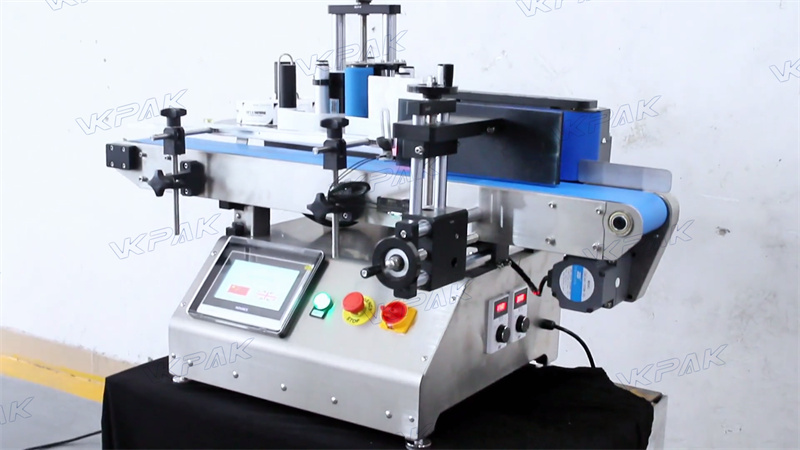

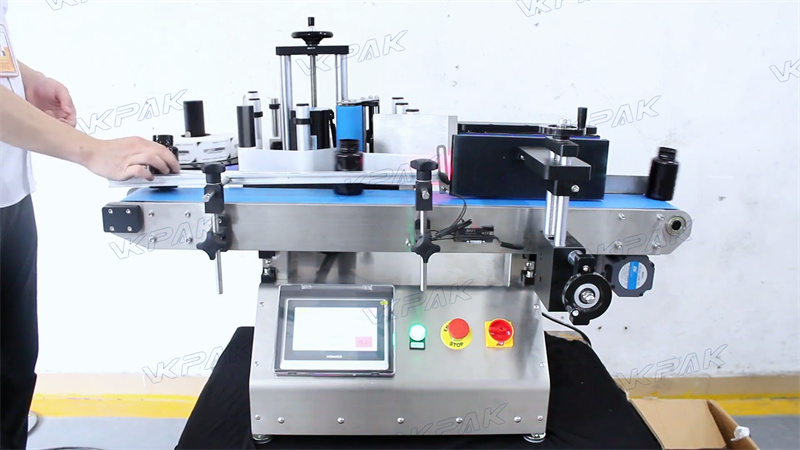

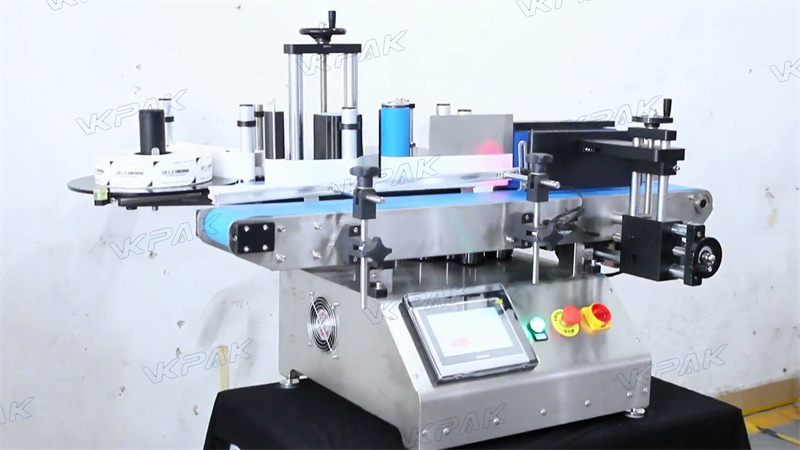

Automatic Tabletop Small Round Bottles Self-Adhesive Labeller Equipment
  • Model: VK-TL
  • Capacity (pcs/min): 20-60BPM
  • Driving Mode: Servo motor
  • Labeling accuracy: ±1mm
  • Belt Speed(m/min): ≤35
  • Label Specification: adhesive sticker, transparent or opaque
  • Suitable bottle size: customized
  • Suitable label size: Height 20-260mm Length 25-300mm
  • The inner diameter or label roll: 76mm(min)
  • The outer diameter of label roll: 250mm(max)
  • Power: 250w
  • Weight: 80kg
  • Voltage: customized, 110V/220V/380V
  • Machine size: 1200x1000x780mm
View Video

The model VK-TL Labeling machine suit for different size round products labeling in food, medicine, daily chemical and other light industries.

Equipment Features

1. Suitable for labeling all kinds of cylindrical objects or round bottles in different size.

bottles application.jpg
2. Efficiency is as high as 60 pcs/minute.

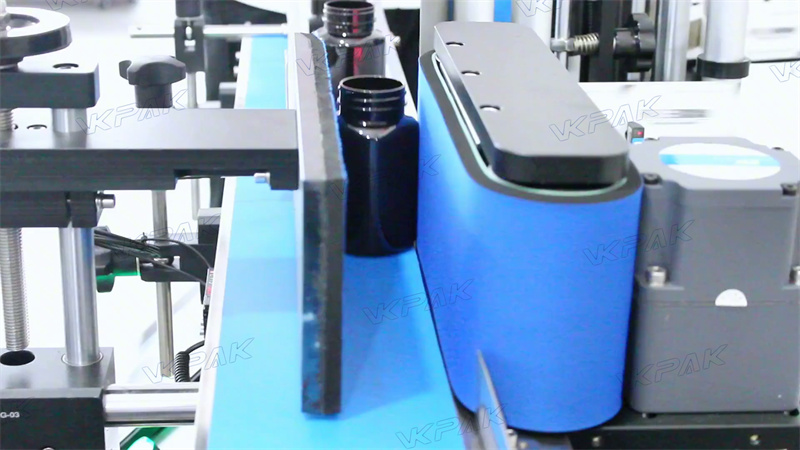

3. Composed of the main body, label sender, label receiver, bottle rollers, etc.

4. High accuracy and high speed, dispensing & labeling automatically

5. Labeling has no creases or bubbles. Neat presentation and professional quality!

6. Made of branded PLC, sensor and other electronic components for reliable performance.

7. Modular design, convenient maintenance and low repair costs.

8. Labeling bottle adjustable, meeting different before and after the work piece labeling needs

Technical Paramer

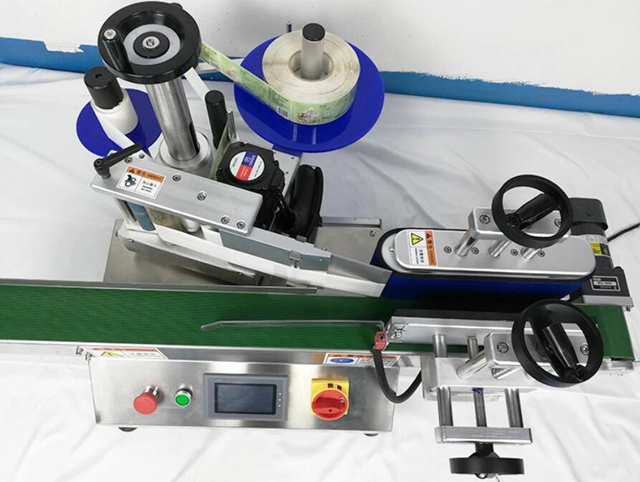

Tabletop labeller

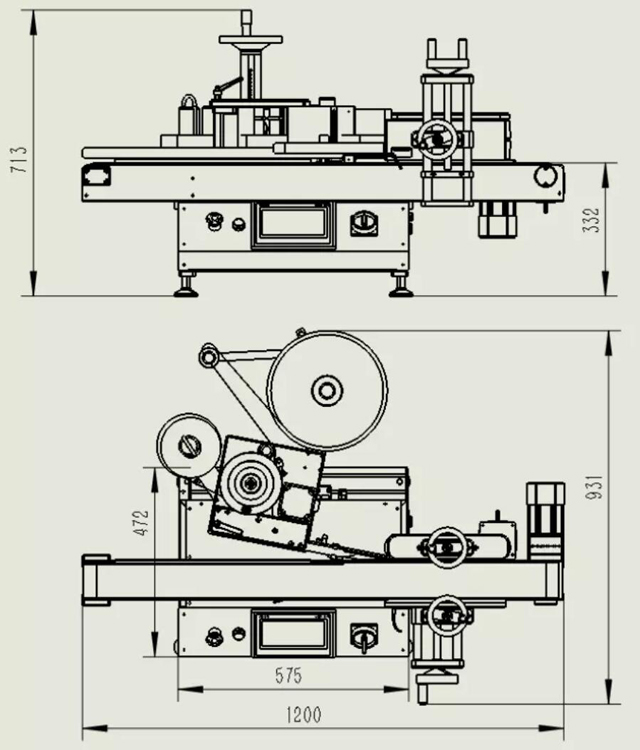

labeller small round bottles.jpg

  • Model: VK-TL
  • Capacity (pcs/min): 20-60BPM
  • Driving Mode: Servo motor
  • Labeling accuracy: ±1mm
  • Belt Speed(m/min): ≤35
  • Label Specification: adhesive sticker, transparent or opaque
  • Suitable bottle size: customized
  • Suitable label size: Height 20-260mm Length 25-300mm
  • The inner diameter or label roll: 76mm(min)
  • The outer diameter of label roll: 250mm(max)
  • Power: 250w
  • Weight: 80kg
  • Voltage: customized, 110V/220V/380V
  • Machine size: 1200x1000x780mm

Machine Main Configuration Table

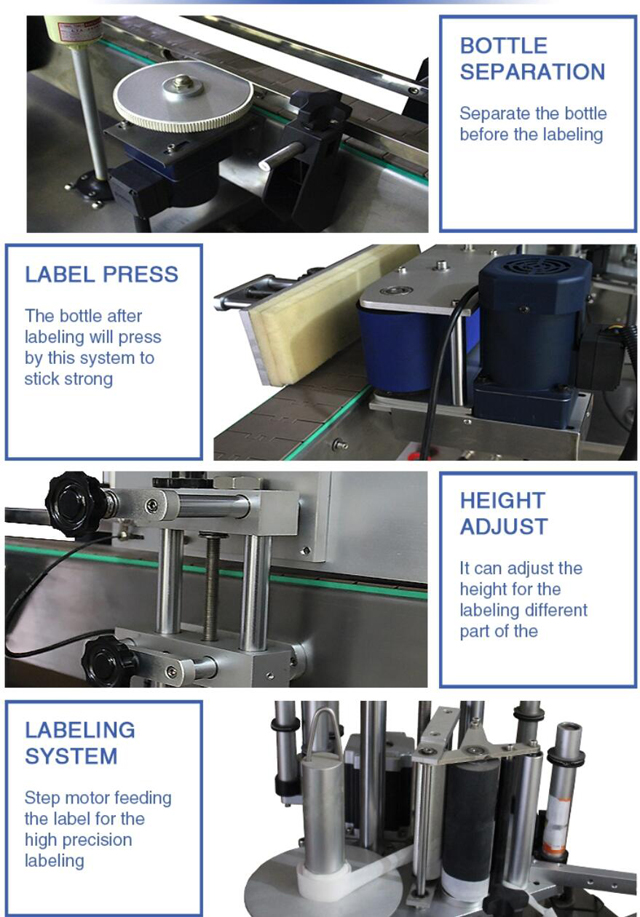

Machine details model YX-RL25-A.jpg

  • PLC: Shenzhen Display Control: Machine program carrier
  • Touch display: Shenzhen Display Control: Machine interface
  • Frequency converter: Siemens, Germany : Stability control and speed regulation of the labeling motor
  • Measuring electric eye: German Leuze: Test product notification PLC send standard
  • Measuring electric eye: German Leuze : Detect the output of the tag control tag
  • Marking motor: Shenzhen JMC: Sending the power
  • Label motor: Taiwan Oubang: Volume of power
  • Conveying motor: Taiwan Oubang: Power of transmission
