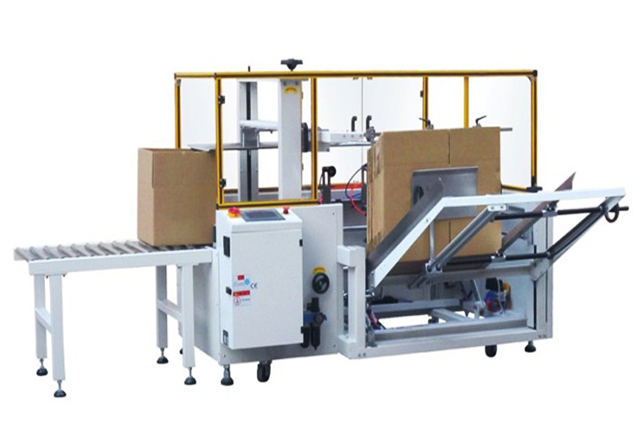

- Automatic carton erector sealer equipment
- Voltage (V/Hz): AC 220/50
- Power (W): 220
- Gas Pressure (Mpa): 6-7kg
- Max. Carton Size (W×H) (mm): 500*400*400mm
- Min. Carton Size (W×H) (mm): 250*150*100mm
- Taping Speed (m/min): 24
- Adhesive Tape: Used BOPP Water-free Adhesive Tape or PVC Adhesive Tape
- Height of Table (mm): 600mm
- Width of Adhesive Tape (mm): 60 (There will be some change on min. carton size if you use the tape in width 48mm or 76mm)
- External Dimensions (L×W×H) (mm): 2000*1900*1450mm
- Net Weight (kg): 480kg
The machine is operated and maintained easily with simple structure and high quality, for which it is widely used in various industries.
Safety Precautions
1. The operator and maintenance personnel should read the operating manual carefully before operating and maintaining this machine.
2. The operator must keep away from the back folding plate to avoid injury.
3. The power and gas must be closed when installing the tape and doing the daily maintenance.
4. Only the trained personnel can operate the machine.
Performance / Features
Easy operation, machine can be used individually and combined with the packaging line.
Vertical storage, cartons can be added at any time without stopping the machine.
Suitable for forming and sealing cartons of the same size.
Manually adjust to change the carton sizes (finishing in 2-3 minutes).
Advanced photoelectricity induction control system.
Rationally designed, the forming, folding and sealing process are accomplished simultaneously.
Cutter Safety system to prevent hands form stabbed by the cutter.
Heavy duty built, both steel and stainless steel types.
Equipped with PLC system, saving labor and easy to operate.
Adopted international advanced technology, with imported parts and electrical components, this machine has a stable performance and long life-using.
Carton Erecting Packing Machine Options:
- Stainless steel version;
- Hot melt glue sealing type
- Right hand or left hand;
- Specified machine color
- Specified pneumatic and electrical elements brand
- Open safety guard alarm, machine stop function
- Isolate electrical cabinet
- 2 & 3 inch tape head;
- 24V low voltage control

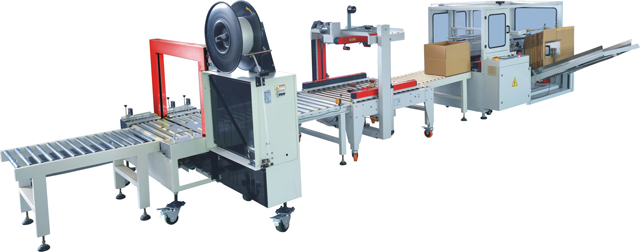

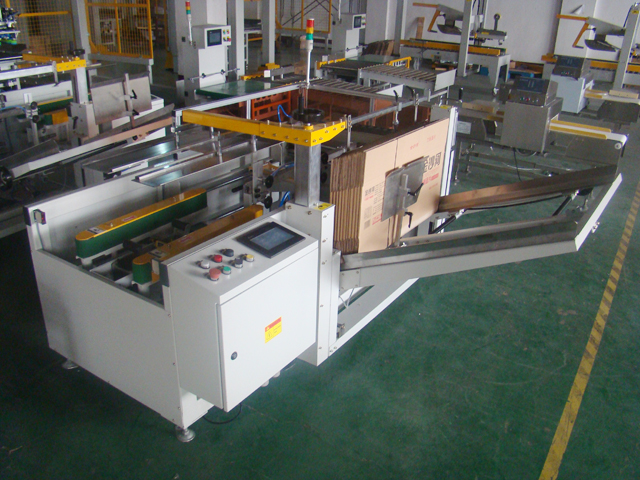

Fully automatic carton erector top sealing strapping machinery automated line:
Basic Parameter
Voltage (V/Hz) | AC 220/50(can be adjusted with US power supply) |
Power (W) | 220 |
Gas Pressure (Mpa) | 6-7kg |
Max. Carton Size (W×H) (mm) | 500*400*400mm |
Min. Carton Size (W×H) (mm) | 250*150*100mm |
Taping Speed (m/min) | 24 |
Adhesive Tape Used | BOPP Water-free Adhesive Tape PVC Adhesive Tape |
Height of Table (mm) | 600mm |
Width of Adhesive Tape (mm) | 60 (There will be some change on min. carton size if you use the tape in width 48mm or 76mm) |
External Dimensions (L×W×H) (mm) | 2000*1900*1450mm |
Net Weight (kg) | 480kg |

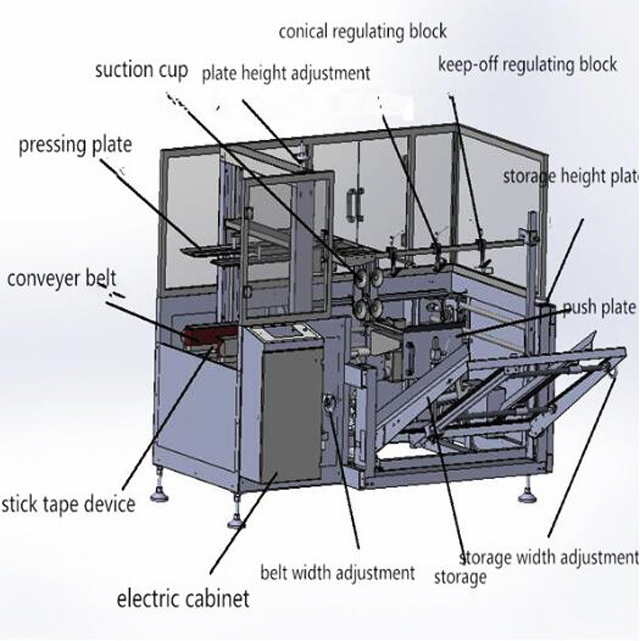

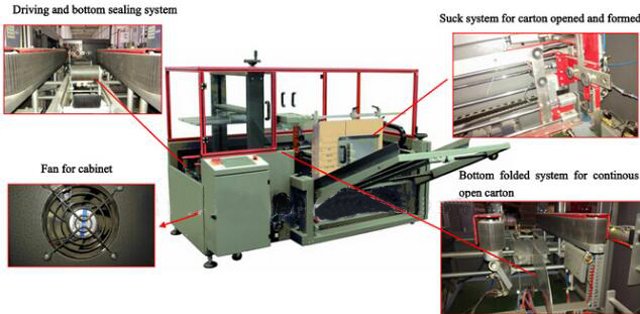

Illustration Of Carton Erecting Machine
Malfunctions And Solutions On Carton Erection Bottom Sealing Equipment:
Malfunction and Solution of the Sealer | |||
Nr | Malfunction | Possible reason | Solution |
1 | Adhesive tape can not be cut off | The reamer patch is not sharp enough. The reamer tine isjammed by the bond. | Change the reamer patch Launder the reamer patch |
2 | There is tail after the adhesive tape is cut off. | The reamer patch is not sharp enough. There is stem on the reamer seating. The pulling spring is too loose. | Check if the nut on the reamer seating is too loose or not. Lubricate the nut if necessary. |
3 | The adhesive tape can’t stick to the carton completely. | Main spring is too loose and there is glue on the axis of the roller. The adhesive tape is disqualification | Adjust the pull of main spring and clear up the roller. Change the adhesive tape |
4 | The carton is locked in the midway. | The nut on the pasting wheel is too tight, the height adjustment of the carton’s transporting line is not suitable, and the main spring is too tight. | Loosen the pasting wheel, regulate the nut, re-adjust the height and loosen the main spring. |
5 | The adhesive tape is cut down during sealing. | The reamer patch protrudes excessively long. | Lower the place of the reamer patch. |
6 | The adhesive tape is often off the track. | The pressure of the guiding roller on the carton is not equal. | Re-adjust the space of the guiding roller. |
7 | The adhesive tape is not on the central line. | The anti-retrorse wheel is broken. | Change the anti-retrorse. |
8 | There is abnormity during the sealing. | There is dust on the axletree seating. | Clean the axletree seating and lubricate. |
9 | There is jut before sealing and drape after sealing. | The speed of different straps is different, and the carton is not at the proper place when pushing into the machine. | Adjust each transporting line’s pull to be consistent so that the carton can be put at the correct place. |
10 | There is drape after sealing | the strain of adhesive tape is too large |
