Benchtop Vacuum Capping Machine Semi Automatic For Glass Bottles

• Power supply: AC220V/50-60Hz
• Capping speed: 1200-1500bph
• Power: ≤1.3KW (include vacuum pump)
• Cap diameter: Φ30-Φ85mm, Φ85-Φ110mm
• Bottle height: 50-180mm, 120－250mm
• Bottle diameter: Φ30-Φ80mm, Φ80-Φ150mm
• Limiting vacuum degree: -0.08Mpa
• Capping torsion: 5-25N.M
• Air consumption: 0.5m3/0.7Mpa

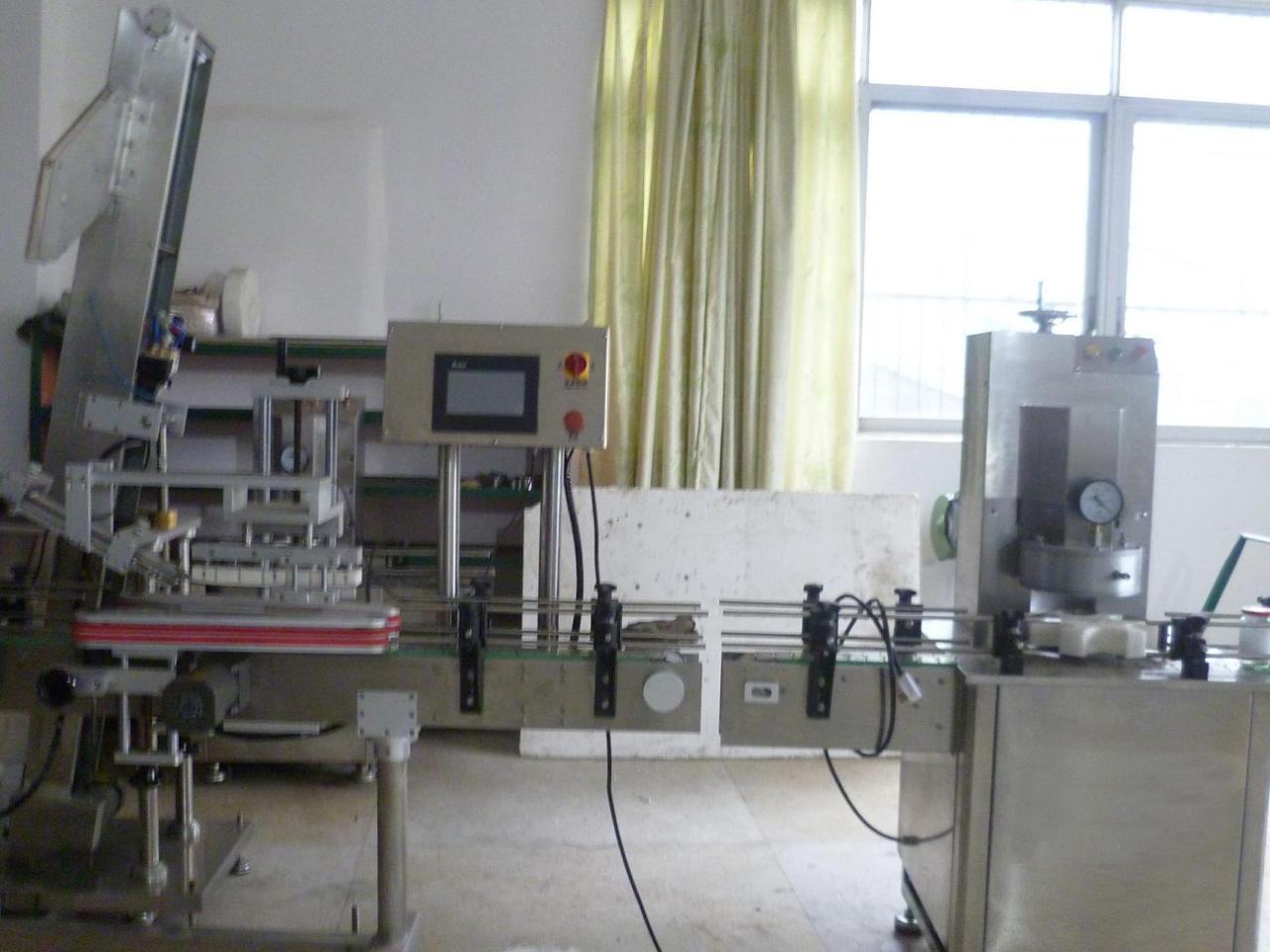

Autoimatic Single Head Vacuum Capping Machine

The machine is widely used for vacuum screwing cap in foods & beverage, spice, medicine, chemicals, industries and so on.

1. The machine is combined with automatic cap arranging, covering and vacuum screwing, features fast speed, high efficiency, reliable and stable running.

2. Photosensor and approximate switch and other elements are using international famous brand, to make sure that the cap unscrambler machine can control automatic no caps the switch is on, full caps the switch is off.

3. The bottle shape what the machine can apply is round shape, square shape, oval shape and special-shaped and so on.

4. Doesn’t require to replace parts for filling different shapes of bottles with easy adjustment, strong adaptability.

5. The electric parts and pneumatic parts are used world-renowned brands, the advantage is low failure rate,reliable performance and long service life. parts.

5). The main pneumatic and electric parts are from world famous brands to ensure stable, reliable and durable performance.

Technical Parameter

Semi-Automatic Glass Jars Vacuum Capping Machine (Desktop)

This series capping machine is researched and produced by ourself with years of production experience; is the domestic original creation, it uses a vacuum pump to vacuum, available high vacuum degree, capping torque and vacuum level can be set on demand compatible with a variety of different shapes and sizes of bottles for capping, strong compatibility and easy to adjust. The main pneumatic and electrical components are from world famous brands, stable and reliable performance. Widely used in glass bottles with tinplate caps vacuum capping for the food, canned food, beverages, condiments, health care products and other industries.

Main Technical Parameter (Single Stations)

• Power supply: AC220V/50-60Hz
• Power: ≤1KW (include vacuum pump)
• Capping speed: 500-900bph
• Cap diameter: Φ30-Φ85mm, Φ85-Φ110mm
• Bottle height: 50-180mm, 120－250mm
• Bottle diameter: Φ30-Φ80mm Φ80-Φ150mm
• Limiting vacuum degree: -0.08Mpa
• Capping torsion: 5-25N.M

Main Technical Parameter (4 Stations)

• Power supply: AC220V/50-60Hz
• Capping speed: 1200-1500bph
• Power: ≤1.3KW (include vacuum pump)
• Cap diameter: Φ30-Φ85mm, Φ85-Φ110mm
• Bottle height: 50-180mm, 120－250mm
• Bottle diameter: Φ30-Φ80mm Φ80-Φ150mm
• Limiting vacuum degree: -0.08Mpa
• Capping torsion: 5-25N.M
• Air consumption: 0.5m3/0.7Mpa

Sample Machine Photo For You Reference Only:

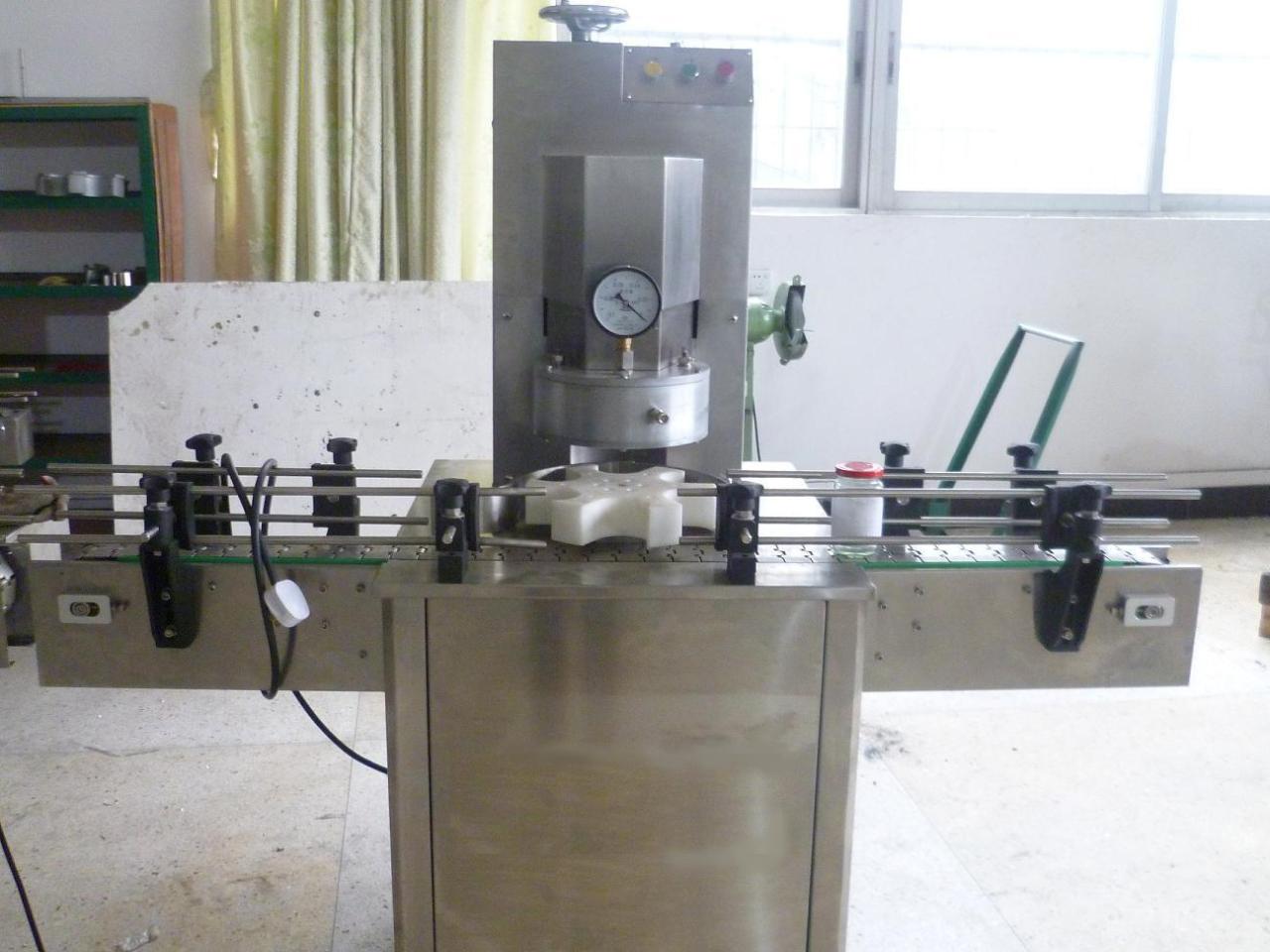

Single Stations

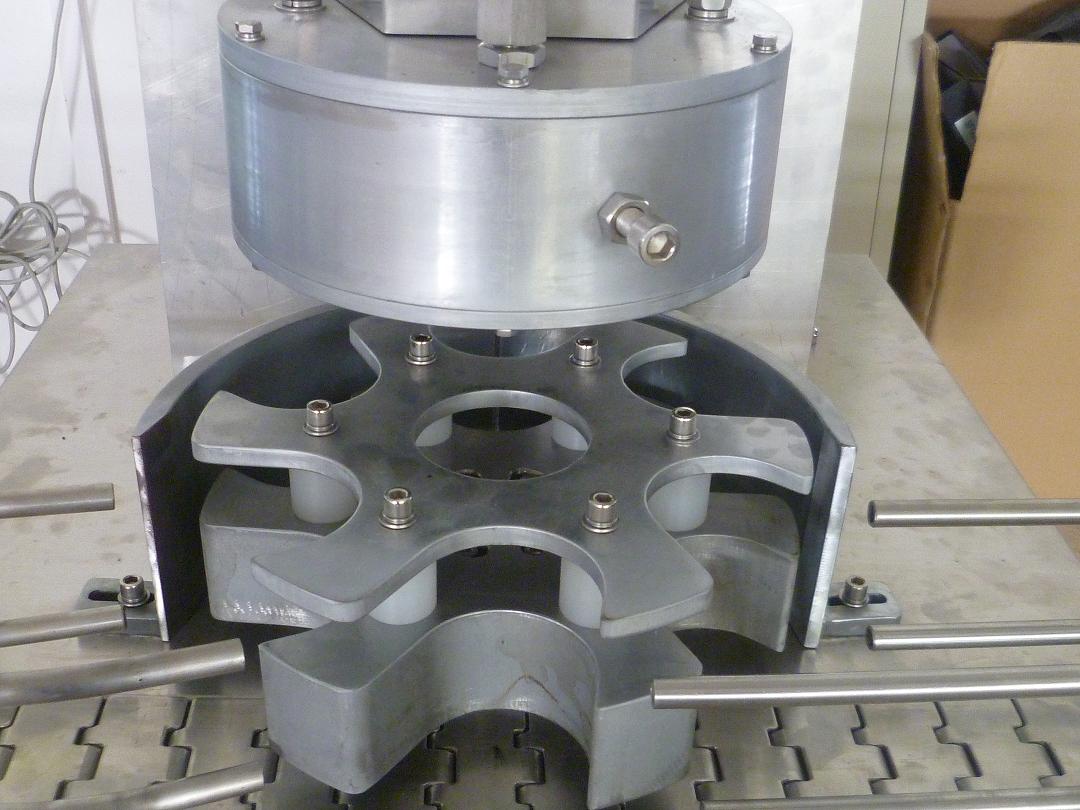

4 Stations

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).

Working Principle Of Vacuum Capping Machine

The vacuum capping machine is mainly used for capping various glass bottles and round bottles. How much do you know about the working principle and the machine model?

There are three main types of vacuum capping machines, including semi-sealed vacuum capping machine, fully sealed vacuum capping machine and steam jet vacuum capping machine. The working principle of each model is different. First, let’s talk about the semi-hermetic vacuum capping machine. It uses the sealing ring on the top of the machine to drop and press the bottle shoulder to form a vacuum chamber, because it forms part of the vacuum chamber. It is the bottle itself, so it is called a semi-sealed vacuum chamber. Then the fully sealed vacuum capping machine is different. This kind of functional vacuum capping machine has a structure that can completely form a vacuum chamber on the machine. When working, the bottle is completely in a fully vacuum environment. Then, screw the cap by vacuuming. The steam jet type vacuum capping machine, strictly speaking, it is not in a vacuum chamber, but uses a steam tunnel equivalent to exhaust box exhaust, and simultaneously realizes capping during a short exhaust process. This is the working principle of all vacuum capping machines, the purpose is to tighten the bottle caps so that the quality of the goods meets the standard.

The glass bottle vacuum capping machine, like the vacuum capping machine, has a wide range of uses. At present, beverages, beer and other items appearing on the market have become indispensable necessities in life. All kinds of glass bottled fresh foods that are exposed in life are vacuumized by our glass vacuum capping machine. Encapsulation achieved.

What follows is that it is more automated on the basis of the vacuum capping machine, and its functions are more powerful. In addition to achieving high production capacity in production, it saves more manpower and material resources for the enterprise. Enterprises create more and greater benefits. The working principle of the automatic vacuum capping machine is further optimized and modified based on the working principle of the vacuum capping machine.
