Coconut Oil Automatic Glass Jars 2 Heads Pneumatic Filling Line

The whole line includes the machines as below:

• Round turntable bottles feeding system
• UV sterilizer tunnel
• Two heads pneumatic filling machine automatic with sensor system
• Glass jars capping machine with manual feeding
• Vertical round bottles labeling machine

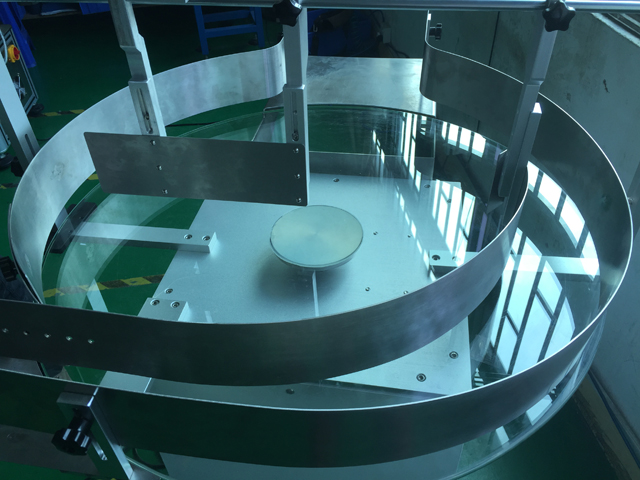

Round Turntable Bottles Feeding System

The unscrambler is the driving force with frequency control table, put the bottle of artificial circular turntable, turntable rotation, will be transferred to the bottle conveyor belt has continued into the filling line for filling. Easy to use, you easily done with the bottle unscrambler work.

Features Of Bottle Unscrambler

• Suitable for unscrambling disordered polyester bottles
• Aligns bottles and discharges them by vacuum conveyor
• PLC program controlled
• Automatic.
• High speed operation

Technical Parameters Of Bottle Unscrambler

• Diameter: Φ1000mm
• Speed: 430-50bottles/min(with Speed Controller, Schneider Inverter)
• Power: AC 220V±5% 50Hz 120W
• Material: SUS304
• Motor: Wanxin (Taiwan Brand, reducer without maintain)
• Variable Speed Controller: Taida
• Machine Weight: 80Kg
• Bottle Diameter: Ø20~Ø100 mm

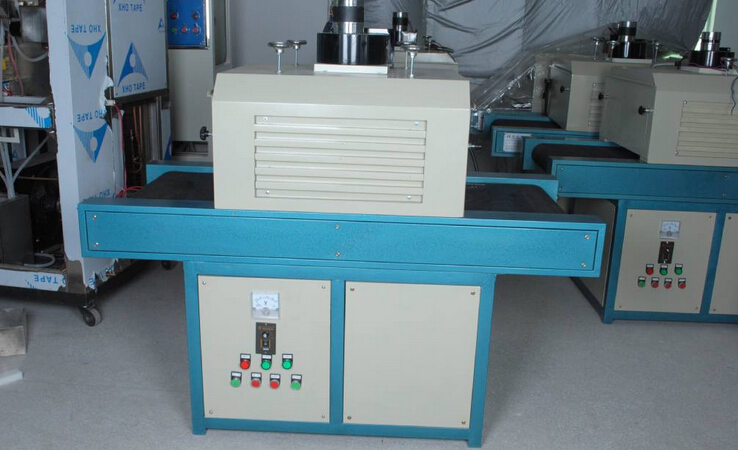

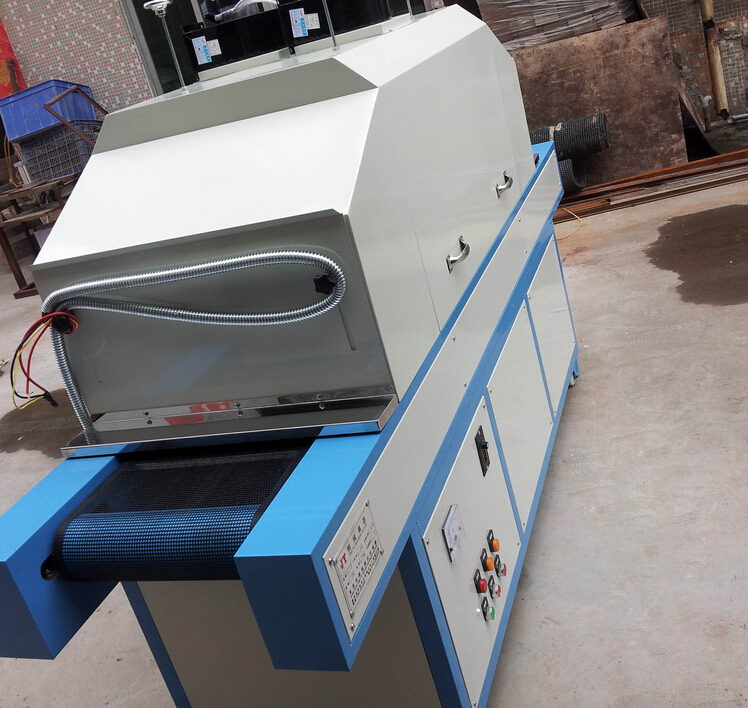

UV Sterilizer Tunnel

This machine is mainly used in the pharmaceutical industry for ampoules, oral liquid bottles and vial bottles, glass bottles sterilizing.

This machine complete the whole procedure of bottle feeding, preheationg sterilizing, cooling and bottle outleting automatically.

Use the laminar flow principle and hot air high-speed disinfection technology, which can make the container in the sealed tunnel achieve the national cleanliness class A standard, is currently the most popular, best drying and sterilizing deffect equipment, even heat distribution and good depyrogenating.

The unit can be used as a single machineor be combined into a production line with the front bottle washing machine and the behind filling machine.

Parameter Of Ultraviolet Sterilizing Tunnel

• Max bottle high: 320mm
• Max roducts width: 400mm
• UV bottle diameter: 12-24mm
• Conveyor speed: 0~10m/min ;
• UV lamp power: 4KW
• UV Drying products speed: 1800~3000PCS/HR
• Total power: 5KW
• Machine dimension: L:1800mm W:600mm H:1700mm

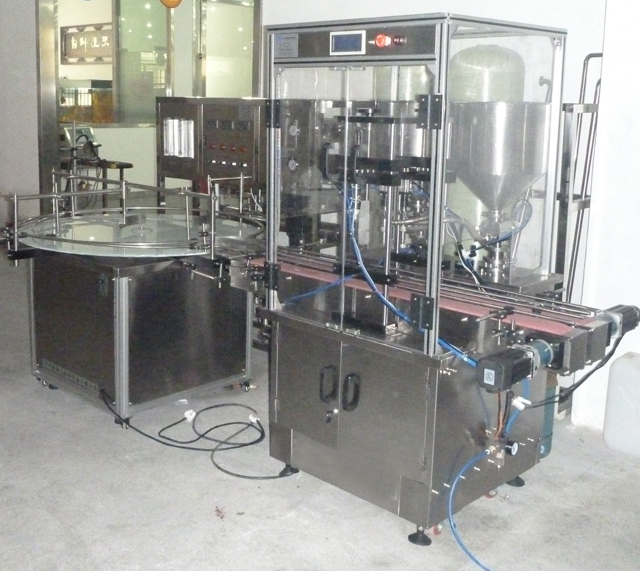

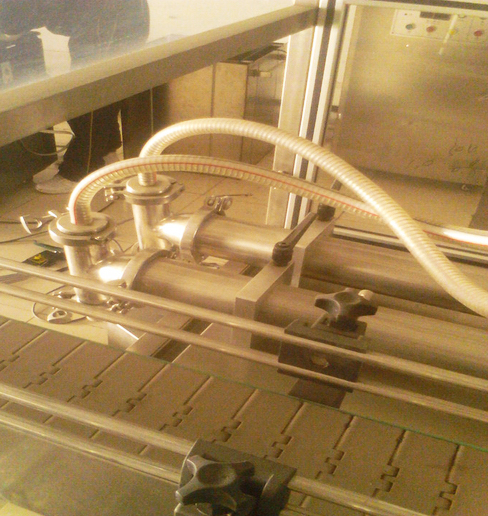

Two Heads Pneumatic Filling Machine Automatic With Sensor System

The single (double) head automatic ointment filling machine adopts programmable logic controller (PLC) human and machine interface technology, equipped with imported photoelectric trackswitch from Korea, which is suitable for filling ointment products in the industries such as ointment, oil products, syrup, shampoo, bechamel and fruit juice etc. The filling nozzle will be automatically insertedinto the bottle to carry out the filling and then rapidly ascend, which can reduce the air bubbles.

The product integrates electric and pneumatic functions into one, with reasonable design, stable performance, accurate quantity, glass table surface, automatic bottle feeding, steady operation without noise, electrics peed control to the filling speed and filling volume and convenient maintenance and cleaning.

The new typefilling equipment is the best choice for the realization of automatic production.

Characteristics Of Automatic Filling Machines

• Beautiful and novel appearance, compact structure.
• The main travel of the whole machine adopts pneumatic control. The filling adopts pedal control with convenient and labor-saving operation and adjustment.
• The whole machine is provided with tank, table and bottom pulley etc.with bright shape and convenient operation.
• No dripping when it is stopped.
• All the parts, shield shell and table plate that contact the materials are made of SUS316L stainless steel.
• Pneumatic control is adopted with convenient operation and maintenance.Installed with travel indicator with accurate measurement and stepless speed adjustment.
• Stable and reliable operation.

Basic Parameter Of 2 Heads Filling Machine

• Filling heads: 2 nozzles
• Filling Speed: 10-30bpm
• Filling Precision: ≦±1﹪
• Supply power: 380V 50Hz
• Current: 3A
• Power: 500W
• Air pressure: 0.4－0.6Mpa
• Filling volume: 5-100ml, 10-280ml, 20-500ml, 100-1000ml, 500-2000ml, 1000-5000ml

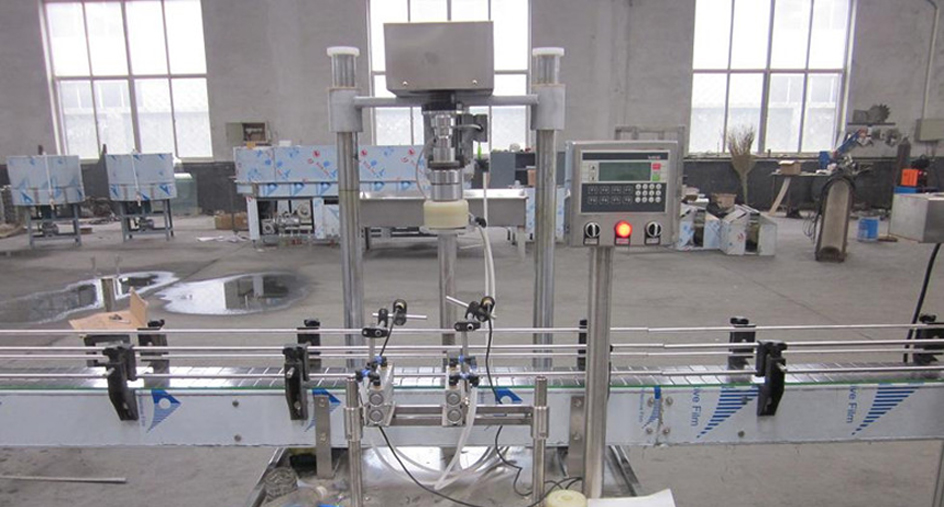

Automatic Single Head Capper Requipment

The capping machine is designed to achieve the rationalized production objectives. Capping procedure adopts automated control, easy operation, fast production speed and excellent sealing effect (material for PE, PP, PS, PVE, and PET). Capping position is unified, beautiful and neat.

Suitable for round containers of pharmaceutical, chemical, food and other industries to cap covers. The machine has equipped with self-test functions- detection of power stability, over-current, over-voltage, over-temperature control protection and phase locking.

Features Of The Hair Conditioner Bottle Capping Machine

• Power of this machine is adjustable; working status can be displayed in the control panel.
• This machine adopts disk location on the design of the bottle for clearance campaign, through two sets of magnetic torque Rotary scarf on the orientation of the bottle cap.
• This machine is an ideal equipment, which caps bottle cover in pharmaceutical, pesticide, daily chemical and food industry, etc.
• Note: this can also be used for rolling aluminum cover, theft - proof cover and screw cap.

Main Technical Parameters Of The Bottle Capping Machine

• Model No. VK-SCC
• Applicable bottle height: 60-380mm
• Applicable bottle neck diameter: 16-50mm
• Motor voltage: 220v(customize)
• Motor power: 0.37kw
• Production capacity: 1200-1500bottles/hour
• Machine size: 600*210*900mm
• Packing: Wooden carton
• Machine weight: 90kg
• Adjusting Capping machine will be adjusted as your bottle and cap before shipment

Configuration Of Single Head Capping Machine Automatic:

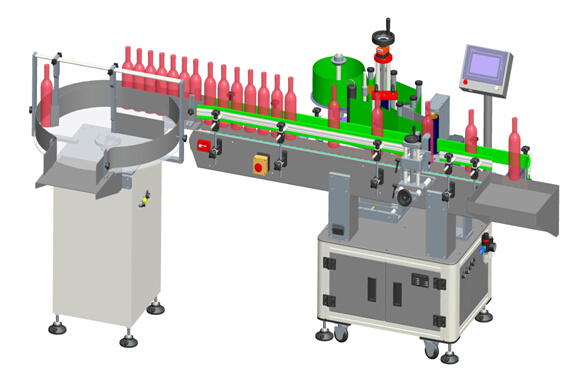

Vertical Round Bottles Labeling Machine

The whole weekses that can used for various cylinder form product|half week, just the back double mark sticks a mark, such as sticking of food can, cosmetics circle bottle, and medicine bottle...etc. mark; Take a dozen of code machines such as the another nuance, can carry out to stick a mark to print to produce informations like batch number,etc at the same time.

Applicable Scope:

Apply label: The not dry gum label doesn't do a gum film, the electronics takes charge of code, the form code wait;

Apply a product: The product that requests to stick to attach label or film on the circumference noodles, conic surface;

Applied profession: Extensively Be applied to a food, medicine, cosmetics and day to turn, electronics, hardware, plastics etc. profession;

Is applied solid example: The PET circle bottle sticks a mark, the plastics bottle sticks a mark, food can etc.

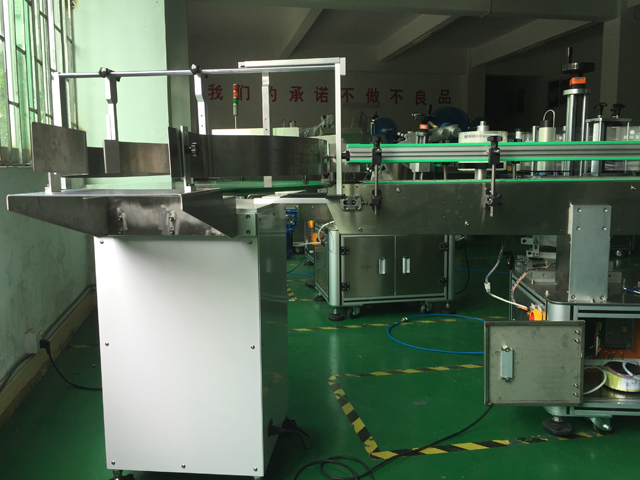

Basic Parameter Of Labeling Machinery Automatic With Bottles Feeding System

• Stick to mark accuracy: ±1 mm;(do not contain a product, label error margin)
• Stick to mark speed: Is 20~60|minute; (have relation with product label size)
• Apply product size: ￠ 30 the ≤ product diameter ≤￠ 100 mms;
• Apply label size: 15 ≤ width ≤ 110 mmses, length ≥ 20 mms;
• The whole machine size: 1800 ×s 900 ×s 1300 mmses; (long × breadth × Height)
• Apply the power: 220 Vs 50|60 Hzs;
• Air pressure: 0.2~0.5 Mpas;
• The whole machine weight: 2950 kgs.

Feeding Tables Basic Data As Below:

• Applicable specifications: 20-1000 ml
• Bottle diameter: φ 10-phi 80 mm
• Bottle height: 85-300 mm
• Production capacity: 0-100 BPM (speed adjustable)
• Voltage: 220 v50hz
• Power: 0.5 kw
• Weight: 70 KG
• Shape size: 1100 * 1000 * 1300 mm

Working Process From A To Z For Labeling Machinery

Put wine bottle → The bottle boxs off → The bottle examines → The air cylinder positions → Stick a mark and reply a mark → The label examines → The air cylinder resets → The product sends out → Circulate with this

• The bottle gets into belt conveyer from the left side;
• The cent bottle organization reduces transporting of slow work piece speed and lets the of work piece draw back a distance, for sticking of follow-up mark assurance time;
• The work piece gets into examination district and examines a work piece and stretches out to suppress a work piece while positioning cylinder to postpone;
• After positioning a work piece, time after enactment, lead electrical engineering to turn to send out label, revolve to reply a mark at the same time;
• After sticking good label, position air cylinder to send back, the work piece leaves to stick to mark position with the belt conveyer;
• The top end divides a bottle of organization to put a bottle- according to up circulate to stick a mark in a row.

Final Product As Samples
