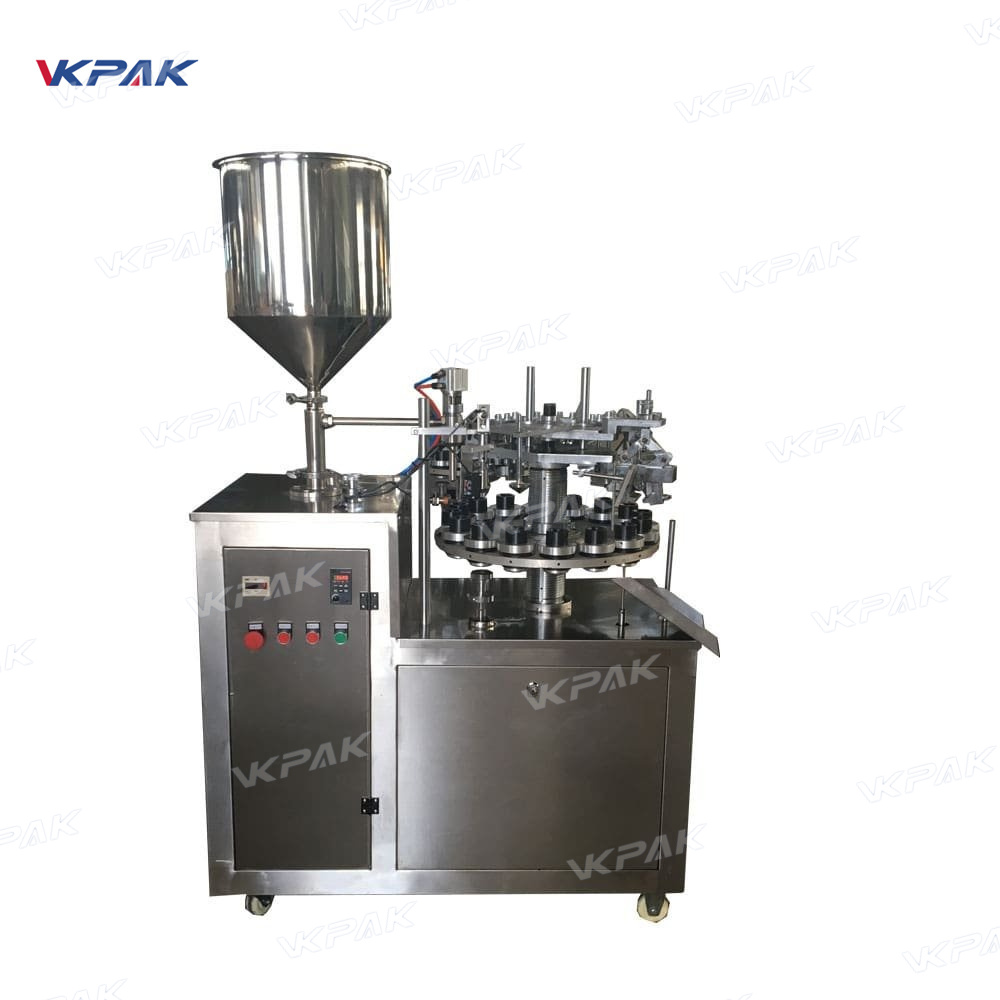

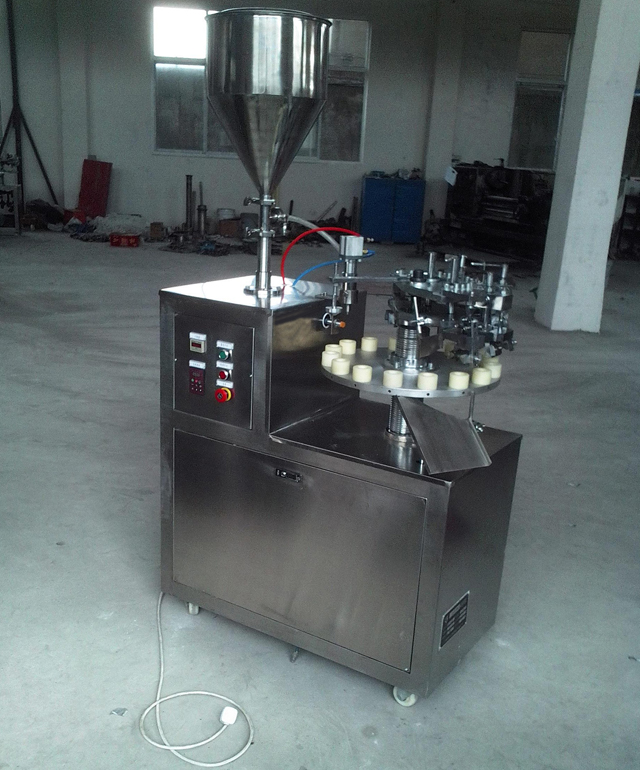

Collapsible Aluminum Metal Tubes Filling Sealing Machines Semi Automatic

• Model: VK-TFS-006A
• Capacity: 10-50pcs/min
• Filling rang: 5-300ML
• Tube diameter: 10-40mm
• Tube length: 50-180mm
• Compressor pressure: 0.2-0.4Mpa
• Air consuption: 0.01m3/min
• Voltage: 220v,50HZ (or customized according to customer requirement)
• Motor power: 1.1kw
• Weight: 250KG
• Dimension: 1130*750*1680mm

View Video

This metal tubes filling sealing machine can automatically feed tube, orientate eye marks and its used for filling cream (paste) -like material into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing date or product numbers on the end in daily cosmetic, medicine and food industries.

Features

A high efficient heater and a stable flow meter inported from Germany are applied. They provide a reliable thermi-air heating system, which makes the seal firm in a high efficiency. The filling heads in different specifications are for materials in different thickness.

Working Process

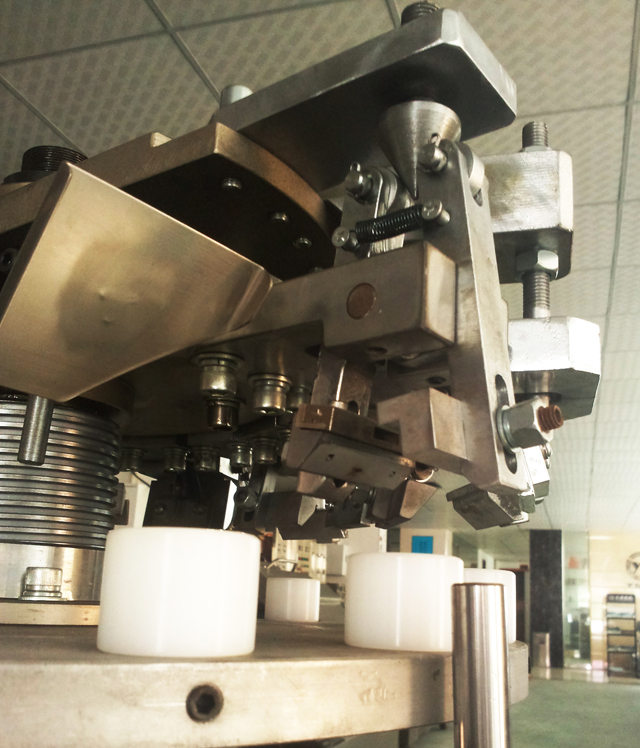

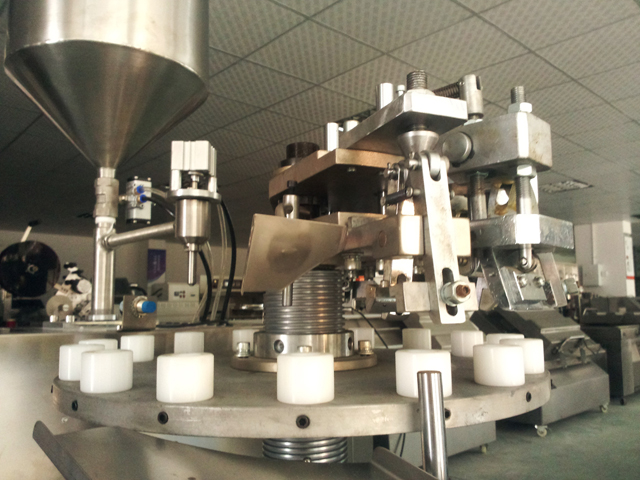

Manually put the metal tubes (max. 16 tubes) into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, then filling system starts to fill the tube with fixed quantity. The tube is sealed by cam, which is steady, safe and with no air leaving. It can also achieve number/batch printed on the end, finally the tube is ejected.

Technical Specification

• The machine is suitable for filling and sealing of aluminum tube.
• The body and rack of the machine adopts SUS304. The body of the machine is installed on the adjustable supporting legs, there is enough space for the forklift to transport.
• All parts contacting material adopts SUS316L. All the exposed parts are anodized.
• The interlock switch is installed on the safety guard door, the machine stops when the door is open.
• 3 folding manipulator is installed on the machine which have applied for national patent.
• The parts of filling valve is convenient and quick to disassemble and clean.
• At the max speed, the noise under 78dB (EEC Standard)

Parameter

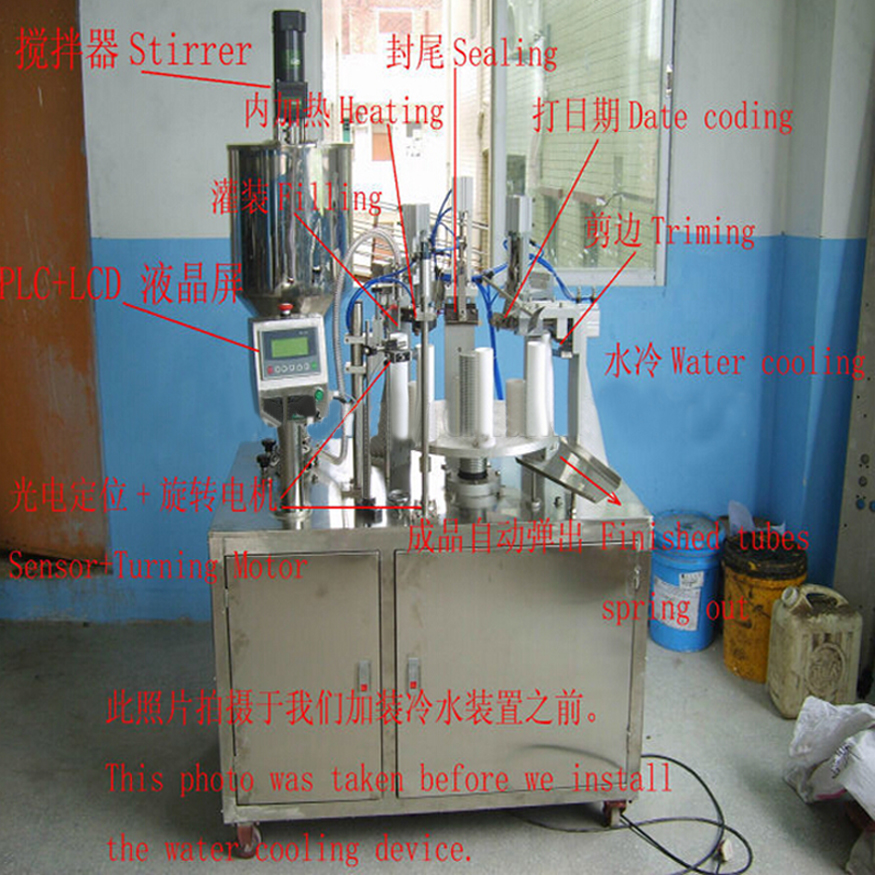

Equipment Component

1. Automatic tube feeding device.
2. Air blowing in tube for cleaning when filling.
3. No tubes, no filling.
4. Accurate automatic marking, completed by bottom stepper motor and photoelectric switch on the top of platform.

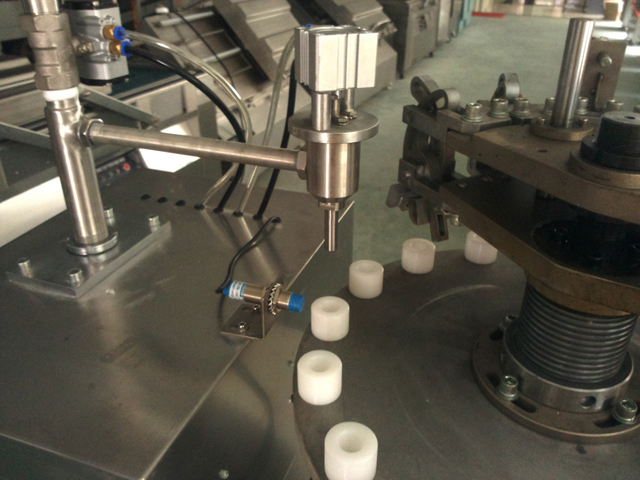

5. The filling valve with rotation function adopts SUS316L,
6. Filling capacity: 5ml-120ml
7. Filling precision: ±1%.
8. The filling piston path is adjustable.
9. Postitive shut-off device and air blow clean filling head device (drip-proof system). The air blowing of filling head of is adjustable.
10. Push the completed tubes from the machine automatically (already sealed).

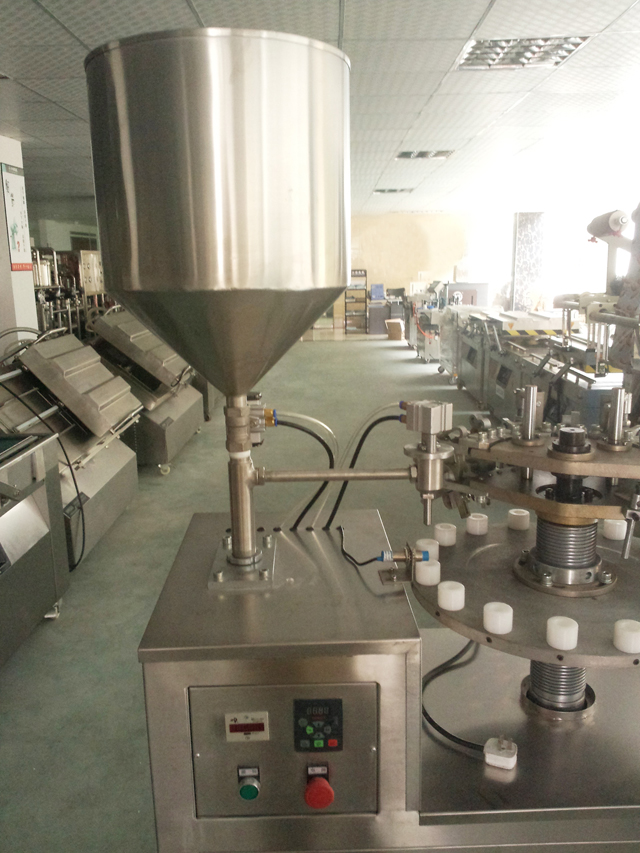

11. 30L SUS316L material hopper (option: cover, jacket, electric heating, mixing, warning of high and low material level).

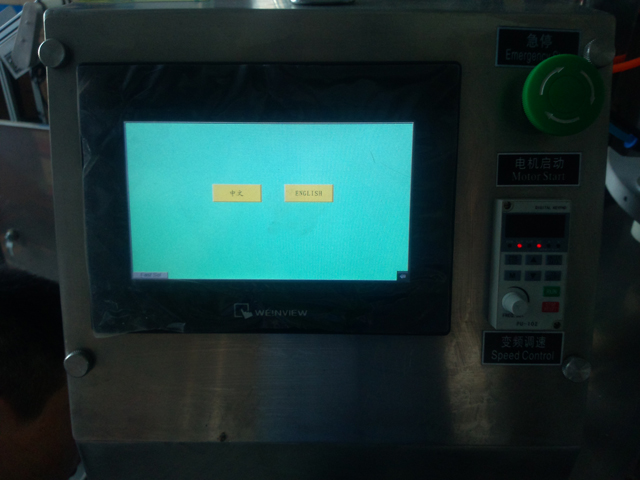

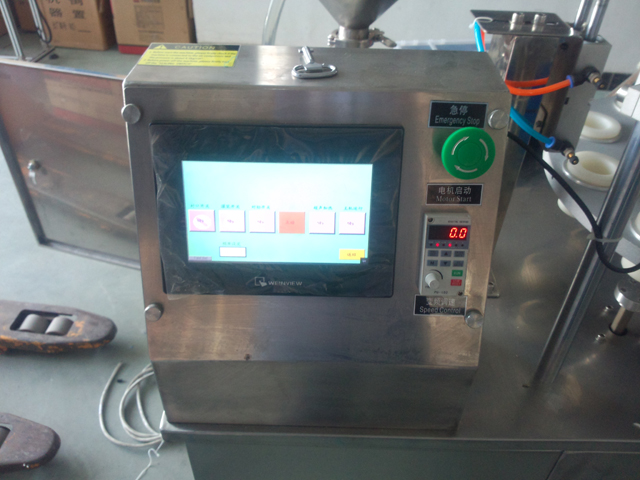

Machines can be changed from button controlling system into touch screen controlling system:

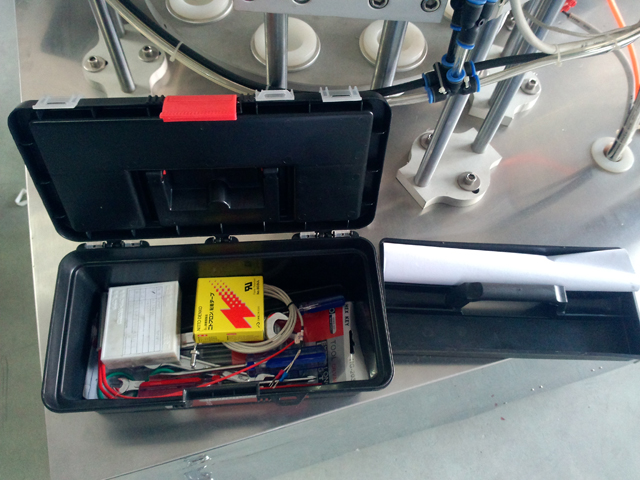

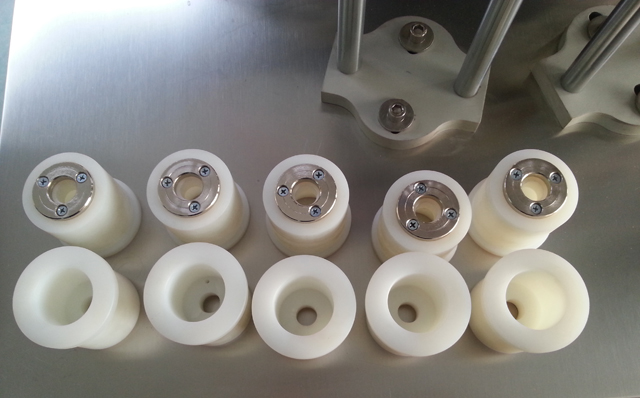

Tools & Spare Parts

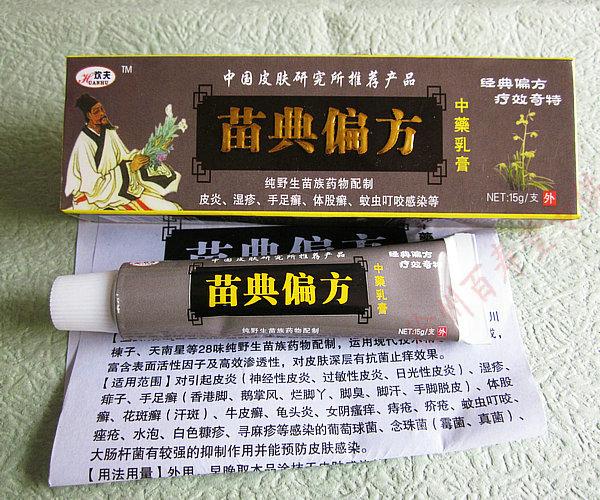

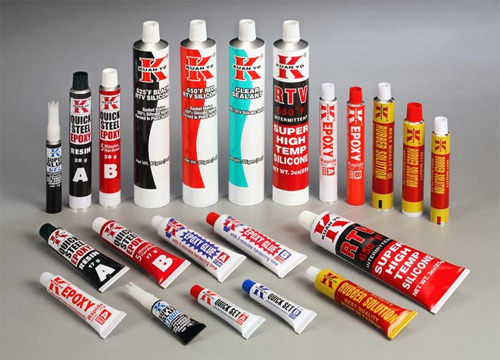

Samples

Why We Choose Aluminum Packaging?

Used historically since the mid-1800s, aluminium tubes, along with other metals, have long housed all sorts of products from a variety of sectors. Commonly used for cosmetics (or as may be remembered by some, specifically toothpaste), aluminium tubes are also used for food stuffs, pharmaceuticals, industrial products and more.

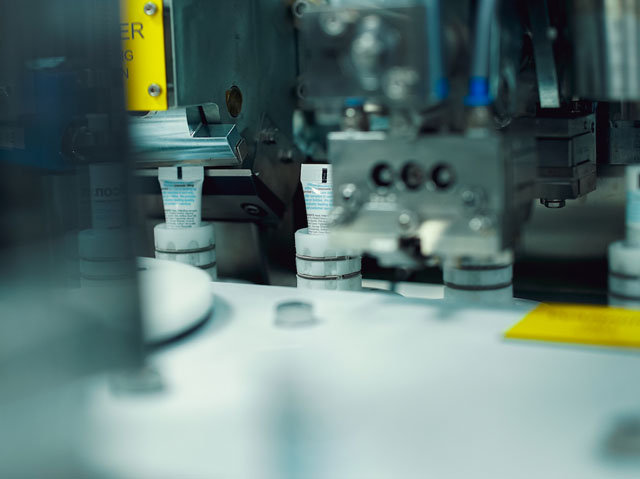

Aluminium Tube Packaging

Aluminium tubes have been used for a range of products across centuries, however, with the advent of widespread plastic use, aluminium was shunned. In recent years, aluminium tube packaging is regaining traction, especially over social media, with online influencers increasingly promoting aluminium tube products on Instagram.

While the aesthetic value of aluminium tube packaging may be responsible for its recent popularity, the benefits afforded by aluminium tube packaging are timeless. Looks are important for sales, but other important considerations for using aluminium tube packaging include product volume, tube fold type, material recyclable, cap type, colour and more.

Benefits of Aluminium Tube Packaging

The continued use of aluminium tube packaging is testament to the many benefits afforded by this packaging material.

Here are some of the top benefits of aluminium tube packaging:

Infinite recycling

Aluminium can be recycled over and over without losing quality. Where other packaging materials may not be recyclable, or are for a few uses, aluminium can be infinitely recycled. This is especially valuable to environmentally conscious consumers who may actively seek recyclable packaging.

Product protection

Aluminium tube packaging is incredibly airtight and tough, creating an impermeable barrier to exterior elements and protecting the product. For especially sensitive products, such as cosmetics or pharmaceutical goods, substantial protection from light, moisture and oxygen is critical for preservation. Certain products (from hair dyes to industrial products) may also contain harsh chemicals which must be housed in a strong and suitable material such as aluminium.

The pressure seal aspect of many aluminium tube packaging is also very important for product preservation. By ensuring that the tube doesn’t suck air back in when product is dispensed, aluminium tubes prevent bacteria from coming into contact with the product.

Shipping

Although robust, aluminium tube packaging is still relatively lightweight; a great benefit for shipping. Also, the tube shape helps to ensure space efficiency, allowing more products to be shipped in the same amount of space.

As the tube packaging is resistant to knocks and extremely tough, there is little concern over damage in transit.

Customising

Generally, aluminium tube packaging has a silver, metallic sheen, however there are many customising options available, including finish and colour. This means the tubes can be designed to fit your branding, important for developing recognition and consumer loyalty.

Sizing

Aluminium tube packaging is not very restrained and can be available in a variety of sizes to suit needs/requirements. Typical sizes may range from 7ml, 15ml, 30ml, up to 200ml.

Smaller aluminium tube packaging may be ideal for cosmetic samples or travel size products. It is common to find small aluminium tube packaging used for especially sensitive to air products, such as eyelash and nail glue, which last better in smaller, more protected loads.

Applicators

Lids and closures can have a huge impact on user experience; therefore, it is vital to select the right one for the product. Aluminium tube packaging often houses gels and creams with ranging viscosity, which can be difficult to dispense exactly, however as users can control the dispensed amount exactly with their fingers, most closures work. Getting out too much product can be frustrating for consumers, who may feel like they are being wasteful and losing value.

An important consideration, especially for perishable products, is tamper evidence. Aluminium tube packaging often have seals over the tube neck to prevent the product from spoiling. Latex seals can be peeled off and aluminium seals are often pierced using a point integrated in the lid.
