Customized Automatic Vertical Square Bottles Four Sides Labeling Machine

• Labeling accuracy: ±1 mm;(do not contain a product, label error margin)
• Labeling speed: 20~60 bottles/minute; (have relation with product label size)
• Apply product size: ￠30 the ≤ product diameter ≤￠100 mm;
• Apply label size: 15 ≤ width ≤ 110 mm, length ≥ 20 mm;
• The whole machine size: 1800×900×1300mm; (long × width × height)
• Apply the power: 220Vs50|60Hz;
• Air pressure: 0.2~0.5 Mpa;
• The whole machine weight: 280kgs.

This labeling machine can be used for various cylinder form product semi circumreference, just the back double mark sticks a mark, such as sticking of food can, cosmetics circle bottle, and medicine bottle...etc. mark; Take a dozen of code machines such as the another nuance, can carry out to stick a mark to print to produce information like batch number,etc at the same time.

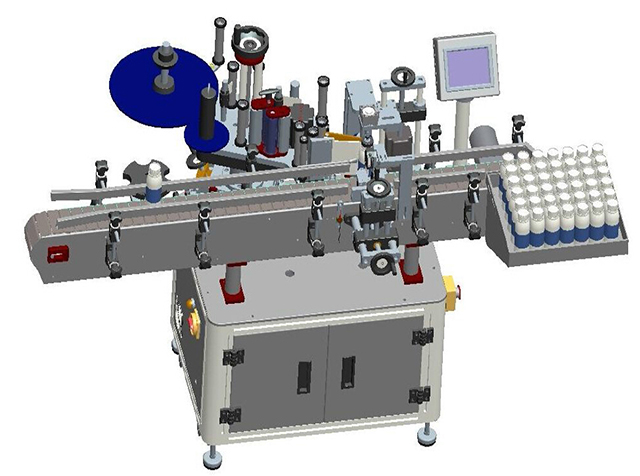

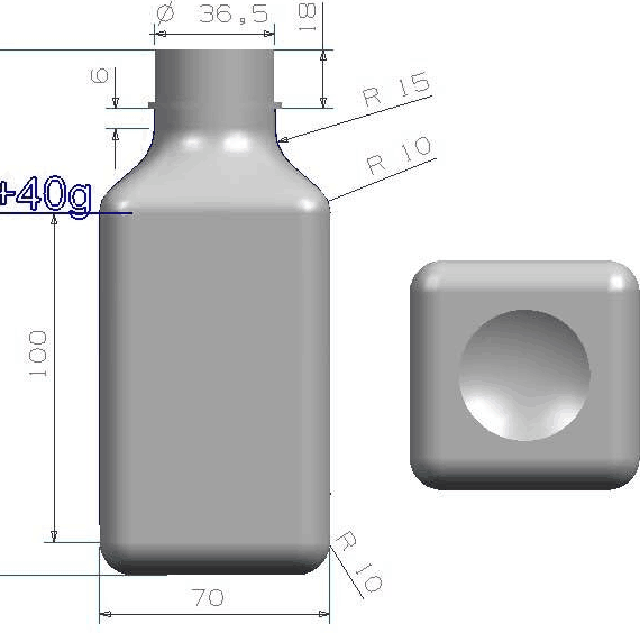

Drawing Of Labeling Machine:

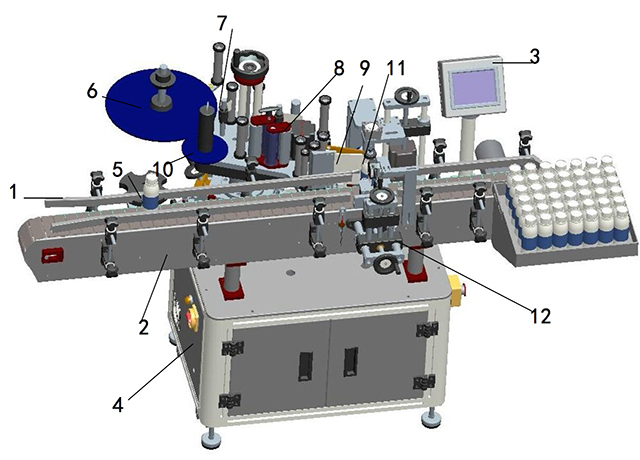

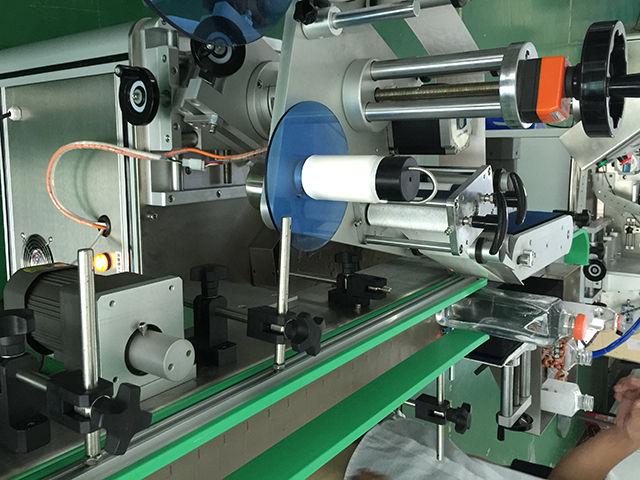

Details Illustration Of Labeling Machine

1. Guide bar: Guide the product moving along the belt;

2. Delivery system: Delivering the bottles to the labeling part and to the collector table after labeling;

3. Touch screen: HMI, change the parameter to control the machine

4. Electric box: Electronic controlling center,various controllers and PLC arrayed;

5. Bottles distrituting system: adjust the delay time by adjusting the motor to get the proper time for labeling different bottles;

6. Labels Plate: Labels supporting part;

7. Labels pressure: Tighten the labels,keep the tension of labels in order to label the products accuractly;

8. Traction system: Motor driving the label paper to empower the labels peeling;

9. Labels peeling plate: Peel the labels;

10. Labels collector: recollecting the bottom labels paper;

11. Labels covering: Perfect the labeling effect;

12. Positioning system: Articles positioning system;

Application

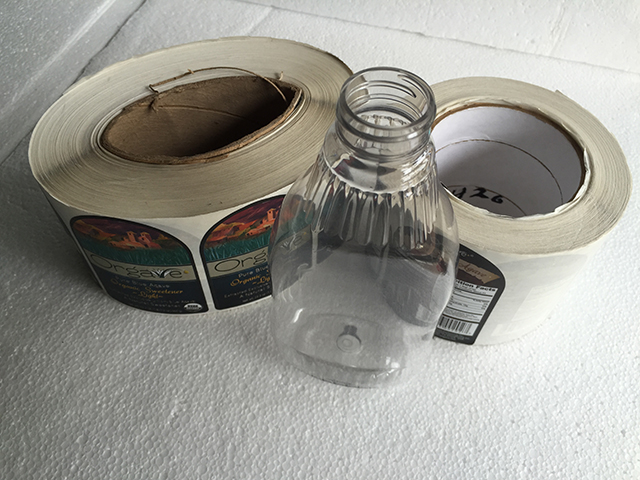

Apply label: The self-adhesive label, the electronics takes charge of code, the form code wait;

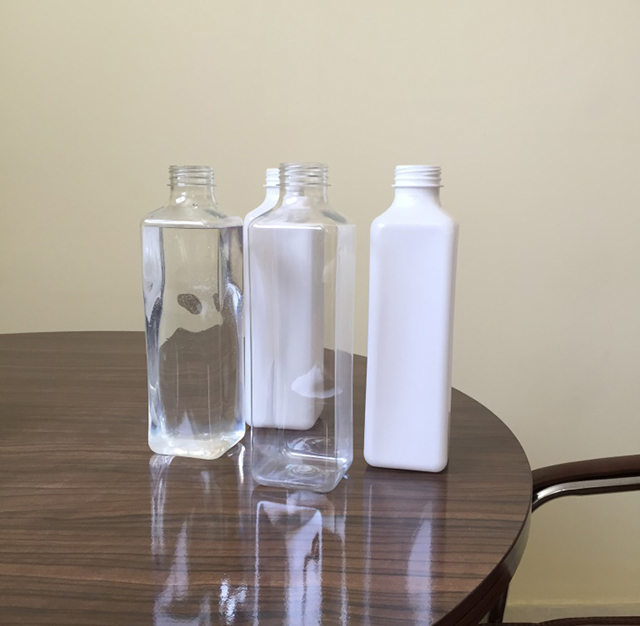

Apply a product: The product that requests to stick to attach label or film on the circumference noodles, conic surface;

Application industry: Extensively Be applied to a food, medicine, cosmetics and day to turn, electronics, hardware, plastics etc industry;

Is applied solid example: The PET circle bottle sticks a mark, the plastics bottle sticks a mark, food can etc.

Technique Parameter:

• Labeling accuracy: ±1 mm;(do not contain a product, label error margin)
• Labeling speed: 20~60 bottles/minute; (have relation with product label size)
• Apply product size: ￠30 the ≤ product diameter ≤￠100 mm;
• Apply label size: 15 ≤ width ≤ 110 mm, length ≥ 20 mm;
• The whole machine size: 1800×900×1300mm; (long × width × height)
• Apply the power: 220Vs50|60Hz;
• Air pressure: 0.2~0.5 Mpa;
• The whole machine weight: 280kgs.

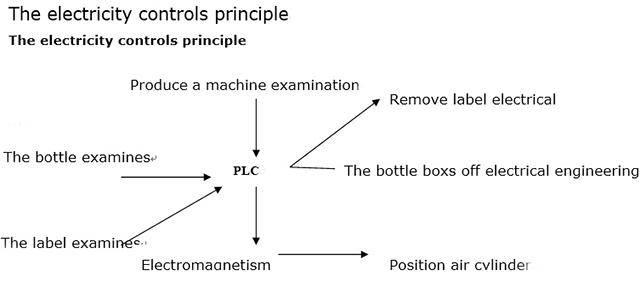

The Electricity Controls Principle

Pass a product examination and stick mark examination, label to examine three types of importations of signals, after PLC processing after, exportation in order to lead the control signal of electrical engineering, electromagnetism valve, control flexing of air cylinder and lead turning of electrical engineering respectively, complete the fixed position of product to stick mark to act thus.

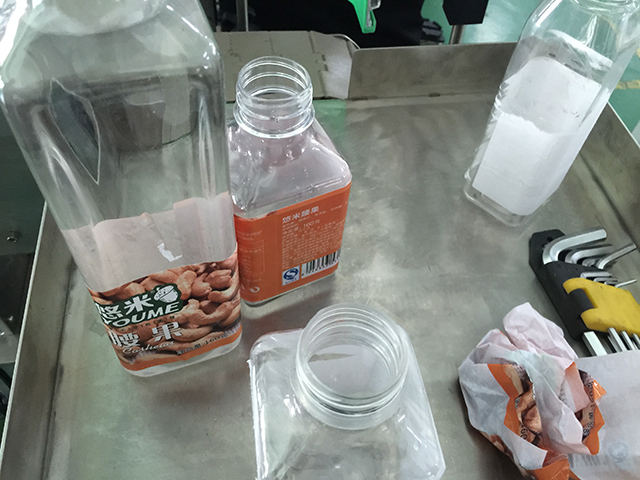

Label Samples :

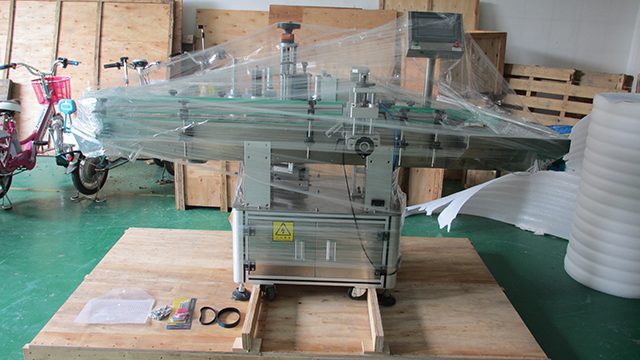

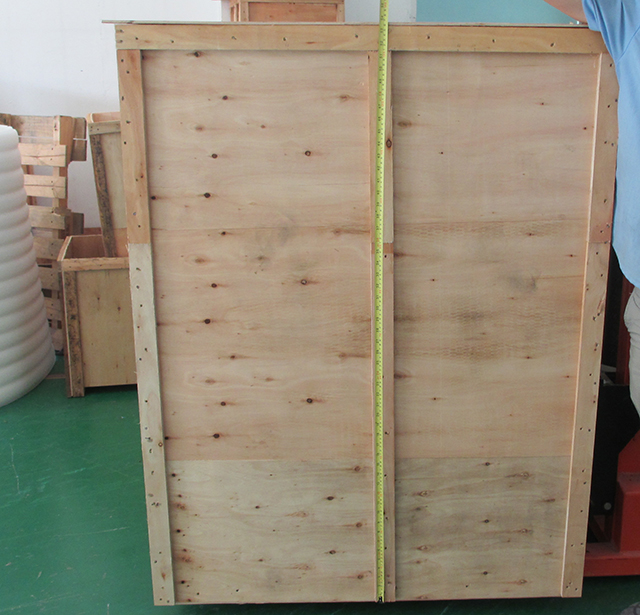

Wooden Case Packing

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
