Double Heads Liquid Cream Lotion Skin Care Filling Machine Semi Automatic

• Semi automatic for 1000ml cream filling
• Material of machine: Stainless steel 304
• Fillable range: 1000ml
• Air pressure range: 4-6kg/cm2
• Filling speed: 0-30bottles per minute
• Net weight: 60KG
• Gross weight: 80KG
• Filling head: Double heads
• Machine dimension: 1200*550*595mm
• Stainless Steel Body machine
• Rugged Rotary Valve System Design
• Pneumatic piston filling
• Piston Feed Speed Adjustable
• Anti-drip and filling head place and height adjustable
• High Filling Accuracy ( /- 1%)

View Video

The machine liquid & cream filling double head is suitable for filling food trades (such as: pearl milk tea, nata de coco, thick broad-bean sauce, chili sauce, peanut sauce etc); cosmetics (shampoo frost shower gel); daily health product (toothpaste).

The machine cream filling pmeumatic semi automatic double heads adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment.

Basic Features

• Be used for filling with fluid liquid and other material;
• Some of the materials used 316L stainless steel;
• Full pneumatic control, easy to operate,remove and clean. Ideal equipment for filling inflammable, explosive materials.

Function of Control Panel

• Semi Auto/Auto filling switch

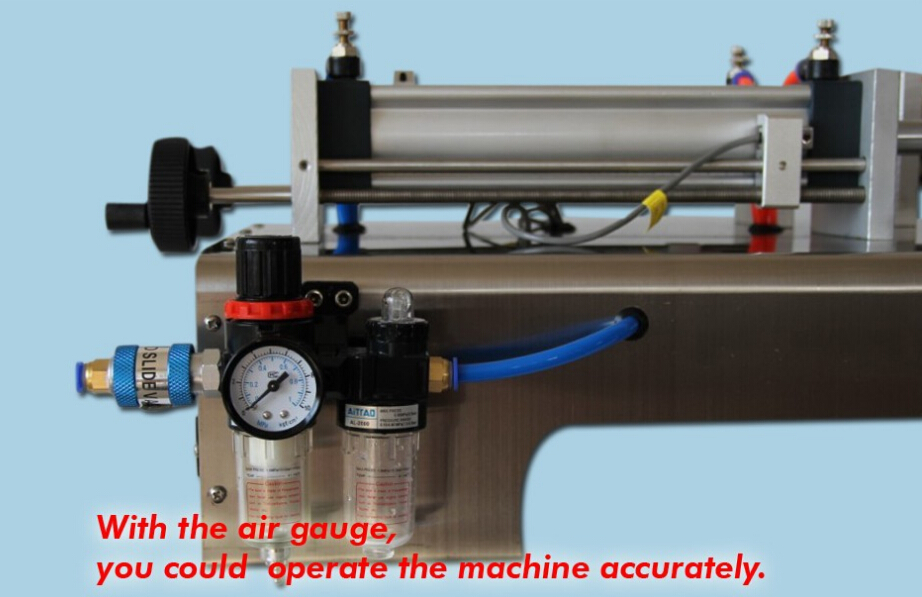

• Air Pressure Gauge
• Air Intake Pressure Adjust

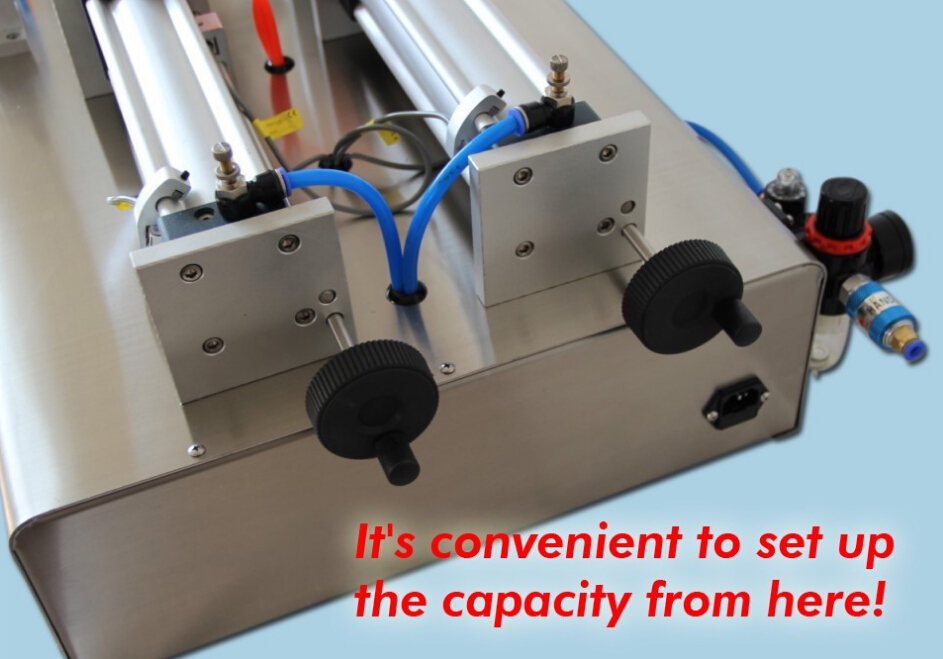

• Filling Volume Adjust

• Semi automatic for 1000ml cream filling
• Material of machine: Stainless steel 304
• Fillable range: 1000ml
• Air pressure range: 4-6kg/cm2
• Filling speed: 0-30bottles per minute
• Net weight: 60KG
• Gross weight: 80KG
• Filling head: Double heads
• Machine dimension: 1200*550*595mm
• Stainless Steel Body machine
• Rugged Rotary Valve System Design
• Pneumatic piston filling
• Piston Feed Speed Adjustable
• Anti-drip and filling head place and height adjustable
• High Filling Accuracy ( /- 1%)

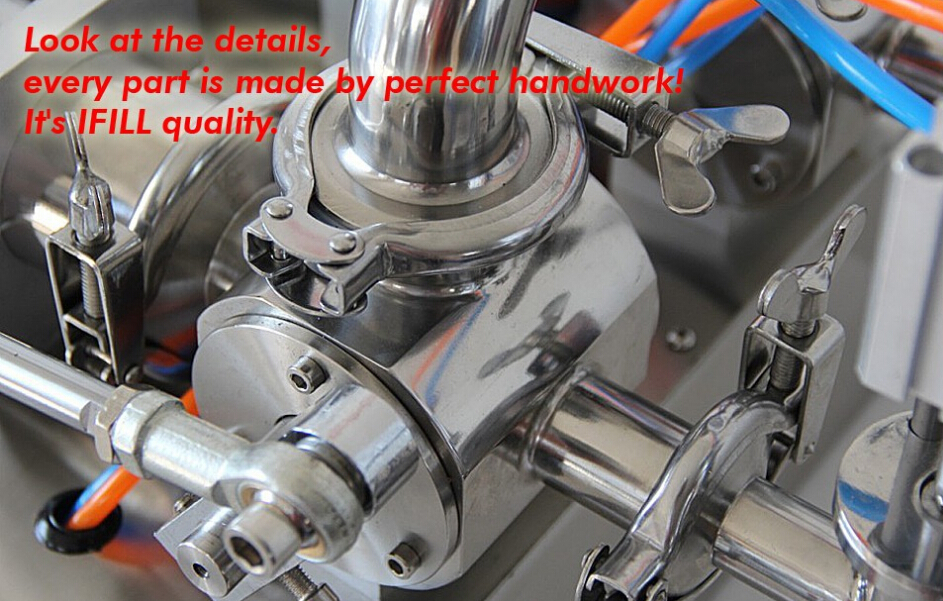

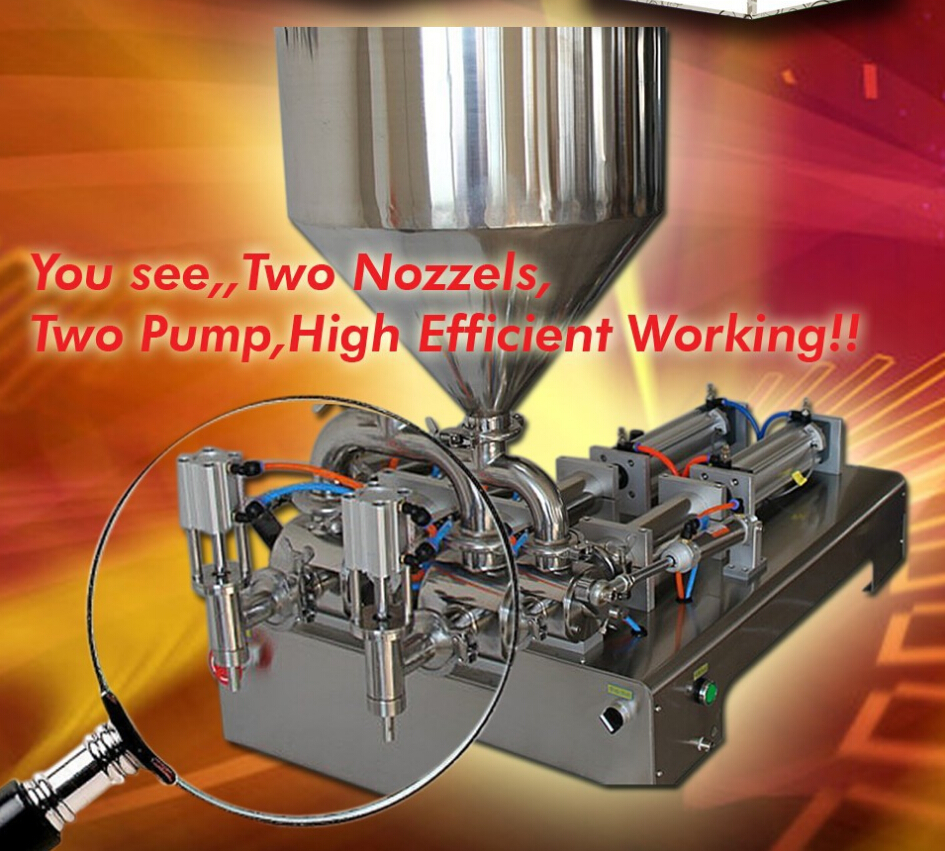

Detailed Shot Of Double Heads Cream Filling Machine

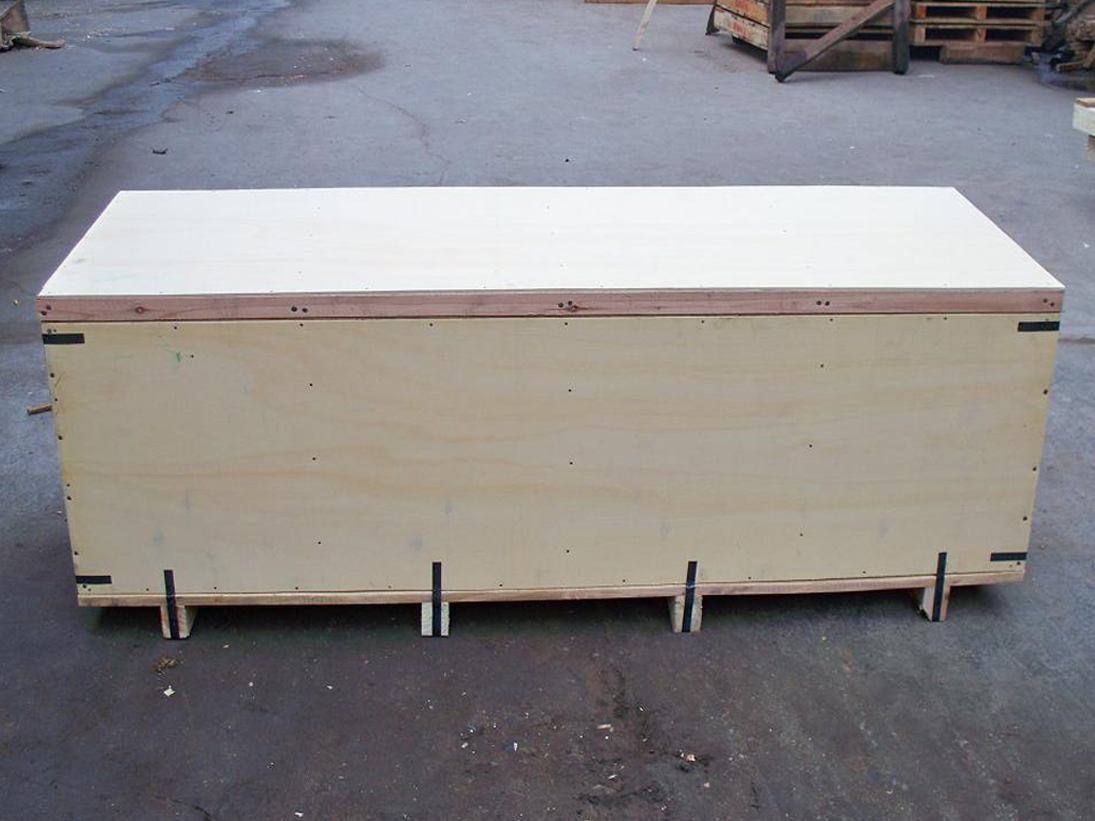

Wooden Case Packaging

FAQ

Is it used for liquid or paste?

It is suitable for pure liquid.

What is the viscosity?

Suitable to fill low to high-density liquids (0 – 10,000 cps)

What is the detail specification?

• Material of machine: Stainless steel 304 meet GMP approved.
• Fillable range: 90-1000ml
• Air pressure range: 4-6kg/cm2
• Filling speed: 0-30bottles per minute
• Filling head: single head

How to Maintenance machinery

• Please regular inspection equipment the fuselage for stainless steel shell, when clean do not use tip, hard edge tool scrape the surface
• Usable alcohol scrub surface besmirch.
• Wear the ring to change in time.

Why buy it from you?

Because our products is high quality and lower price than other supplier, and meanwhile, we will supply you the better service for you, especially after-sale service. And we can give you Technical guidance, when it does not work effectively.

Do you have warranty for it?

Yes, we have warranty for it. 12 months limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.

Which ways can you shipping it?

We can send it by express UPS, DHL, FEDEX and EMS, for 3-5 days. Or if your order is lager quantity, we can send by sea, maybe it will cost a long time.
