Double Side Sticker Labeling Equipment For Plastic Glass Bottles

• Model: VK-DSL
• Supply power(V/Hz): AC 220/50 110/60
• Power(W): 1500
• Labeling precision(mm): ±1.0
• Labeling size(mm): Height 15-100mm Length 20～300mm
• Bottle size(mm): Outer Diameter 12-100mm Height 30-200mm
• Capacity(b/m): 40-120
• Dimension（L×W×H(mm): 2200×1400×1550
• N.W(kg): 320

View Video

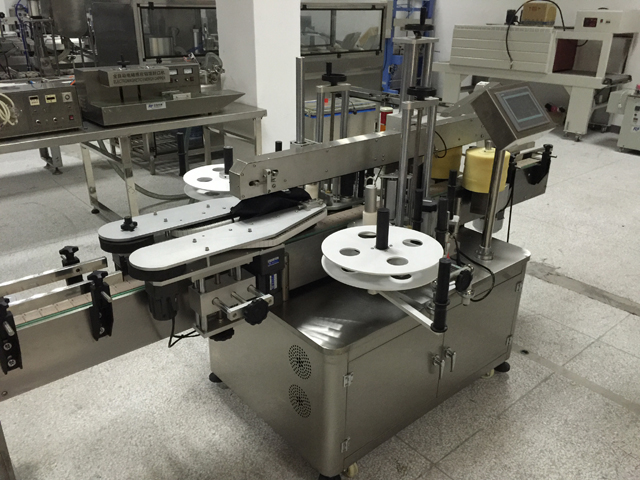

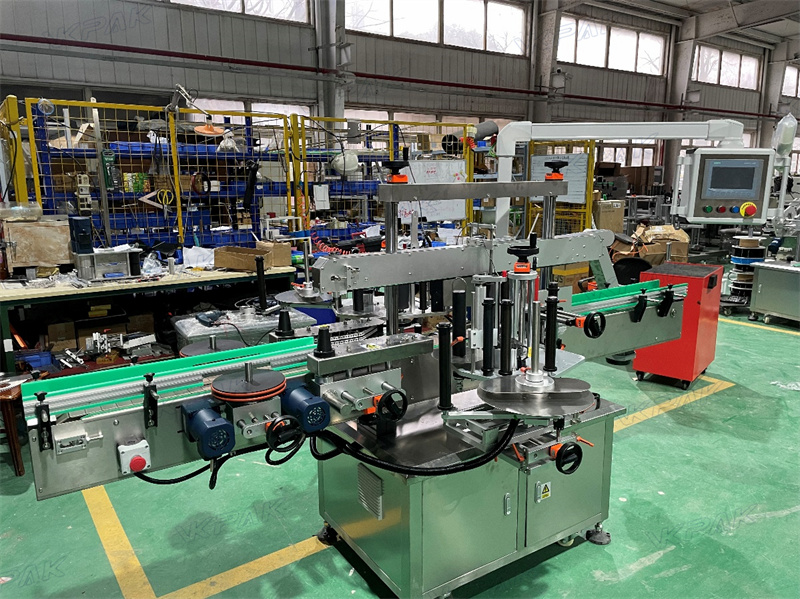

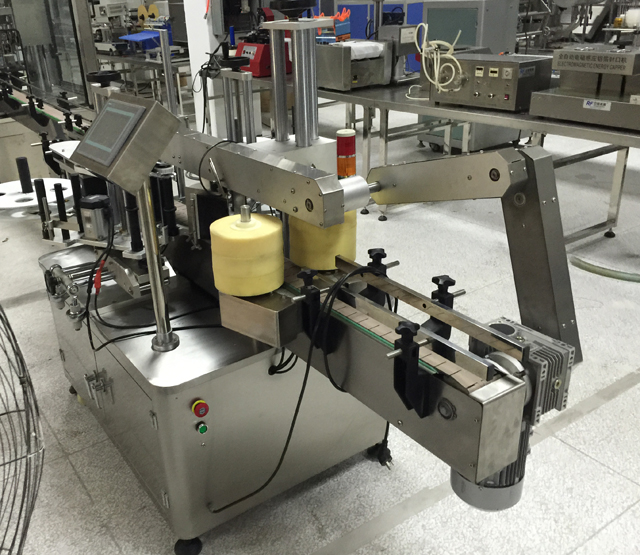

The double side automatic labeling machine is suitable for square bottles or flat bottles with double mark or single mark. The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adhustd successfully in several minutes for any bottle.

The pressure between the active axle and press roller can be adjusted, so the running direction of the lanel can be adjusted freely, the label is only pressed flexibly without causing any distortion.

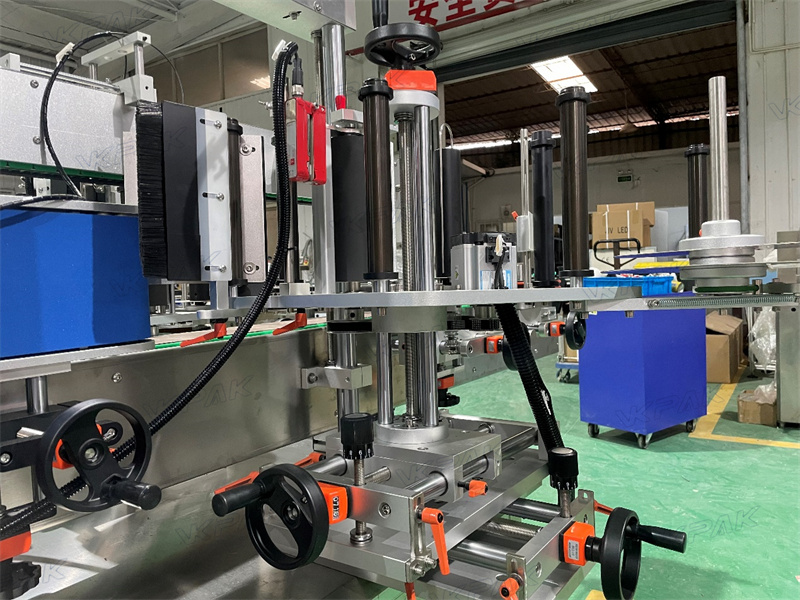

The labeling head adopts the structure of the double press rollersl, it guatantees that the label is pulled tightly but not broken because of the underneath paper die-cutting, the sepatated clutch makes the strain more balanced. The touch screen based human interface in chinese and English with one online helping system makes it easy for operate the machine. The press belt is feared into the main transporting line, so it makes the two transporting lines work in synchronous absolutely.

The automatic labeling machine is supplied with the famous sever motor, so it realizes real closed loop controlling and it avoids the phenomenon of "the blind man walk" when supplied with the stepper motor. The multi channel encoder detects labeling position precisely at high speed.he label is pressed by a flap after appying on bottle and pressed by the active and passive sponge rollers.so when the label is stuck it has not any bladder. It is especially applicable to the crystal bottles labled with transparent labels. The optional air driving and roller labeling set can label round bottles precisely.

Parameter

• Model: VK-DSL
• Supply power(V/Hz): AC 220/50 110/60
• Power(W): 1500
• Labeling precision(mm): ±1.0
• Labeling size(mm): Height 15-100mm Length 20～300mm
• Bottle size(mm): Outer Diameter 12-100mm Height 30-200mm
• Capacity(b/m): 40-120
• Dimension（L×W×H(mm): 2200×1400×1550
• N.W(kg): 320

Technical Feature:

1. The whole machine adopts a mature PLC control system, which makes the whole machine run stably and at high speed.

2. Universal bottle dividing device, no need to replace accessories for any bottle shape, and quickly adjust the positioning.

3. The operating system adopts touch screen control, which is easy to operate, practical and efficient.

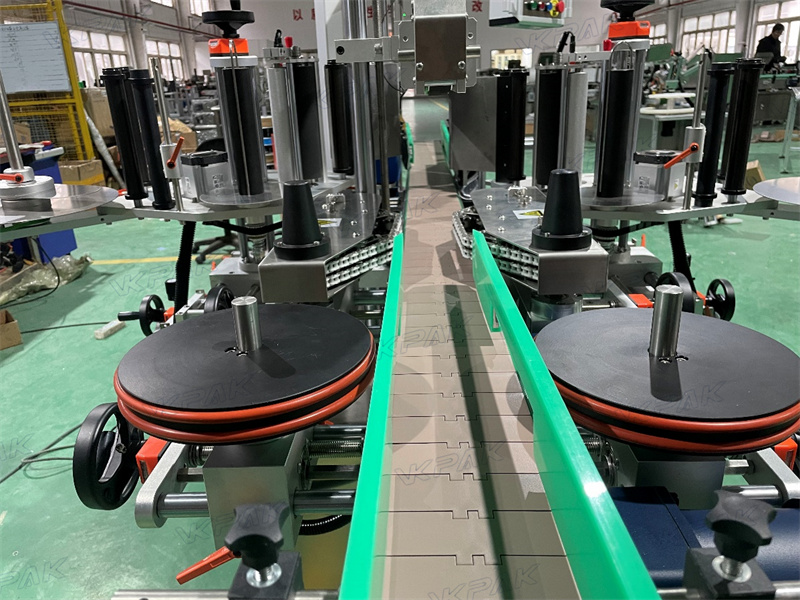

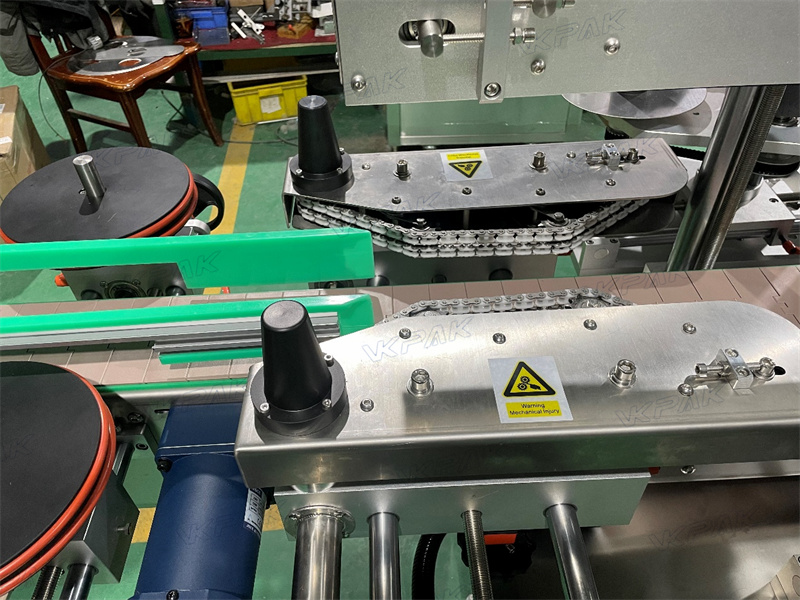

4. The double-sided chain correction device ensures the neutrality of the material.

5. Special elastic top pressure equipment to ensure the stability of the material.

6. The labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation, which can be adjusted as needed.
