E-Cigarette Oil Bottling Filling Capping Horizontal Labelling Machine
  • Model: VK-MFC Cigar oil bottling line
  • Filling Head: 2 pcs
  • Capping Head: 2 pcs
  • Filling Way: Peristaltic pump
  • Filling Volume: 3ml-60ml
  • Overall Size: About 4100mm*2700mm*1800mm
  • Weight About: 750kg
  • Working Voltage: AC110-220V 50Hz-60Hz
  • Working Air Pressure: 4-7kgf/cm²
  • Working Speed: 20-25pcs/minute
  • Filling Precision: ±95%
  • Labeling Precision: ±0.5-±1mm

The automatic small bottle filling and capping machine is specially designed for small bottles and suitable for filling liquid like eye drops, electronic cigarette, iodine etc.

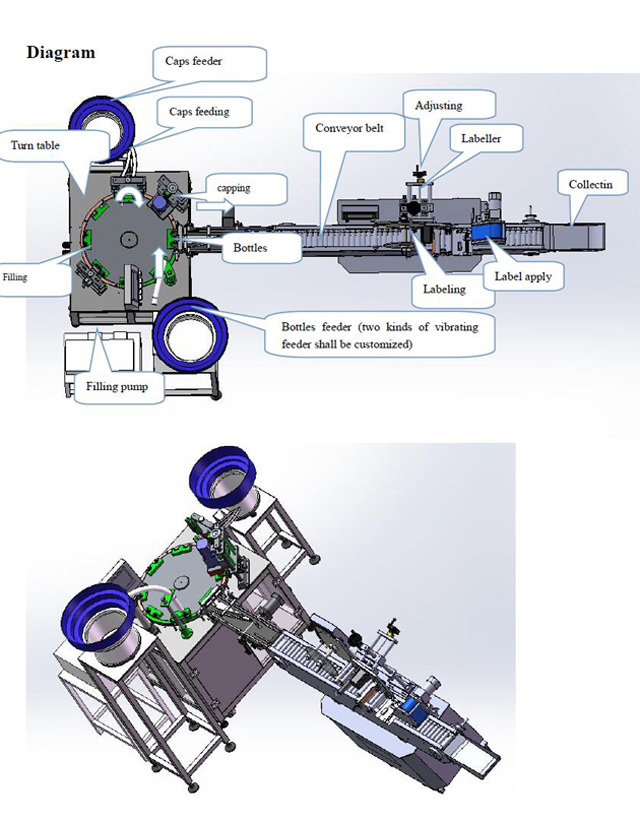

Drawing & Working Process:

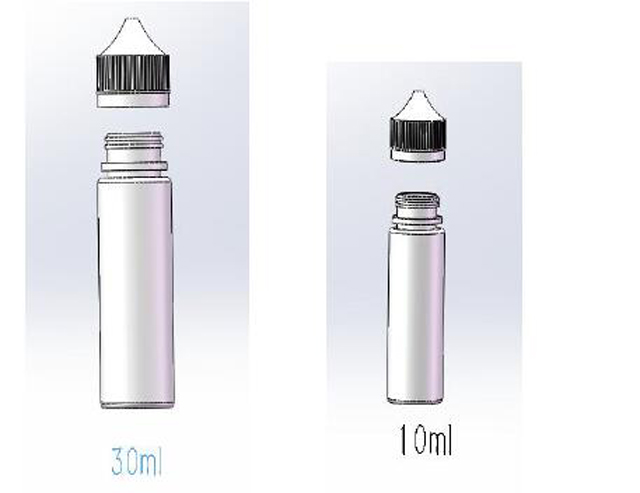

Bottles type.jpg

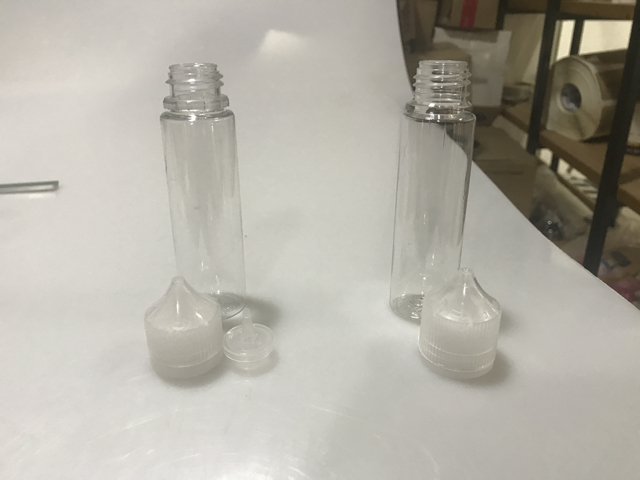

bottles E cigar.JPG

Bottles type.jpg

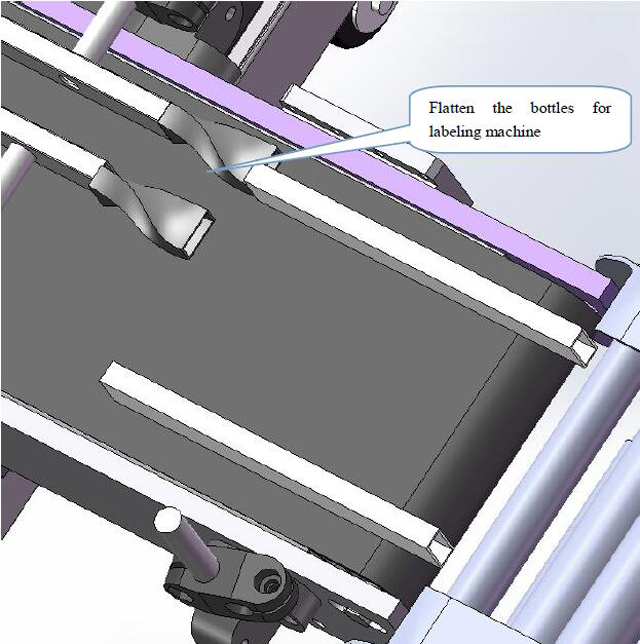

labeling part.jpg

30ml,10ml: Vibration plate drop bottle (two bottles of each make a vibration plate, a single discharge) -> Double peristaltic pump filling -> Vibration plate double on the cover (a vibration plate double out, a material of a vibration plate requires two vibration plate) -> Double locking cap -> Vertical transition to lying roller -> Horizontal roller labeling machine -> Complete.

Vibration plate: two bottles, cover the size of different specifications need to be set for each material a vibration plate, a total of 4 vibration plate (two bottles of each one, two cover each one) corresponding replacement operation;

Host tray: for two products (10ml, 30ml), according to the replacement material on the corresponding mold to achieve;

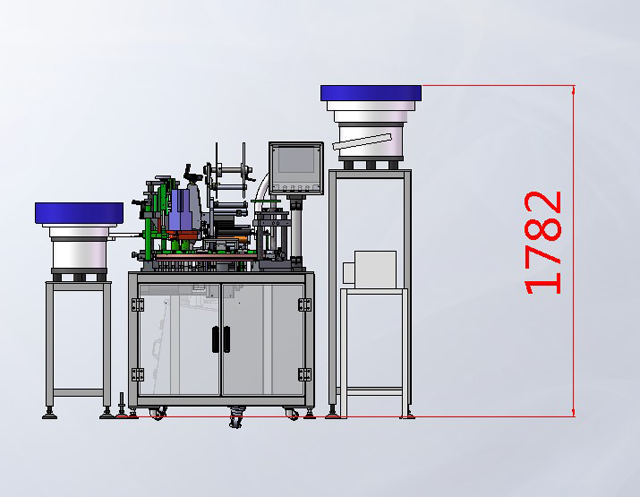

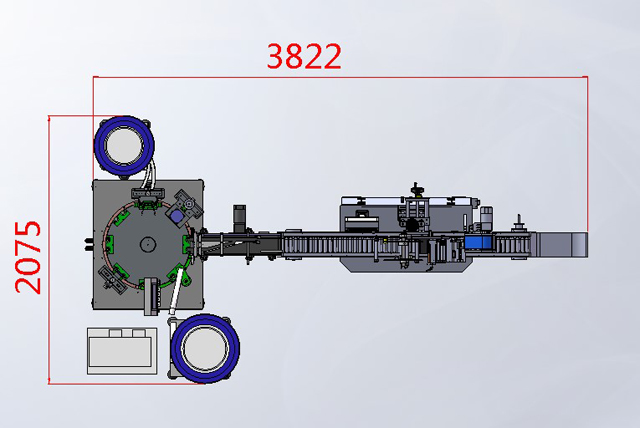

drawing size for filling line.jpg

Bottles type.jpg

It works automatically with high speed, adopts metering filling by peristaltic pump, controlled by PLC, no bottle no filling and capping. With high position accuracy, smooth transmission, and easy operation.

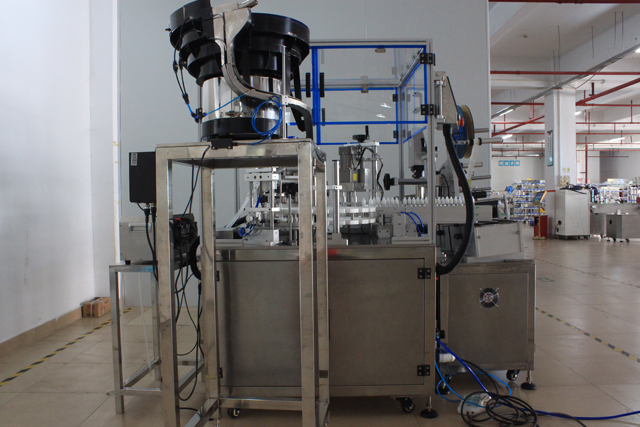

rotary filler capper.jpg

(bottle feeding machine - liquid filling machine / spout pressing / outer capping 3 in 1 machine - labeling machine - package table, and so on)

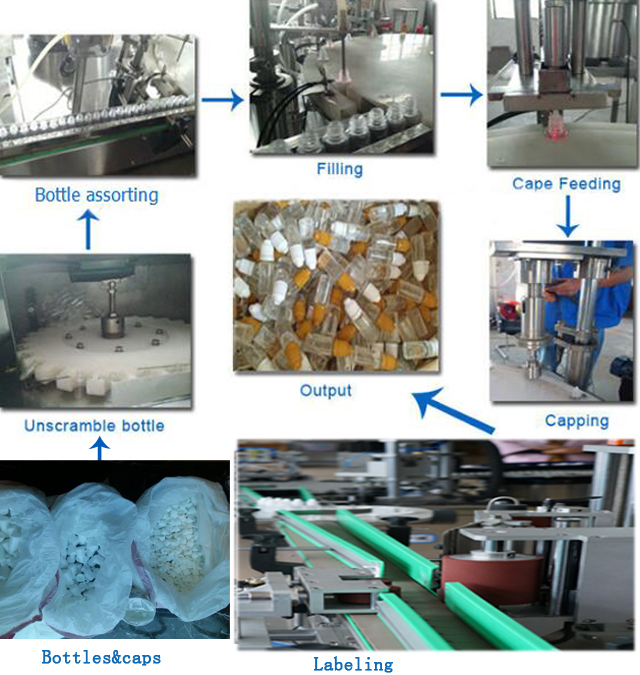

bottle process.jpg

This machine has three functions, liquid filling, spout putting and pressing, outer cover capping 3 in 1 machine. Also may according to the customer request to capping outside lid. No bottle, no filling. This machine is simple operation, saving merits of human, not consumption field, etc. It can be equipped with a protecting cover and a checking-drop installation according to client’s requirement.

It is applicable to different-shaped bottles and plastic bottles: PP, PE, PVC, glass bottle and mould bottle, The bottle-in and bottle-out has specialized structure. It doesn't drop bottles or nip bottles PLC control, simple and easy to operate.

The part which touches the liquid medicine is made of 316L stainless material completely, meeting the requirement of GMP.

It can be connected with the bottle-washing machine and the label-attaching machine to form a complete set of produce line.

Feature On E Liquid Filling Line:

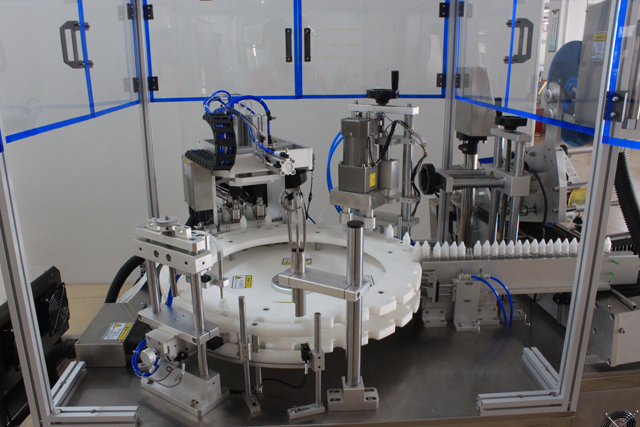

bottles filling process.jpg

1. Microcomputer setting, high filling accuracy

2. The main engine is equipped with stepless frequency speed control.

3. Automatic production capacity quantitative control.

4. With all kinds of fault alerting, for low pressure, no filling, no inner cap etc.

5. The machine can stop automatically in case of no filling, no inner cap etc.

Basic Specificaiton

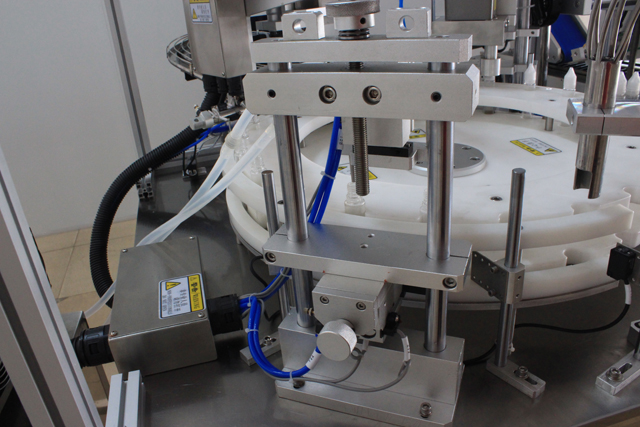

filling tubes.JPG

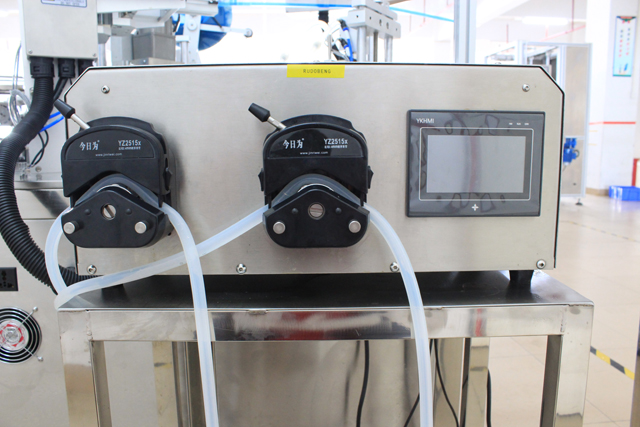

filling pump.JPG

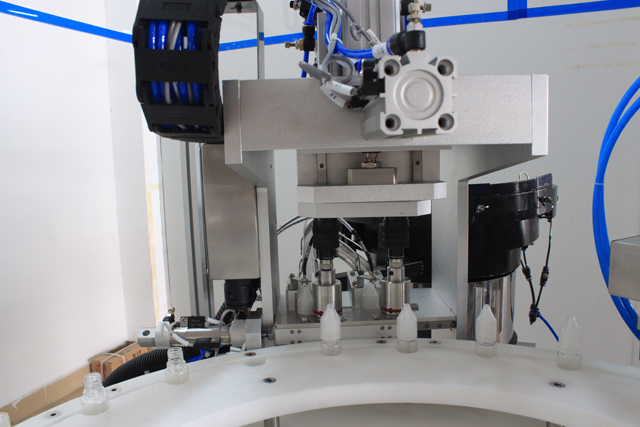

capping process.jpg

  • Model: VK-MFC Cigar oil bottling line
  • Filling Head: 2 pcs
  • Capping Head: 2 pcs
  • Filling Way: Peristaltic pump
  • Filling Volume: 3ml-60ml
  • Overall Size: About 4100mm*2700mm*1800mm
  • Weight About: 750kg
  • Working Voltage: AC110-220V 50Hz-60Hz
  • Working Air Pressure: 4-7kgf/cm²
  • Working Speed: 20-25pcs/minute
  • Filling Precision: ±95%
  • Labeling Precision: ±0.5-±1mm

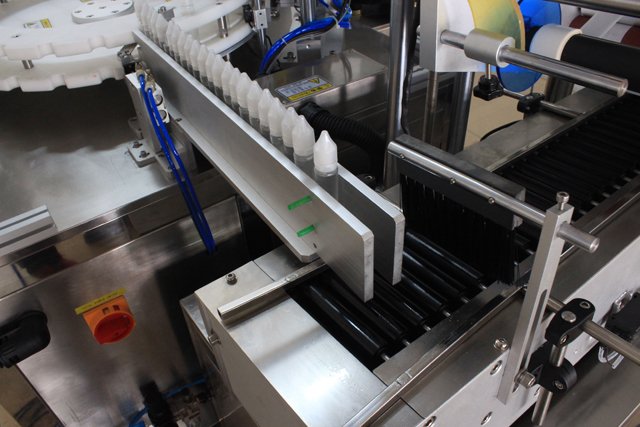

labeling connection part.JPG

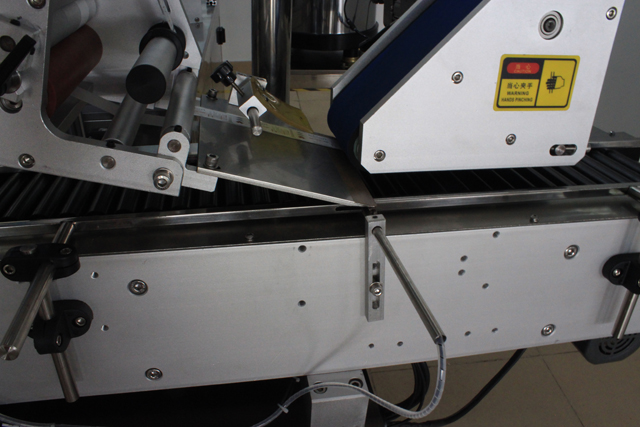

labeling machine.JPG

VK-HRL Labeling Parameter

  • Label width: 10-135mm;
  • Labeling speed: 30-350bottles/Min;
  • Production diameter: 15-150mm;
  • Label height: 15-180mm;
  • Labeling precision±0.5-±1mm
  • Power supply: 4200W , 110V/220V , 50/60HZ;
  • Machine size: L2880 * W1700 *H1580 mm;
  • Reel Inner diameter: 75mm;
  • Reel outer diameter: Max 360mm

Sample Picture:

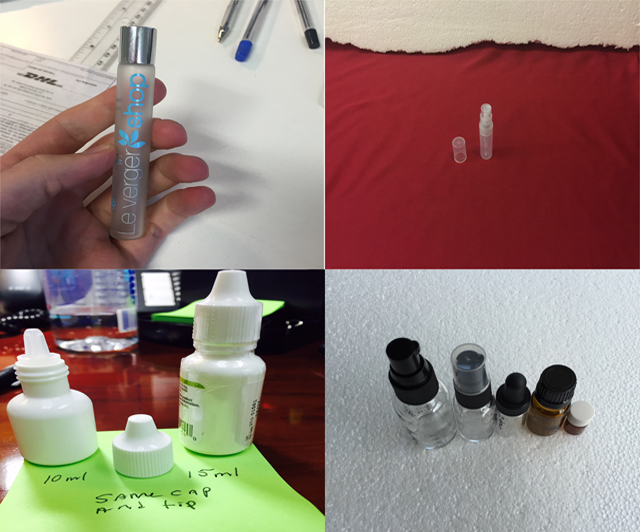

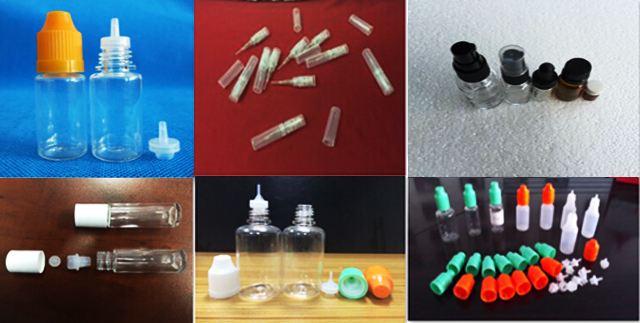

bottles samples for filling capping.jpg

bottles samples for filling capping.jpg

Wooden Case Packaging

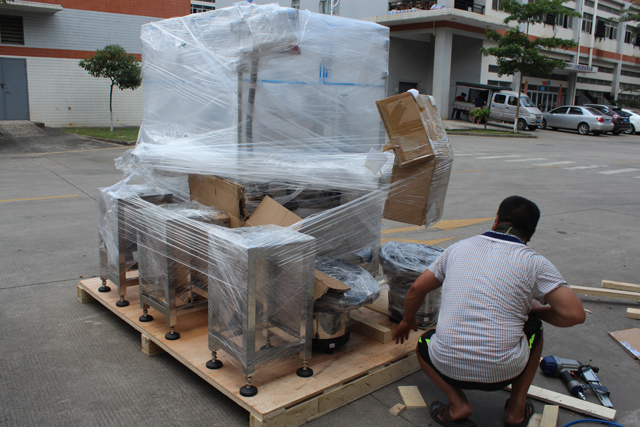

filling operation language.jpg

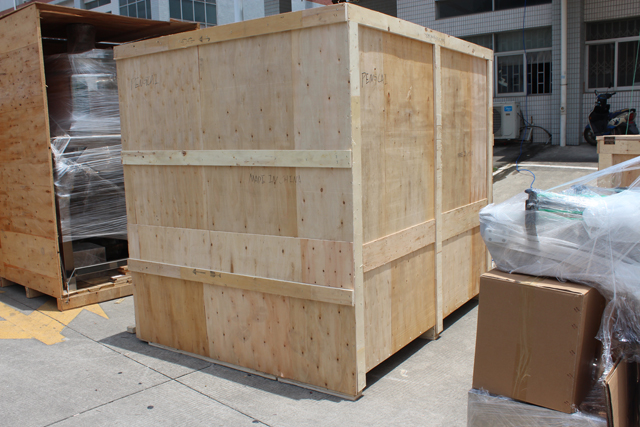

for USA customer Thom VKPAK CHINA Website building (1).JPG

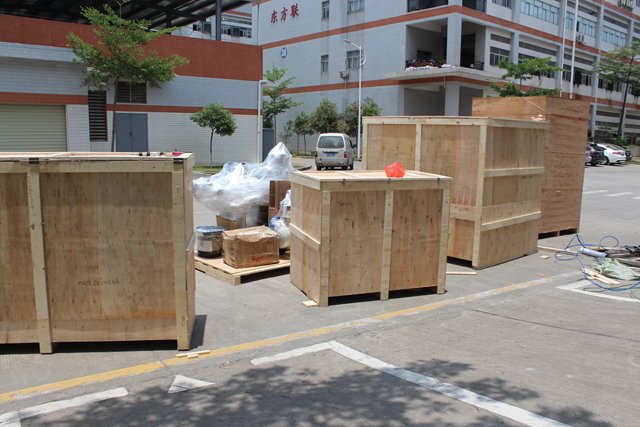

for USA customer Thom VKPAK CHINA Website building (2).JPG

FAQ

For automatic small bottle filling and capping machine for electronic cigarette question:

First of all, before we operate automatic small bottle filling and capping machine, to clearly understand the instructions clearly automatic small bottle filling and capping machine, first read through the instructions again, adjust and use the familiar automatic small bottle filling and capping machine, the operating time must be in strict accordance with the instructions to automatic small bottle filling and capping machine instructions, pay attention to details of the problem, certainly the details determine success or failure .

Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the automatic small bottle filling and capping machine fuselage oil it, so automatic small bottle filling and capping machine body as far as possible to protect the reservoir, so that the air can be isolated to avoid automatic small bottle filling and capping machine rusty, well protected automatic small bottle filling and capping machine body, and this is a way to extend the life of the 3 in 1 filling machine.

Once again, we have to pay attention to hot stand-sealing cloth for cleaning, not retained foreign body in the above, to ensure clean small bottle filling and capping machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .

Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm .

Fifth, if found faulty, we have to turn off the power, when necessary, by pressing the emergency stop button, and then deflated lift cover, and then close the voltage, check the reason, and troubleshooting.
