E Liquid Eye Drops Peristaltic Pump Monoblock Filling Capping Machine
  • Model: VK-MFC
  • Capacity: 20bpm
  • Filling way: Peristaltic pump
  • Filling head: 1pc
  • Capping head: 1pc
  • Filling volume: 5-50mL
  • Accuracy: ±2 mL
  • Filling times: 1 time
  • Conveyor belt: 82mm slat conveyor; Height 750mm (Adjustable)
  • Air compressor: 0.6-0.8MPa
  • Supply power: 110V/Single phase/60hz(American standard), about 2.5KW
  • Dimension(L×W×H): 2000×800×1500mm
  • Weight: 450kg

This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, chemical etc. It is a good choice for small, medium, large factory.

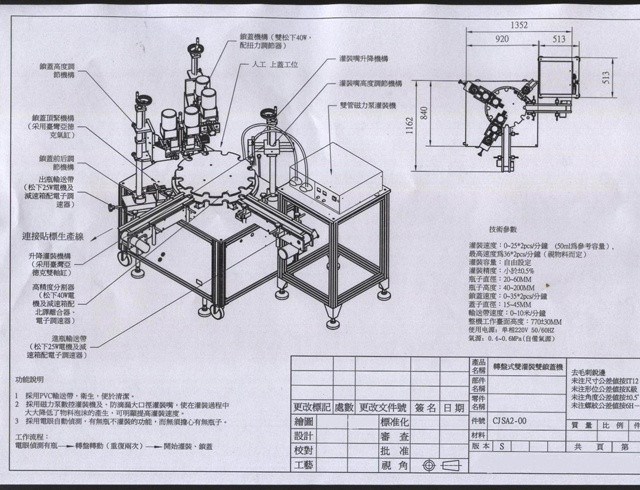

Rough Drawing Of Filling Capping Machine

drawing of machine (1).jpg

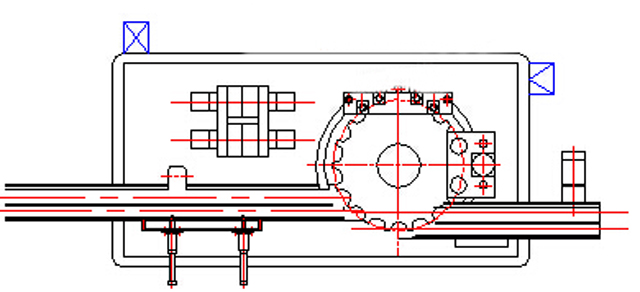

we can customize our machine according to our customer's special requirements. as below there is the project for our australian customer for filling capping machine two filling nozzles recently designed:

drawing of machine (1).jpg

Basic Information

The machine including the parts as below:

1. Rotary Monoblock Filling Capping Machine:

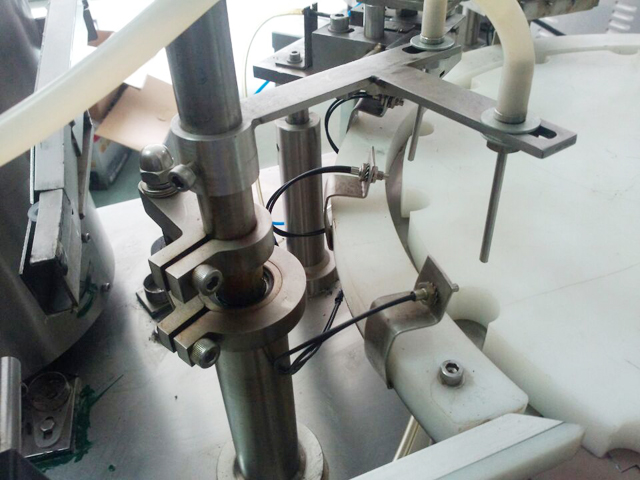

diving filling nozzles.jpg

Filling nozzles diving

Peristaltic pump for measuring filling from 5ml to 50ml

Sensor for signals: No filling without bottles

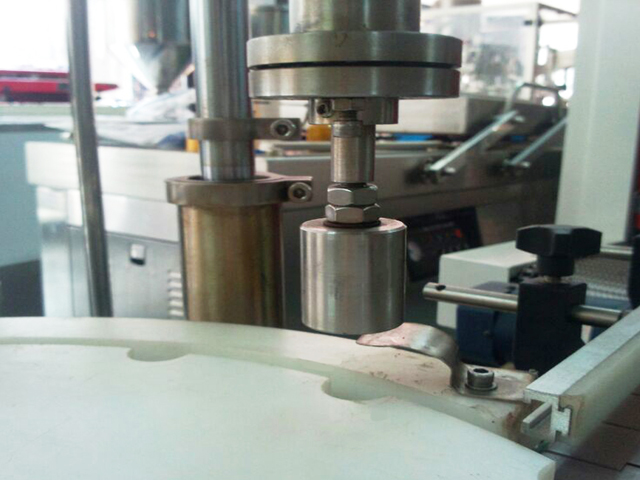

Capping head

capping head.jpg

Capping way: Manual caps feeding

Capping head: Thread capping

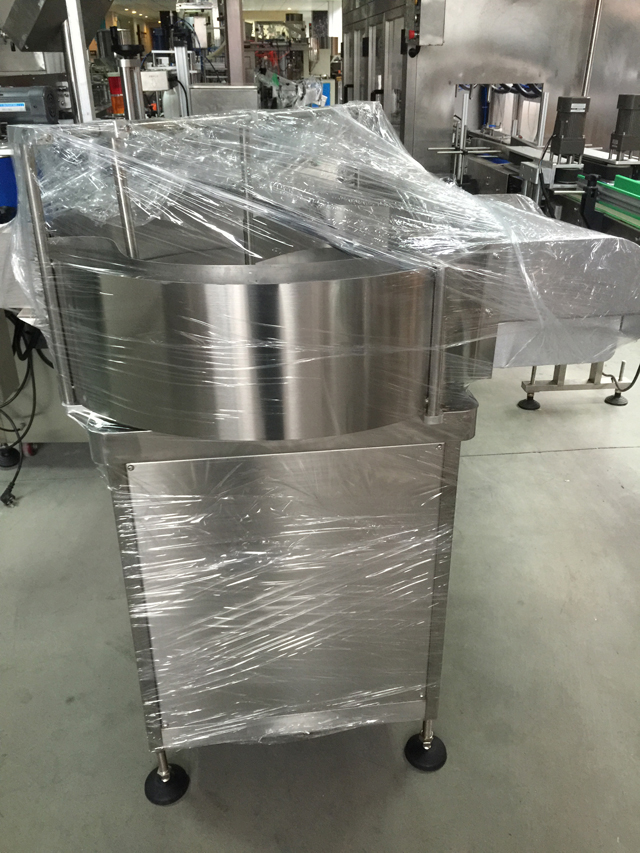

Bottles Collector Turntable After Filling Capping

bottles tables.jpg

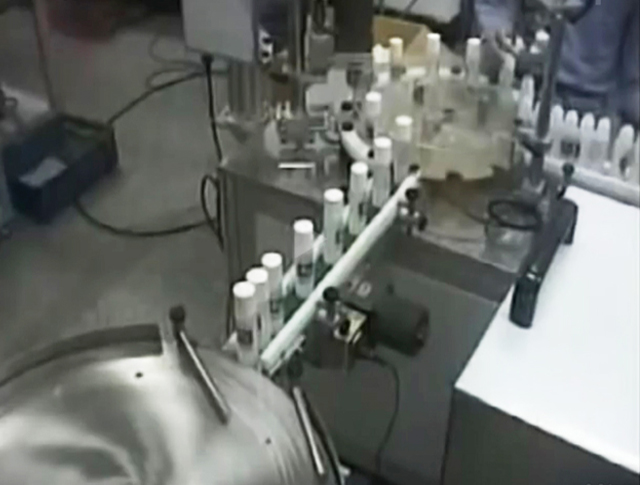

Diving filling nozzles manual feeding caps capping machine

Basic Parameter

filling capping machinery.jpg

NameDataMark
Capacity20bpmAdjustable by adding filling nozzles
Filling wayPeristaltic pump
Filling head1pcsThe capping head related 1pcs
Filling volume5-50mmThe filling volume can be adjusted: Min=1ml
Filling Accuracy2ml or less
Filling timeOne
Conveyor belt82mm slat conveyor, Height 750mmThe conveyor belt can be customized according to detailed requirements
Air Compressor0.6-0.8MpaAir compressor about 4P which can be sourced in customer's local.
Supply power220V/3phase/60hzpower based on USA standard; it can be adjusted according to different countries
Weight450kg
Dimension2000*800*1500mm

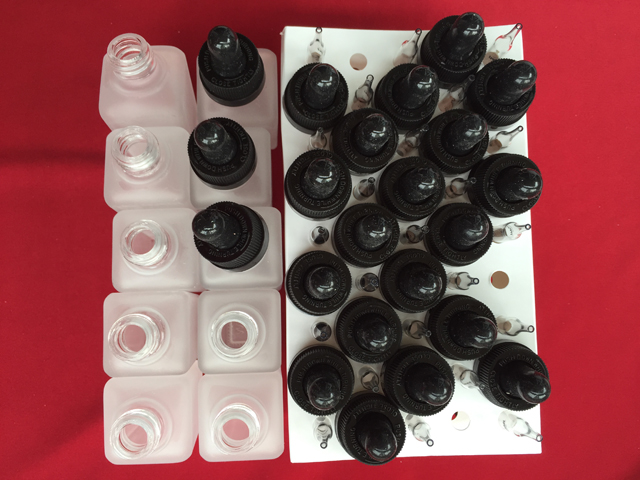

Filling Capping Samples:

filling samples.jpg

Production lead: 20 days after confirming down payment.

Payment metchod: TT wire, 30% as down payment; 70% before shipping. After we finish the manufacturing of machines, we will test the machine for you and send to you videos of sucessful trial run as well as the training videos. It will be better if you come to our place to test the machine.

After you confirm all the goods shall be packaged and delivered to the destination port under Incoterm CIF.

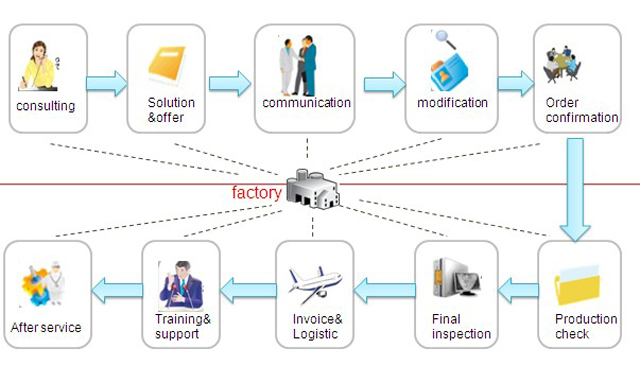

After-Sales Service

after sale service filling machinery.jpg

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
