Economic Liquid Detergent Shampoo Bottle Filling Capping Labeling Machine
  • Semi Automatic Double Heads Pneumatic Filling Machine
  • Semi Automatic Desktop Screw Capping Machine
  • Induction Sealing Machine
  • Semi Automatic Bottles Labeling Machine
  • Semi Automatic Shrink Tunnel

Semi Automatic Liquid detergent shampoo filling screw capping bottle labeling sealing shrinkage machine

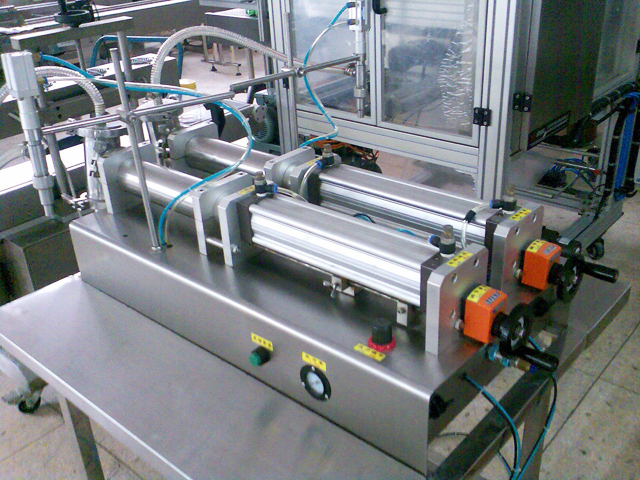

VK-SPF-L2 2 Heads Filling Machine

2 heads filling machine for liquid detergent.jpg

Specifications:

Voltage: 220/110V 50/60Hz

Power: 20W

Rated Pressure :0.4-0 .6 Mpa

Filling Speed :20-35 bottles / min / head

Filling Precision: ≦ ± 1%

Filling Range : 250-2000ml

Principles And Characteristics:

1. The paste filling machine is semi-automatic piston type developed by our company, filling a series of high concentrations of fluids. It is through air cylinder to drive a piston and transfer-valve’s Three Contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume.

2. This device is simple and reasonable in structure, easy to understand, with high accuracy.

3. Pneumatic part adopts Germany FESTO and Taiwan AirTac pneumatic components.

4. Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy.

5. Filling head adopts anti-drip, anti- drawing and lifting devices.

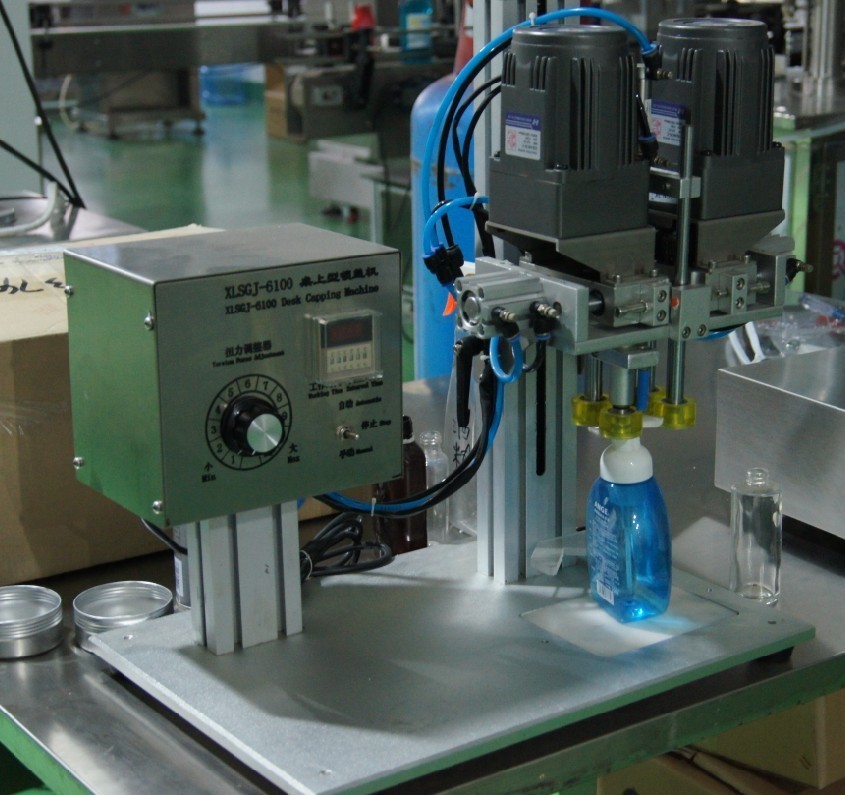

VK-SFC Semi Automatic Desktop Screw Capping Machine

liquid detergent production line semi automatic

Main Technical Parameters:

1. Power Voltage: AC220/50Hz

2. Cap Diameter: 15-50MM

3. Capping speed: 20-50PCS/min

4. Applied bottle height:40-330MM

5. Air compressure: 0.2-0.6Kgf/cm

6. Weight: 25Kg

7. Size: 48(L)X40(W)X60(H)CM

Operation Precautions:

1. Before using, add ISOVG32 pneumatic gas oil or equivalent oil on the gas source processor.

2. To adjust the capping head according to the bottle height.

3. To adjust the cap size, according to the bottle cap, two sides adjust at the same time.

4. To adjust the position withstand, let the bottle mouth under the center of the capping head.

5. To adjust the Torque regulator meet capping strength.

6. Switch on the power, open the hand sliding switch for gas.

7. Control valve operation, first to pull up the adjustment switch can adjust the air pressure.

8. Manual operation, to connect the foot stamp switch under the electric box. Note: To be sure the manual / automatic button on the red light position.

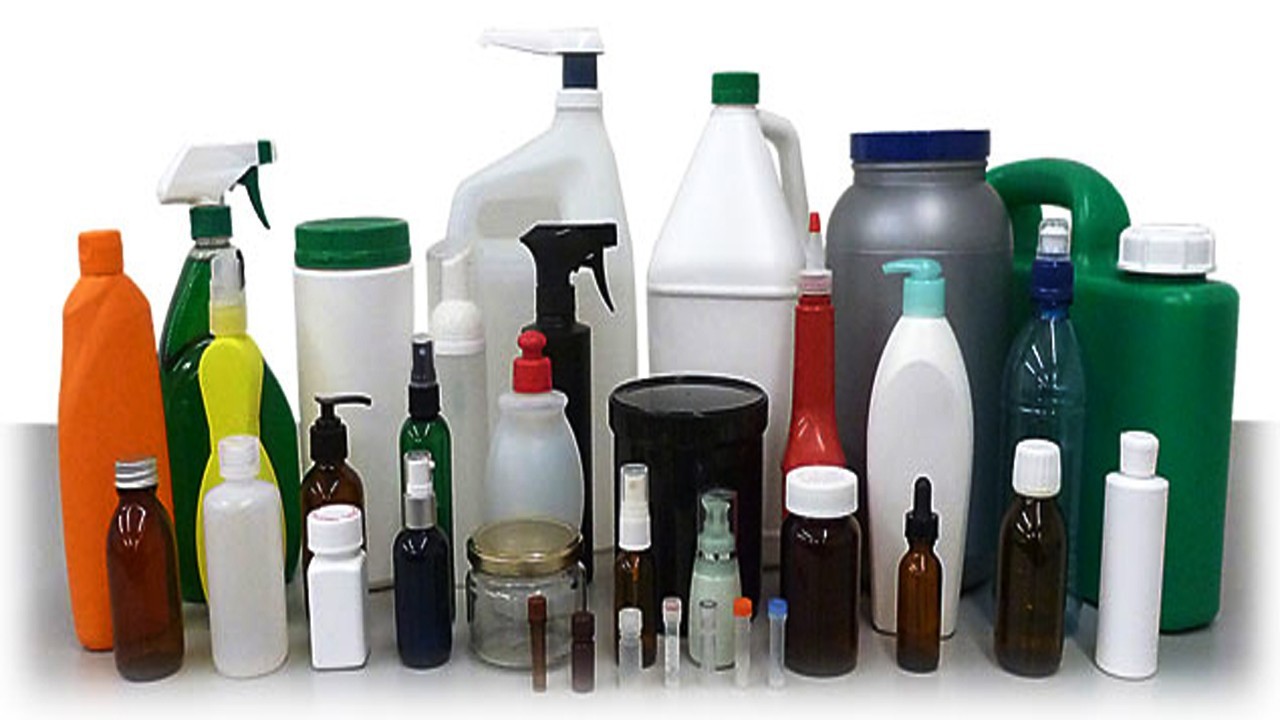

liquid detergent making machine

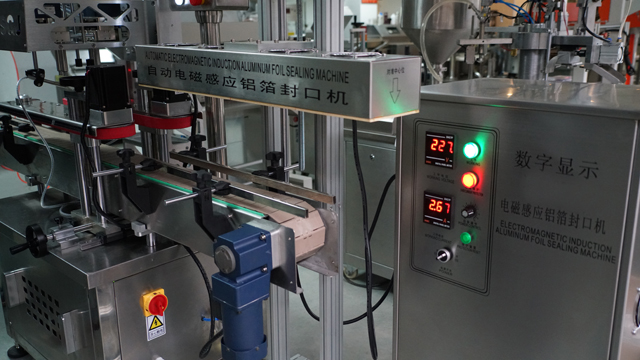

Automatic Aluminum Foil Sealing Machine:

sealing machine automatic.jpg

Application of Induction Sealing Machine:

Mainly used in pharmaceutical, food & beverage, pesticide and cosmetic industries for a wide range of bottle sealing

Features & Characteristics

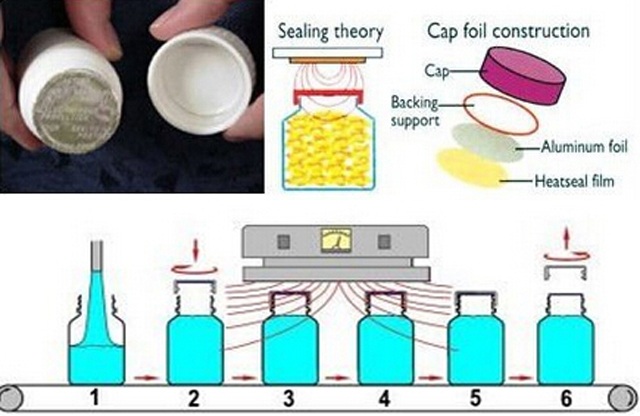

sealing machines induction working how.jpg

1. Automatic aluminum foil sealing machine for bottles

2. Good sealing performance and automatic, hot sales model

3. Cheap price can be offered

4. Our sealing machine is CE certificated

5. This model automatic sealing machine is easy to operate, easy to clean and move

6. Our automatic sealing machine is one year warranty after you get the machine at your factory.

Basic Parameters:

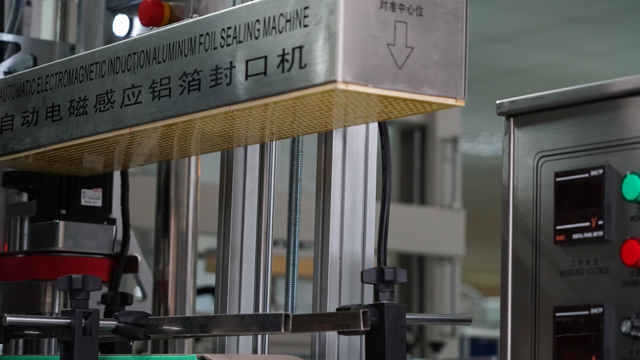

drawing of induction sealing.jpg

Power: Ac 220v 50/60hz

Sealing Voltage: 1300w

Sealing Diameter: 15-65mm

Machine Size: 790*320*840(Mm)

Machine Weight: 30kg

Chilling Mode: Air

Operate Mode: Consistent Sealing

Conveyor Speed: 0-12.5m/Min

Sealing Theory: Electromagnetic Induction Seal

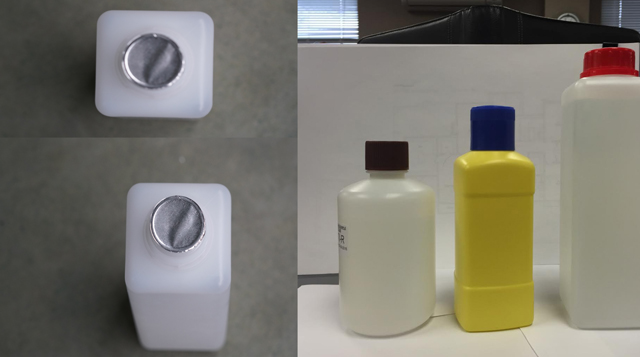

bottles samples.jpg

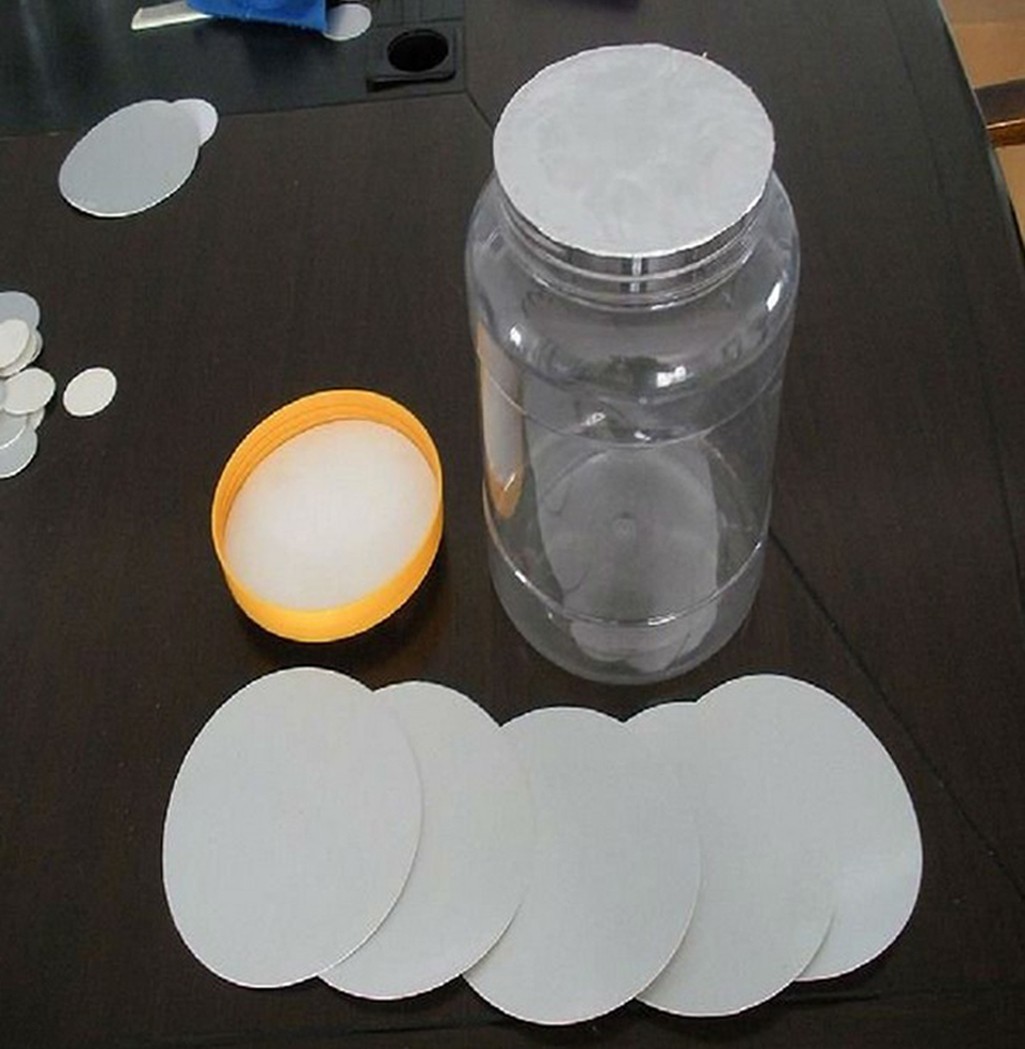

semi automatic liquid production line.jpg

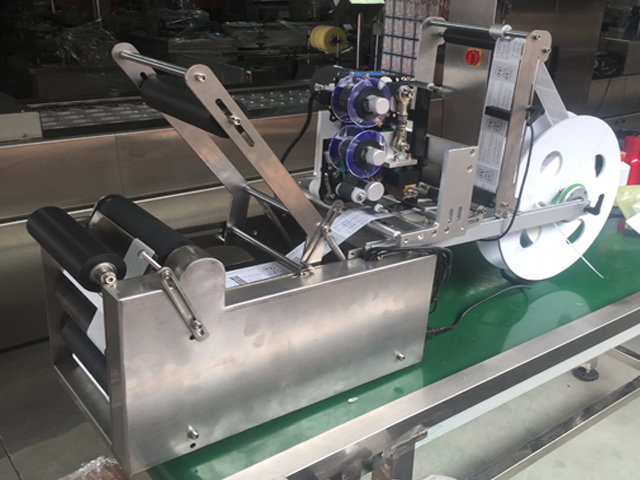

Semi Automatic Round Bottle Labeling Machine

bottle labeling machine manual.jpg

Features

1. Easy to operate, economical and practical;

2. Suitable of round bottle labeling;

3. It’s composed by main body, sending paper, receiving paper, bottle orientation etc parts;

4. Putting the bottle to orientation part by manual and fix the bottle, and then, pressing the off-on switch, finally, the label will be stacked in the bottle.

Technical Parameter:

ItemsVK-T801EPower supplyAC220V 50/60Hz
Production capacity0-50 B/minTotal power60W
Labeling accuracy≥±1Appearance size710*290*540mm
Pass rate≥99%Weight26.5kg
Label sizeW12-100mm,L15-110mmAir pressure 0.4-0.8Mpa
Label roll diameterΦ75mmDate coding function Option

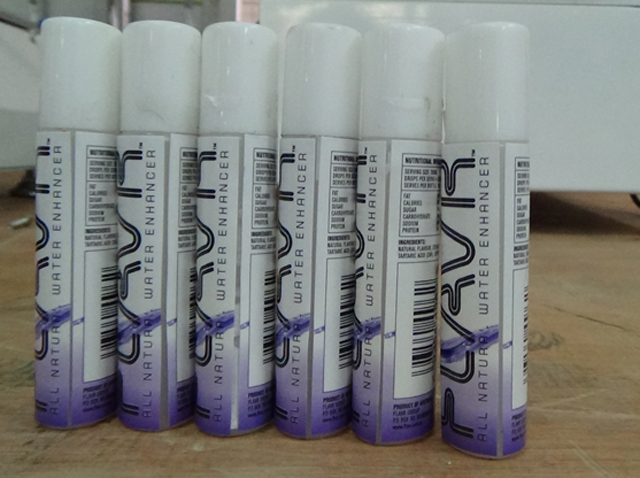

labeling samples for AU customer.jpg

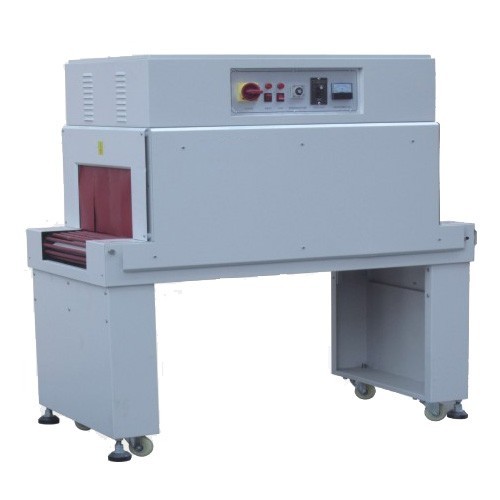

Semi Automatic Shrinking Tunnel Wrapping Machine

Features Of Shrinking Wrapper

Tunnel shrinkage wrapper is equipped with the ultrared silica tube to finish the heating process, with stepless spee to automatically adjust the temperature.The machine,operated at a low sound, is controlled by the Solid State Ray (SSR). After packaging the product is air-less, dampproof as well as anti-shock. Suitable for the packaging of books, porto, tray etc.

Heat Shrinking Wrapping Machine Parameter

Heat shrinking wrapping machine for PE&POF film.jpg

Supply Power: 220v/50hz-60hz

Heating Tube Power: 8kw

Conveying Speed: 0-10m/Min

Shrinking Tunnel: 830×400×200mm

Loading Weight: 10kg

Tunnel Temperature: 200℃

Outer Dimension: 120×69×120cm

Weight: 80kg

Packaging Size Of Machine: 127×67×87cm

Suitable For: POF, PE Film

liquid detergent bottles packaging.jpg

Guarantee: For all the machine, it claims 1 years for guarantee.(Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
