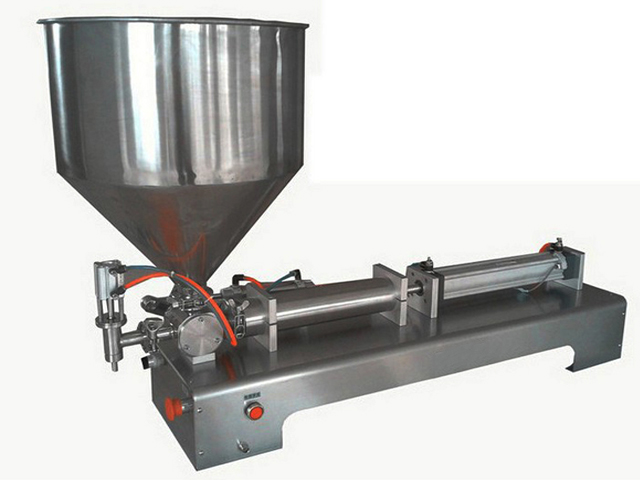

Full Pneumatic Liquid Paste Filling Machine For Cosmetic Cream Lotion

Features of pneumatic liquid filling machine:

• For high viscosity liquid filling and paste filling;
• Adopts pneumatic working principle, simple operation, high filling precision;
• A certain concentration or certain size granular materials ideal filling equipment;
• Stainless Steel Construction;
• Rugged Rotary Valve System Design;
• Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:
  Pressure: 0.4-0.6MPa Power: 1100W Gas Capacity: more than 50L
• Piston Feed Speed Adjustment;

View Video

A pneumatic filling machine simply requires compressed air to perform the same functions that would normally be driven by electricity on such equipment. In general terms, rather than sending an electrical signal to open and close valves, activate a pump or otherwise perform some function of the filling process, compressed air is used to achieve the same basic end. The functions of the compressed air will depend on the type of liquid filler being used in each individual application. For example, a piston filling machine might use an electric signal to begin the stroke of the piston for each fill cycle, whereas the pneumatic piston filler will use compressed air, possibly activated by a simple foot switch, to control the stroke. It is much the same for other filling machines using a pump. In many cases an electrical signal will be sent from a control box to the pump, telling the pump when to turn on and off for the fill cycle. With an air diaphragm pump and simple timers, compressed air expands and deflates the diaphragm allowing product to be pumped without the use of that electrical signal. Of course, these are only a couple examples of how air can replace electricity in the packaging process.

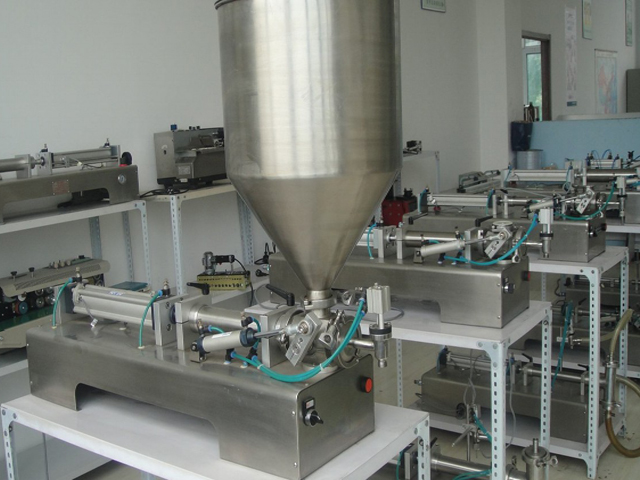

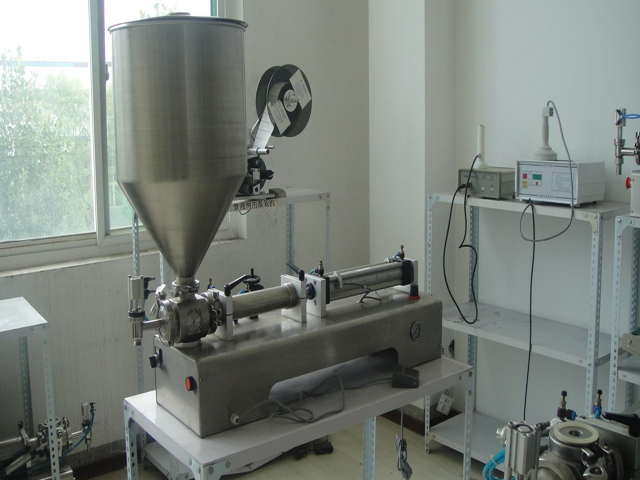

Semi Automatic Horizontal Filling Machine With Hopper For Cream & Liquid Filling

• Suitable for filling cream/gel/paste/ointment in tubes, jars,
• Available in manual as well as motorized model
• All contact parts are made up of SS304/SS316
• Filling range with change parts: 5 to 5000ml per stroke
• SS made hopper having capacity up to 20KG
• Easy to operate, no maintenance required;

Specifications

• Voltage: 220/110V 50/60Hz
• Power: 10W
• Rated pressure: 0.4-0 .6 Mpa
• Filling speed: 10-30 bottles / min / head
• Filling precision: ≦ ± 1%
• Filling range: 30-500ml
• Dimension: 1600*440*370mm
• Weight: 61kg

Principles and Characteristics

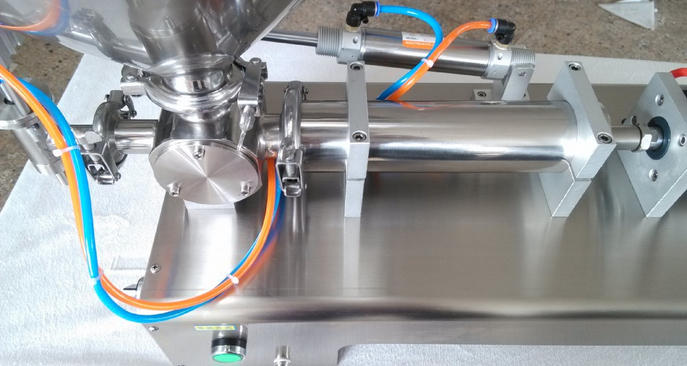

1. The paste filling machine is semi-automatic piston type developed by our company, filling a series of high concentrations of fluids. It is through air cylinder to drive a piston and transfer--valve’s Three Contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume.
2. This device is simple and reasonable in structure, easy to understand, with high accuracy.
3. Pneumatic part adopts Germany FESTO and Taiwan AirTac pneumatic components.
4. Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy.
5. Filling head adopts anti-drip, anti- drawing and lifting devices.

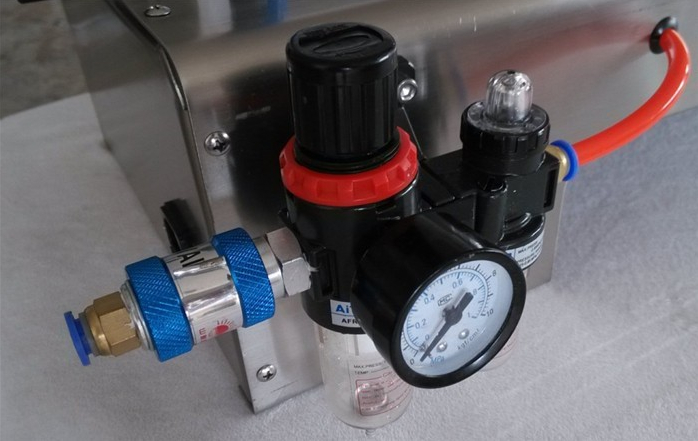

Control Panel:

• Semi Auto / Auto filling switch
• Air Pressure Gauge
• Air Intake Pressure Adjust

Filling Volume Adjust

The machine is suitable for filling food trades (such as: pearl milk tea nata de coco hick broad-bean sauce chili sauce peanut sauce etc); cosmetics (shampoo frost shower gel); daily health product(toothpaste)

The machine adopts pneumatic working principle, simple operation, high filling precision,is a certain concentration or certain size granular materials ideal filling equipment.

FAQ

Q: Why buy it from you?

A: We are manufacturer. We design it and produce it by ourselves, we could offer customers more supports and more professional service. You could rest 100% assure by buying it from us, because we could supply you with technical support. And we could help you to fix problems.

Q: What can you do if my machine did not work?

A: Firstly, tell me the detail about not working. Secondly, our engineer would find out the reason why it could not work. Thirdly, we would send you the parts for replacement if necessary, or we would tell you how to repair it. We would help you fixed the problems.

Q: Would it be more expensive if I buy it from you instead of buying it from our local supplier?

A: We are 100% sure that it would be cheaper by buying it from us. Because most of your local suppliers are importing such machine from our china and they have to add their own profit on the price. We are manufacturer, our price is the lowest price.

Q: How will you send it?

A: We would send it by DHL, UPS, FEDEX EMS which needs only 3-5 days.

Q: Do you have warranty?

A: Yes, we do. we would offer 1year warranty, we would supply you the parts of free of charging in 1year. And we would supply you with technical support.

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
