Fully Automatic Ultrasonic Plastic Laminated Tubes Filling Sealing Machine

• Model: VK-TFS-009U
• Tube material: Plastic Tubes, Laminated Tubes
• Tube diameter: µ10-µ50
• Tube length: 50-250 customizable
• Filling volume: 5-500ml/branch Adjustable
• Filling accuracy: less than 1%
• Speed(r/min): 3-10
• Product capacity: 30-60Pc/min
• Working pressure: 0.55-0.65mpa
• Motor Power: 2kw 380V/ 220V 50Hz
• Heat sealing power: 3kw
• Overall dimension: 2620*1020*1980mm
• Machine weight(kg): 1100

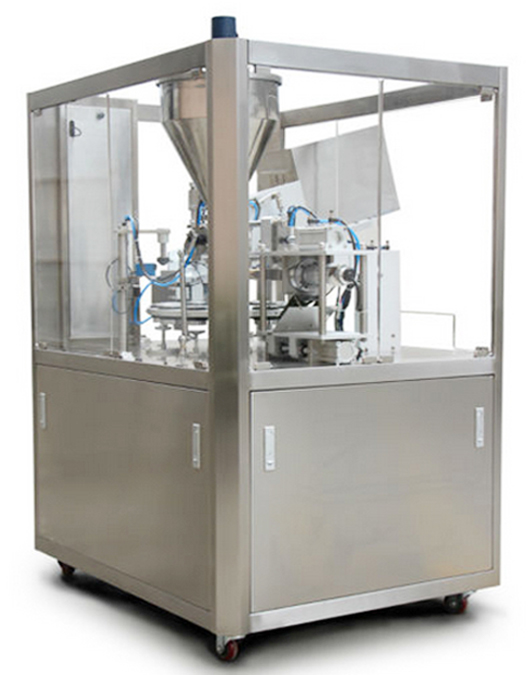

Ultrasonic Plastic Tube Filling and Sealing Machine fully automatic ultrasound tube filler sealer equipments applying: ultrasonic soft tube (ie laminated tubes/plastic tubes) filling and sealing machine is for filling, sealing tube with viscosity of oil, ointment, cream and gel etc.

Features:

1. High grade operation screen with LCD dispaly PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, out put count, pressure index and failure dispaly.

2. Automatically executing tube supply, phtotoelectron register, inert gas filling(optio-nal), material filling and sealing, batch number printing, final products output.

3. High precision phtotoelectron register, reduced the chromatic aberration scope.

4. Adjustment parts external in position, position digital display, convenient and accurate adjust(suitable for variety products producing).

5. Phtotoelectronic, electric, pneumatic intergrative controlling, reaches no tube no filling function; waring if tube error positionedor pressure too low, automatic stop machine if open the protective door.

Parameter:

Model: VK-TFS-009U

Tube material: Plastic tube, Compound tube

Tube diameter: µ10-µ50

Tube length: 50-250 customizable

Filling volume: 5-500ml/branch Adjustable

Filling accuracy: less than 1%

Speed(r/min): 3-10 2.5-7

Product capacity: 30-60Pc/min

Working pressure: 0.55-0.65mpa

Motor Power: 2kw 380V/ 220V 50Hz

Heat sealing power: 3kw

Overall dimension: 2620*1020*1980mm

Machine weight(kg): 1100

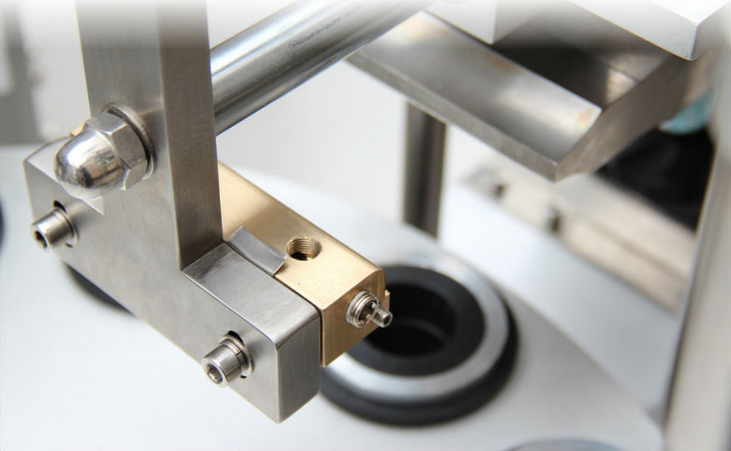

Sealing bar with producing date all brass made

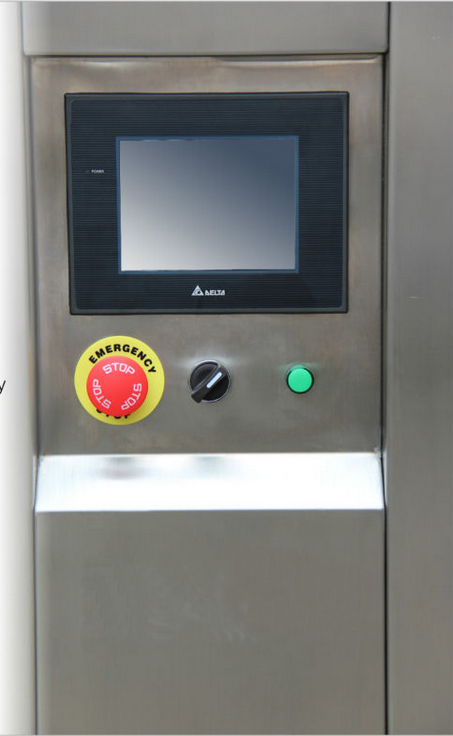

PLC control panel touch screen is easy to operate with power switch and emergency stop button. it is very safe to use.

Guarantee: for all the machine, it claims one year for guarantee (excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: after the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After service: if you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(As above).
