Fully Pneumatic Double Heads 1 Gallon Flammable Liquid Filling Machine

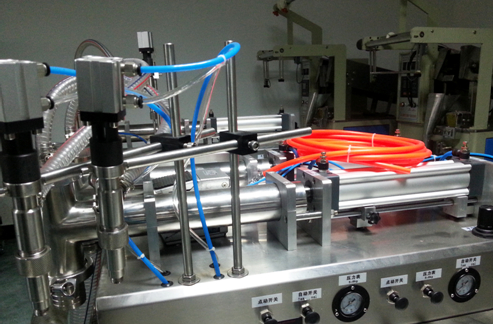

Double heads fully pneumatic liquid filler

• Model: VK-SPF-2
• Filling volume: 500-5000ml
• Air consumption: 300L/min
• Weight: 90kg
• Size: L150xW110xH78

View Video

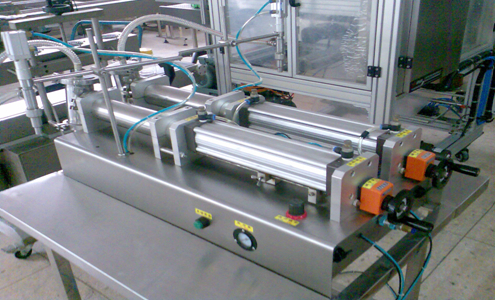

Full - pneumatic horizontal self-suction ointment filling machine for chemical industry

The horizontal self-suction filling machine is suitable for filling products of various viscosity such as water injection and ointment etc.

It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc. The semi-automatic piston type filling machine (full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit.

Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements.

The parts of our lm series products that contact materials are all made of imported 316l stainless steel through cnc machine tools with the surface roughness lower than 0.8.

Principles And Characteristics

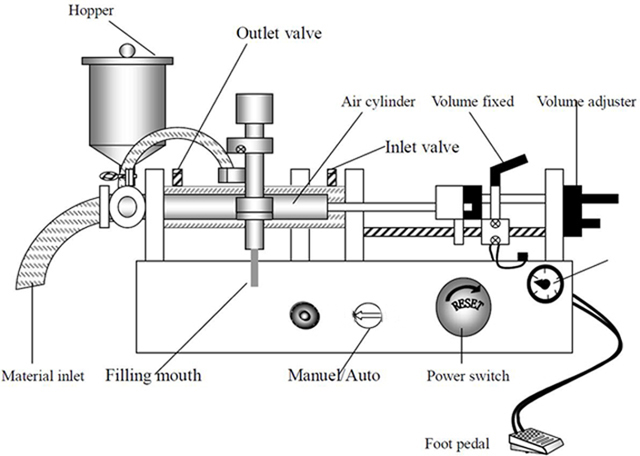

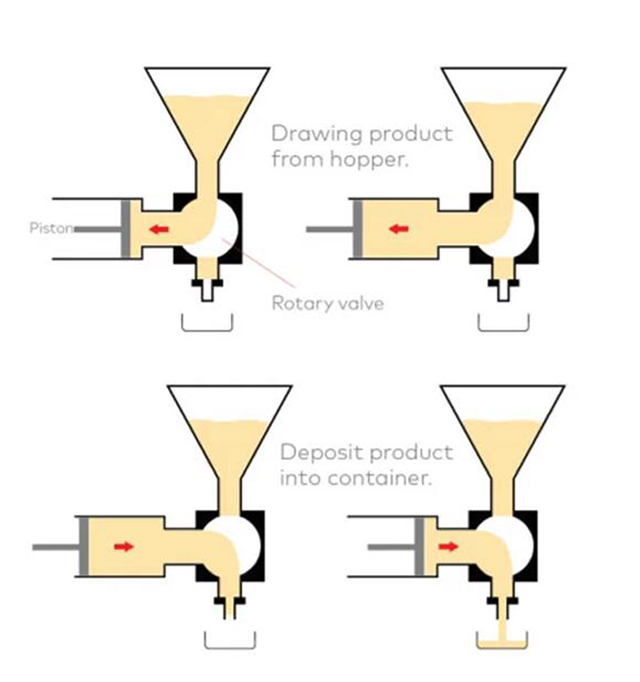

1. The paste filling machine is semi-automatic piston type developed by our company, filling a series of high concentrations of fluids. It is through air cylinder to drive a piston and transfer--valve’s three contacts principle to extract and to split out the highly concentrated material by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume.

2. This device is simple and reasonable in structure, easy to understand, with high accuracy.

3. Pneumatic part adopts germany festo and taiwan airtac pneumatic components.

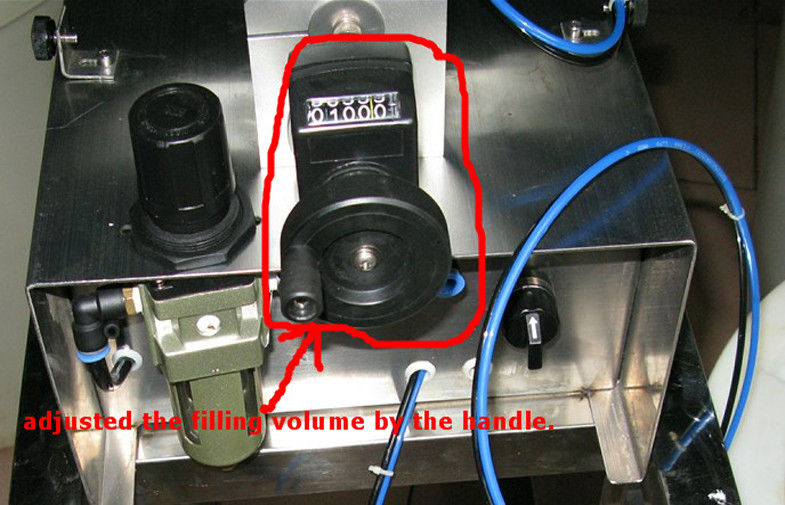

4. Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy.

5. Filling head adopts anti-drip, anti- drawing and lifting devices.

Technical Parameter

• Model: VK-SPF-2
• Filling volume: 500-5000ml
• Air consumption: 300L/min
• Weight: 90kg
• Size: L150xW110xH78

Mark: On the double head machine, both the heads work from two intake hoses, to feed to cylinders, sucking the materials separately

Besides this double heads fully pneumatic filling machinery we also offer the single heads pneumatic liquid filling machines vertical filling machinery manual liquid filling machines as well as the high precision magnetic pump filling machine for liquid.

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).

How Does The Pneumatic Filling Machine Works?

Standard power for most liquid filling machines will include some type of electrical requirement, in other words, you plug in the machine to make it work. However, filling machines are used to package just about every liquid product available to consumers, some of which just don't mix with sparks or electrical arcs. For these products, the removal of electrical requirements from the packaging process is crucial to the safety of all of those involved in the process.

A pneumatic filling machine simply requires compressed air to perform the same functions that would normally be driven by electricity on such equipment. In general terms, rather than sending an electrical signal to open and close valves, activate a pump or otherwise perform some function of the filling process, compressed air is used to achieve the same basic end. The functions of the compressed air will depend on the type of liquid filler being used in each individual application. For example, a piston filling machine might use an electric signal to begin the stroke of the piston for each fill cycle, whereas the pneumatic piston filler will use compressed air, possibly activated by a simple foot switch, to control the stroke. It is much the same for other filling machines using a pump. In many cases an electrical signal will be sent from a control box to the pump, telling the pump when to turn on and off for the fill cycle. With an air diaphragm pump and simple timers, compressed air expands and deflates the diaphragm allowing product to be pumped without the use of that electrical signal. Of course, these are only a couple examples of how air can replace electricity in the packaging process.

As noted above, there can be a couple different reasons why air will be preferred, or even required, over electric. In a few cases, the facility where the packaging is taking place simply may not offer the necessary electrical requirements for the different packaging machines. However, most of the time, pneumatic filling machines are manufactured for those packaging hazardous products. Alcohols, certain chemicals and other flammable products have the potential to cause great injury to both persons and equipment if a spark or arc occurs at the wrong time and place, a risk that is simply unacceptable when dealing with such products.

In some situations, even fumes from a product can create a dangerous atmosphere, which calls for hazardous location construction of not just the filling machine, but other packaging equipment as well. For more information on pneumatic and hazardous packaging equipment, including information on whether such equipment will fit your own specific project needs, contact a packaging specialist at VKPAK today.
