Glass Jar Twist-Off Vacuum Capping Machine Steam Capper Equipment
  • Model: VK-VC
  • Cap diameter: φ28-φ50㎜ φ50-φ85㎜
  • Diameter: Φ28-110m
  • Height: 60-280mm
  • Capping speed: 50-60 bottles/min
  • Power(Air source): 220V/50HZ (Power)：2000W
  • Dimension: 2800×1150×2000㎜
  • Weight: 1100㎏
  • Capping torsion: 5-50 N.M
  • Steam Pressure: ≤0.4MPA
The automatic vacuum capping machine twist-off is widely used for full-automatic vacuum screwing cap in foods & beverage, spice, medicine, chemicals, industries and so on.

Features Of Twist-Off Vacuum Capper Equipment Steam Capping Machine:

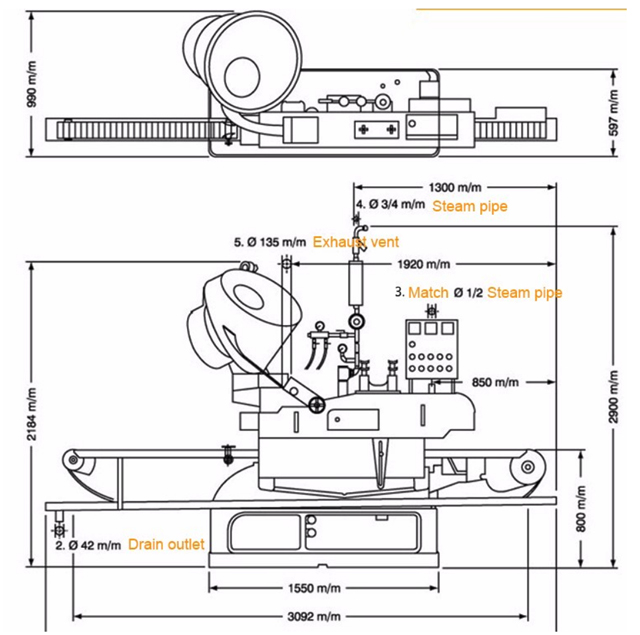

DRAWING of vacuum capping steam heating type.png

  • The machine is combined with automatic cap arranging, covering and spray streams vacuum screwing, features fast speed, high efficiency, reliable and stable running.
  • Photosensor and approximate switch and other elements are using international famous brand, to make sure that the cap unscrambler machine can control automatic no caps the switch is on, full caps the switch is off.
  • The bottle shape what the machine can apply is round shape, square shape, oval shape and special-shaped and so on.
  • Doesn’t require to replace parts for filling different shapes of bottles with easy adjustment, strong adaptability.
  • The electric parts and pneumatic parts are used world-renowned brands, the advantage is low failure rate, reliable performance and long service life.

Main Parameters

ModelVK-VC
Cap diameterφ28-φ50㎜ φ50-φ85㎜
DiameterΦ28-110m
Height60-280mm
Capping speed50-60bot/min
Power(Air source)：220V/50HZ (Power)：2000W
Dimension2800×1150×2000㎜
weight1100㎏
Capping torsion5-50 N.M
Steam Pressure≤0.4MPA

The Sample Machine Photo (For Your Reference Only)

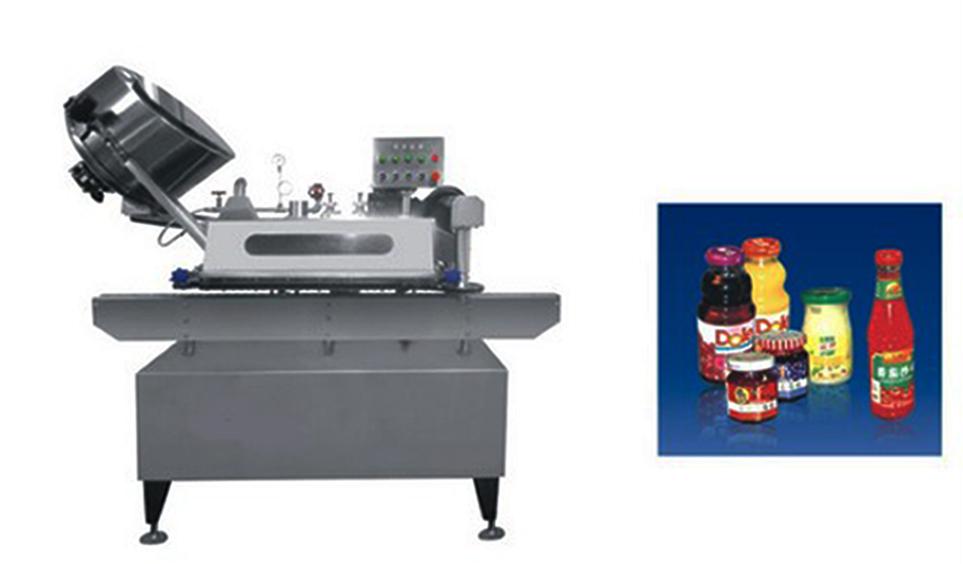

Button controlled glass jar twist-off vacuum capping machine

button controlled vacuum capping machine twist off.jpg

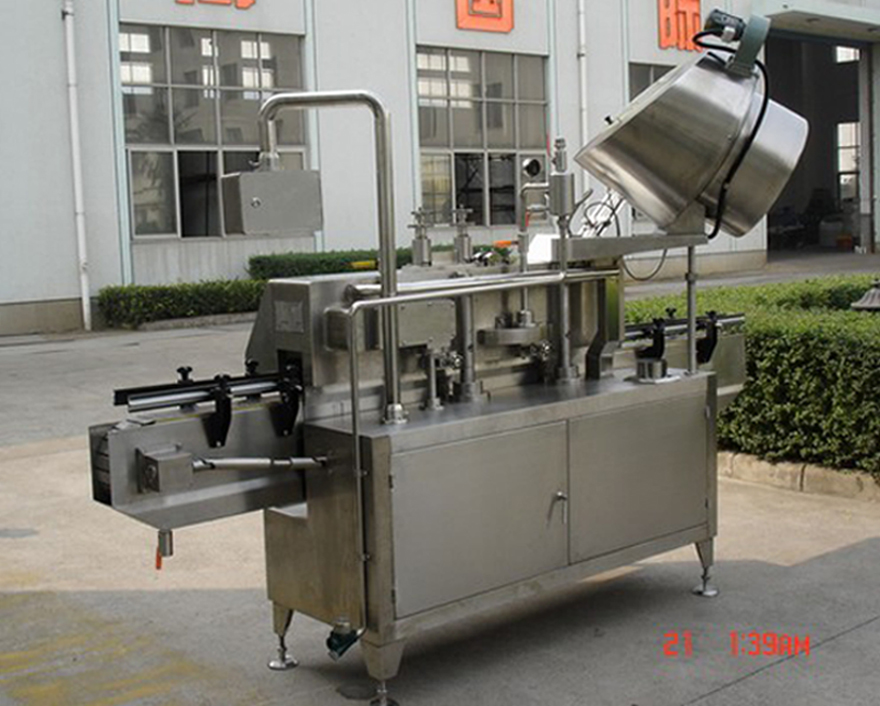

Button controlled glass jar twist-off vacuum capping machine

back shot of twist-off vacuum cap.jpg

Configuration & Quotation

    1. Frequency converter: Danfoss (Denmark)
    2. Motor: Chengbang (Taiwan)
    3. Contactor: Moeller (Germany)
    4. Relay: Schneider (France)
    5. Linear Bearing: Igus (Germany)
    6. Proximity switch: Omron (Japan)
    7. Bearing: Chinese brand
    8. Terminal block: Weidmuller(Germany)
    9. Button: China
    10. Speed controller: TWT(Taiwan)
    11. Twist cap round: Silica gel round
    12. Stainless steel 304 screw, chain and chain wheel(Chinese brand)
    13. Wire: Qifan (famous Chinese brand )
    14. Synchronous belt: Kunshan GPB
    15. Solenoidvalve: Airtac (Taiwan)
    16. Cylinder: Airtac (Taiwan)
    17. FRL: Airtac (Taiwan)
    18. Optoelectronic switch: Omron(Japan)

Services

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 30 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
