Granule Particle Can Filling Sealing Machine Automatic Multi Heads Scales
  • Model: VK-GSF
  • Material: Stainless Steel
  • Quantitative combination of heads: 10/14
  • Sealed cans: 1
  • Filling Sealing speed: 30 / min
  • Quantitative Sealing height: 50-200mm
  • Suitable bottle diameter: 35-100mm
  • Voltage: 220V/380V 50/60Hz
  • Power: 1.1KW
  • Weight: 500KG
  • Size: 3000 (L) * 900 (W) * 1800 (H) mm (including 2 meters conveyor )
  • Voltage: 220V, 50Hz/60HZ

Performance Description:

  • Lid joint control device: When entering cans when the lid was allocated, no tank no lid;
  • The operation panel design reasonably simple, easy adjustment and maintenance;
  • Production capacity, high degree of automation, suitable for sealing production line equipment;
  • Sealing reel made ​​of 304 stainless steel, high hardness, no rust, excellent sealing performance.

Features Description

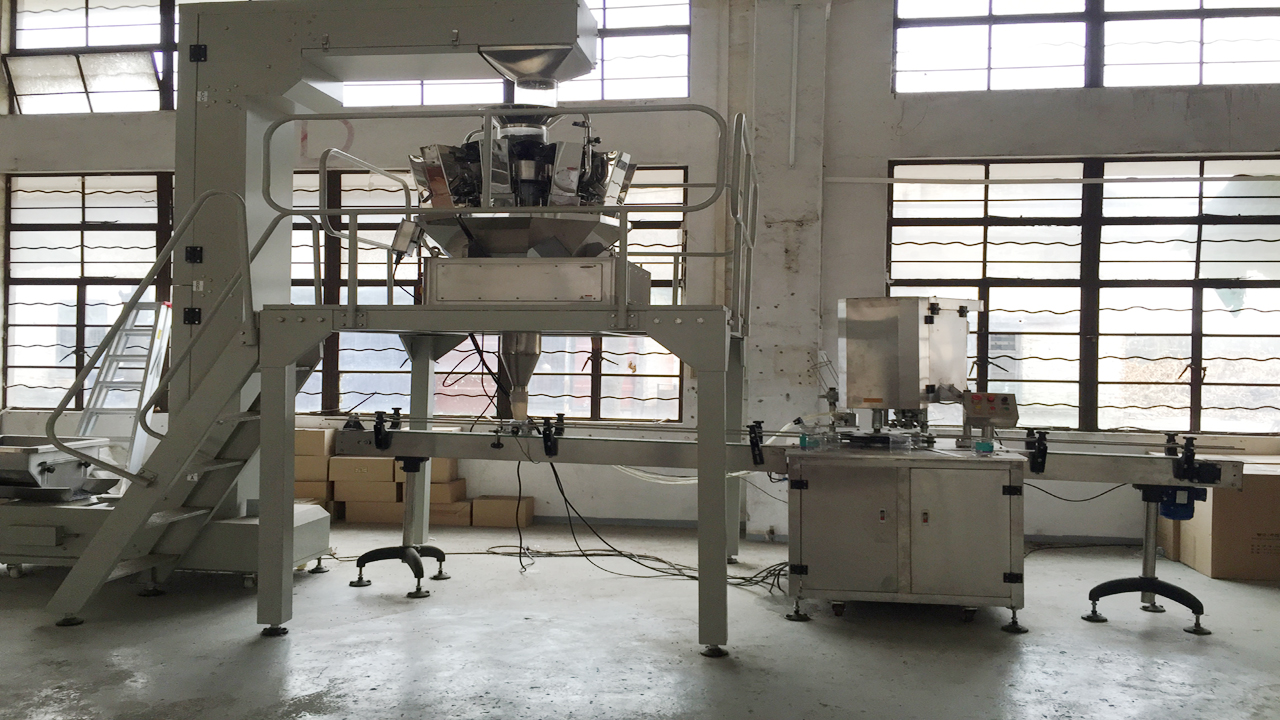

cans filling sealing machines.jpg

  • The lower the efficiency of the device is based on the needs of our large customer information feedback, as well as prevailing market semi-automatic sealing machine, large differences in the characteristics of the operating staff, as well as the artificial price level rising trend in our latest research and development of next-generation technology using automatic sealing machine;
  • The aircraft is an upgraded version of our non-rotating semi-automatic sealing machine, using tanks do not turn the hob rotation principle, high precision, sealing quality than similar domestic products;
  • The machine productivity is two to three times semi-automatic sealing machine, but thanks to automatic cover and sealing device, the two people can be reduced to the original semi-automatic sealing team to finish the half of workers, both can increase productivity, more important is to reduce the labor costs.
  • For a variety of tin cans, aluminum cans, paper cans, and other specifications circular sealing cans, easy to learn, is the ideal equipment for the food, beverage, pharmaceutical and other industries.

Basic Parameter

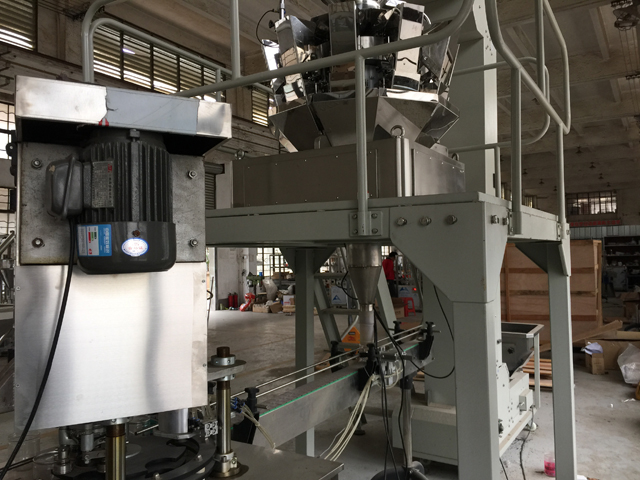

CANS FILLING SEALING MACHINE close shot.jpg

  • Model: VK-GSF
  • Material: Stainless Steel
  • Quantitative combination of heads: 10/14
  • Sealed cans: 1
  • Filling Sealing speed: 30 / min
  • Quantitative Sealing height: 50-200mm
  • Suitable bottle diameter: 35-100mm
  • Voltage: 220V/380V 50/60Hz
  • Power: 1.1KW
  • Weight: 500KG
  • Size: 3000 (L) * 900 (W) * 1800 (H) mm (including 2 meters conveyor )
  • Voltage: 220V, 50Hz/60HZ

Real Shot

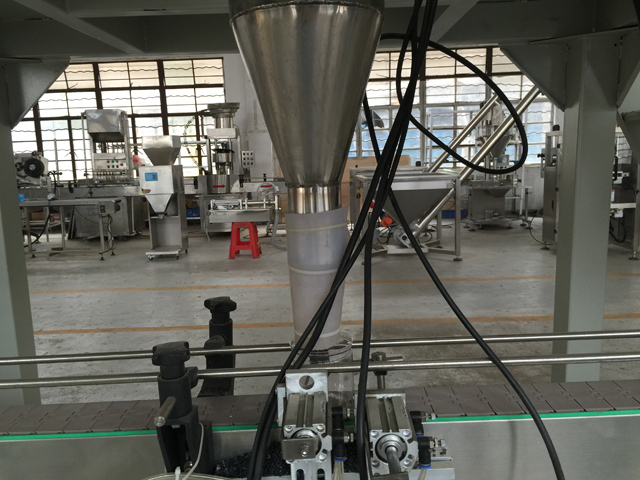

filling nozzles for granules filler.jpg

Filling nozzles for granules filler

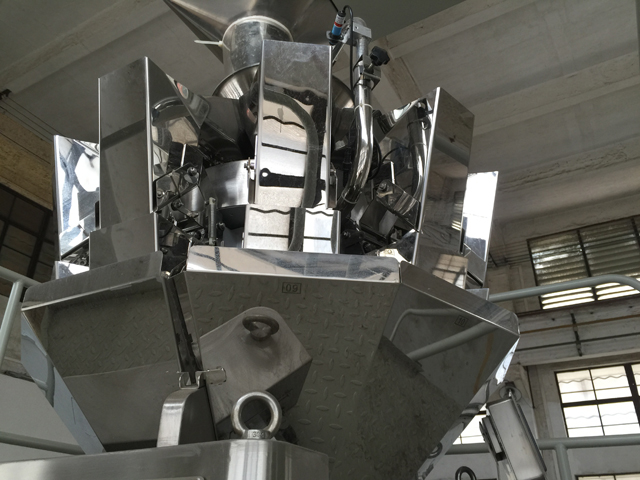

multihead for materials feeding.jpg

Multihead for materials feeding system

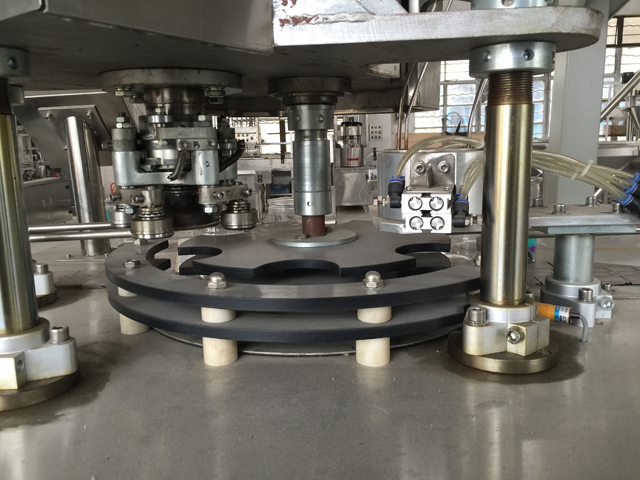

cans automatic sealing part.jpg

Cans sealing part rotary model for metal containers

Metal Cans Samples

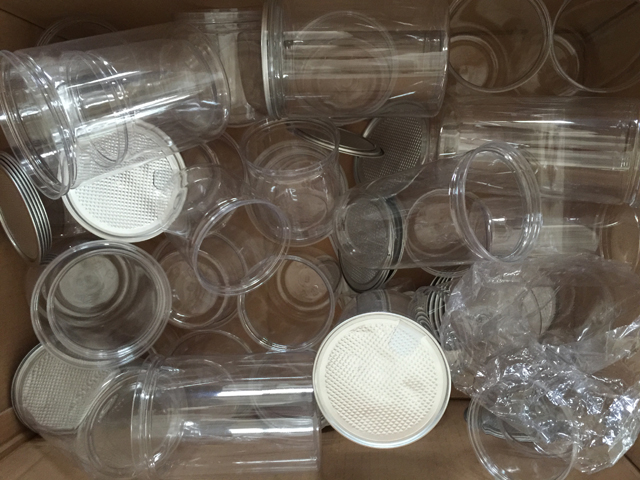

cans samples from customer.jpg

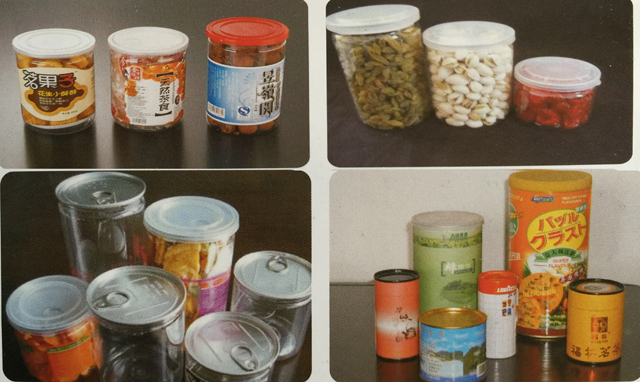

cans samples as final canning products.jpg

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
